RAM-B-125BU

RAM Curved Base Plate with 1" Ball (RAM-B-125BU)

Name: RAM Curved Base Plate with 1" Ball (RAM-B-125BU)
Brand: Modest Mounts
SKU: RAM-B-125BU
Price: 23.65 AUD
Availability: InStock

Size Guide

$23.65 You Save 16% ( $4.70 ) You Save 16% ( $4.70 )

Included:

1 x RAM Curved Base Plate with 1" Ball (RAM-B-125BU)

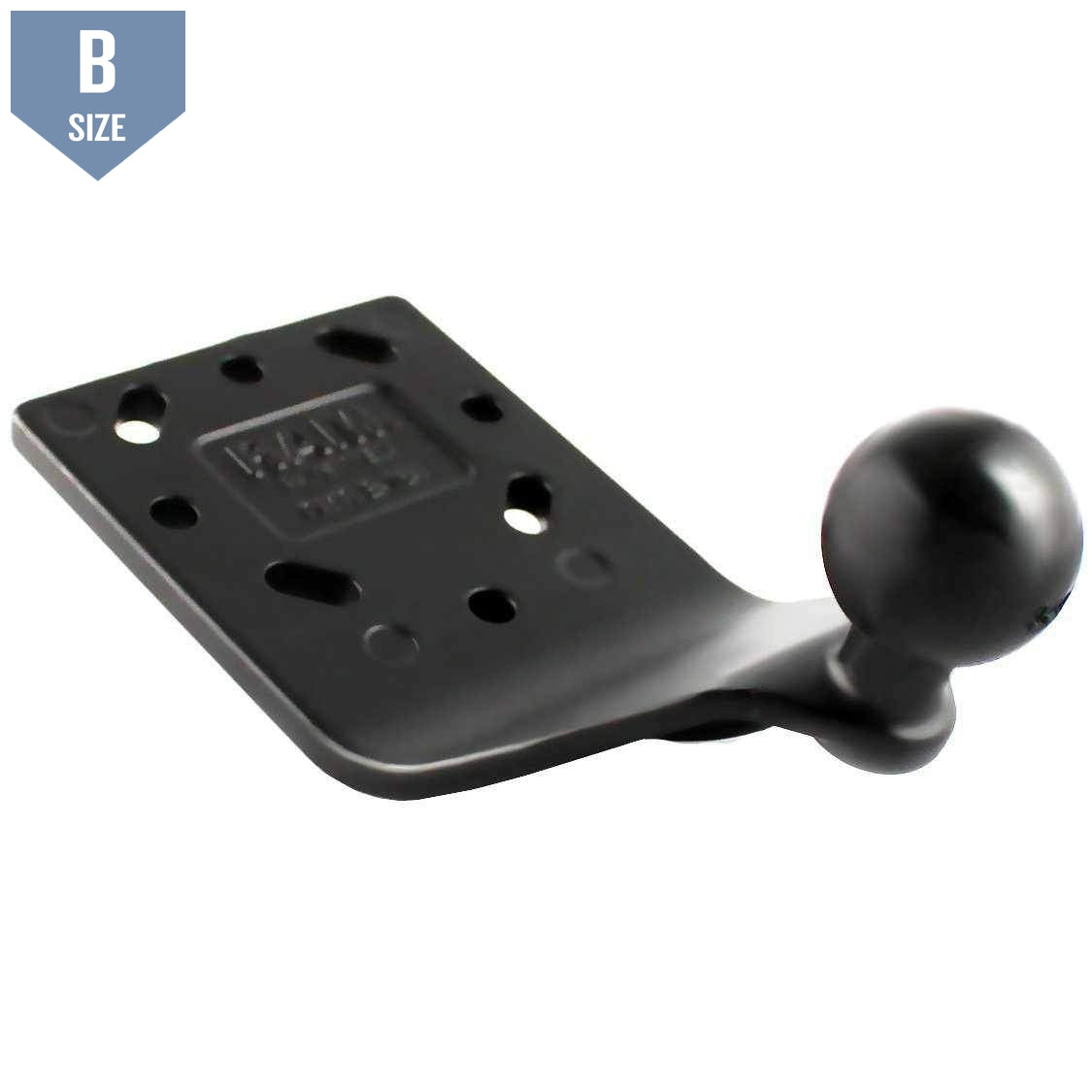

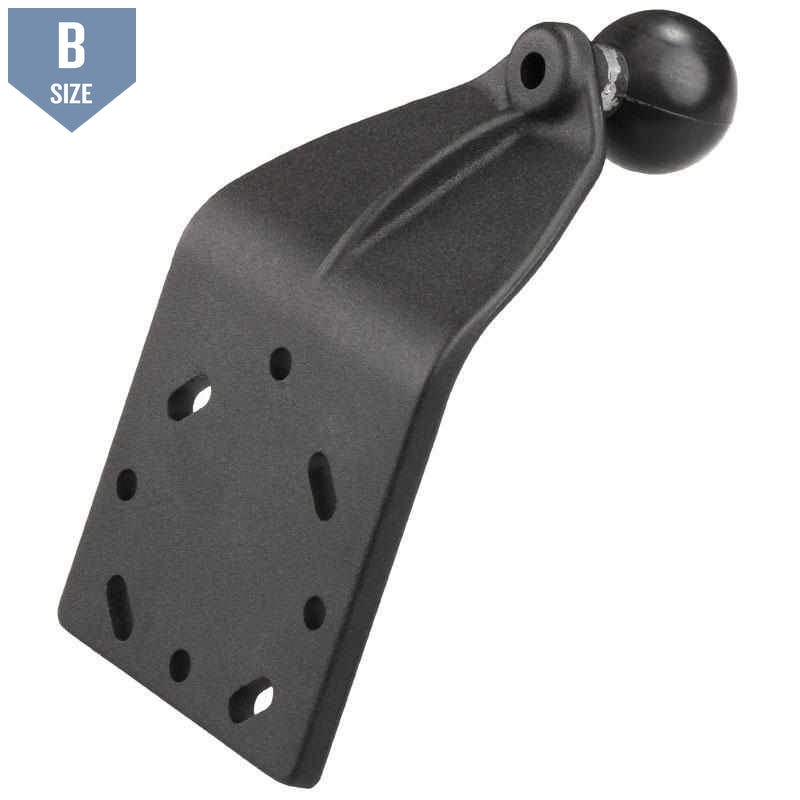

The RAM-B-125BU curved extension base features a 1" rubber ball that can connect to any B Size RAM socket.

Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications.

The mounting section of the plate is 2.5" square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45-degree angle, from the centre of the 1" ball and approximately 1.5" above the 1" ball (to the bottom of the connection section of the plate).

Specifications

Material: Powder Coated Marine Grade Aluminum
Ball Size: B Size 1" Rubber Ball
Note: The "U" in the part number reflects product packaged in poly bag.
Weight: 0.25 lbs.

Help

Collections: All, B Size Components 1", Best Selling Products, Newest Products, Other Mounts, RAM Components

Shipping & Returns

Australia-Wide Shipping:

Here at Modest Mounts we strive to process all orders received before 12:00pm AEDT on the same business day we receive them.

We currently offer the following domestic freight options*:

EXPRESS SHIPPING - For orders under $100. Parcels should arrive within 1-4 business days ($10.95).
FAST SHIPPING - For orders under $100. Receive your parcel in 2-8 business days ($8.95)
FREE FAST SHIPPING - When you spend $100 or more! (FREE)
COURIER SHIPPING -Receive parcel in 1-2 business days ($19.95)

Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium and Toll DX.

Note: Postage fee may be a little higher for some of the heavy or large items.

Returns:

Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition.
Full information available here.

Warranty Info:

Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
