RAM-B-101U-A

RAM Short Socket Arm Two Round Bases B (RAM-B-101U-A)

Name: RAM Short Socket Arm Two Round Bases B (RAM-B-101U-A)
Brand: Modest Mounts
SKU: RAM-B-101U-A
Price: 43.8 AUD
Availability: InStock

Size Guide

$43.80 You Save 9% ( $4.50 ) You Save 9% ( $4.50 )

Included:

1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
2 x RAM Round Base with 1" B Size Ball (RAM-B-202U)

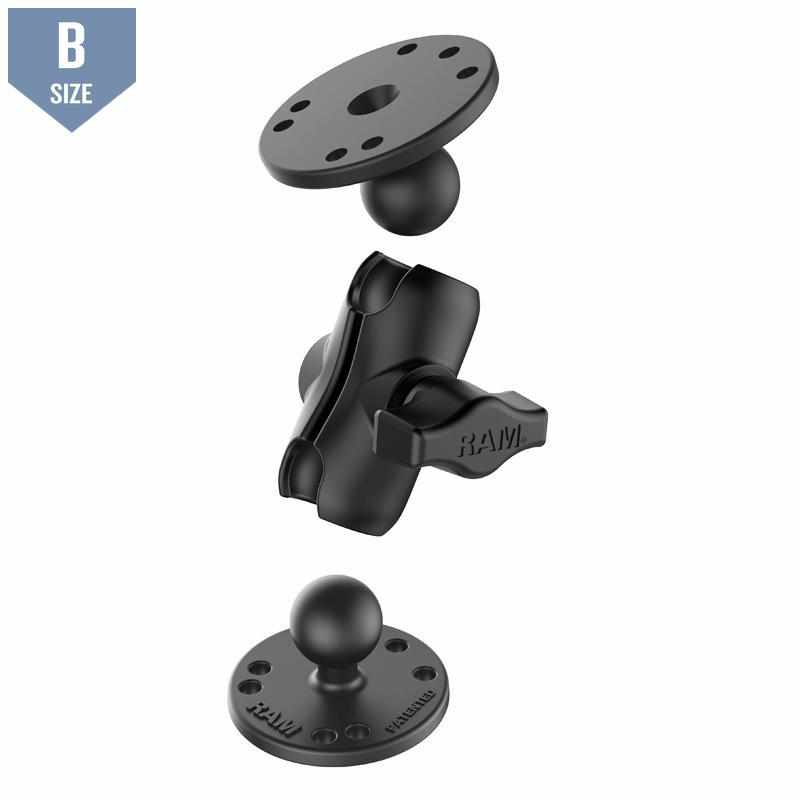

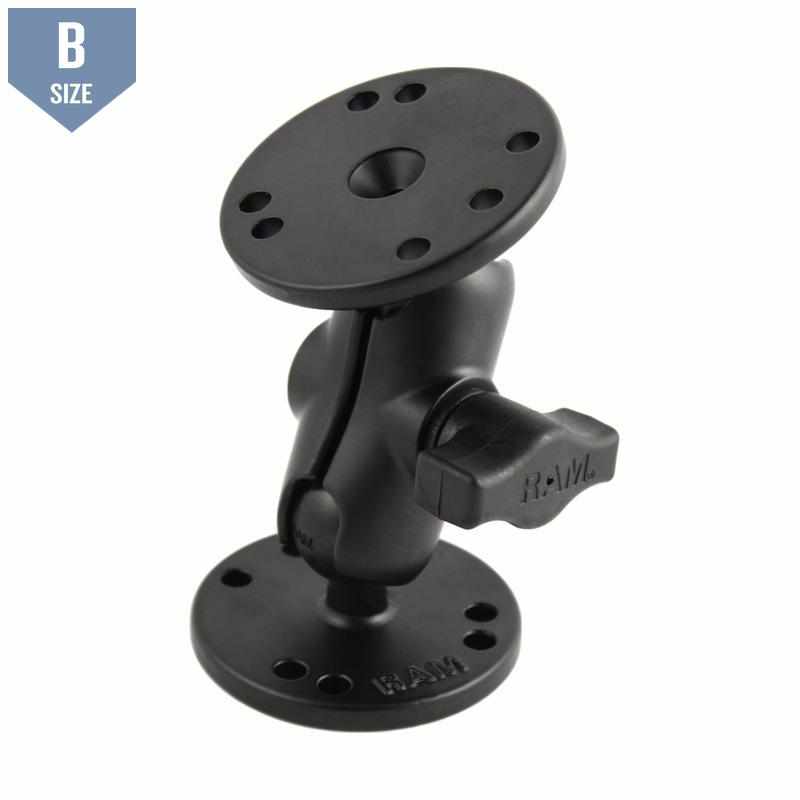

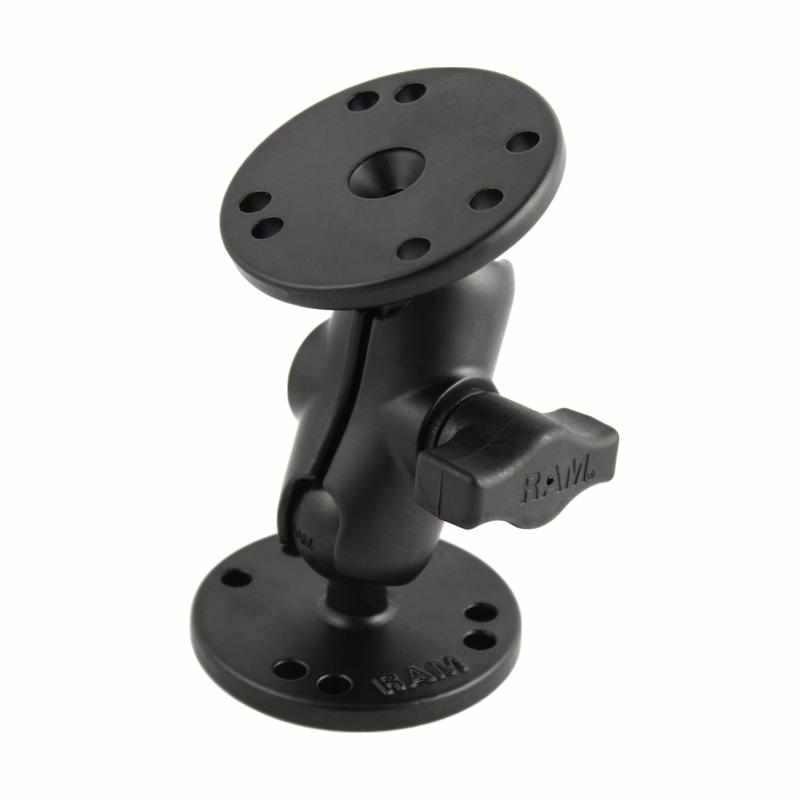

The RAM-B-101U-A consists of a short (6cm) double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles.

The hole pattern found on the round base adapter will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

FEATURES

Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
Includes two round ball bases and B size short length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Specs

Dimensions:

Overall Height: 3.75"
Socket to Socket Length: 1.75"

Material: Powder Coated Marine Grade Aluminium
Ball Size: 1" Rubber "B" Ball Size
Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Weight: 0.44 lbs
Weight Capacity: 2lbs

Help

Collections: All, B Size Components 1", Best Selling Products, Marine Mounts, Newest Products, RAM Components, Tablet Mounts

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
