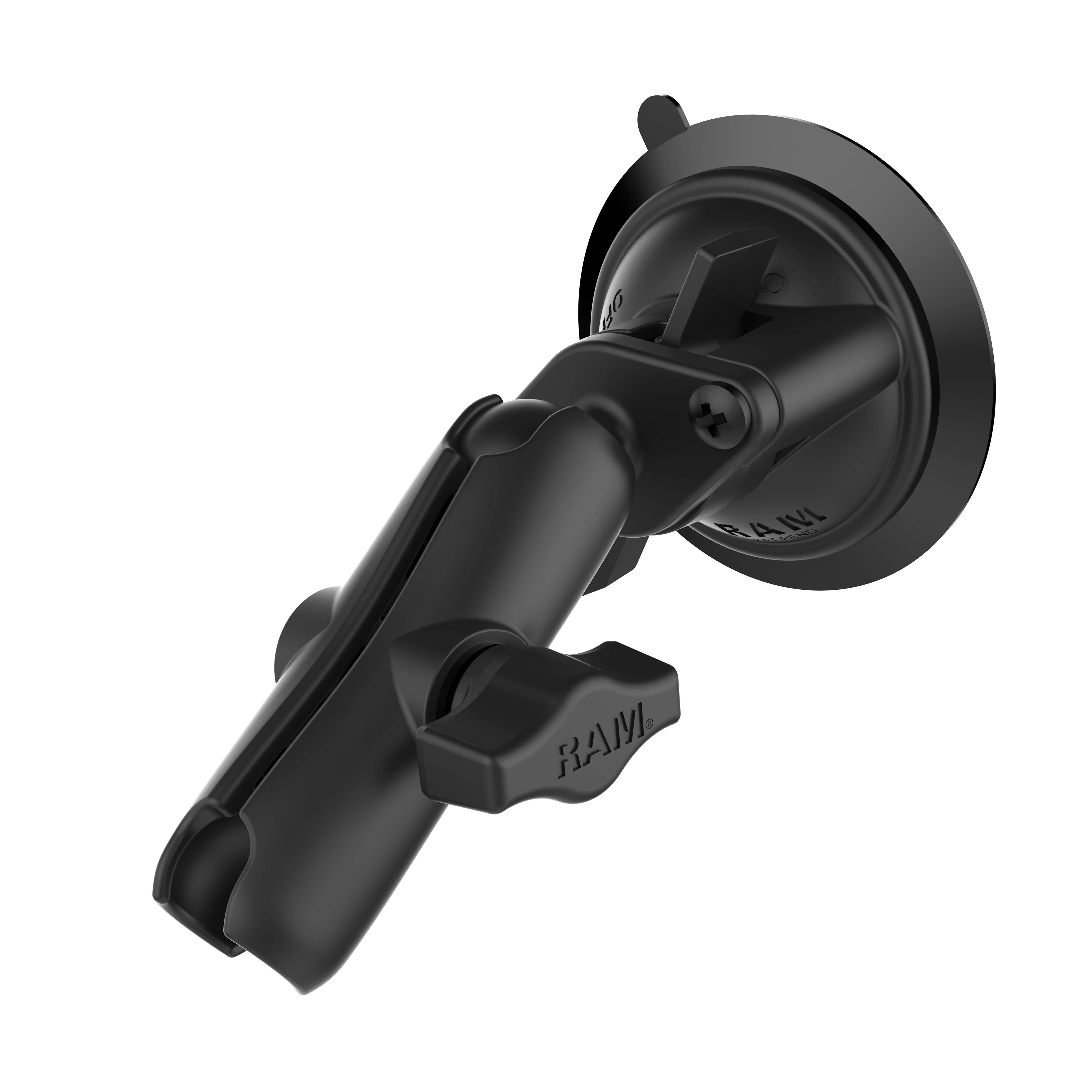

RAM Suction Base and Medium B-Size Socket Arm Bundle (RAM-B-166-103U)

Included:

• 1 × RAM Twist-Lock suction cup base with 1-inch B-size ball (RAM-B-224-1U)
• 1 × RAM medium B-size double socket arm (RAM-B-201U)

A suction base and adjustable medium arm for a holder that already has a 1-inch B-size ball. The free upper socket connects directly to that ball, keeping the assembly simple without an unnecessary upper adapter.

No upper ball plate, device holder or device is included.

Specifications

• Ball and socket system: B size, 1 inch (25.4 mm).
• Suction cup: 3.3 inches (83.8 mm) diameter, with Twist-Lock lever.
• Medium arm: 3.73 inches (94.7 mm) overall, 3 inches (76.2 mm) socket-to-socket.
• Holder-side interface: open B-size socket.
• Materials: marine-grade aluminium arm; aluminium and high-strength composite suction assembly.
• The suction base includes its assembly hardware.
• RAM's published B-size ratings: up to 2 lb (0.91 kg) standard use and 1 lb (0.45 kg) heavy-duty use. Assess the complete holder-and-device load, mounting surface, leverage and vibration.
• Packaging may vary; all listed components are genuine RAM.
• Warranty: RAM's limited lifetime warranty is subject to its terms; suction-cup rubber is a wear item and is excluded. The warranty does not extend to a device, vehicle or installation.

Compatibility

A compatible holder with an integrated 1-inch B-size ball fits directly into the open socket. For a flat-backed holder, select the ball plate that matches its attachment pattern, such as a B-size diamond two-hole AMPS plate or round four-hole AMPS plate. A plate is an additional part only when the chosen holder requires it. C-size balls require a matching C-size arm.

Help

Use the suction cup on a clean, smooth, non-porous surface such as glass. Confirm the seal, mounting clearance and loaded stability before use, and check the suction attachment regularly. Keep the assembly clear of controls, sight lines and moving parts.
