RAM X-Grip Phone Mount w Low Profile Suction Base (RAP-B-166-2-A-UN7U)

Included:

• 1 x RAM X-Grip Universal Phone Holder (RAM-HOL-UN7BU)
• 1 x RAM Tether for UN7 X-Grips (RAM-HOL-UN7TU)
• 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
• 1 x RAM Low Profile Suction Cup Base w 1" Ball (RAP-B-224-2U)

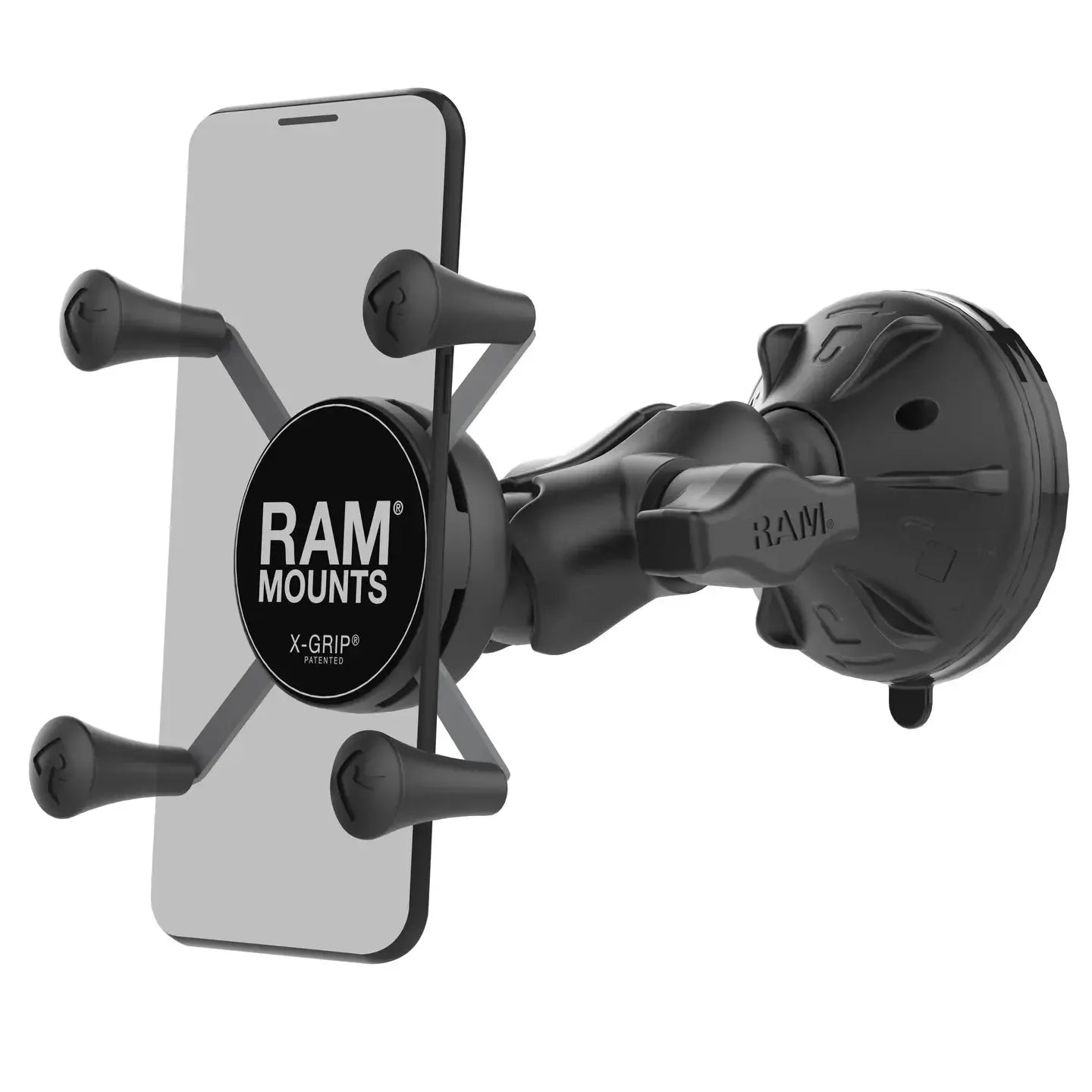

Ideal for vehicle windscreens, the RAP-B-166-2-A-UN7U consists of a 2.75" diameter low-profile RAM Twist-Lock suction cup base, short length double socket arm, and the popular spring-loaded RAM X-Grip phone holder. The RAM X-Grip features an 'X' design that expands and contracts to provide a perfect fit for your device - even if it's in a case.

Made of high-strength composite and stainless steel, this version of the RAM X-Grip fits phones ranging from 1.875" (47.6 mm) – 3.25" (82.6 mm) in width and keeps your device completely functional and accessible. RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle - while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM X-Grip includes a device tether that is recommended for added security and peace of mind.

Features

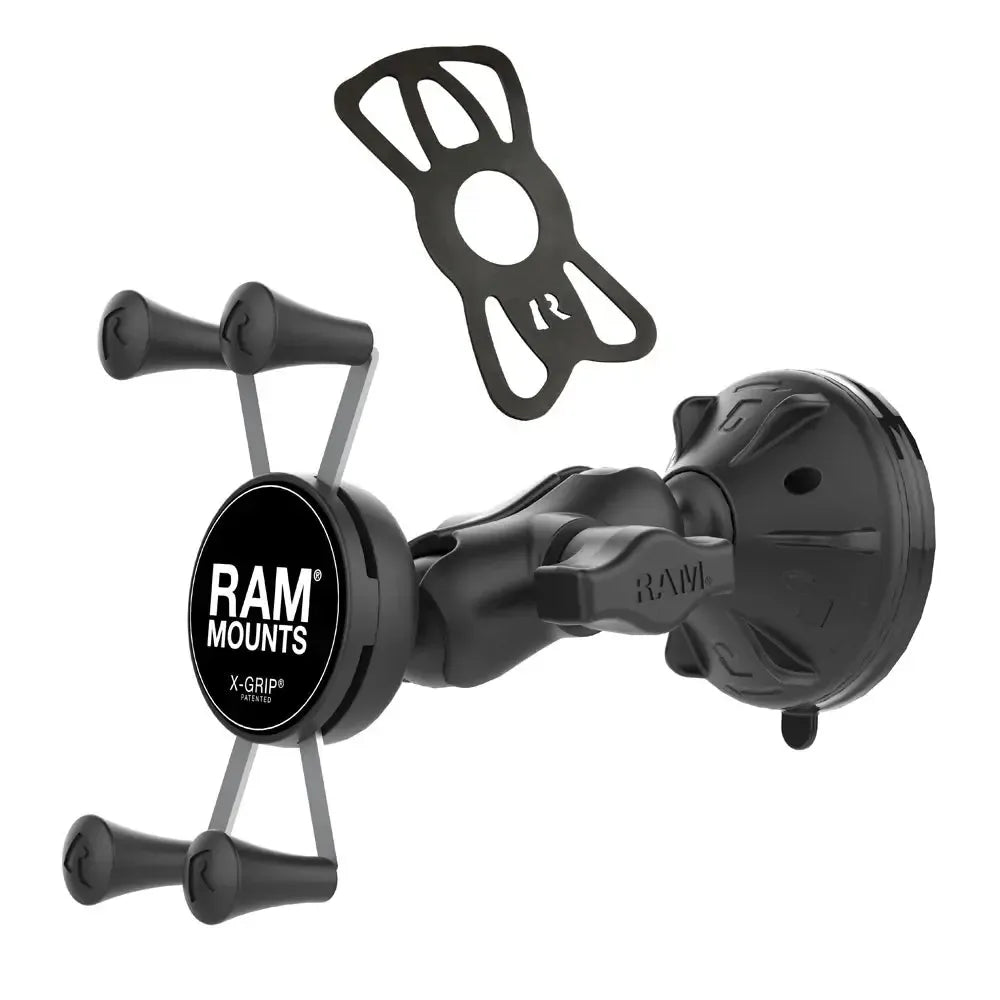

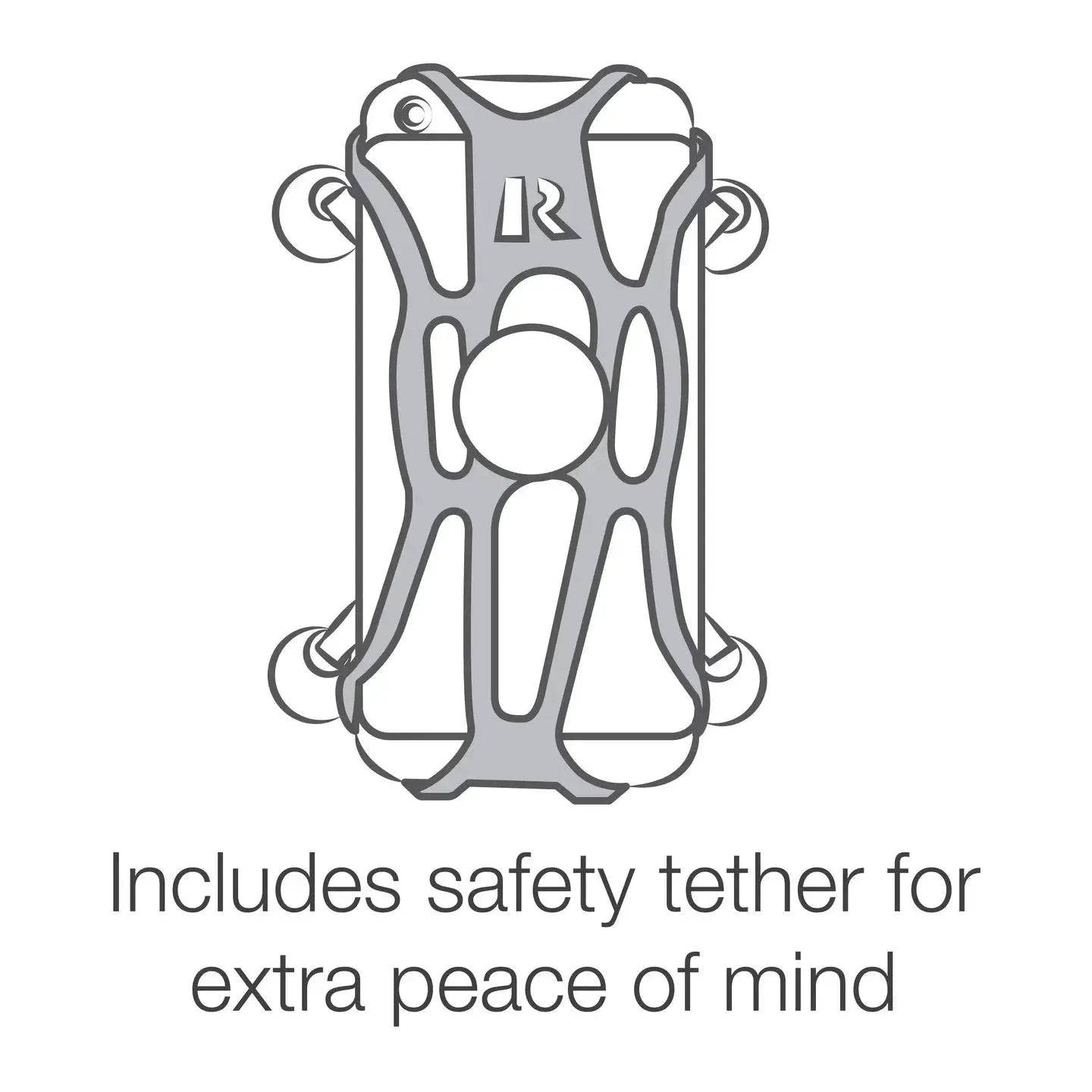

• Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

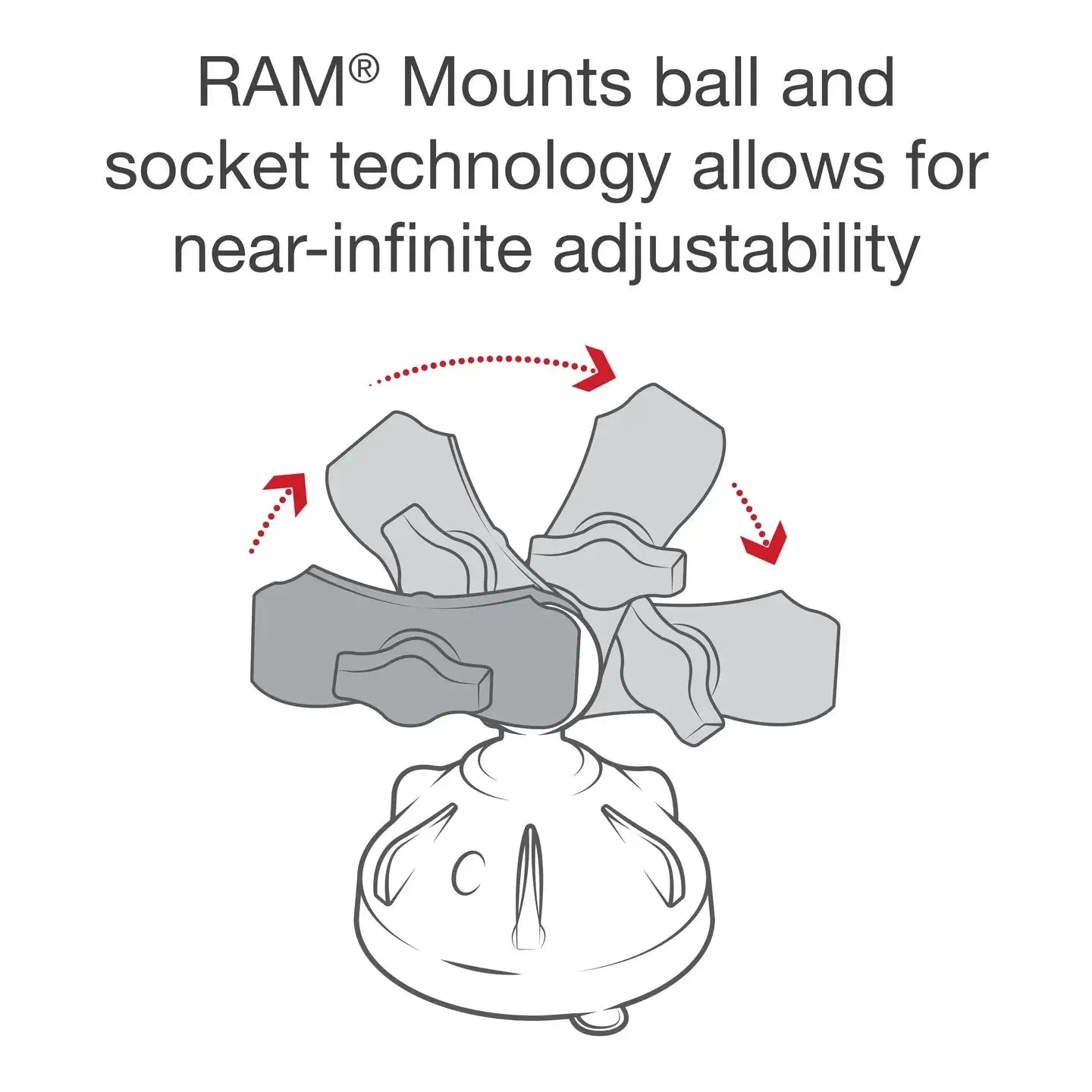

• Includes low-profile RAM^® Twist-Lock^™ suction cup base ideal for vehicle windshields and short length, B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of stainless steel components and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty*

The cradle is compatible with many devices (see 'Compatibility' below).

Specs

Hardware Included

• (1) Optional tether

• (1) Glue tube for rubber caps

Holder Dimensions

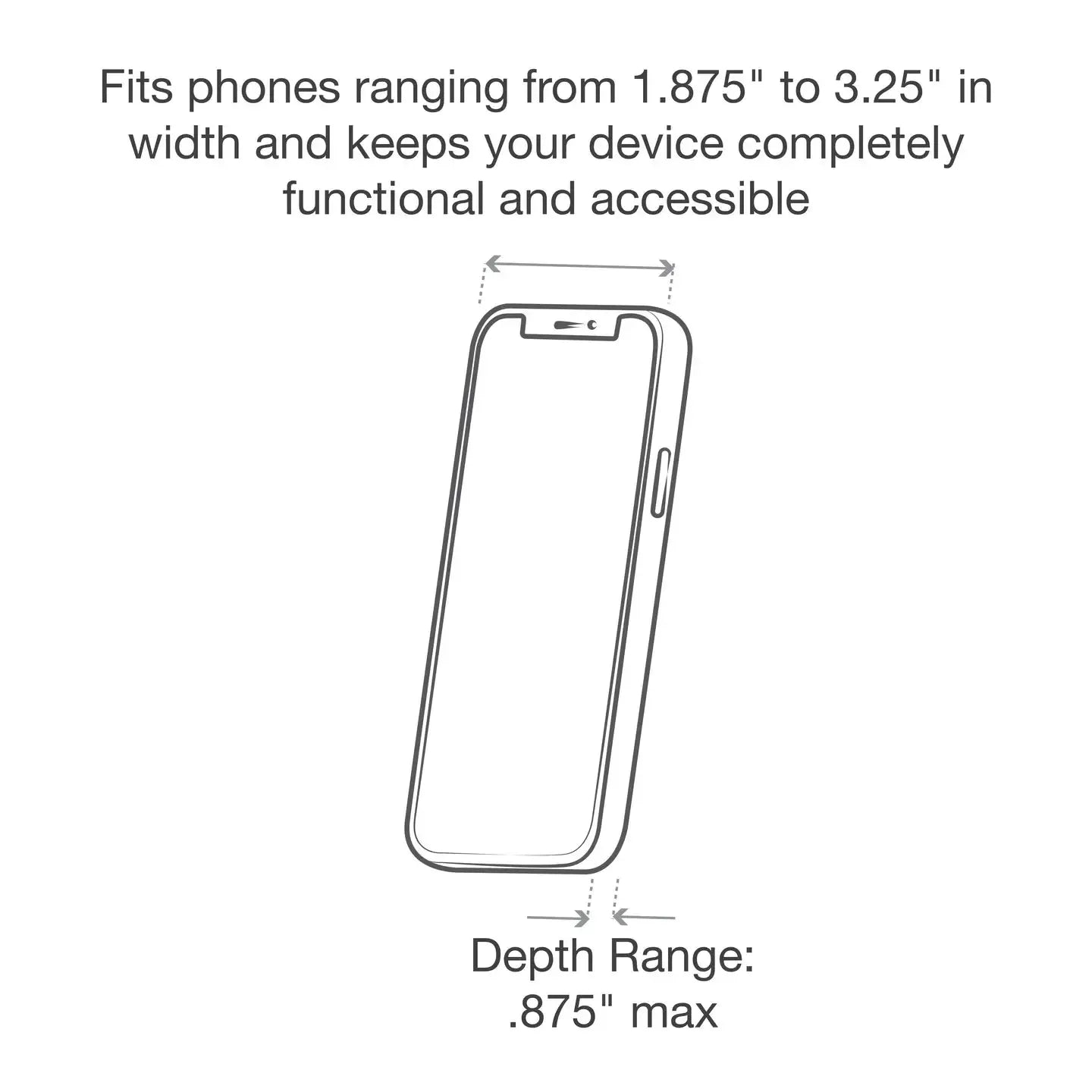

• Width range: 1.875" (47.6 mm) – 3.25" (82.6 mm)

• Depth range: 0.875" (22.2 mm) max

Suction Size

• 2.75" (69.9 mm) diameter

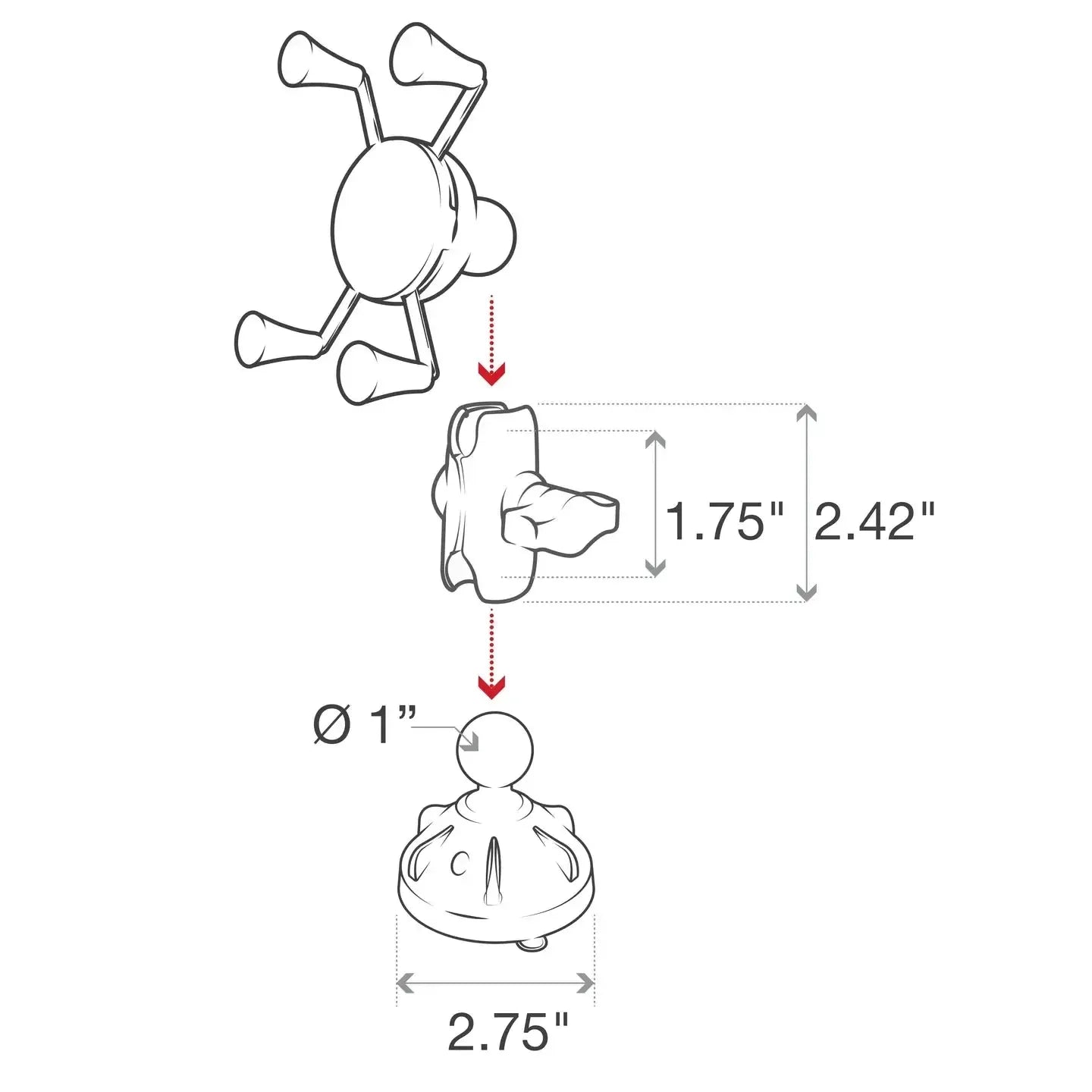

Socket to Socket Length

• 1.75" (44.5 mm)

Ball Size

• B Size (1") (25.4 mm)

Weight Capacity

• Standard use: 2 lbs (0.91 kg)

• Heavy-duty use: 1 lb (0.45 kg)

Materials

• High-strength composite

• Stainless steel

Packaging Type

• Poly bag

Weight

• 0.47 lb (0.21 kg)

Help

• RAM® X-Grip® Assembly Guide
