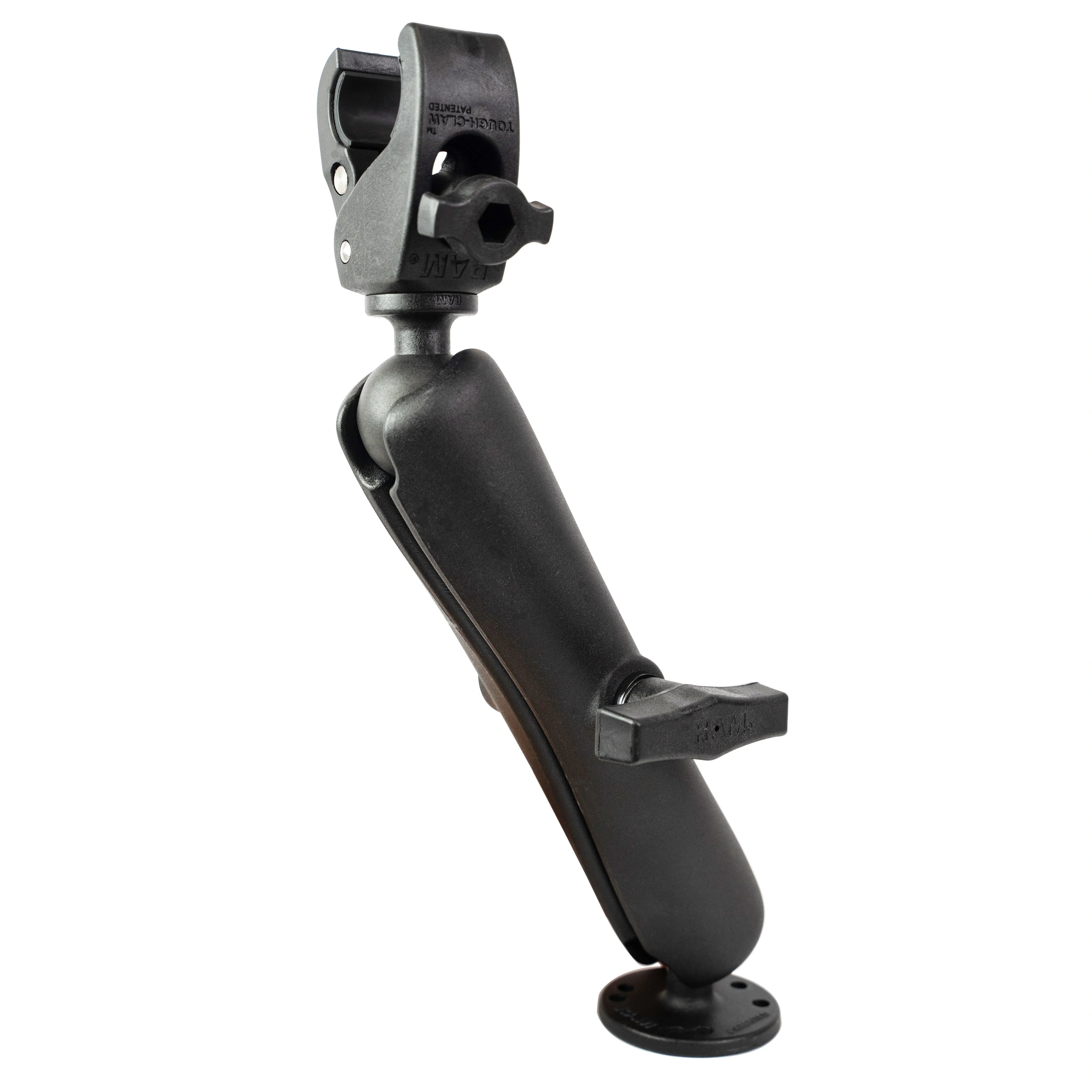

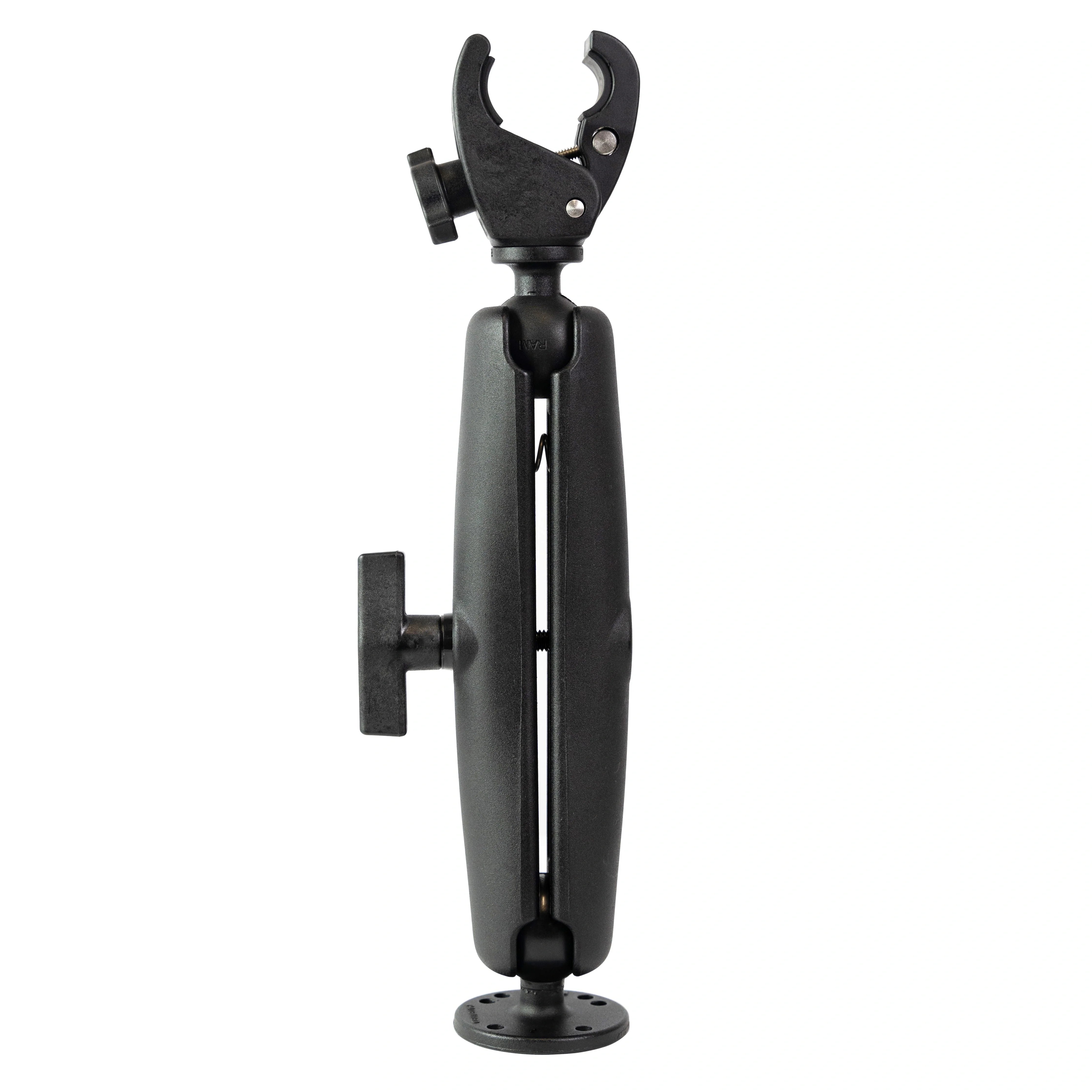

RAM Tough-Claw Trolling Motor Stabiliser w Long C Size Arm (RAP-400-D-202U)

Included:

• 1 x RAM Small Tough-Claw Clamp Base with 1.5" C Size Ball (RAP-400U)
• 1 x RAM Long Double Socket Arm, C Size (RAM-201U-D)
• 1 x RAM Round Plate with 1.5" C Size Ball (RAM-202U)

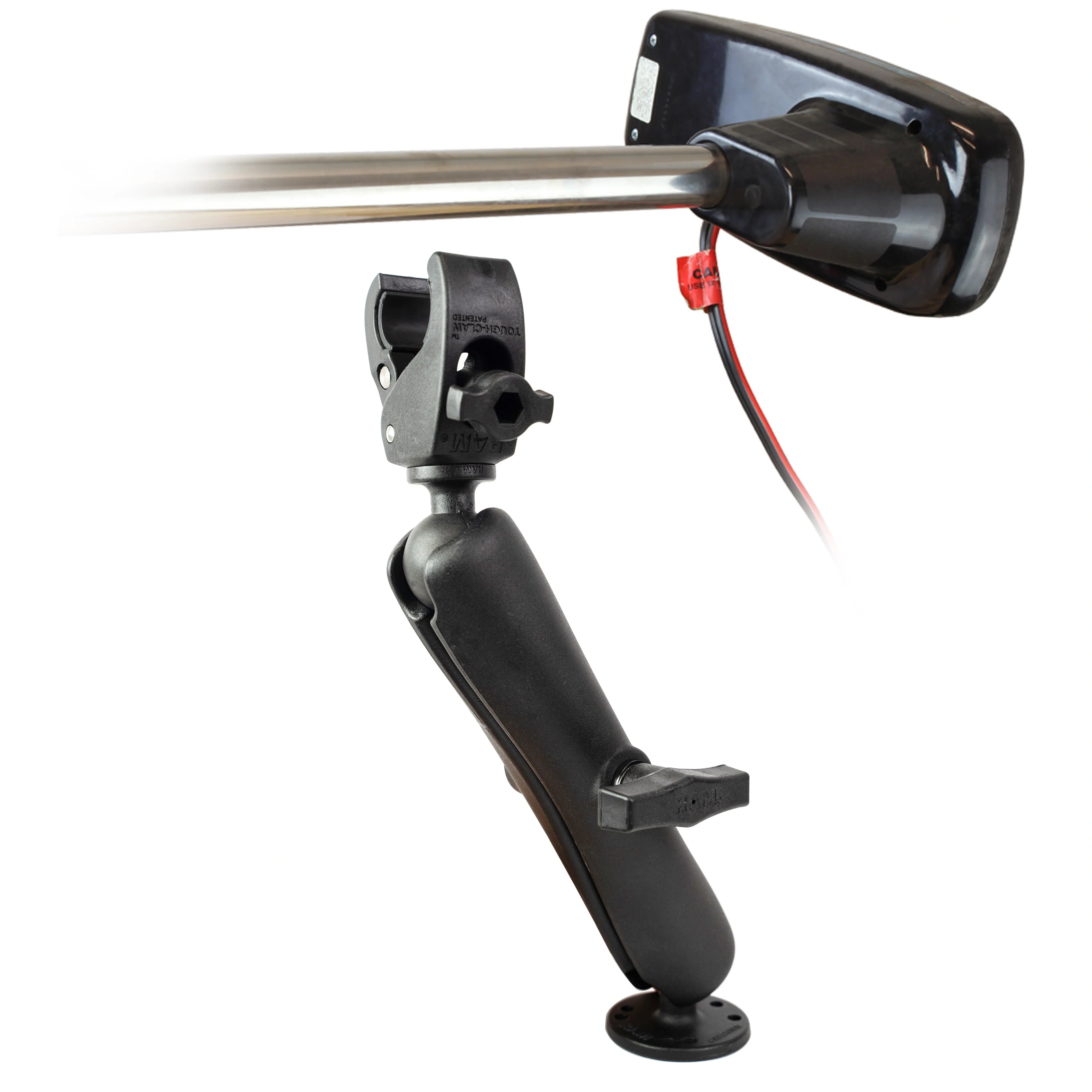

This long-arm RAM support is designed to reduce unwanted movement of a stowed trolling motor during travel. Fasten the round plate to a suitable mounting surface and secure the Tough-Claw around the motor shaft; the long C size arm adjusts between the two.

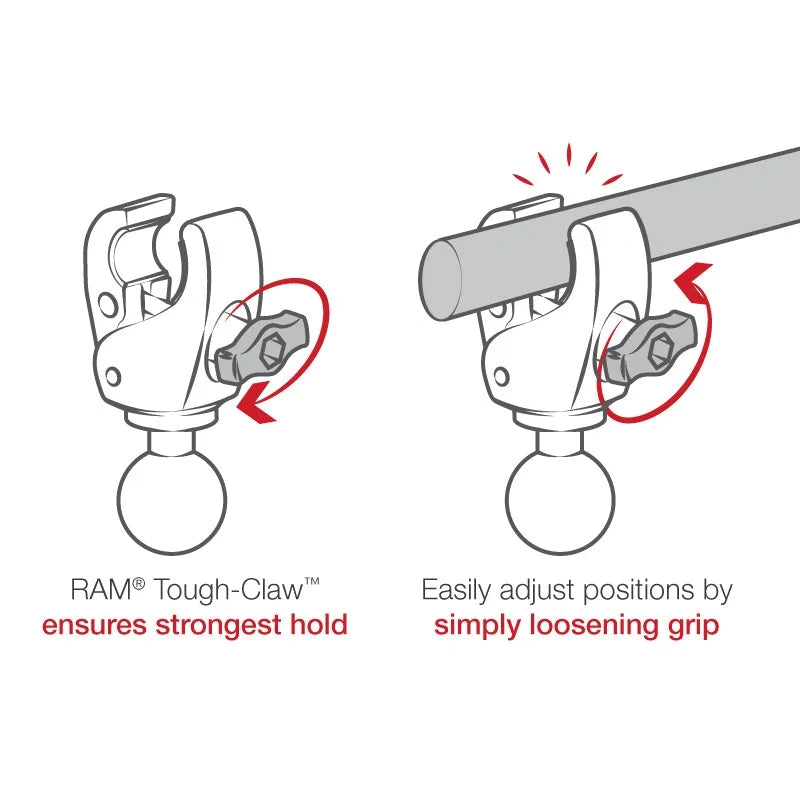

The Tough-Claw tightens by hand, while its rubber pads improve grip and help protect the motor shaft.

RAM’s rubber ball-and-socket system provides adjustment at both ends of the arm and helps dampen shock and vibration.

For an alternative device-mounting setup, its AMPS plate can accept a separately selected compatible holder or dock. Trolling motor, boat, device and holder shown in application images are not included.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Arm Length: Long
• Overall Arm Length: 9.125" (231.8mm), RAM-201U-D

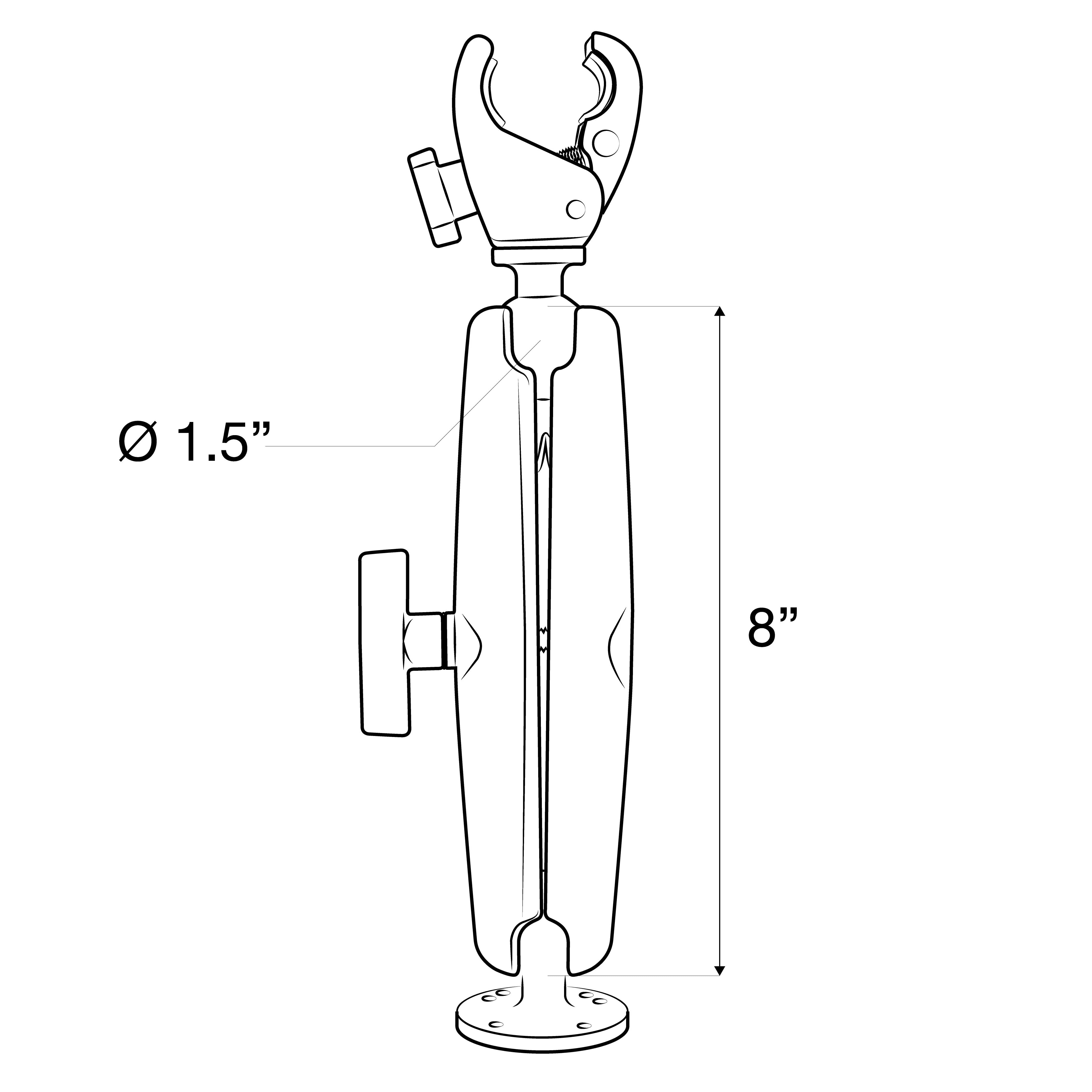

• Socket-to-Socket Length: 8" (203.2mm)
• Clamp Range: 0.625"–1.14" (15.88–28.96mm) outside diameter
• Plate Size: 2.5" (63.5mm) diameter round plate
• Hole Pattern: 4-hole AMPS: 1.181" x 1.496" (30 x 38mm); 3-hole 120-degree pattern: 1.812" (46.02mm) diameter
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium and high-strength composite
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.

Packaging may vary; all listed components are genuine RAM.

Help

For an alternative device-mounting setup, the supplied holder-side round plate presents the 4-hole AMPS (30 x 38mm) pattern for a matching flat-backed holder or dock. A holder with its own compatible 1.5" C size ball can attach directly to the arm instead, without the upper plate. Match the holder’s connection and ball size before choosing the setup.

Check shaft diameter, mounting-surface strength and the motor’s stowed position before fitting. This kit is a trolling-motor stabiliser in its own right.

Include the holder, device and attached accessories when checking the load. Choose the heavy-duty rating for more demanding conditions and follow the manufacturer’s installation instructions.
