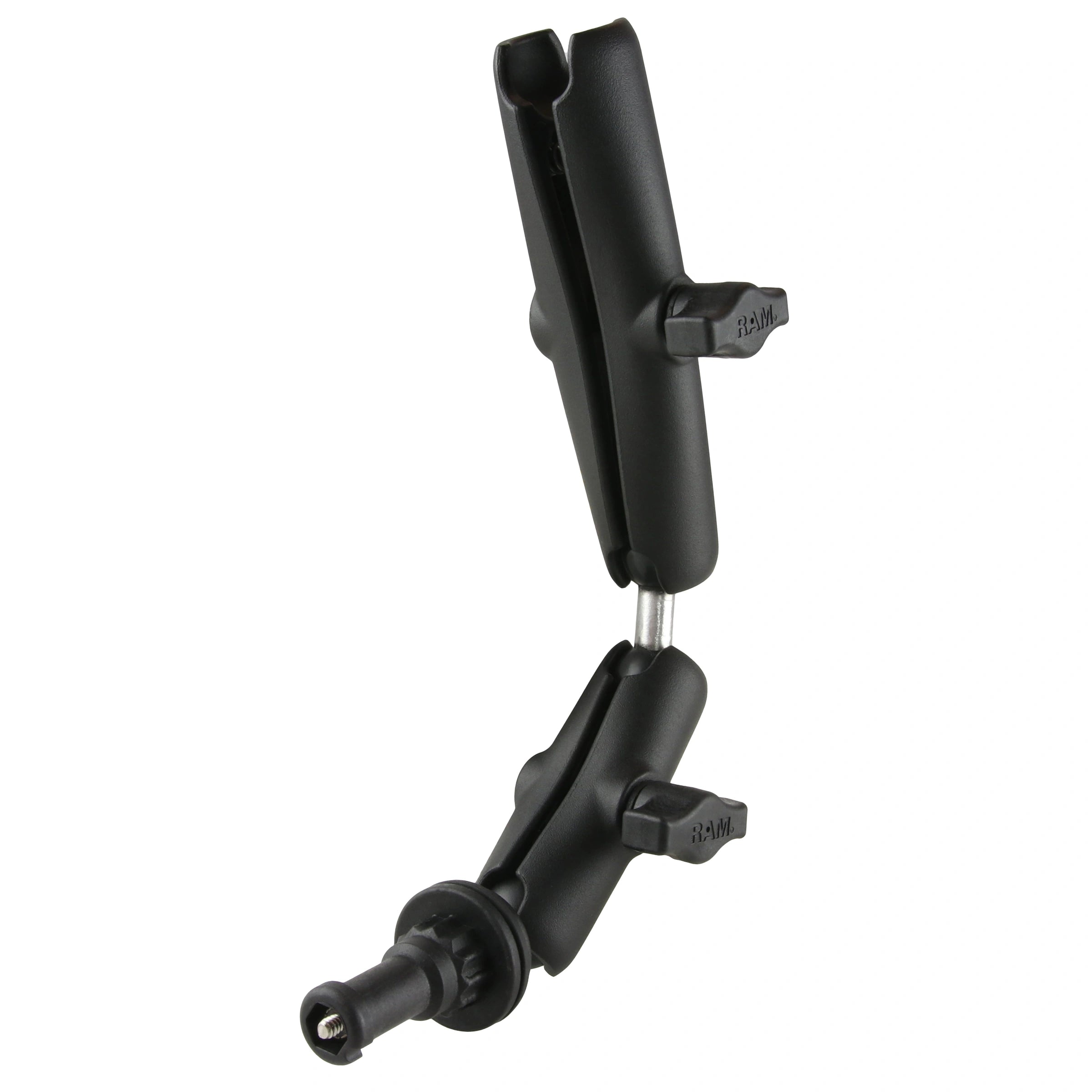

RAM Quick Release Wheelchair Socket Arm Extension (RAP-B-419-201-201U-C)

Included:

• 1 x RAM Spline Post Ball Adapter, B Size (RAP-B-354-419U)
• 1 x RAM Medium Double Socket Arm, B Size (RAM-B-201U)
• 1 x RAM Double Ball Adapter, B Size (RAM-B-230U)
• 1 x RAM Long Double Socket Arm, B Size (RAM-B-201U-C)

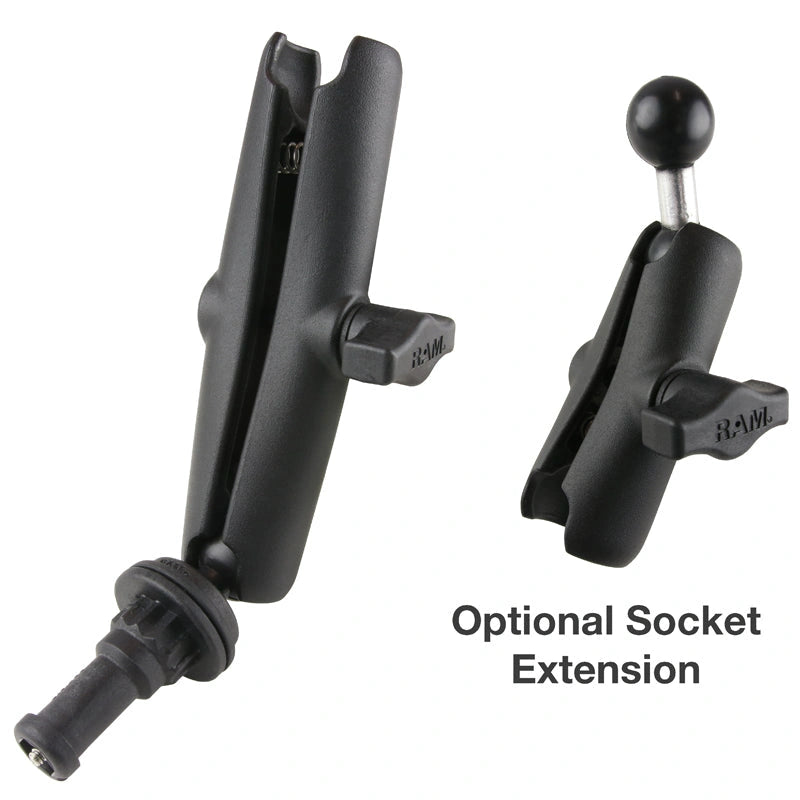

The RAP-B-419-201-201U-C combines medium and long B size socket arms with a double-ball connector and spline-post adapter. Use the arms together for extra reach, or use one arm where a shorter arrangement suits the setup. The quick-release post lets you insert or remove the extension from the compatible wheelchair base as needed.

Holder, device and wheelchair base are excluded. Connect the lower spline post to a compatible RAM Universal Wheelchair Base receiver (RAP-AAPR-WCT), sold separately. The open upper B size socket accepts a holder with a built-in 1" ball. A flat-backed holder needs a separate B size ball plate with the correct mounting pattern.

Specifications

• Connection: Lower: spline post for the RAP-AAPR-WCT wheelchair-base receiver. Upper: open socket for a 1" B size ball.
• Ball/Socket Size: B Size, 1" (25.4mm)
• Medium Arm Overall Length: 3.73" (94.7mm)
• Long Arm Overall Length: 6" (152.4mm)
• Joined Double-Arm Subassembly: 10.65" (270.51mm) overall; 9.92" (251.97mm) socket-to-socket
• Manufacturer-rated Capacity: Standard use: 2 lb (0.91kg); heavy-duty use: 1 lb (0.45kg), for the supported load across the assembly
• Materials: Powder-coated marine-grade aluminium and high-strength composite
• Weight: 1.02 lb (approximately 463g)
• Packaging: Poly bag
• Manufacturer Part Number: RAP-B-419-201-201U-C
• UPC: 793442015144
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • Assembly hardware

Help

The 10.65" dimension applies only to the joined double-arm subassembly. It is not the full installed height or reach including the spline adapter, base and holder. Check reach, clearances and total supported weight for the actual position.

Compatible RAP-AAPR-WCT wheelchair base (sold separately).

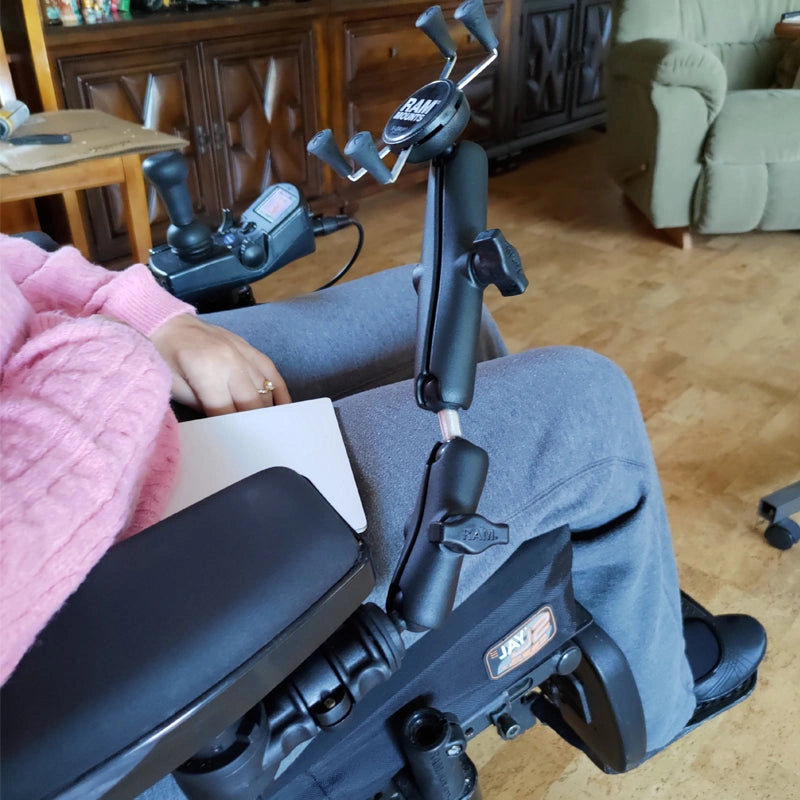

Application photos show example installations. The wheelchair, receiver/base, holder and device shown are not included.

Double-arm component dimensions
