RAM Square Post Clamp Base 1.75"–4" B Size (RAM-B-247U)

Included:

• 1 x RAM Adjustable Square Post Clamp Base, B Size (RAM-B-247U)

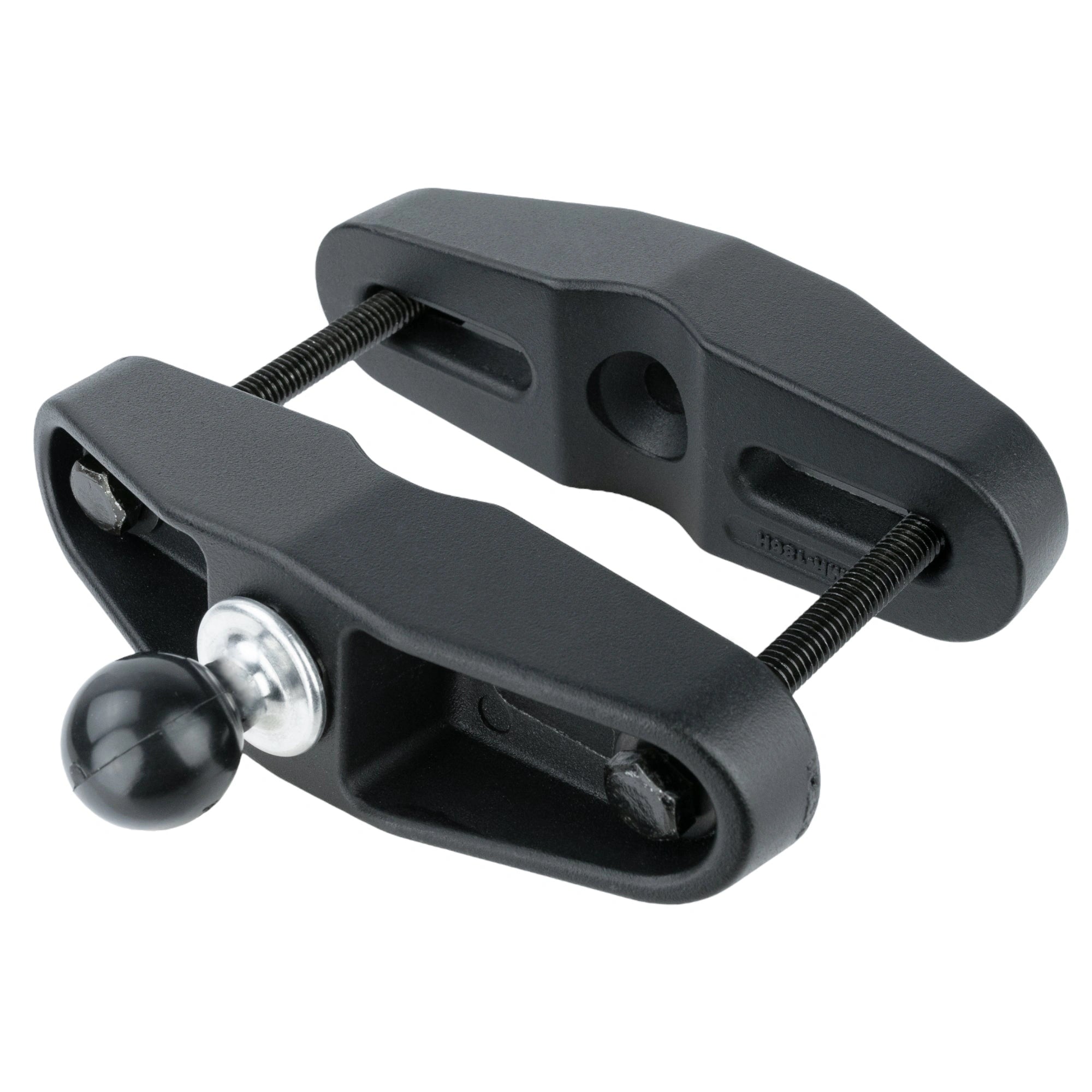

The RAM-B-247U is an adjustable clamp base for square posts from 1.75" to 4" wide, including suitable forklift posts. Slotted holes allow the two clamp plates to fit different post widths, while the integrated 1" B size ball connects to a matching RAM socket arm.

Arm, holder and device are sold separately. Add a B size socket arm, then choose the holder-side connection to suit the holder. A holder with a built-in B ball can attach to the arm directly; a flat-backed holder needs the appropriate B size ball plate.

Specifications

• Connection: 1" (25.4mm) B size ball for a matching B size double socket arm.
• Ball/Socket Size: B Size, 1" (25.4mm)
• Post Width: 1.75"–4" (44.45–101.6mm); square posts
• Included Bolt Length: 3.5" (88.9mm)
• Manufacturer-rated Capacity: Standard use: 2 lb (0.91kg); heavy-duty use: 1 lb (0.45kg), for the supported load across the assembly
• Materials: Powder-coated marine-grade aluminium
• Weight: 1.35 lb (approximately 612g)
• Packaging: Poly bag
• Manufacturer Part Number: RAM-B-247U
• UPC: 793442921230
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • 2 x 5/16"-18 x 3.5" hex bolts
  • 2 x 5/16"-18 nuts
  • 2 x flat washers
  • 2 x lock washers
  • 2 x rubber caps

Help

Measure both post dimensions and check bolt reach, mounting clearance and combined load before fitting. This adjustable RAM-B-247U is distinct from the fixed-width RAM-B-247U-2, RAM-B-247U-25 and RAM-B-247U-15 variants.
