RAP-AAPR-WCT

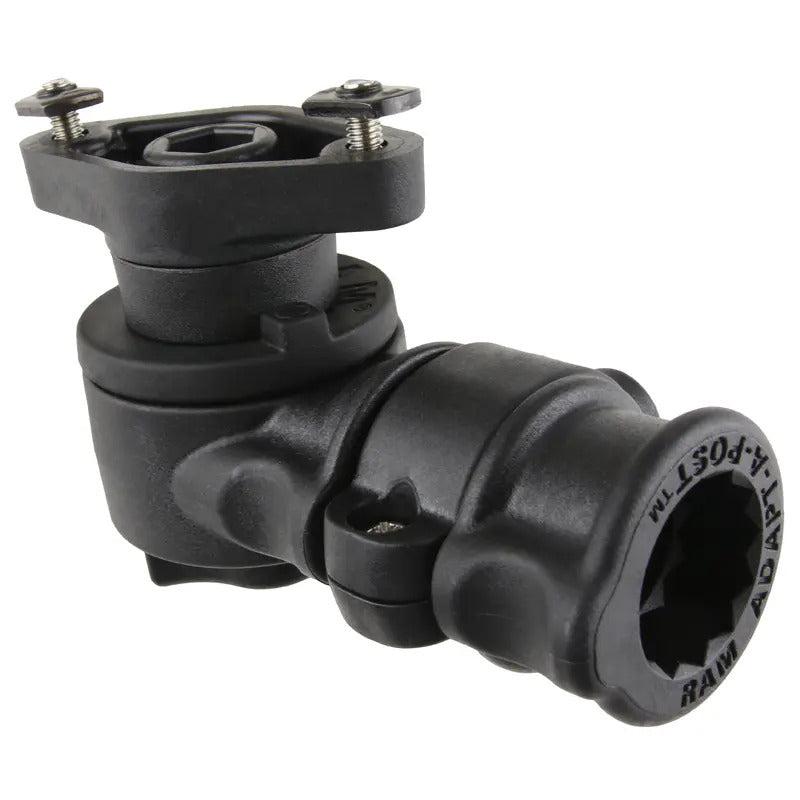

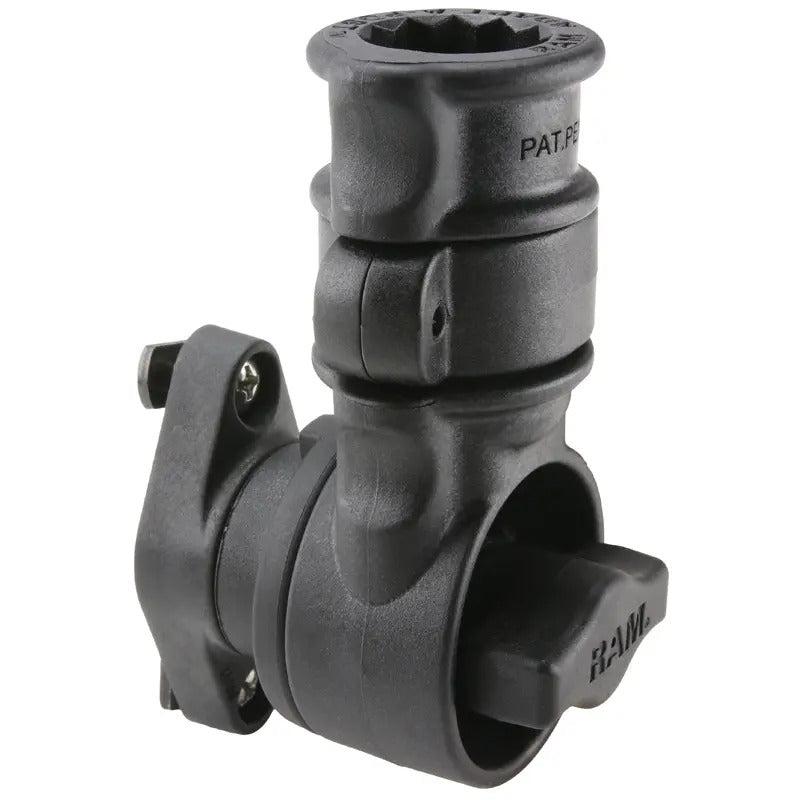

RAM Universal Wheelchair Base Quick Release Swivel (RAP-AAPR-WCT)

Size Guide

Included:

  • 1 x RAM Universal Wheelchair Base Quick Release Swivel (RAP-AAPR-WCT)

    • Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests
    • Easy swivel and quick release capabilities without changing ball and socket positioning

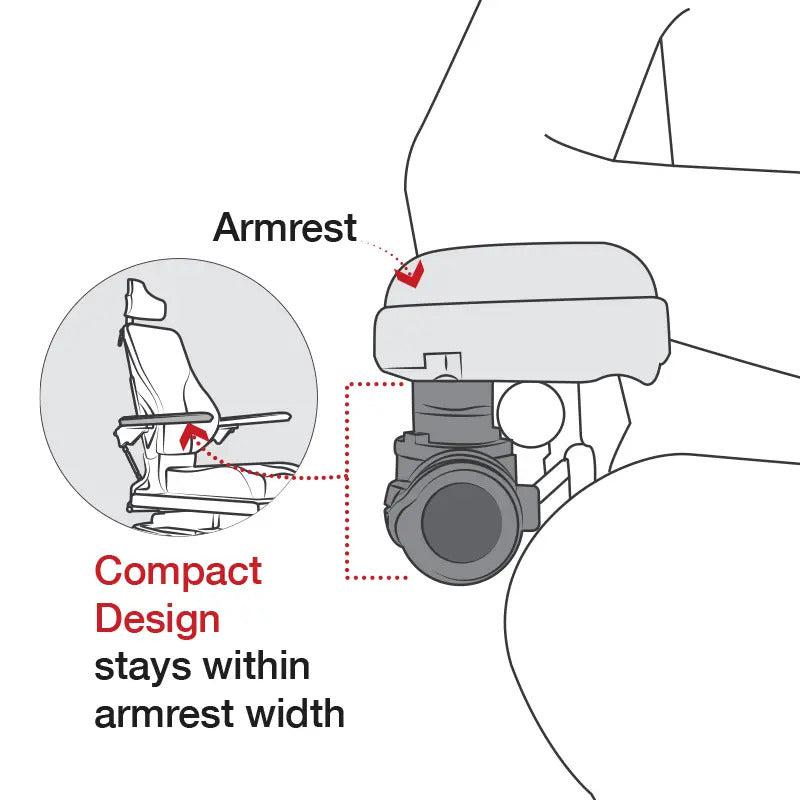

    • Compact design keeps mount within armrest width
    • Durable components support any phone or tablet mount with a short or long extension
    • Backed by a lifetime warranty

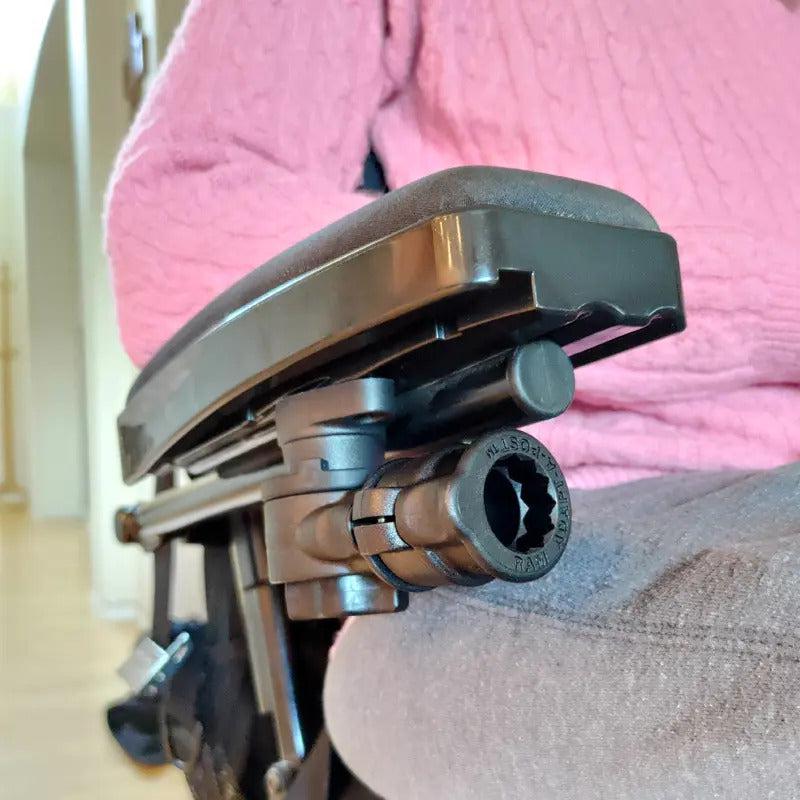

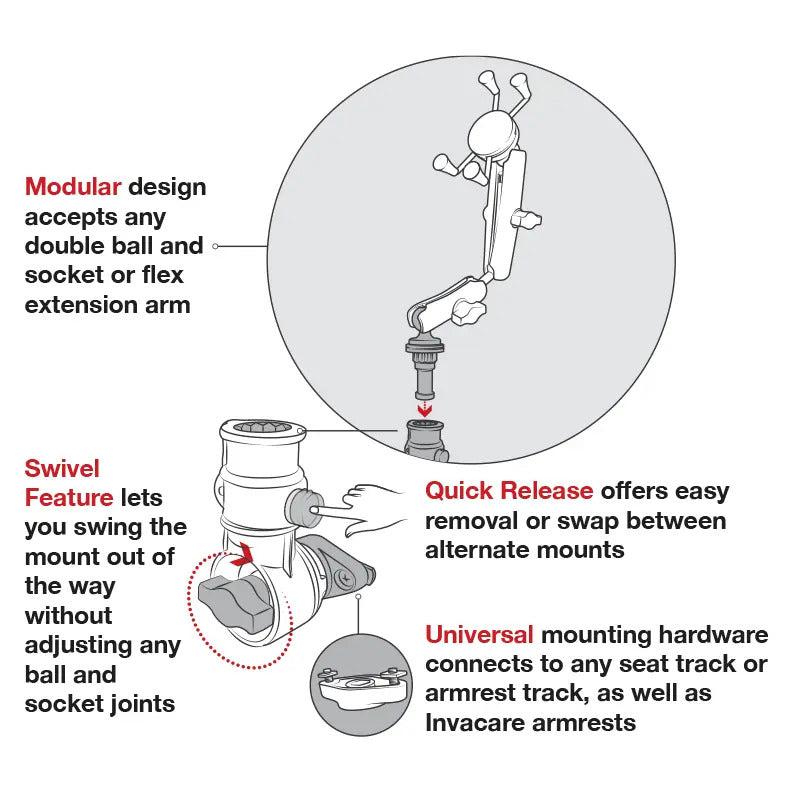

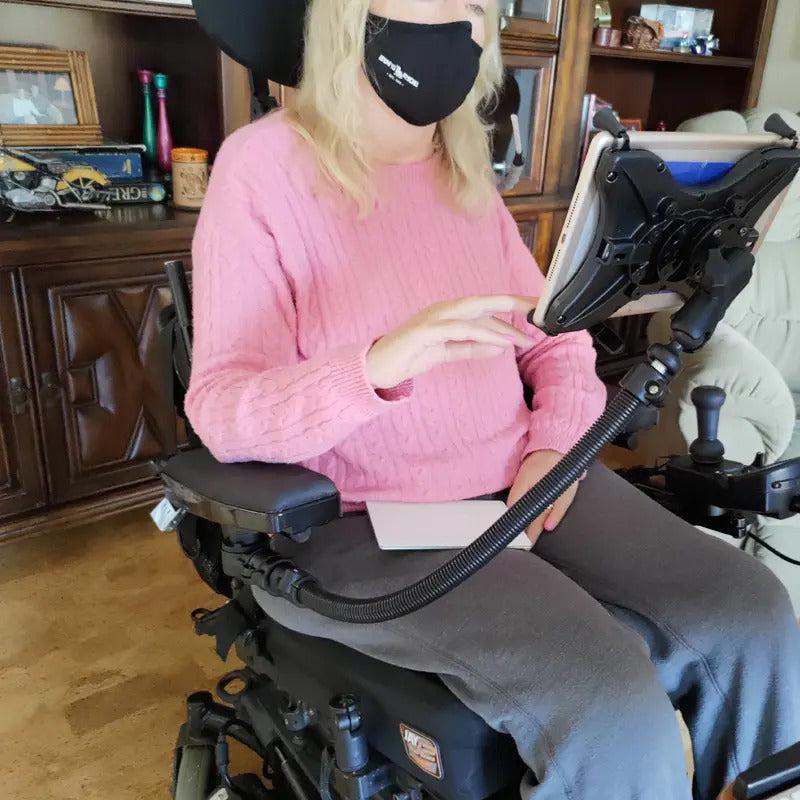

    The RAM® Universal Wheelchair Base is a feature-rich mounting platform supporting any phone, tablet or cup holder for any wheelchair armrest or seat track. With the turn of a single knob the user can swivel the entire mounting system in and out of position without having to adjust any other mounting components. A quick release button is integrated into the base which allows the user to easily remove or insert the mount from the chair; also a great option for swapping out one device mount for another. The compact design of the RAM® Universal Wheelchair base keeps the mounting system within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting components are backed by a lifetime warranty.



    Specs

    HARDWARE INCLUDED

    (2) #10-32 T-Nuts
    (2) #10-32 Flat Weld Nuts
    (2) #10-32 x 7/16" Machine Screws
    (2) #8-32 x 3/4" Machine Screws
    (2) #8-32 Nylock Nuts
    (2) #8 Washers

    T BOLT DIMENSIONS

    Large: .48" x .95"
    Small: .375" x .593"

    HOLE PATTERN

    2-Hole AMPS: 1.912"

    MATERIALS

    High strength composite

    PACKAGING TYPE

    Retail Bag

    WEIGHT

    0.41 lb
