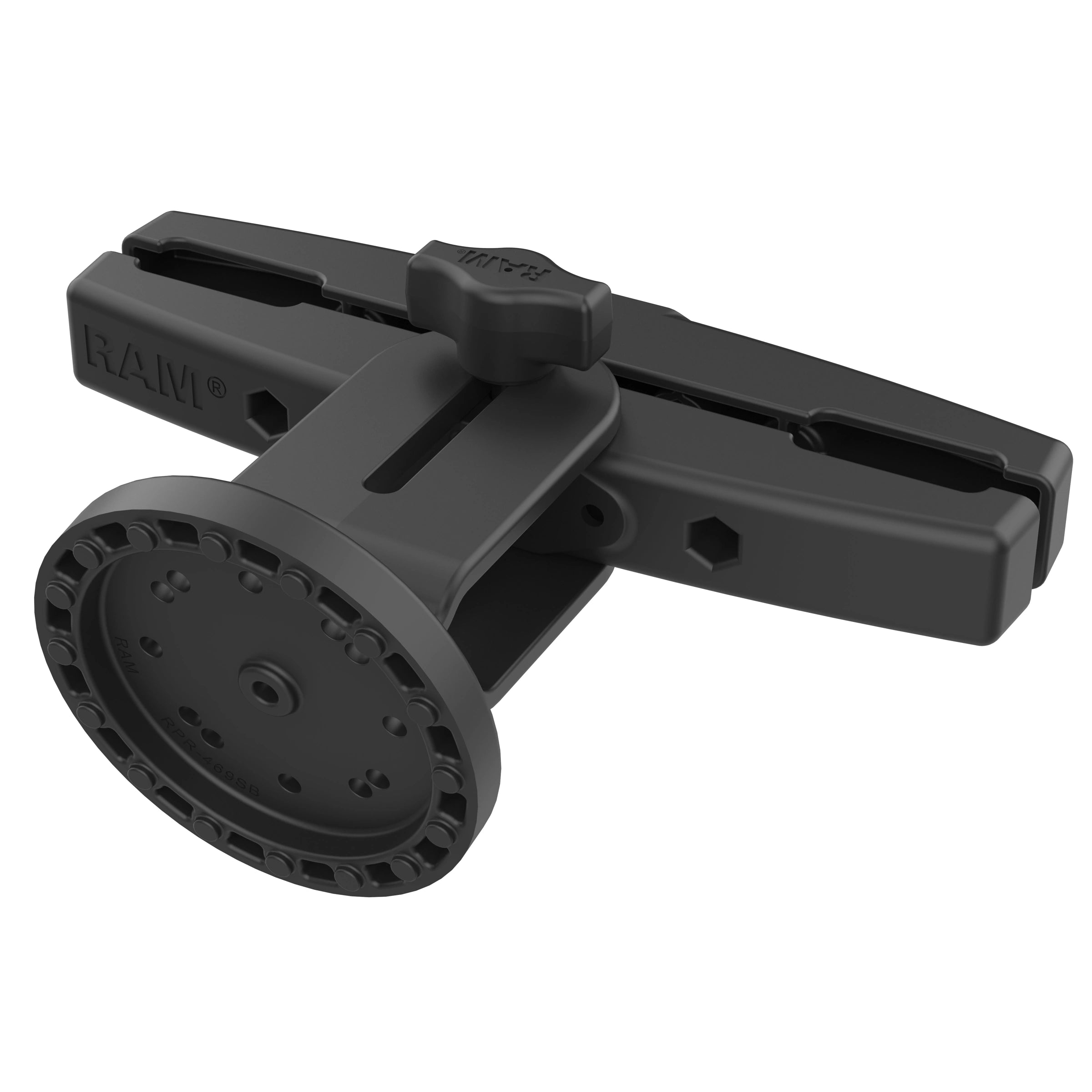

RAM Headrest Swivel Mount for Tab-Tite Holders (RAP-469U)

Included:

• 1 x RAM Headrest Swivel Mount for Tab-Tite Holders (RAP-469U)

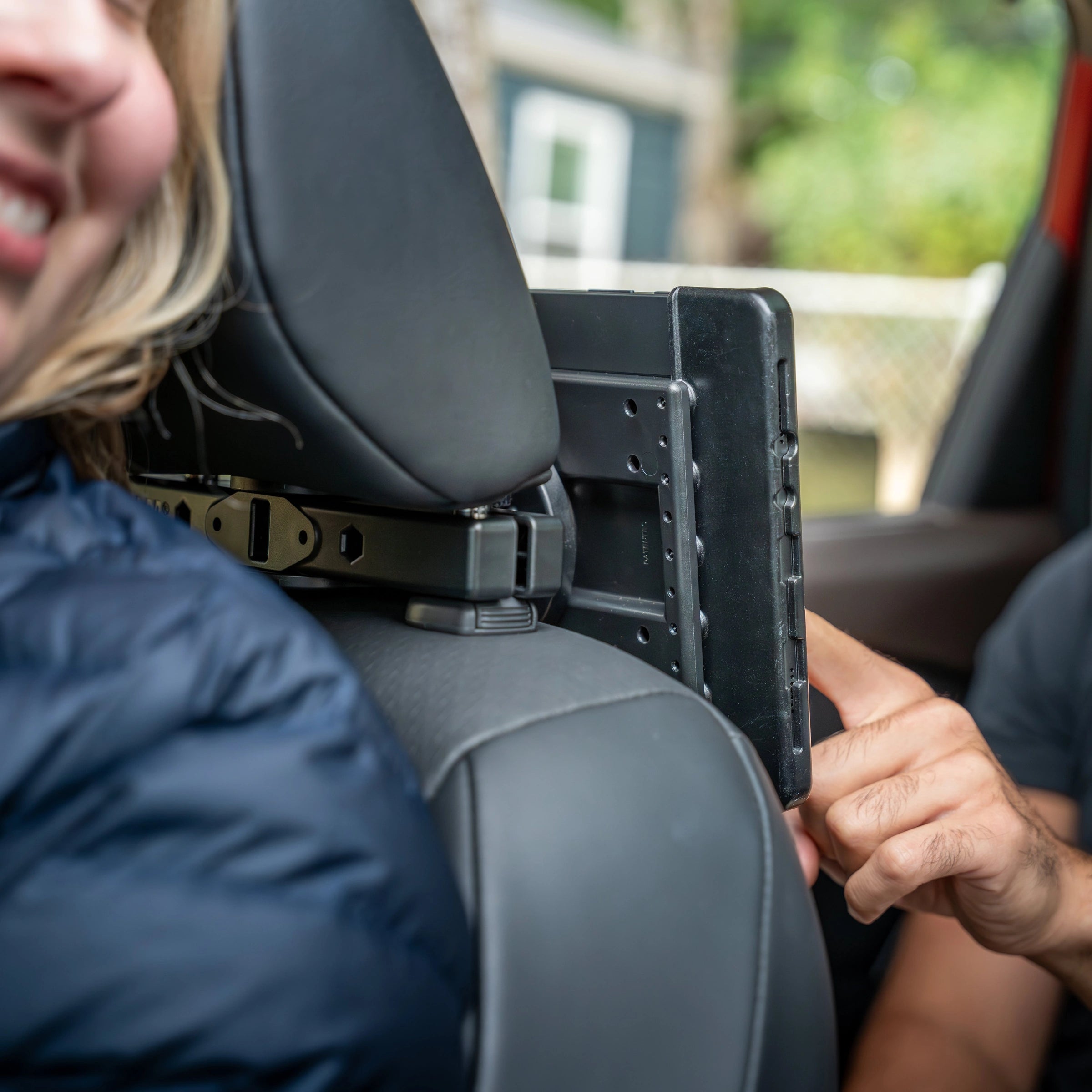

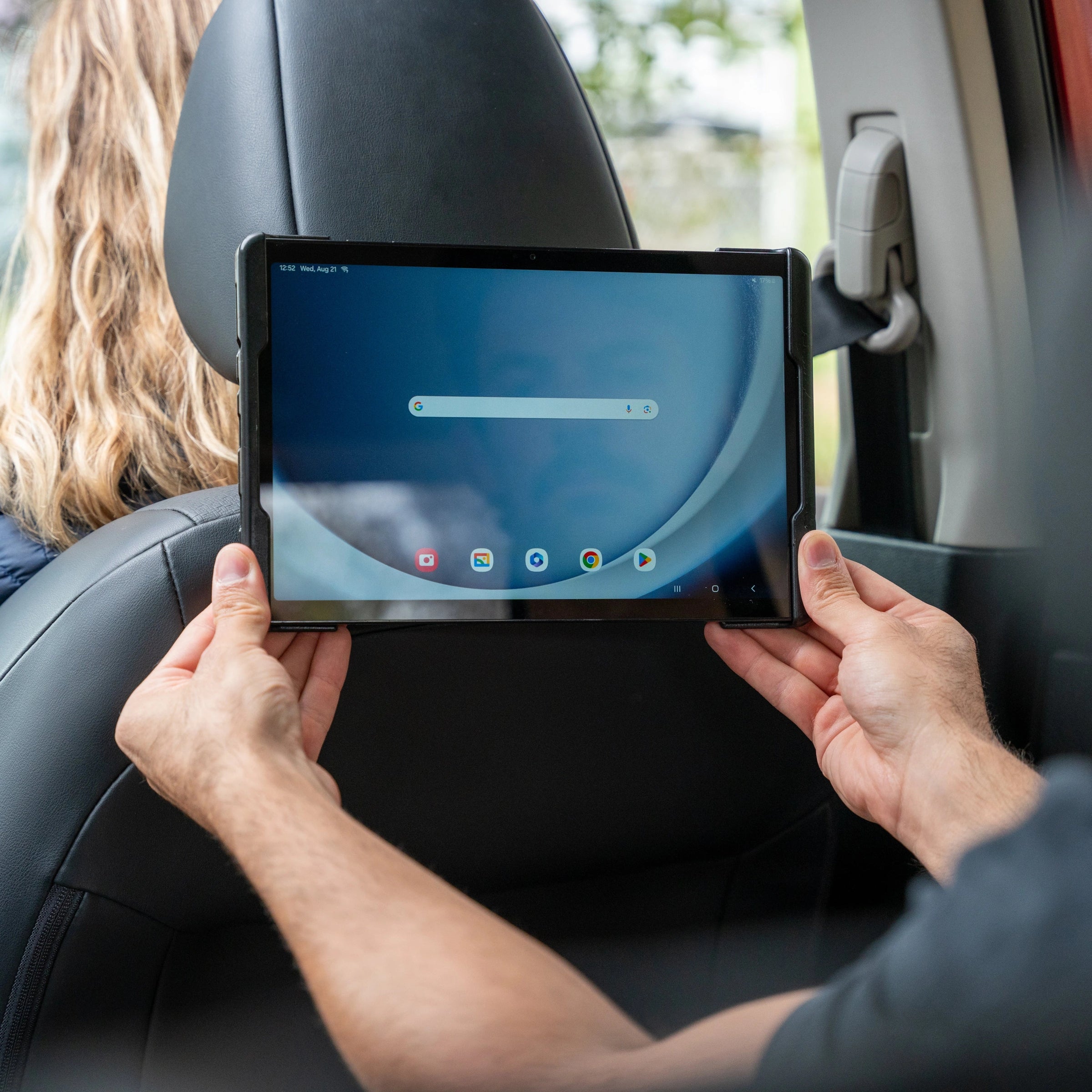

The RAP-469U attaches to vehicle headrest posts and provides a direct swivel mounting point for a compatible RAM Tab-Tite tablet holder. Its 360° rotation lets you move between portrait and landscape orientation.

Compatibility: RAM Tab-Tite holders only. RAM specifically excludes Tab-Lock, X-Grip and other form-fit holders. The shared 4-hole AMPS pattern does not make those other holder families compatible with this assembly.

The Tab-Tite holder and tablet are sold separately.

Specifications

• Holder Connection: Direct 4-hole AMPS swivel attachment for RAM Tab-Tite holders
• Hole Pattern: 1.181" x 1.496" (30 x 38mm)

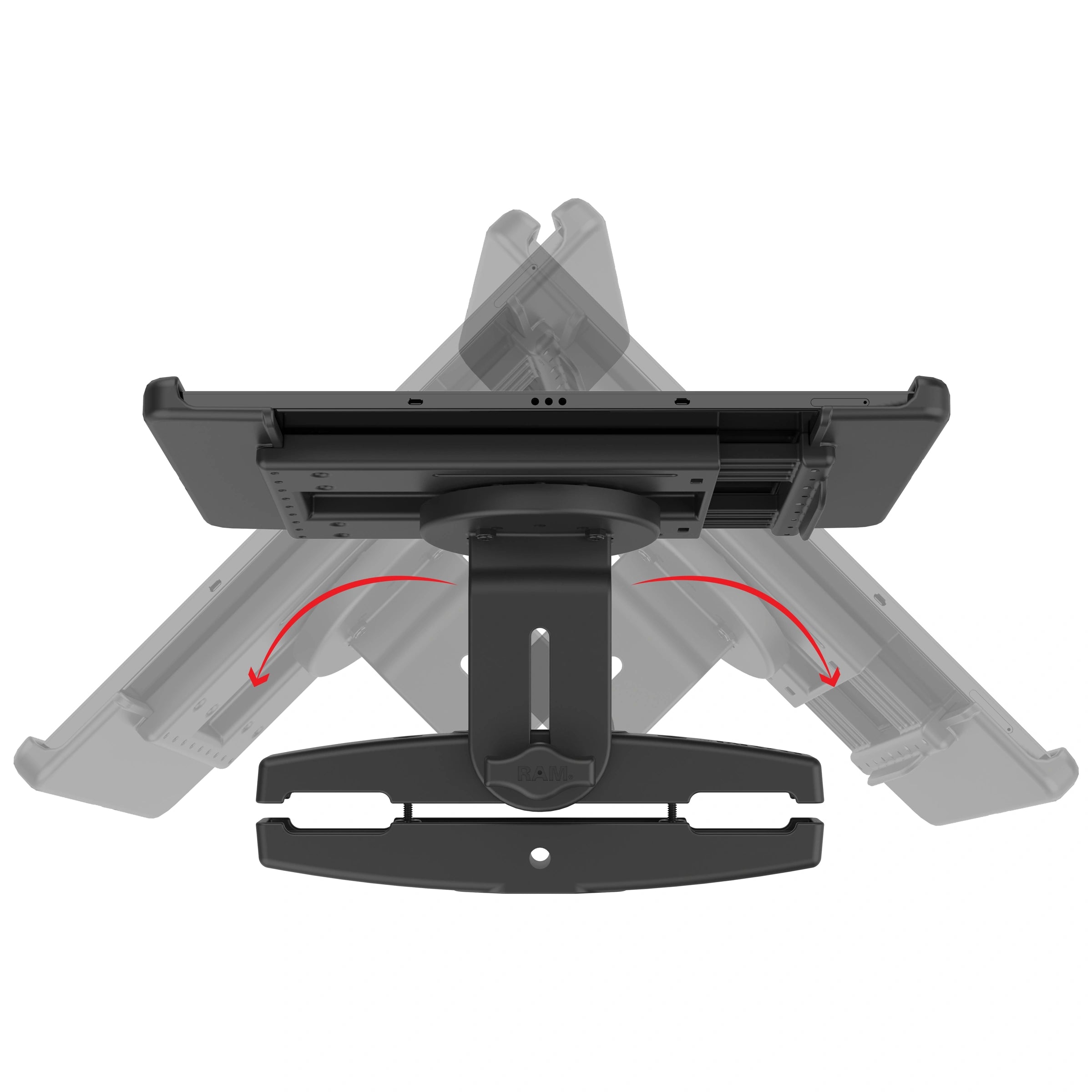

• Swivel: 360° rotation
• Materials: High-strength composite
• Weight: 0.62 lb (approximately 281 g)
• Packaging: Poly bag
• Manufacturer Part Number: RAP-469U
• UPC: 793442022418
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • Assembly hardware
  • 4 x #8-32 x 3/4" machine screws
  • 4 x #8-32 thin Nyloc nuts

Help

Select a RAM Tab-Tite holder that fits your tablet, then check the headrest posts and mounting clearance using the fitting guide.

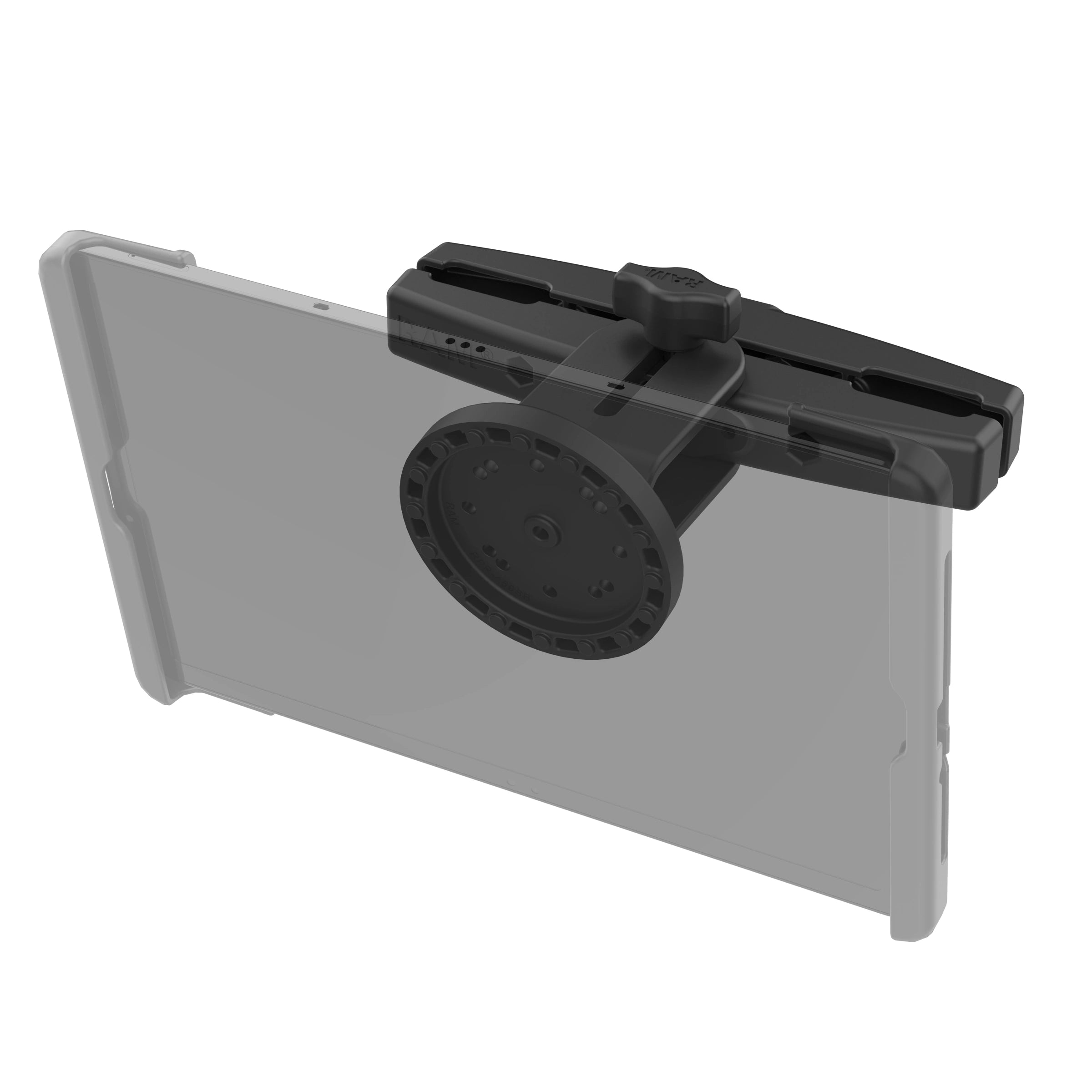

This assembly attaches directly to its compatible Tab-Tite holder. It does not provide a generic B or C size ball-and-socket connection.

Confirm post spacing and shape, seat adjustment and safe passenger clearance before fitting. Vehicle, holder and tablet shown in application images are not included.

RAM headrest mount fitting guide

RAM headrest assembly drawing

Official RAM product information
