RAM Dashboard Mount with Backing Plate C Size Medium (RAM-101-225B2U)

Included:

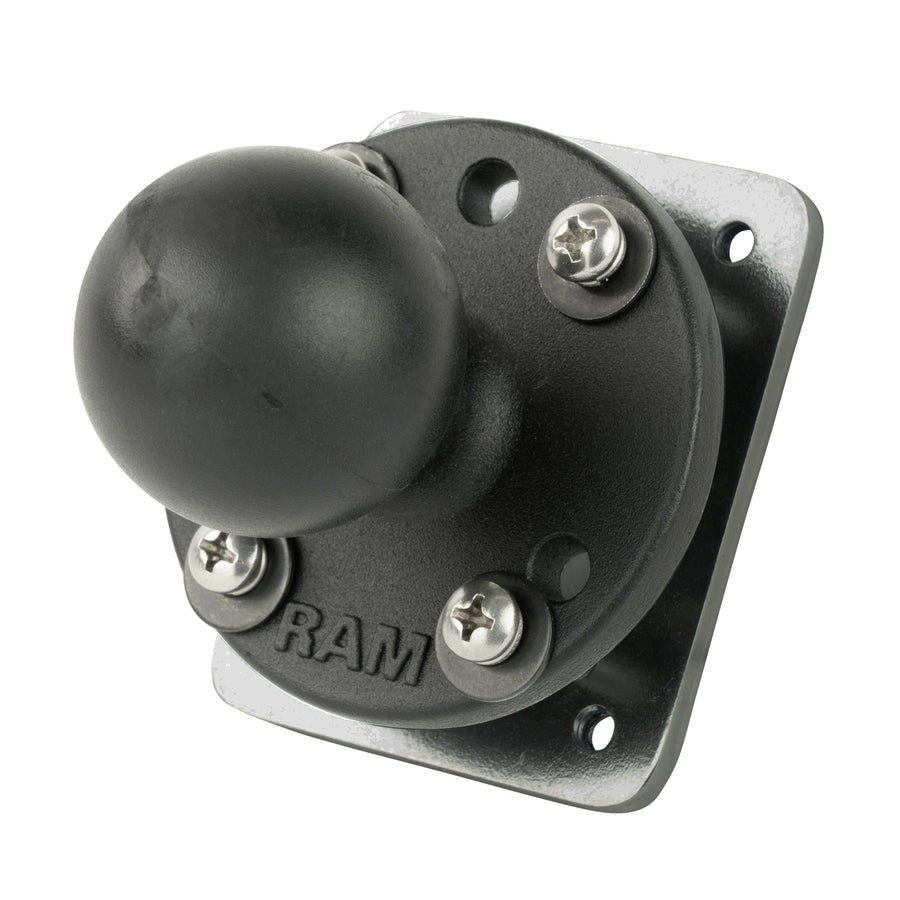

• 1 x RAM Drill-Down Dashboard Ball Base with Steel Backing Plate, C Size (RAM-202-225-2U)
• 1 x RAM Medium Double Socket Arm, C Size (RAM-201U)
• 1 x RAM Round Plate with 1.5" C Size Ball (RAM-202U)

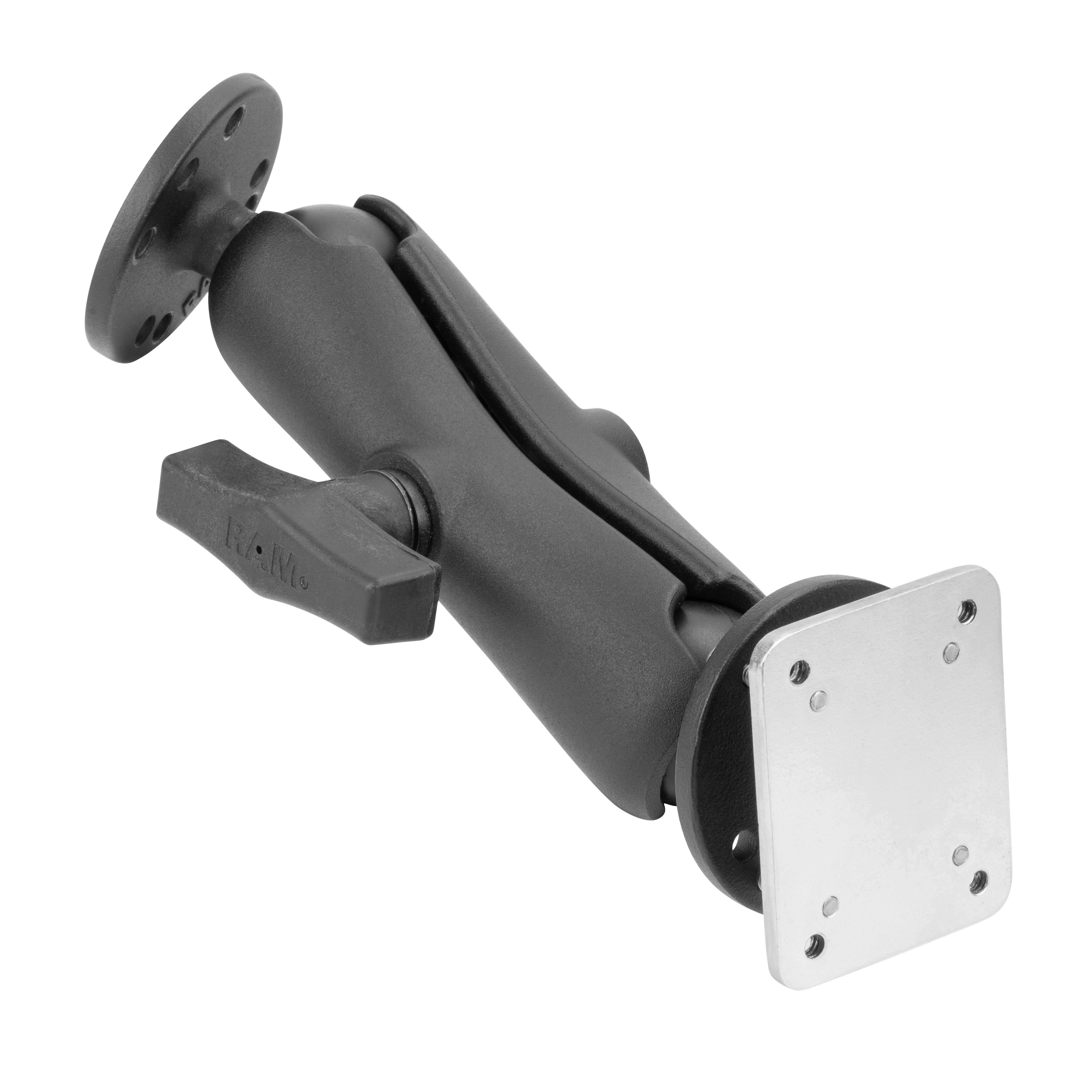

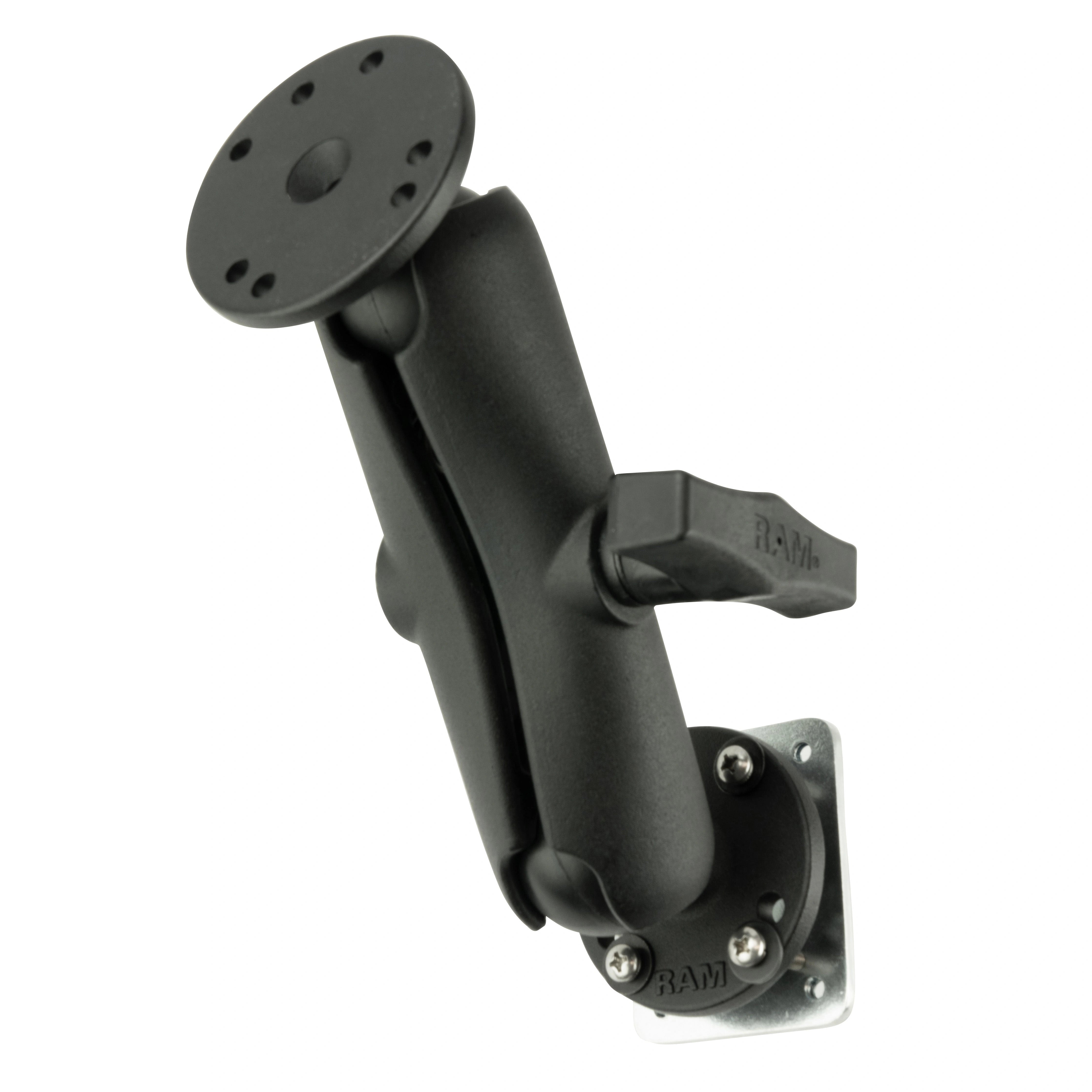

The RAM-101-225B2U is an adjustable drill-down mounting kit for a compatible dashboard-mounted holder or dock. The steel backing plate supports the lower round base, while the medium arm positions the upper AMPS plate.

RAM’s rubber ball-and-socket system provides adjustment at both ends of the arm and helps dampen shock and vibration.

The holder, dock and device are sold separately. The supplied holder-side round plate presents the 4-hole AMPS (30 x 38mm) pattern for a matching flat-backed holder or dock. A holder with its own compatible 1.5" C size ball can attach directly to the arm instead, without the upper plate.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Arm Length: Medium
• Socket-to-Socket Length: 4.66" (118.36mm)
• Overall Height: 7.35" (186.69mm)
• Plate Size: Two 2.5" (63.5mm) round plates; one 2.10" x 2.60" (53.34 x 66.04mm) steel backing plate
• Hole Pattern: 4-hole AMPS: 1.181" x 1.496" (30 x 38mm); 3-hole 120-degree pattern: 1.812" (46.02mm) diameter
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium and steel
• Weight: 1.4 lb (approximately 635g)
• Packaging: Poly bag
• Manufacturer Part Number: RAM-101-225B2U
• UPC: 793442848964
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • 4 x #8-32 x 1" machine screws, 4 x #8 split lock washers and 4 x #8 flat washers, supplied with the backing-plate base

Help

Match the holder’s connection and ball size before choosing the setup.

Check access behind the panel, panel strength, fastener clearance and your holder’s mounting pattern before drilling.

Include the holder, device and attached accessories when checking the load. Choose the heavy-duty rating for more demanding conditions and follow the manufacturer’s installation instructions.
