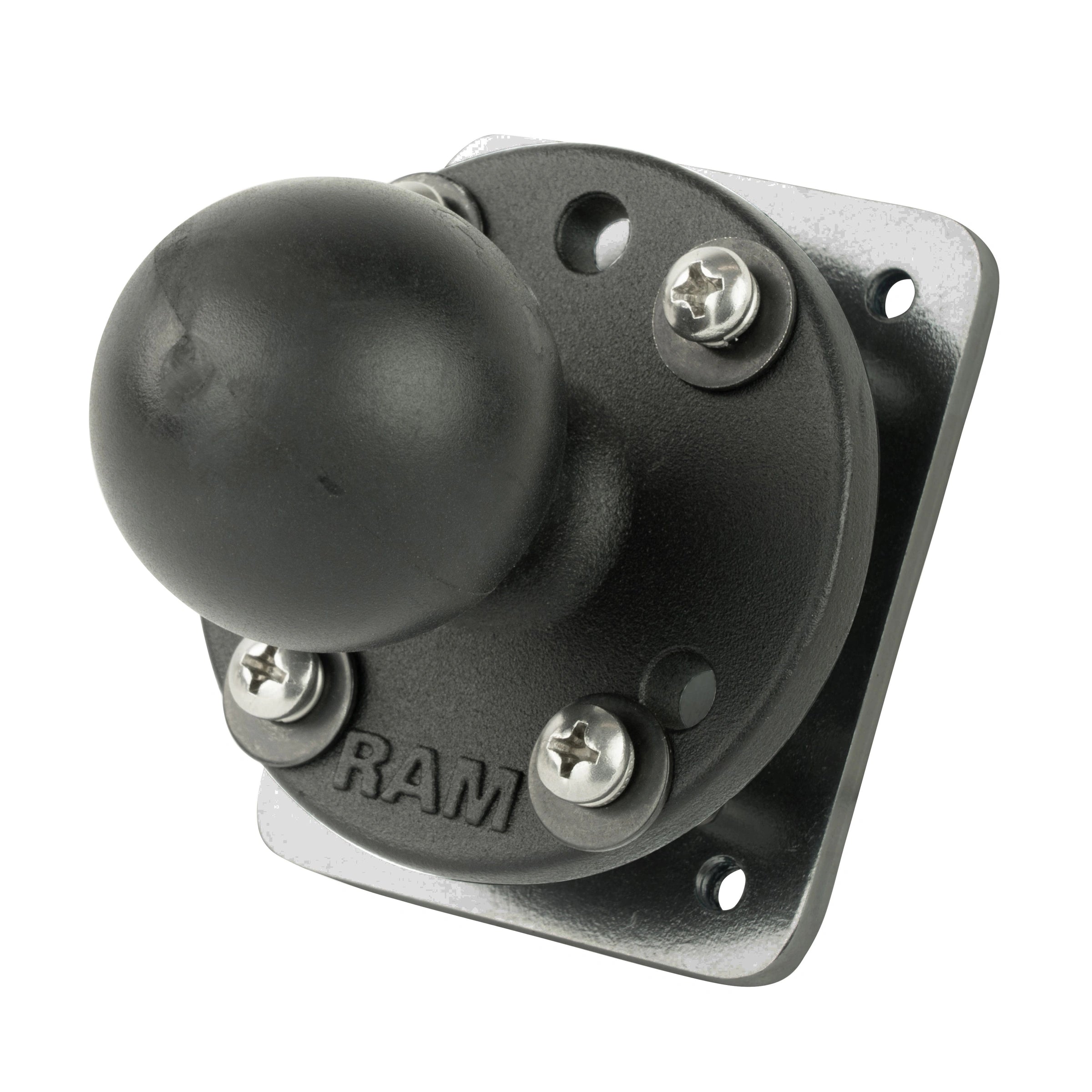

RAM Dashboard Ball Base with Backing Plate C Size (RAM-202-225-2U)

Included:

• 1 x RAM Round Plate with 1.5" C Size Ball (RAM-202U)

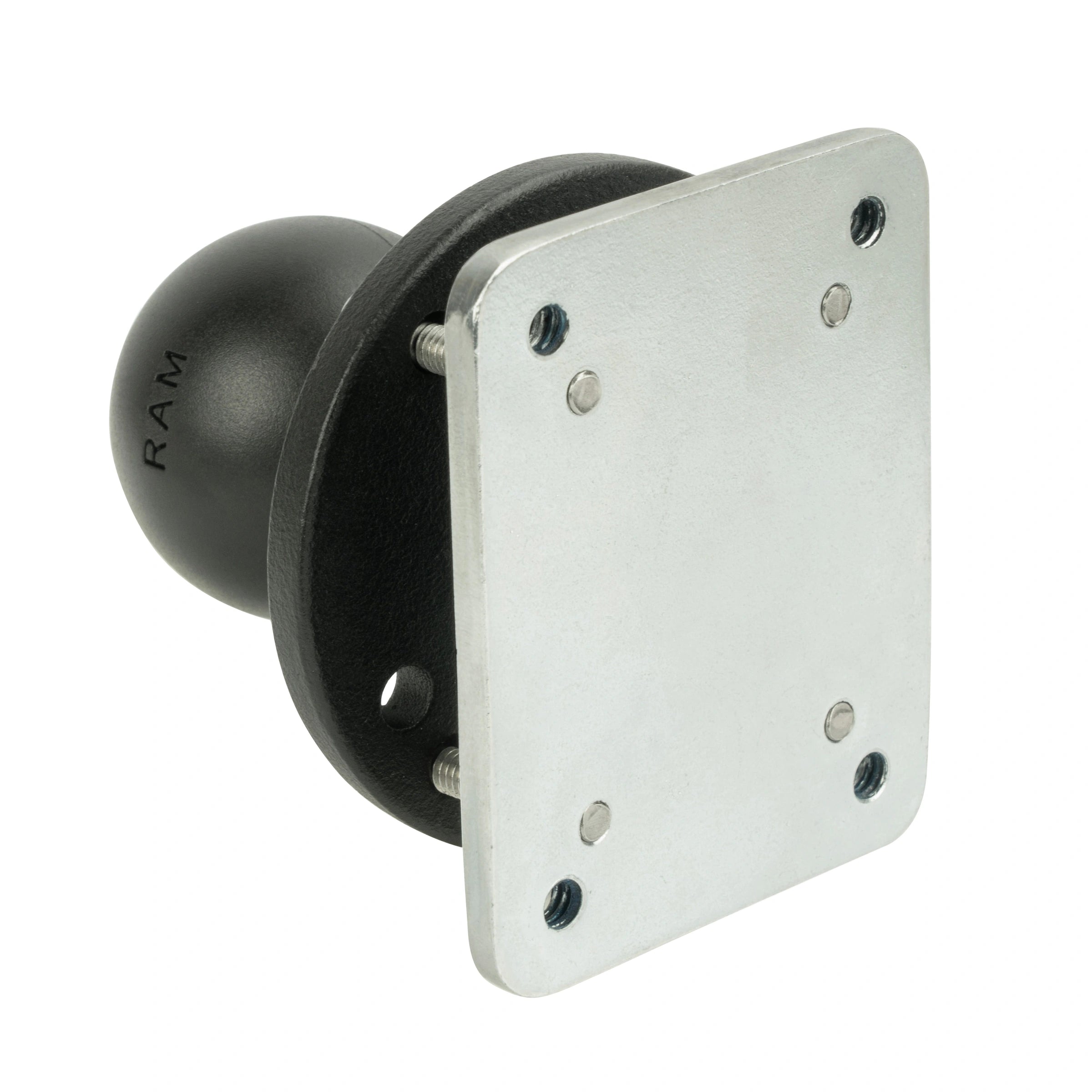

• 1 x 2.10" x 2.60" steel backing plate

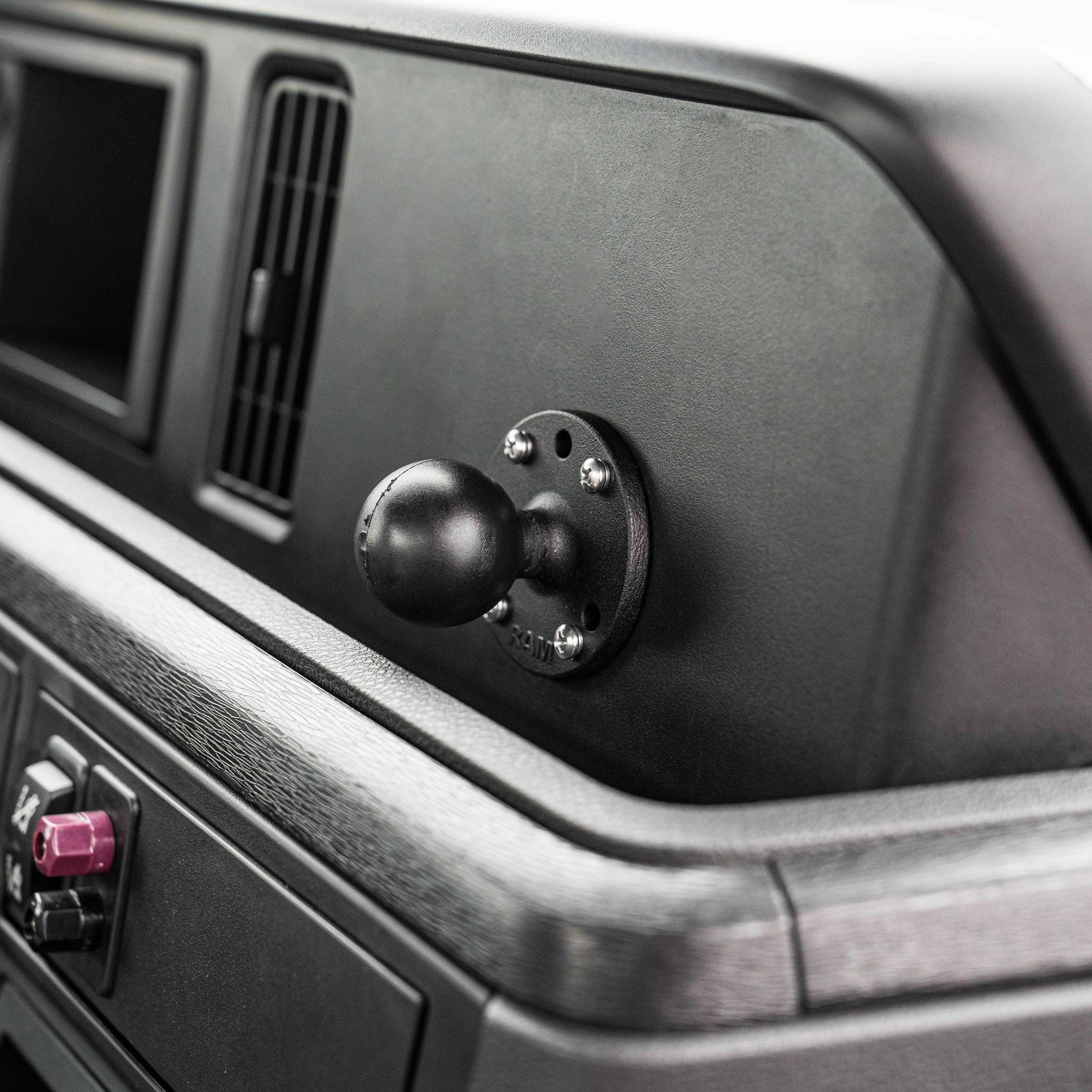

RAM-202-225-2U: A drill-down base with a 1.5" C size ball, round AMPS plate and steel backing plate. The backing plate supports the installation on a suitable panel when fixed through the four mounting holes.

Arm and holder are sold separately. Add a matching C size arm, then connect a C size ball-backed holder directly or use a suitable ball plate for a flat-backed holder.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Output Connection: 1.5" (38.1mm) C size ball for a matching C size double socket arm
• Round Plate: 2.5" (63.5mm) diameter
• Backing Plate: 2.10" x 2.60" (53.34 x 66.04mm)
• Hole Pattern: 4-hole AMPS: 1.181" x 1.496" (30 x 38mm); 3-hole 120-degree pattern: 1.812" (46.02mm) diameter
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium and steel
• Weight: 0.5 lb (approximately 227g)
• Packaging: Poly bag
• Manufacturer Part Number: RAM-202-225-2U
• UPC: 793442848995
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • 4 x #8-32 x 1" screws, 4 x #8 split lock washers and 4 x #8 flat washers

Help

The exposed connection is a C size ball. Check panel strength, rear access and fastener clearance before drilling.

Check the complete assembly’s weight and loading conditions. The weakest component and mounting surface determine the usable capacity.
