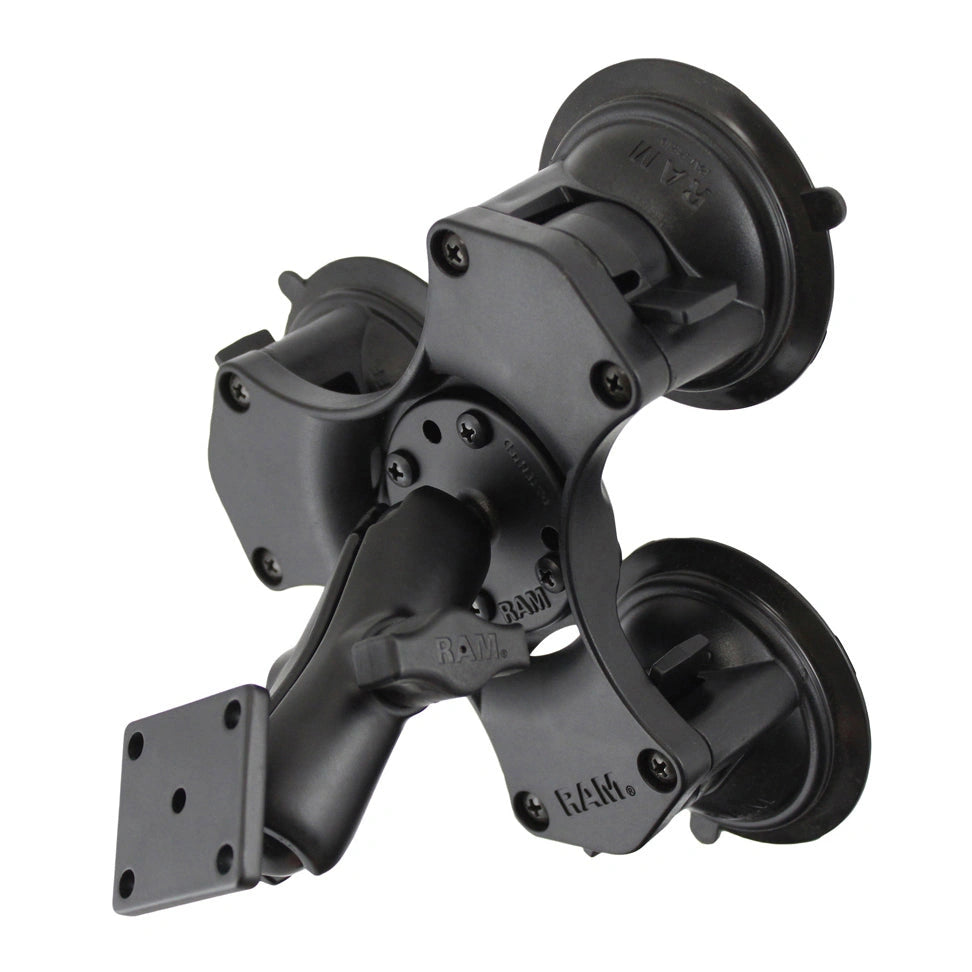

RAM Triple Suction Mount w Standard B Size Arm & Rectangle Plate (RAM-B-139U-224)

Included:

• 1 x RAM Triple Suction Cup Ball Base B Size (RAP-B-365-224-1U)
• 1 x RAM Standard Double Socket Arm B Size (RAM-B-201U)
• 1 x RAM Rectangle AMPS Ball Plate B Size (RAM-B-347U)

The RAM-B-139U-224 combines three Twist-Lock suction cups with a medium B Size arm and rectangle plate. Use it on clean, flat, non-porous surfaces such as suitable glass or windows, with enough space for the complete suction footprint.

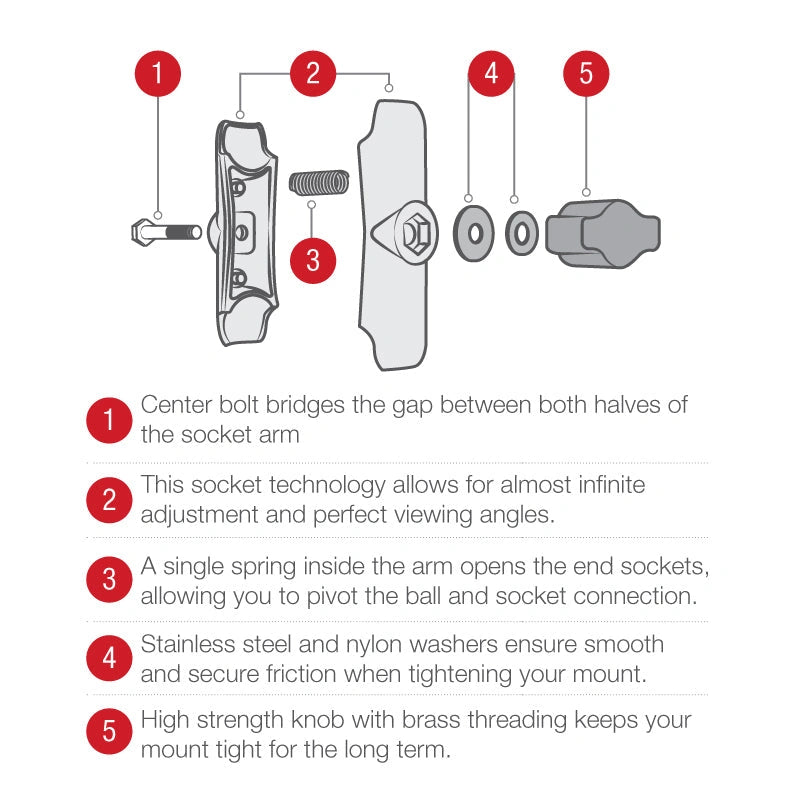

The arm adjusts at both ball joints. Attach a compatible holder using the plate's AMPS pattern. Device holder sold separately.

Specifications

• Suction Cups: 3 x 3.3" (83.8 mm) diameter cups; total width 7.95" (201.9 mm)
• Ball Size: B Size 1" (25.4 mm) rubber balls
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Holder Plate: 2" × 1.7" (50.8 × 43.2 mm)
• Hole Pattern: 4-hole AMPS: 1.181" × 1.496" (30 × 38 mm)
• Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg)
• Material: Marine-grade aluminium and high-strength composite
• Packaging: Poly bag
• Warranty: RAM limited lifetime warranty; suction-cup rubber is a wear item and is excluded
• Hardware Included:
  • Assembly hardware

Fitment: All three cups need a clean, suitable contact area. Check the surface geometry, secure attachment and total supported weight before use.

Help

• RAM suction cup installation guide

Holder Connection: The supplied rectangle plate is for a flat-backed holder with the matching 4-hole AMPS pattern. A holder with its own B Size ball can connect directly to the arm in place of the upper plate.
