RAM-103U-D

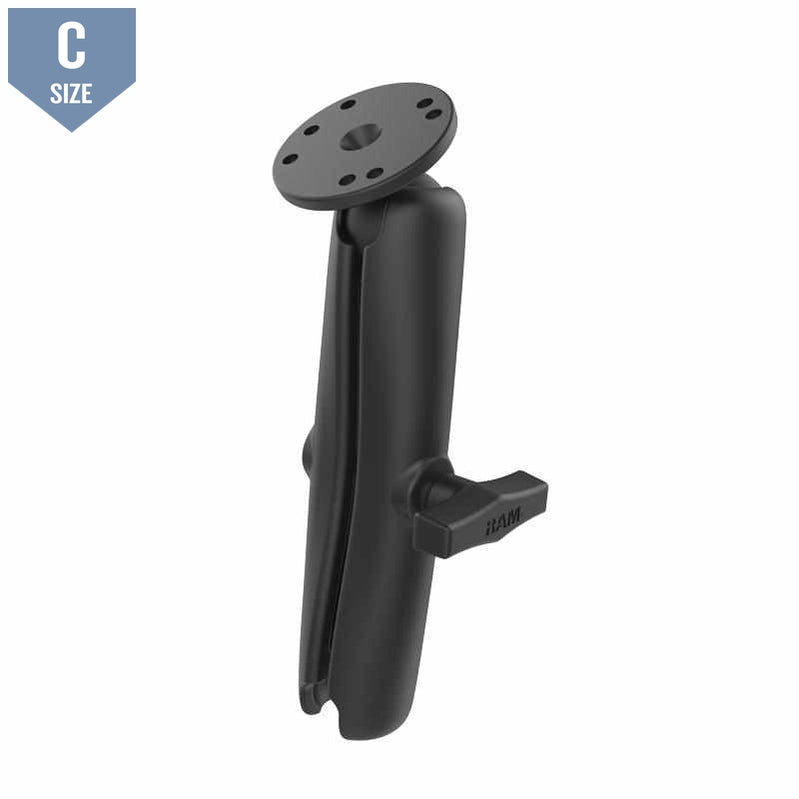

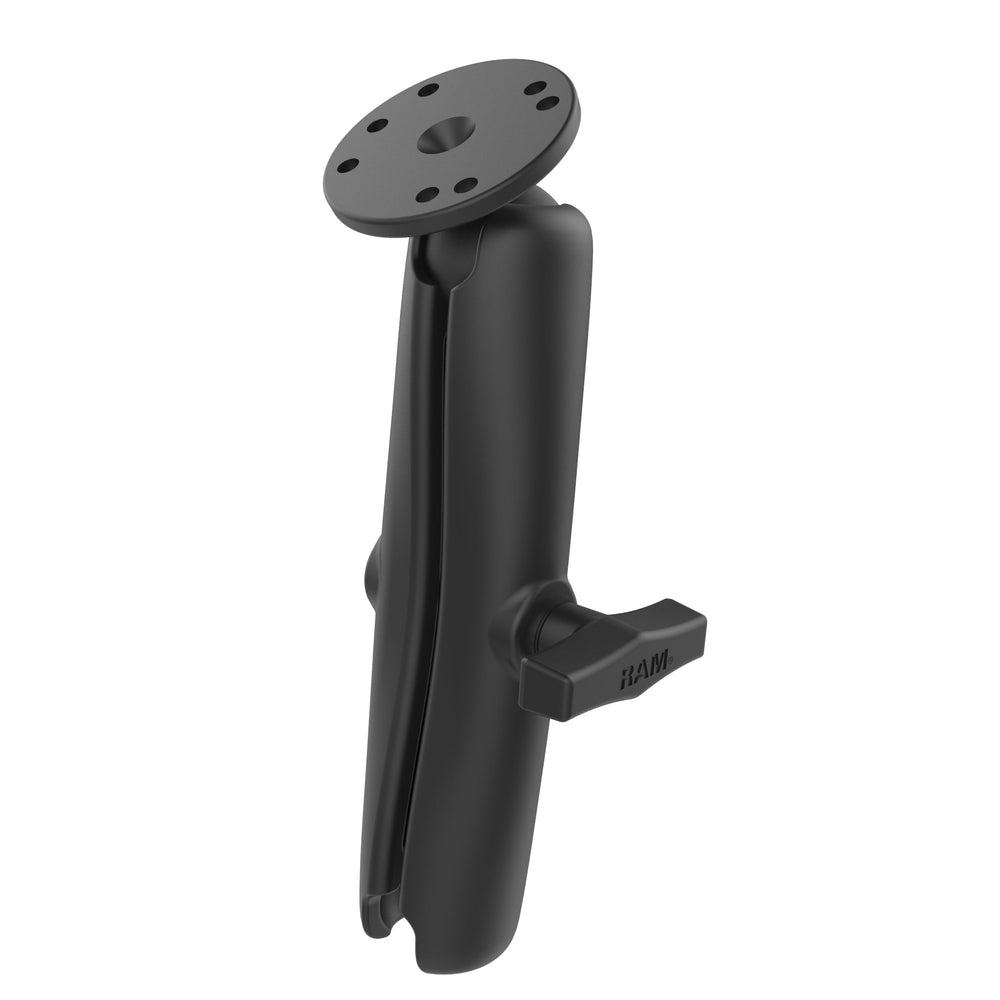

The RAM-101U-Dis a sturdy mounting solution utilising the RAM 1.5" ball and socket system. This setup includes a long double socket arm (RAM-201U-D) and one 2.5" diameter round bases with the universal AMPS hole pattern (RAM-202U).
The RAM-202U round base has a 1.5" diameter rubber ball connected at right angles to a 2.5" diameter base. The plate has pre-drilled holes in the base, including the universal AMPS hole pattern.
The hole pattern found on the round base adapter will connect to many RAM cradles, including all iPad cradles. These bases will also connect to any item with the universal AMPS hole pattern.
The RAM Mount's trademarked design dampens shock and vibration, helping to extend the life of your device.
Note: The "U" in the part number reflects product packaged in poly bag.
Collections: All, Best Selling Products, C Size Components 1.5", Newest Products, RAM Components
Here at Modest Mounts we strive to process all orders received before 12:00pm AEST on the same business day we receive them.
We currently offer the following domestic freight options*:
Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium, StarTrack Express & Sendle.
Note: Postage fee may be a little higher for some of the heavy or large items.
Read more on our Shipping & Delivery
Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition. To initiate a return, send us an email at info@modestmounts.com.au - DO NOT send items back to our office address.
Full information available here.
Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
