RAM Tough-Tray™ III Spring Loaded Laptop Tray (RAM-234-7)

Included:

• 1 x RAM Tough-Tray™ III Spring Loaded Laptop Tray (RAM-234-7)

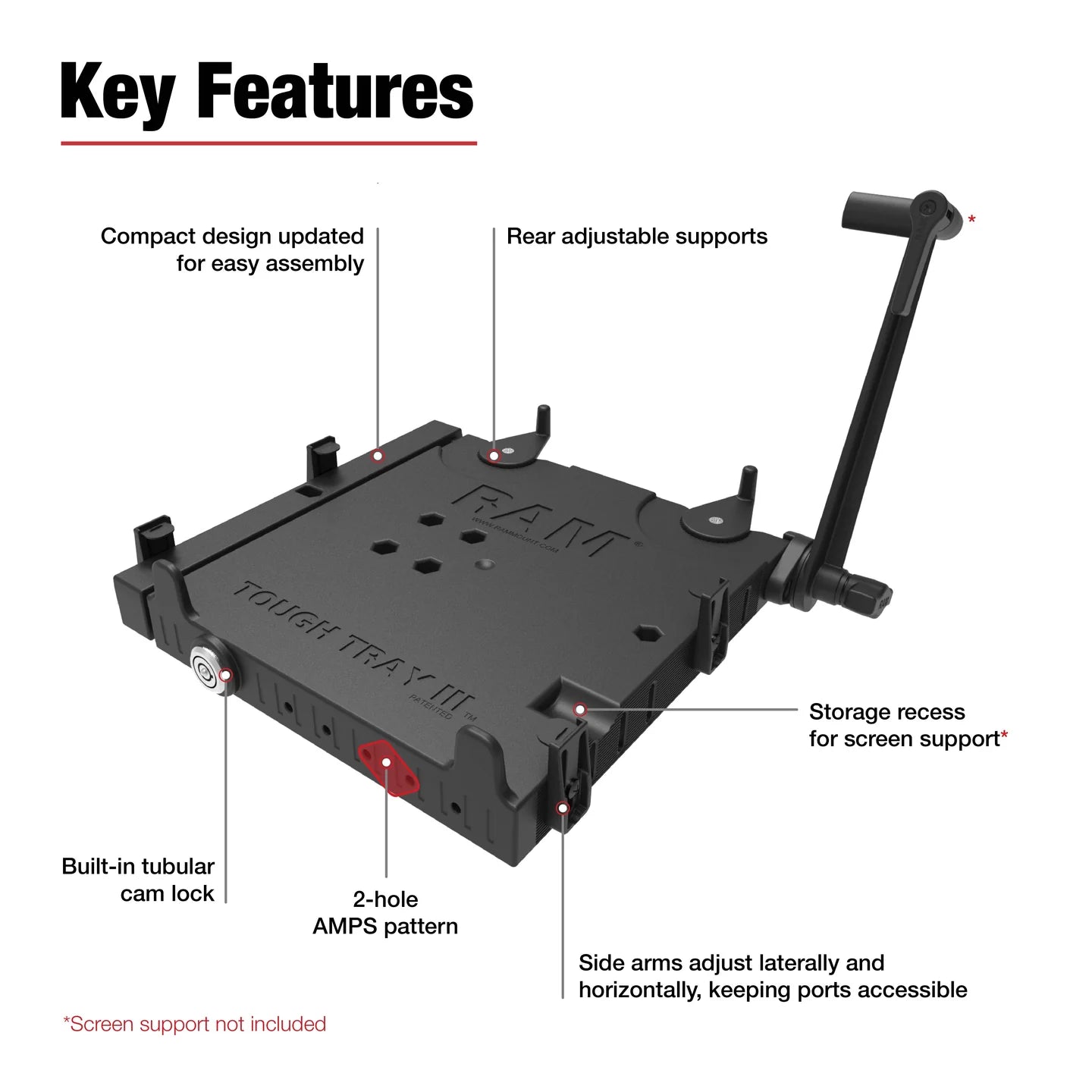

Features

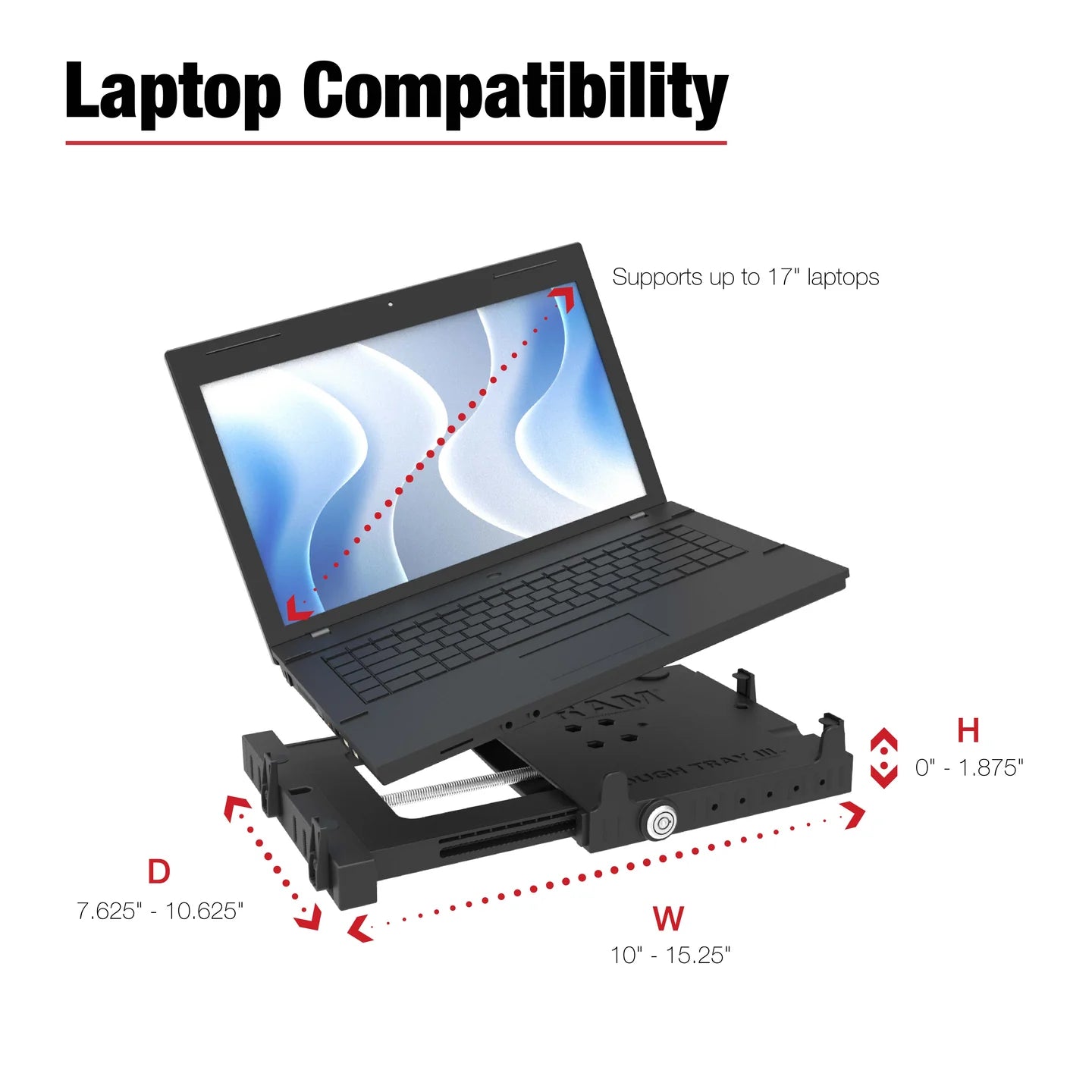

• Spring-loaded universal laptop tray accommodates most 10" to 17" laptops, measured diagonally
• Adjustable supports keep your laptop secure while leaving ports accessible
• Side supports fit laptops from 0" to 1.875" thick and include two interchangeable support lengths for rugged laptops or slimmer devices
• Swivelling rear supports accommodate laptop depths from 7.625" to 10.625"
• Integrated tubular cam lock provides added security by locking the laptop in place

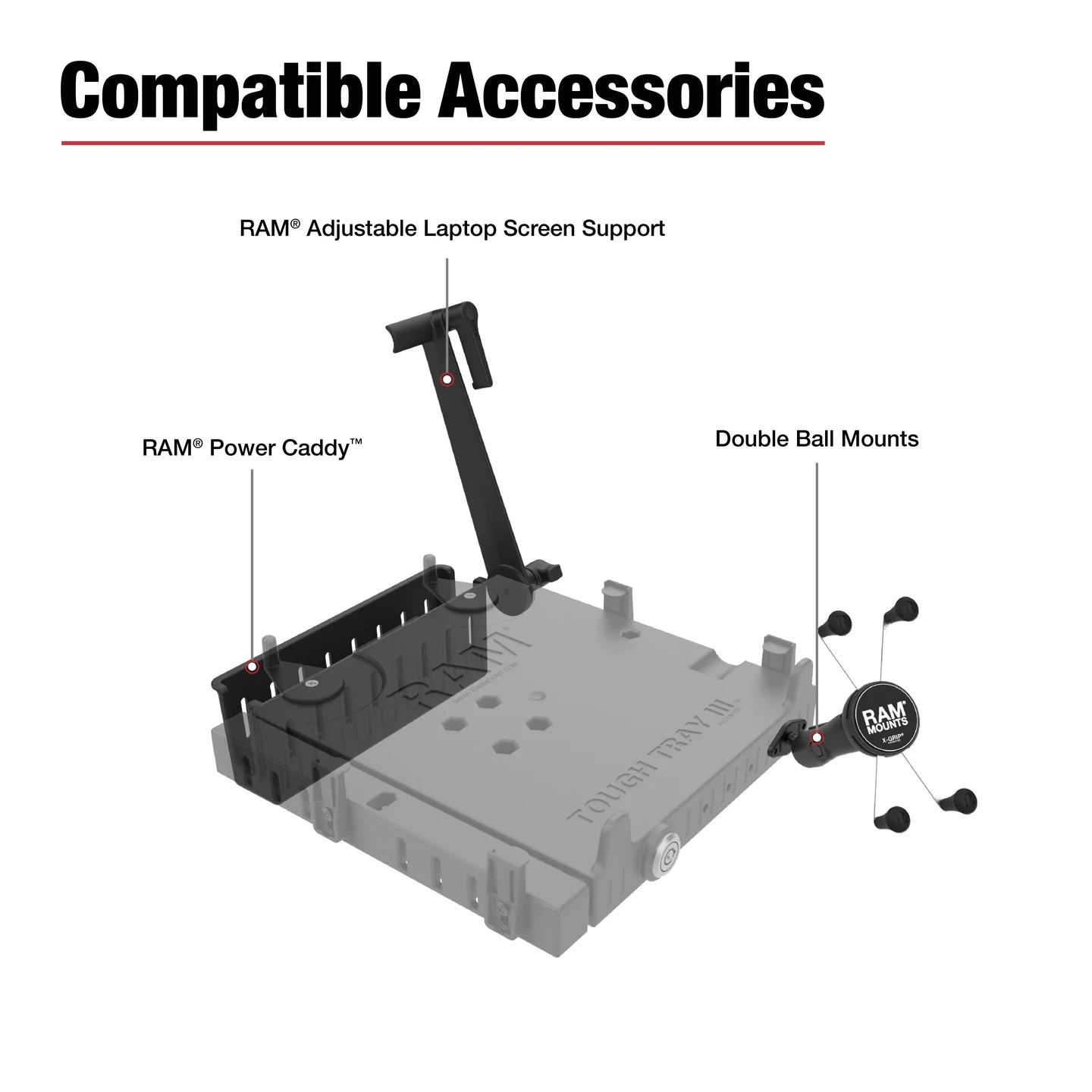

• Compatible with the RAM^® Power Caddy^™ and RAM^® Adjustable Laptop Screen Support
• Integrated 2-hole AMPS mounting locations around the tray perimeter allow additional accessories to be mounted
• Made of high-strength composite for durability and reliability in demanding environments
• Backed by a lifetime warranty

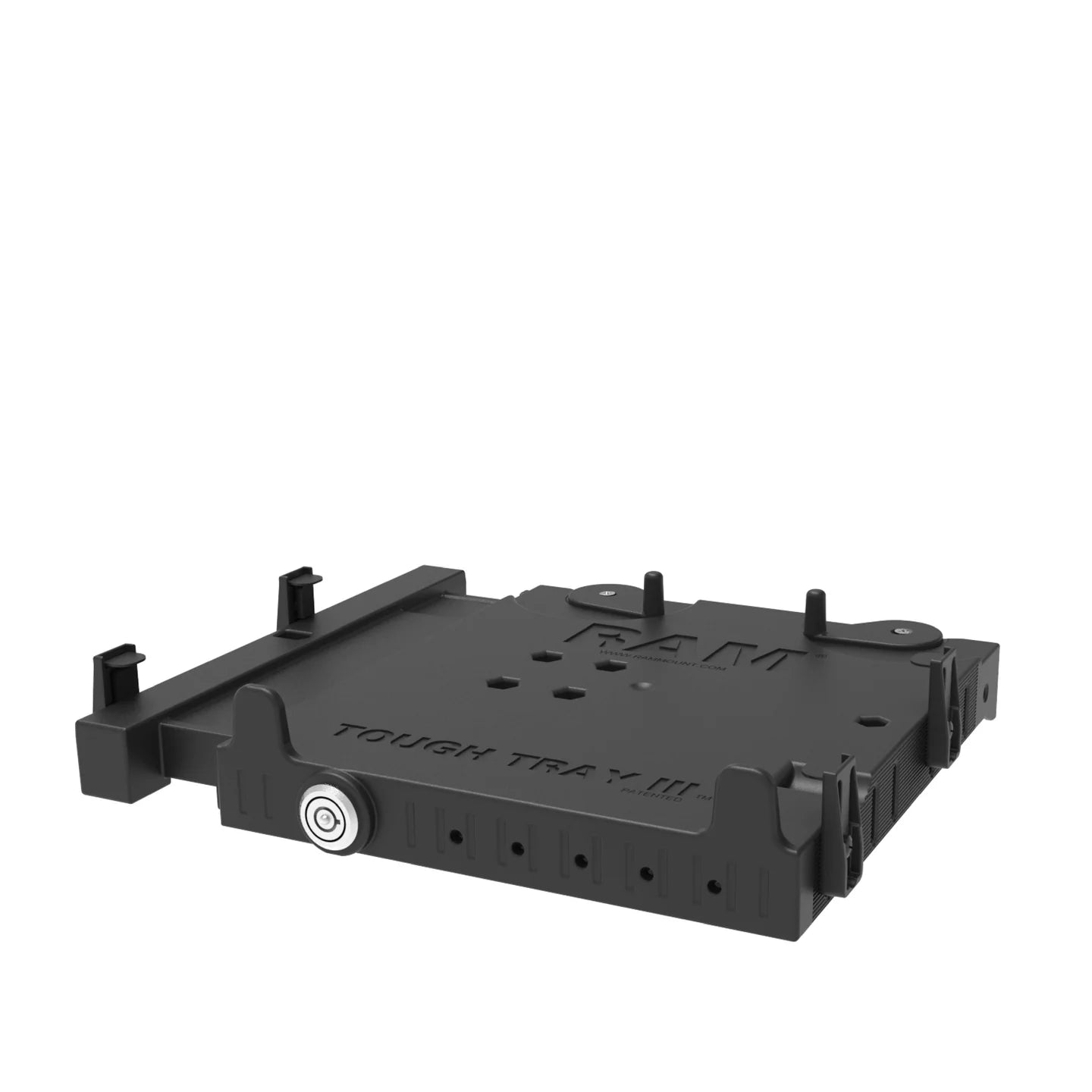

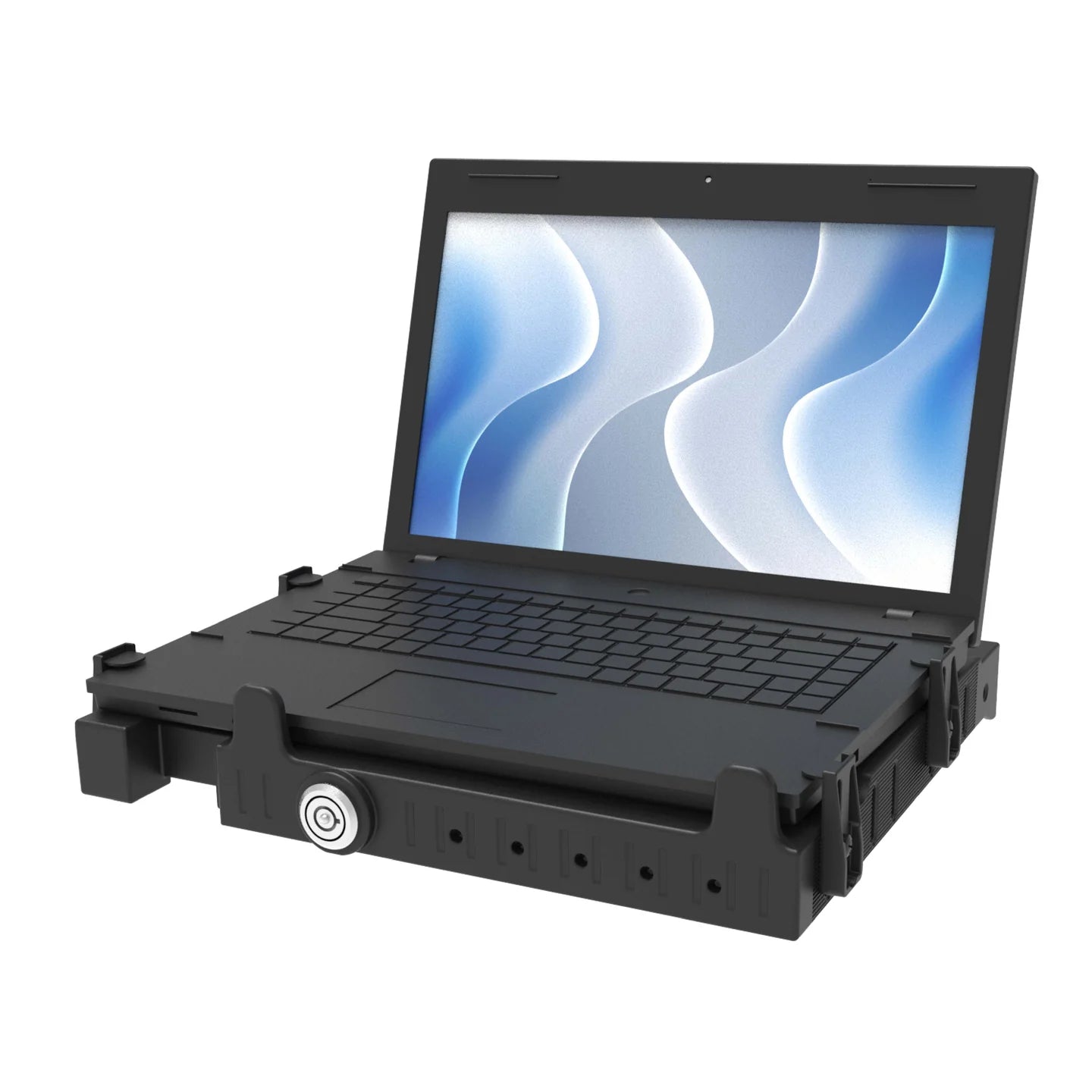

The RAM-234-7 Tough-Tray™ III is a rugged, highly adjustable spring-loaded laptop tray designed for secure use in mobile workstations, fleets, boats, off-road vehicles and other demanding environments.

This third-generation Tough-Tray™ improves on earlier designs with a reduced footprint, enhanced adjustability and simplified assembly. The spring-loaded cradle expands from 10" to 15.25" wide, securely accommodating most laptops up to 17" when measured diagonally.

Adjustable side supports fit laptops ranging from 0" to 1.875" thick and include two interchangeable support lengths, with longer supports for rugged laptops and shorter supports for slimmer devices. The supports adjust horizontally to help avoid blocking ports and feature foam padding to help protect devices from vibration and scuffs.

Swivelling rear supports accommodate laptop depths from 7.625" to 10.625", while the integrated tubular cam lock adds extra security by locking the laptop in place. The tray also includes a built-in recess for the RAM^® Adjustable Laptop Screen Support and is compatible with the RAM^® Power Caddy^™.

Specifications:

HARDWARE INCLUDED
(2) Keys
(4) #10-24 x 3/4" machine screws
(4) #10-24 nylock nuts

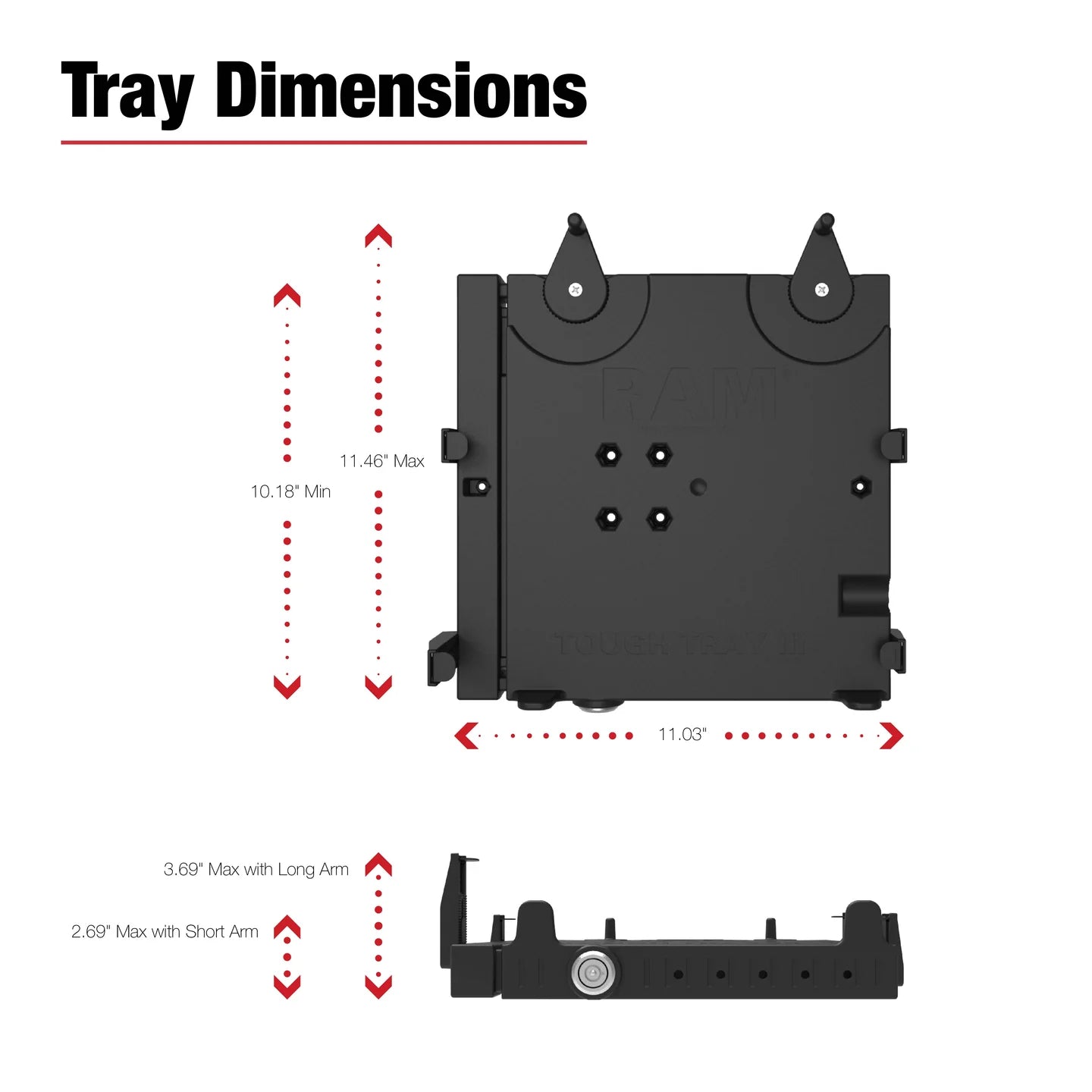

TOUGH-TRAY™ DIMENSIONS
Width range: 10" - 15.25" (254 mm - 387.4 mm)
Side arm clamp height: 0" - 1.875" (0 mm - 47.6 mm)
Depth range: 7.625" - 10.625" (193.7 mm - 269.9 mm)
Tray thickness: 1.26" (32 mm)

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496" (30 mm x 38 mm)

MATERIALS
High-strength composite

PACKAGING TYPE
Poly bag

WEIGHT
2.48 lb (1.12 kg)

Compatibility

• Most 10" to 17" laptops, measured diagonally

Help

• RAM® Tough-Tray™ III Assembly Guide

How does the RAM^® Tough-Tray™ mount?
The Tough Tray has a 4-hole AMPS pattern, measuring 1.181" x 1.496", on the bottom of the tray. This allows it to attach to compatible RAM^® 4-hole AMPS components, such as the RAM-202U round plate.
