RAP-401-202U

RAM Large Tough-Claw™ w C Arm & Base (RAP-401-202U)

Name: RAM Large Tough-Claw™ w C Arm & Base (RAP-401-202U)
Brand: Modest Mounts
SKU: RAP-401-202U
Price: 135.0 AUD
Availability: InStock

Ball-and-Socket Size Guide

$135.00 $167.50 You Save 19% ($32.50)

or make 4 interest-free payments of $33.75 AUD fortnightly with More info

Included:

1 x RAM Standard Double Socket Clamp Arm C Size (RAM-201U)
1 x RAM Round Base with 1.5" C Size Ball (RAM-202U)
1 x RAM Large Tough-Claw Clamp w 1.5" Ball (RAP-401U)

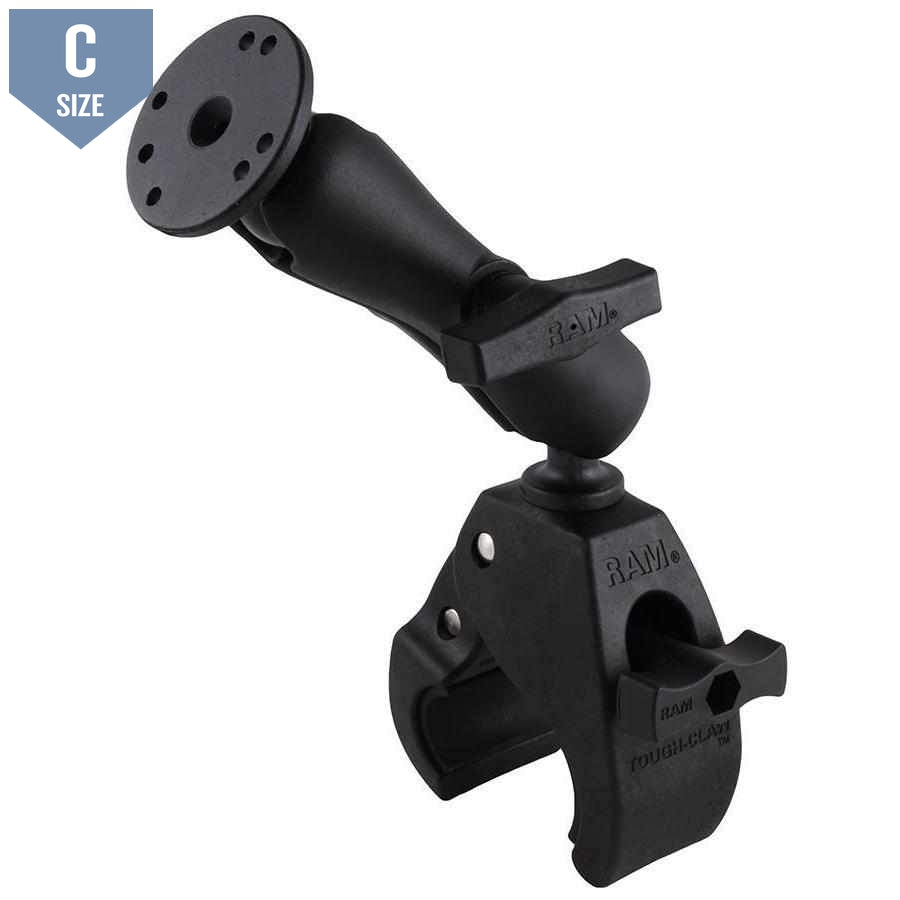

The RAP-401-202U features a large Tough-Claw^™ base, double socket arm and round base adapter (all C Size).

The RAM® Tough-Claw^™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars.

The Tough-Claw^™can be clamped on rails from 1" to 2.25" outer diameter.

The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM® Mount and third party cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specifications

Clamping Range (Rail/Tube Surfaces):

1" to 2.25"

Clamping Range (Flat Surfaces):
0" to 2.2"

Features:
1. High strength glass filled nylon construction with corrosion resistant stainless steel hardware
2. Rubber pads provide stable, even gripping and protection of mounting surface
3. Clamp jaw is configured for round, flat and odd shapes
4. Quick installation and removal of Tough-Claw™
5. Lifetime Warranty!

Material:
High Strength Composite

Ball Size:
C Size 1.5" Rubber Ball

Note:
The "U" in the part number reflects product packaged in poly bag.

Note: RAM recommends this mount for "Rugged Use" mounting applications, including heavy weight Lowrance Elite and Mark Fishfinders.

Collections: All, Best Selling Products, C Size Components 1.5", Newest Products, Tough-Claw™

Shipping & Returns

Australia-Wide Shipping:

We ship every day with StarTrack, Toll & Australia Post (depending on who is best suited for your delivery).

Select your Shipping Method during Checkout.

FREE FAST SHIPPING - When you spend $100 or more! (FREE)
EXPRESS SHIPPING - For orders under $100. Parcels should arrive within 1-2 business days ($9.95).
FAST SHIPPING - For orders under $100. Receive your parcel in 2-5 business days ($7.95)

Note: Postage fee may be higher for some of the heavy or large items.

Returns:

Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition.
Full information available here.

Warranty Info:

Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
