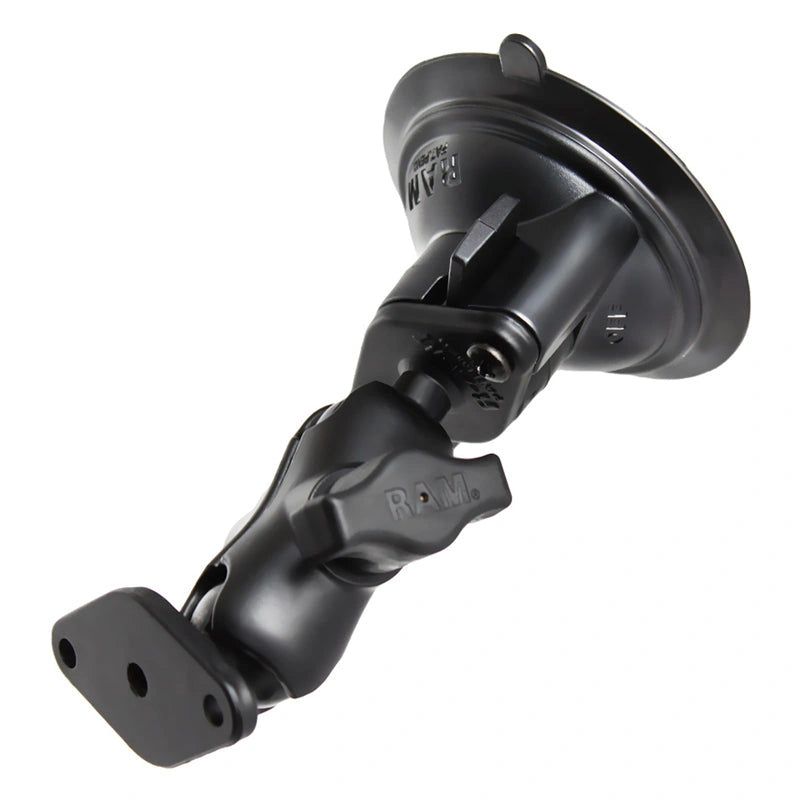

RAM Suction Cup Mount w Short Arm & Diamond Adapter (RAM-B-166U-A)

Included:

• 1 x RAM Suction Cup Base with 1" Ball (RAM-B-224-1U)
• 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
• 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

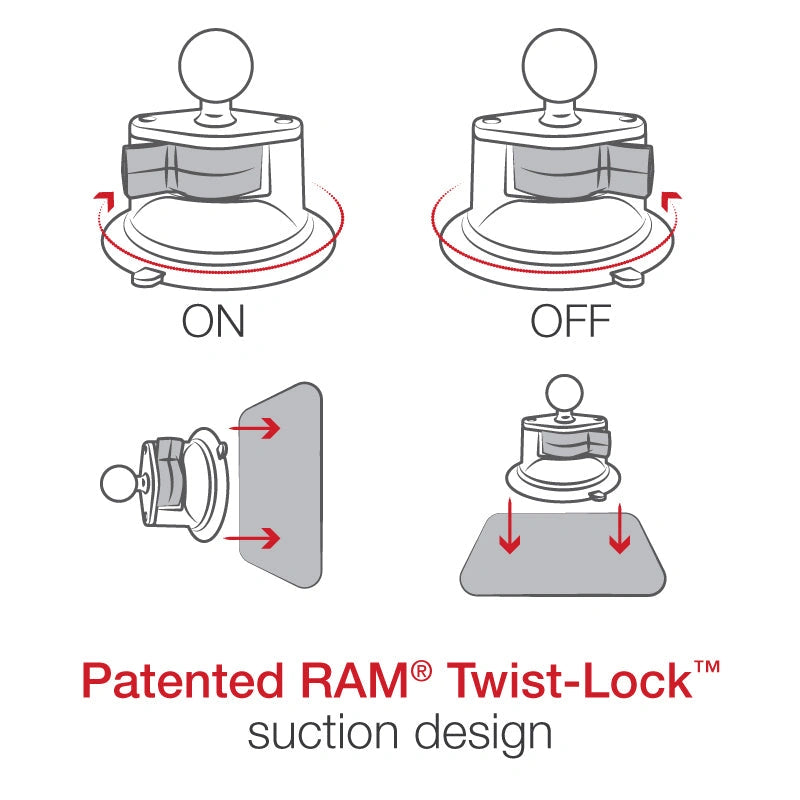

The RAM-B-166U-A combines a Twist-Lock suction cup, short arm and diamond plate for mounting a compatible holder to a windscreen or another smooth, non-porous surface.

The compact arm adjusts at both B Size balls. Attach a holder with the matching 2-hole AMPS pattern to the diamond plate. Device holder sold separately.

Specifications

• Suction Cup Diameter: 3.3" (83.8 mm)
• Overall Mount Height: 5.44" (138.2 mm)
• Arm Length: 2.42" (61.5 mm) overall; 1.75" (44.5 mm) socket-to-socket
• Hole Pattern: 2-hole AMPS, 1.912" (48.6 mm) hole spacing
• Ball Size: B Size 1" (25.4 mm) rubber balls
• Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg)
• Material: Powder-coated marine-grade aluminium and high-strength composite
• Packaging: Poly bag
• Weight: 0.53 lb (approximately 240 g)
• Warranty: RAM limited lifetime warranty; suction-cup rubber is a wear item and is excluded
• Hardware Included:
  • Assembly hardware

Fitment: Use on clean glass or suitable non-porous plastic. Check the holder's hole pattern and the total supported weight before use. An adhesive mounting disc is not included.

Help

• RAM suction cup installation guide
• RAM diamond plate drawing

Holder Connection: The supplied diamond plate is for a flat-backed holder with the matching 2-hole AMPS pattern. A holder with its own B Size ball can connect directly to the arm in place of the upper plate.
