RAM-B-103-A-238U

RAM Short Socket Arm with Diamond Plate B (RAM-B-103-A-238U)

Name: RAM Short Socket Arm with Diamond Plate B (RAM-B-103-A-238U)
Brand: Modest Mounts
SKU: RAM-B-103-A-238U
Price: 33.5 AUD
Availability: InStock
Rating: 5.0 (1 reviews)

Size Guide

$33.50 $37.00 You Save 9% ( $3.50 )

or make 4 interest-free payments of $8.38 AUD fortnightly with More info

Included:

1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

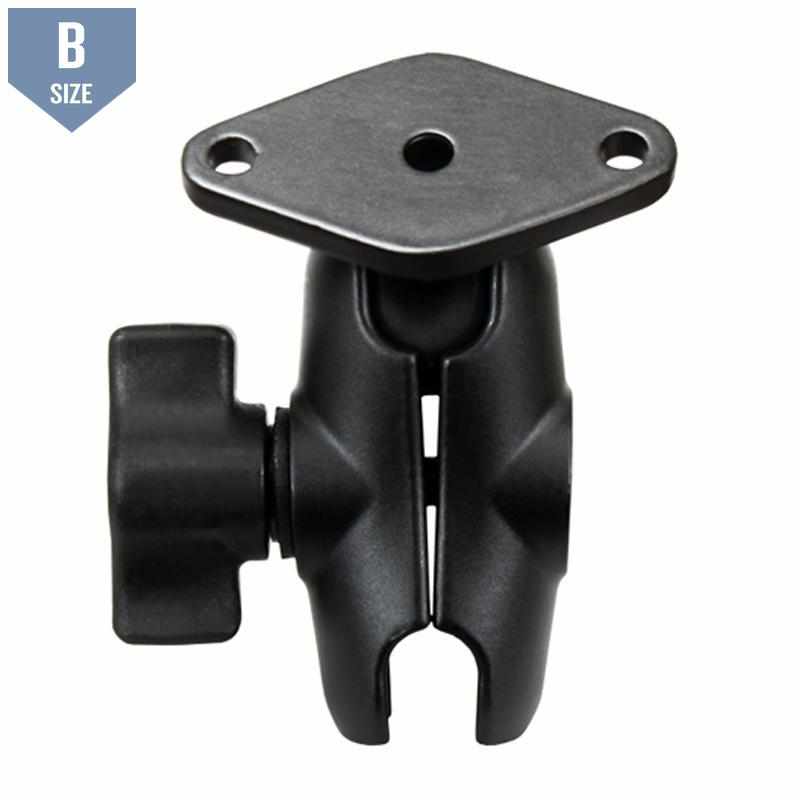

The RAM-B-103-A-238U includes a diamond base and SHORT (6cm) double socket arm that will accept 1" ball bases.

The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from centre to centre, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern.

FEATURES

Includes one diamond ball bases and B size short length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
Backed by a lifetime warranty

The hole pattern found on the diamond base adapter will connect to many RAM cradles, including all GPS cradles, phone cradles and more. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

Specs

Dimensions:

Overall Height: 3.75"
Socket to Socket Length: 1.75"

Material: Powder Coated Marine Grade Aluminium
Ball Size: 1" Rubber "B" Ball Size
Hole Pattern:

2-Hole AMPS: 1.912"

Plate Size: 2.43" x 1.31"
Weight: 0.44 lbs
Weight Capacity: 2lbs

Help

Collections: All, B Size Components 1", Best Selling Products, Newest Products, RAM Components

Shipping & Returns

Australia-Wide Shipping:

Here at Modest Mounts we strive to process all orders received before 12:00pm AEST on the same business day we receive them.

We currently offer the following domestic freight options*:

EXPRESS SHIPPING - For orders under $100. Parcels should arrive within 1-3 business days ($10.95).
FAST SHIPPING - For orders under $100. Receive your parcel in 2-8 business days ($8.95)
FREE FAST SHIPPING - When you spend $100 or more! (FREE)

Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium and Toll DX.

*Note: Domestic freight is currently impacted by delays due to COVID-19. Most of the parcels we're sending still seem to be delivering swiftly, however the occasional parcel will be delayed by one to three business days.

https://auspost.com.au/about-us/news-media/important-updates/coronavirus/coronavirus-domestic-updates#delays

If you have any questions about our deliveries please reach out at info@modestmounts.com.au

Note: Postage fee may be a little higher for some of the heavy or large items.

Returns:

Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition.
Full information available here.

Warranty Info:

Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
