8% OFF
RAP-B-299-4-PD4U

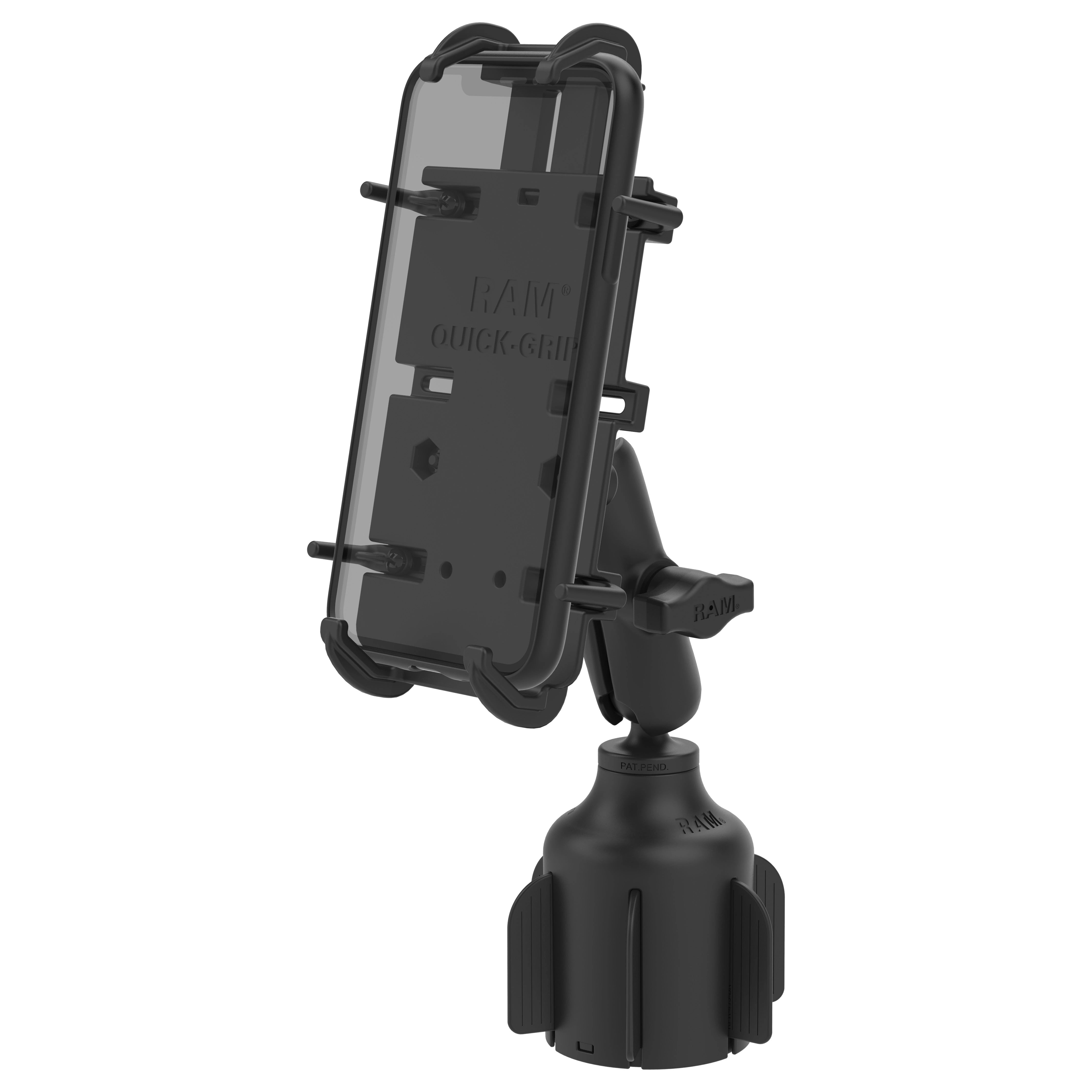

RAM Quick-Grip XL Phone Stubby Cup Holder Mount Bundle (RAP-B-299-4-PD4U)
$145.00$159.00You Save 8% ($14.00)
B Size guide
Included:
- 1 x RAM Quick-Grip XL Cradle For Large Phones (RAM-HOL-PD4U)
- 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)
- 1 x RAM Standard Composite Clamp Arm B Size (RAP-B-201U)
- 1 x RAM Stubby Cup Holder Base (RAP-B-299-4U)
A complete RAM Quick-Grip XL phone mount with a Stubby cup-holder base and standard-length B size composite arm. The included RAM-B-238U diamond adapter attaches to the rear of the bare phone holder and provides the device-side 1-inch ball.
The spring-loaded Quick-Grip XL lets you insert and remove your phone with one hand. Adjustable side supports help position the phone in the holder. The ball-and-socket joints at both ends of the arm let you adjust the viewing angle.
Phone and case are not included. The Stubby base fits vehicle cup holders with an inside diameter of 2.57–3.5 inches (65.3–88.9mm). Its flexible fins can be trimmed to suit. Check cup depth, retention and clearance before fitting.
Cradle Dimensions
- Height Range: 5.75"–7.25" (146.0–184.1mm)
- Width Range: 2.625"–3.625" (66.7–92.1mm)
- Maximum Depth: 0.72" (18.3mm)
Measure your phone with its case, sleeve or skin fitted. Check that the grips leave buttons, ports and cameras accessible.
Specifications
- Hardware Included: Holder assembly screws and nuts for the rear AMPS adapter, supplied with the Quick-Grip XL holder.
- Ball/Socket Size: B Size, 1 inch (25.4mm)
- Arm Socket-to-Socket Length: 3 inches (76.2mm)
- Materials: Marine-grade aluminium and high-strength composite
- Cup-Holder Fit: Inside diameter 2.57–3.5 inches (65.3–88.9mm)
- Weight Capacity: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use. Include phone, case and accessories when checking the mounted load.
- Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms.
Packaging may vary; all listed components are genuine RAM.
Help
Check the holder grip, mounting base and arm knob before use. Keep the phone clear of vehicle controls, airbags and your line of sight.
