RAM-B-138-PD4U
RAM Quick-Grip XL Phone Drill-Down Mount Bundle (RAM-B-138-PD4U)
$100.00$113.00You Save 11% ($13.00)
B Size guide
Included:
- 1 x RAM Quick-Grip XL Cradle For Large Phones (RAM-HOL-PD4U)
- 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)
- 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
- 1 x RAM Round Base with 1" B Ball (RAM-B-202U)

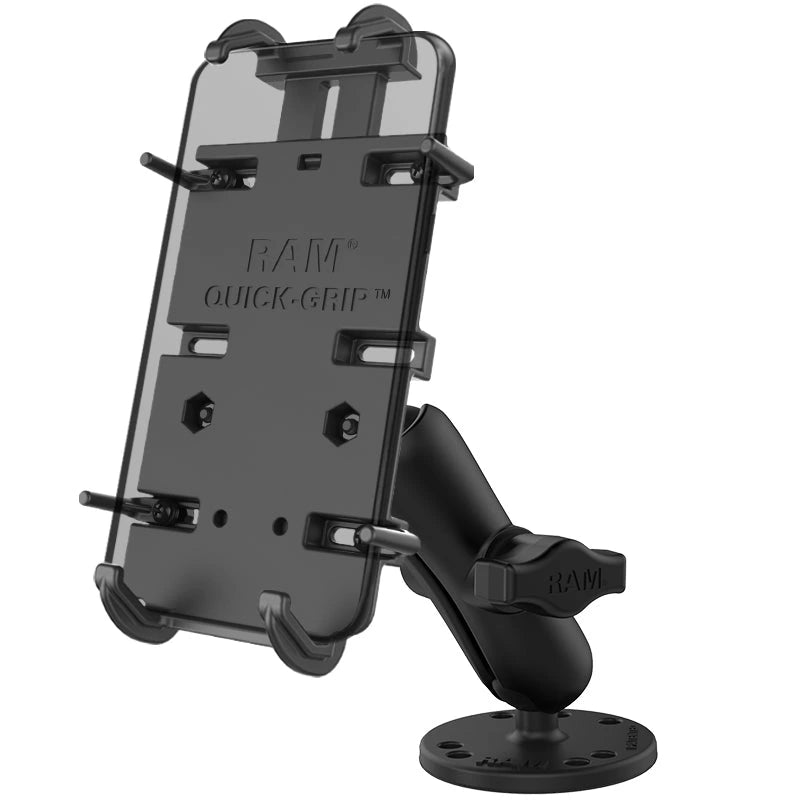

A complete RAM Quick-Grip XL phone mount with a round drill-down base and standard-length B size aluminium arm. The included RAM-B-238U diamond adapter attaches to the rear of the bare phone holder and provides the device-side 1-inch ball.
The spring-loaded Quick-Grip XL lets you insert and remove your phone with one hand. Adjustable side supports help position the phone in the holder. The ball-and-socket joints at both ends of the arm let you adjust the viewing angle.
Phone and case are not included. The 2.5-inch round plate mounts to a suitable flat surface. Surface-fixing screws are not included. Choose suitable fasteners and backing, check behind-panel clearance before drilling, and position the phone clear of controls, airbags and sight lines.
Cradle Dimensions
- Height Range: 5.75"–7.25" (146.0–184.1mm)
- Width Range: 2.625"–3.625" (66.7–92.1mm)
- Maximum Depth: 0.72" (18.3mm)
Measure your phone with its case, sleeve or skin fitted. Check that the grips leave buttons, ports and cameras accessible.
Specifications
- Hardware Included: Holder assembly screws and nuts for the rear AMPS adapter, supplied with the Quick-Grip XL holder.
- Ball/Socket Size: B Size, 1 inch (25.4mm)
- Arm Socket-to-Socket Length: 3 inches (76.2mm)
- Materials: Marine-grade aluminium and high-strength composite
- Round Base: 2.5 inches (63.5mm) diameter
- Mounting Pattern: 4-hole AMPS: 1.181 x 1.496 inches (30 x 38mm); 3-hole 120-degree pattern on a 1.812-inch (46.0mm) diameter
- Weight Capacity: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use. Include phone, case and accessories when checking the mounted load.
- Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms.
Packaging may vary; all listed components are genuine RAM.
Help
Check the holder grip, mounting base and arm knob before use. Keep the phone clear of vehicle controls, airbags and your line of sight.
