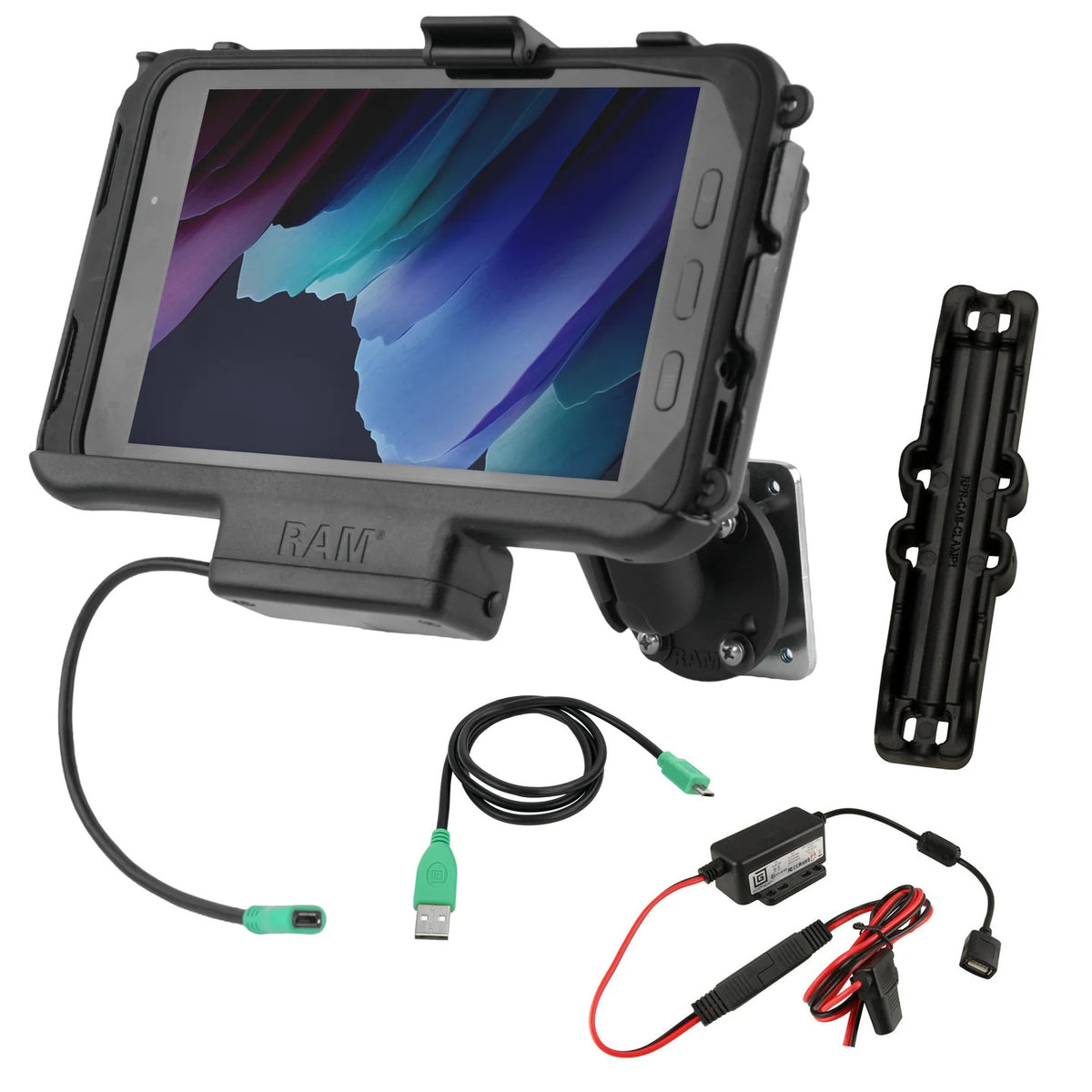

RAM-B-101-225B2-SAM60P-V7
This powered cradle for the Samsung Tab Active5, Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.
This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device.
This complete mounting kit includes:
A 3” x 3” steel backing plate with #10-24 threaded holes,
two 2.5” round ball plates,
medium length double socket arm,
and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active5, Active3 or Active2.
Assembly Hardware
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
(1) mUSB Cable
(1) Hardwire Charger
MOUNT SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
CRADLE DIMENSIONS
Width: 9.24"
Height: 6.34"
Depth: 2.57"
MATERIALS
Steel
Marine-grade alluminum
High strength composite
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
10V - 30V DC
OUTPUT VOLTAGE
5-9VDC
OUTPUT CURRENT
2.5A max
INPUT CONNECTOR
mUSB 2.0 Female
INPUT CABLE LENGTH
.21 Meter
OPERATING TEMPERATURE
-10°C to +70°C
STORAGE TEMPERATURE
-40°C to +70°C
COMPLIANCE
Overvoltage/Load Dump Compliance: Meets SAE J-1113
CERTIFICATIONS
Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, e-Mark and RoHS Compliant USB 2.0 BC 1.2 DCP Support
WEIGHT
1.95 lbs.
Collections: All, Best Selling Products, Charging | Cables | Electronics, Newest Products, Tablet Mounts
Here at Modest Mounts we strive to process all orders received before 12:00pm AEST on the same business day we receive them.
We currently offer the following domestic freight options*:
Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium, StarTrack Express & Sendle.
Note: Postage fee may be a little higher for some of the heavy or large items.
Read more on our Shipping & Delivery
Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition. To initiate a return, send us an email at info@modestmounts.com.au - DO NOT send items back to our office address.
Full information available here.
Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
