Home / All / RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)

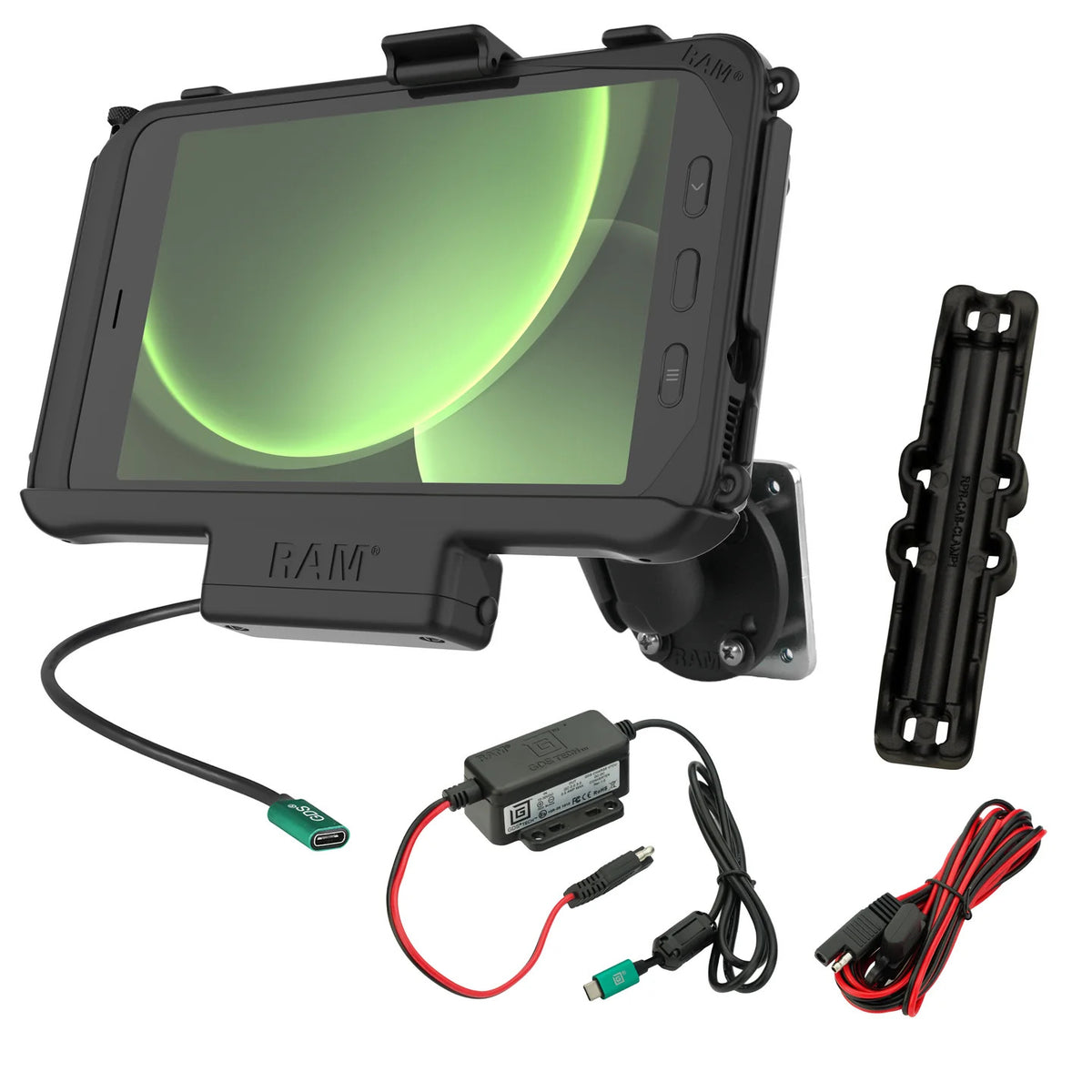

RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)
RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)
RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)

Related Items

RAM-101-225B2-SAM60CP-V7C

RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)

Size Guide
$315.00 You Save 12% ( $43.00 ) You Save 12% ( $43.00 )



Included:

  • 1 x RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU)
  • 1 x  RAM Double Ball Mount with Backing Plate (RAM-B-101U-225B2)

    FEATURES

    • RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
    • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
    • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
    • Backed by a 3-year warranty

    This powered cradle for the Samsung Tab Active5, Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Now faster than ever, with USB-C power.

    This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device.

    This complete mounting kit includes:
    A 3” x 3” steel backing plate with #10-24 threaded holes,
    two 2.5” round ball plates,
    medium length double socket arm,
    and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active5, Active3 or Active2.

    Assembly Hardware
    (1) 3" x 3" Steel Backing Plate
    (4) #10-24 x 1" Thread Locking Screws
    (4) #10-24 Nylock Nuts
    (1) Cable Clamp
    (1) mUSB Cable
    (1) Hardwire Charger

    Specs

    Hardware Included

    Assembly Hardware
    (1) 2.10" x 2.60" Steel Backing Plate
    (4) #8-32 x 1" Screws
    (4) #8 Split Lock Washers
    (4) #8 Flat Washers
    (1) Cable Clamp
    (1) Hardwire Charger

    Socket To Socket Length

    3"

    Ball Size

    B Size (1")

    Weight Capacity

    Standard Use: 2 lbs
    Heavy-Duty Use: 1 lb

    Materials

    Steel
    Marine-grade alluminum
    High strength composite

    Packaging Type

    Poly Bag

    Input Voltage

    5.3-5.4VDC

    output voltage

    5VDC

    power output

    500mA

    input connector

    USB Type-C Female

    Input Cable Length

    215mm

    Operating Temperature

    -10°C to +70°C

    Storage Temperature

    -40°C to +70°C

    Regulatory

    Overvoltage/Load Dump Compliance: Meets SAE J-1113
    FCC, CE, UKCA, IC

    Certifications

    E-Mark Certification
    Integrated Short Circuit Protection
    WEEE and RoHS Compliant
    USB 2.0 BC 1.2 DCP Support
    IEC/UL 62368-1

    Weight

    1.88 lb

    Additional Information

    *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

    This product will not support the "No Battery Mode" function of the Tab Active3.
    Compatibility
    • Samsung Tab Active5
    • Samsung Tab Active3
    • Samsung Tab Active2
    Help

    Instructions for Modular Hardwire Charger
