RAM-202-153-202U

RAM Humminbird Helix 5 Mount 1.5" (RAM-202-153-202U)

Name: RAM Humminbird Helix 5 Mount 1.5" (RAM-202-153-202U)
Brand: Modest Mounts
SKU: RAM-202-153-202U
Price: 78.15 AUD
Availability: InStock
Rating: 5 (2 reviews)

Size Guide

$78.15 $89.50 You Save 12% ($11.35)

or make 4 interest-free payments of $19.54 AUD fortnightly with More info

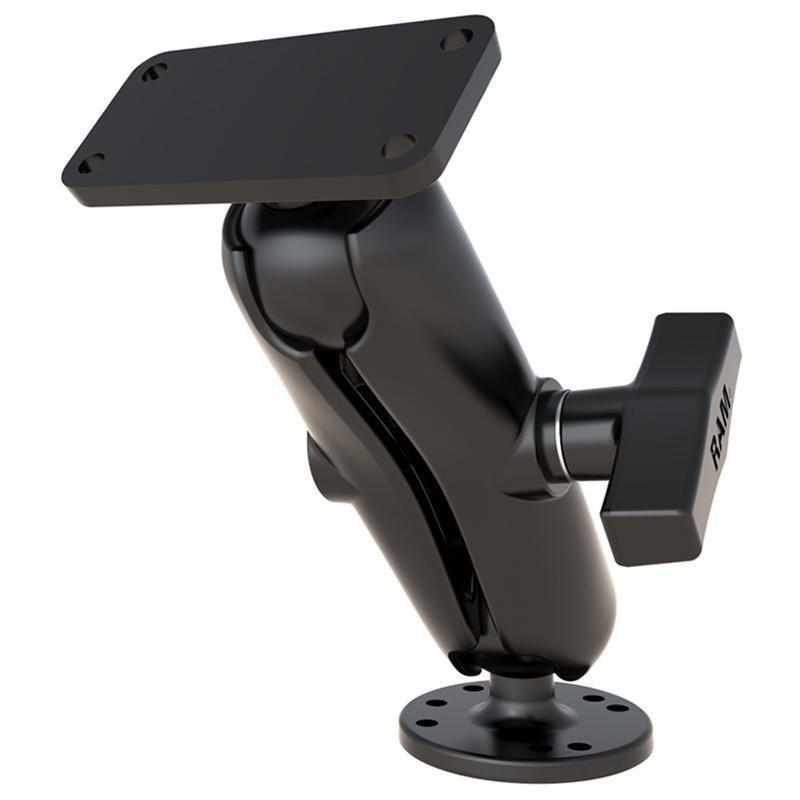

Included:

1 x RAM Standard Double Socket Clamp Arm C Size (RAM-201U)
1 x RAM Round Base with 1.5" C Size Ball (RAM-202U)
1 x RAM 1.5" Ball with 1.5 x 3" Base (RAM-202U-153)

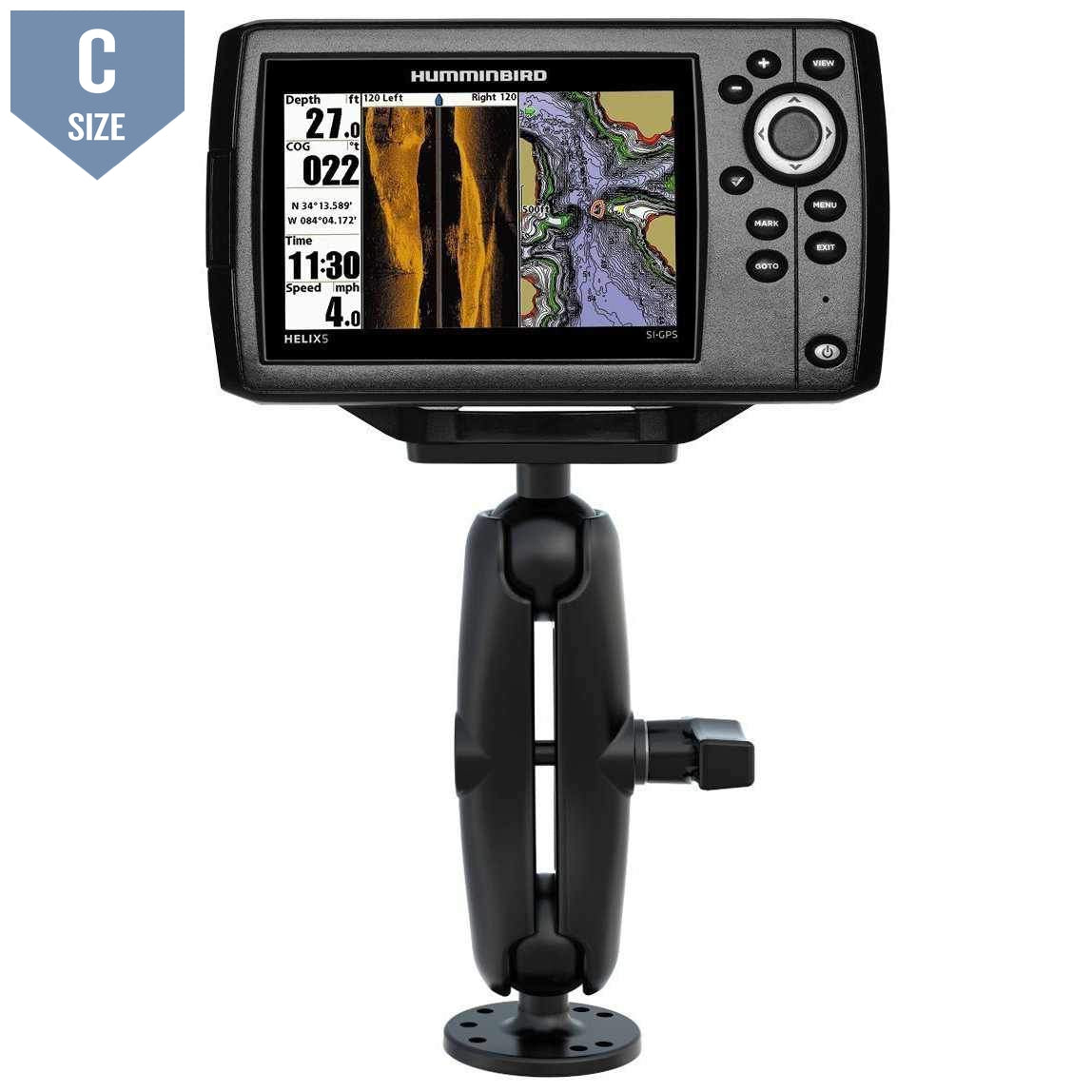

The RAM-202-153-202U will allow you to mount your Humminbird Helix 5 fishfinder to your boat, kayak, and more.

The included rectangular base has four holes with a centre to centre pattern of 1" x 2.5" (2.54cm x 6.35cm).

Specifications

Center to Center Hole Pattern: 1" x 2.5" (2.54cm x 6.35cm)
Weight Capacity: Approx 4.5kg
Overall Height: 7.35" (18.67cm)
Material: Powder Coated Marine Grade Aluminium
Ball Size: 1.5" Rubber Ball Size

Note: The "U" in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.

Compatibility

Humminbird HELIX 5 DI
Humminbird HELIX 5 DI GPS
Humminbird HELIX 5 SI GPS
Humminbird HELIX 5 SI GPS KVD
Humminbird HELIX 5 SONAR GPS
Humminbird HELIX 5 SONAR
Humminbird HELIX 5 XD GPS

Collections: All, Best Selling Products, C Size Components 1.5", Marine Mounts, Newest Products

Customer Reviews

5 Based on 2 Reviews

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

09/12/2019

Jason E.

Australia

that is am awesome bit

that is am awesome bit of kit to hold my hds live 12

04/05/2018

Travis R.

Darwin, Australia

Real good

Item as described, maybe better

Shipping & Returns

Australia-Wide Shipping:

We ship every day with StarTrack, Toll & Australia Post (depending on who is best suited for your delivery).

Select your Shipping Method during Checkout.

FREE FAST SHIPPING - When you spend $100 or more! (FREE)
EXPRESS SHIPPING - For orders under $100. Parcels should arrive within 1-2 business days ($10.95).
FAST SHIPPING - For orders under $100. Receive your parcel in 2-5 business days ($8.95)

Note: Postage fee may be higher for some of the heavy or large items.

Note: Due to increased retail activity online, many Australian delivery services (including Australia Post) are now experiencing some minor delays. It appears only a small handful of our deliveries have so far experienced delays, but please allow an additional 1-3 business days to all delivery schedules.

Returns:

Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition.
Full information available here.

Warranty Info:

Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A

RAM Humminbird Helix 5 Mount 1.5" (RAM-202-153-202U)
