RAM C Size Drill-Down Mount w X-Grip for 12"-13" Tablets (MM-C-DRILL-MEDIUM-UN11)

Included:

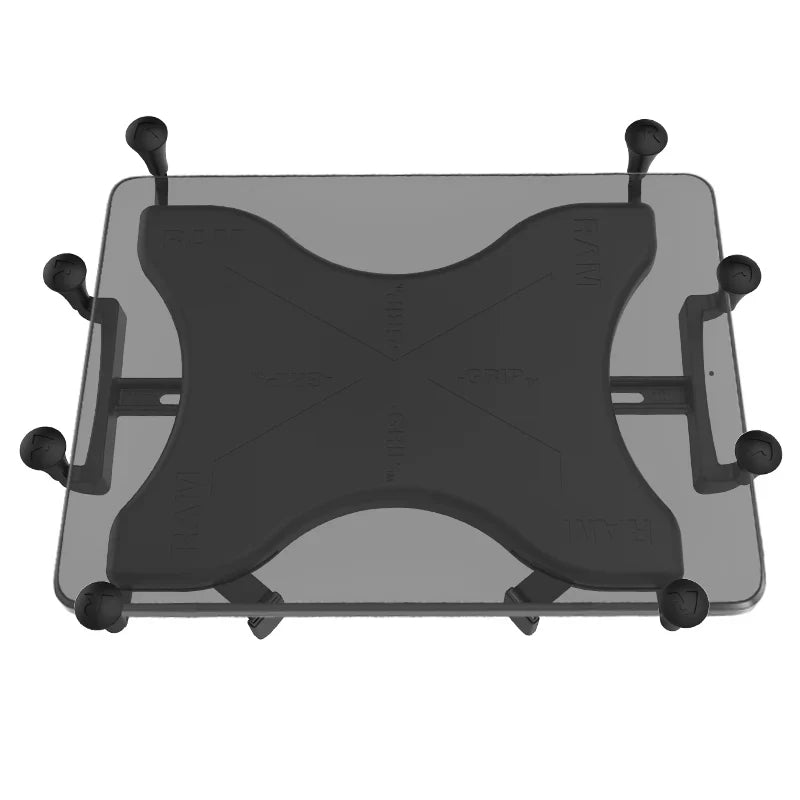

• 1 x RAM X-Grip 12"-13" Tablet Cradle (RAM-HOL-UN11U)

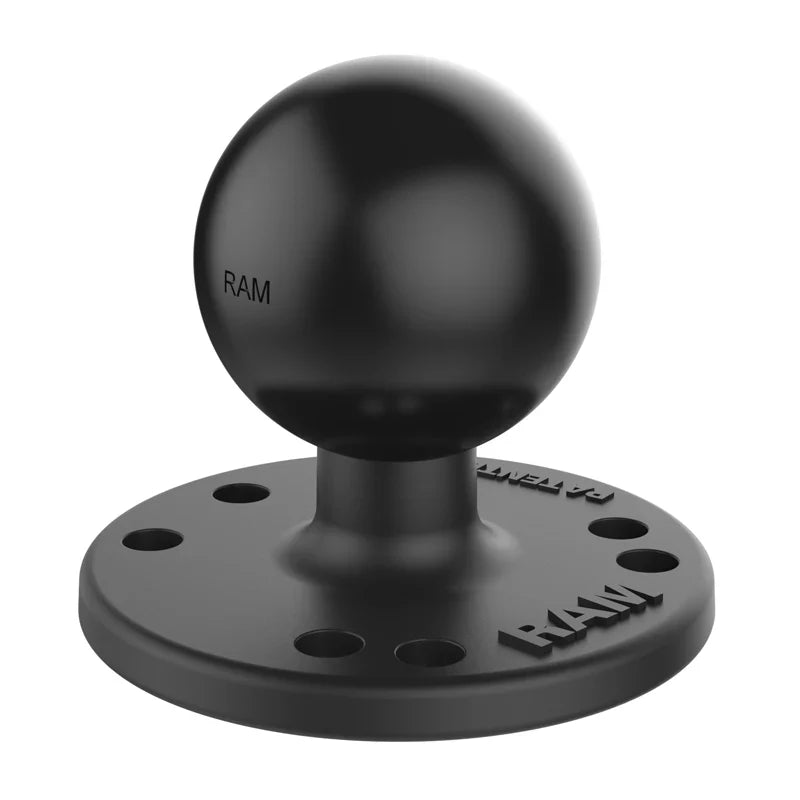

• 2 x RAM Round Base with 1.5" C Ball (RAM-202U)

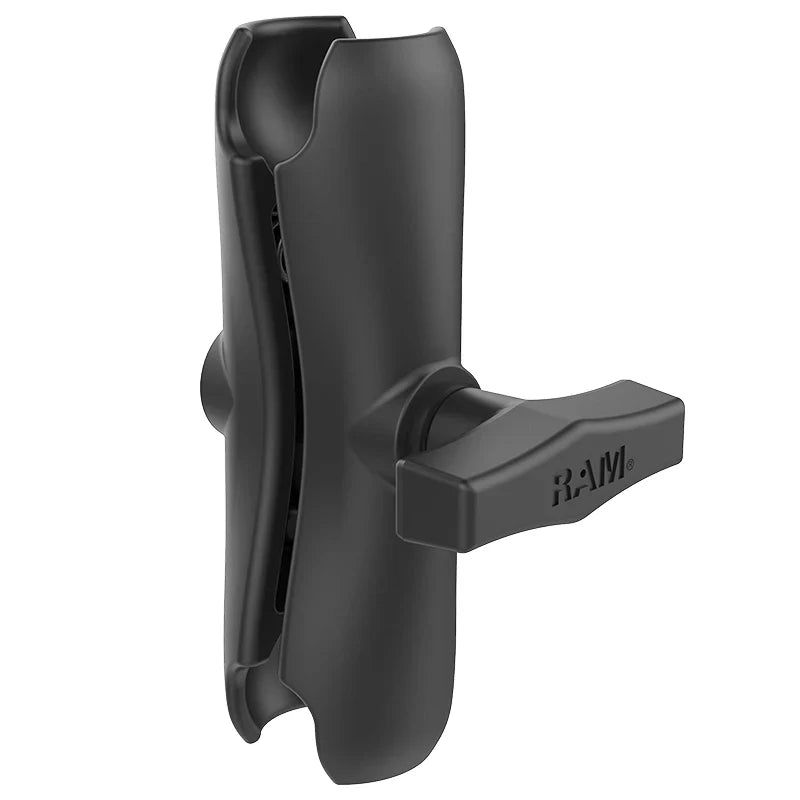

• 1 x RAM Standard Clamp Arm C Size 1.5" (RAM-201U)

Gallery images show the individual RAM components included in this kit, rather than an assembled mount. Tablet and case shown for illustration are not included.

A complete RAM X-Grip UN11 tablet mount for a suitable flat mounting surface, with a standard-length C size arm and two round ball plates. One plate attaches to the holder; the other forms the drill-down mounting base.

The UN11 holder has no built-in ball. The included holder-side RAM-202U plate supplies the C size interface. Tablet and case are not included.

Choose surface-specific fasteners and check the substrate and behind-panel clearance before drilling. Mounting-surface screws or bolts are not included.

Cradle Dimensions

• Width Range: 7.25"–8.75" (184.2–222.3mm)
• Maximum Depth: 0.875" (22.2mm)
• Maximum Height with Optional Supports: 10.25" (260.4mm)

Measure the tablet with its case fitted and check grip, button and port clearance. Screen size alone does not establish fit. Check the device/case dimensions and support configuration before ordering.

Specifications

• Holder Hardware Included: Assembly hardware, 4 x #8-32 x 1/2" and 2 x #8-32 x 5/8" sheet-metal screws, supplied with the UN11 holder
• Ball/Socket Size: C Size, 1.5" (38.1mm), throughout
• Arm Socket-to-Socket Length: 4.66" (118.4mm)
• Round Plate Diameter: 2.5" (63.5mm)
• Holder Connection: Included RAM-202U plate bolts to the holder’s 4-hole AMPS pattern, 1.181" x 1.496" (30 x 38mm)
• Mounting-Surface Fasteners: Not included; select for the mounting surface
• Load Guidance: RAM C size component guidance: 4 lb (1.81kg) standard use; 3 lb (1.36kg) heavy-duty use. Check the weight of the actual tablet, case, accessories, holder and adapters, plus the holder configuration, arm reach and mounting surface. These figures are not a blanket off-road rating for every tablet that fits.

Packaging may vary; all listed components are genuine RAM. RAM components are covered by the manufacturer’s limited lifetime warranty terms.

Help

RAM recommends the optional support arms for larger tablets and rough conditions; fitted supports limit tablet height to 10.25" (260.4mm). Taller tablets can fit with at least one support omitted, provided width and depth remain within range. For portrait use beyond very light-duty or static conditions, RAM advises retaining a support beneath the tablet to prevent downward movement. Confirm the actual configuration for your device; a larger C size ball does not remove these holder-retention limits.

See RAM’s tablet fit guidance and the holder specifications. Check holder retention, arm knob and mounting base before use. Keep controls, airbags and visibility clear.
