RAM 4" Square Post Clamp Mount C Size Medium (RAM-101U-247-4)

Included:

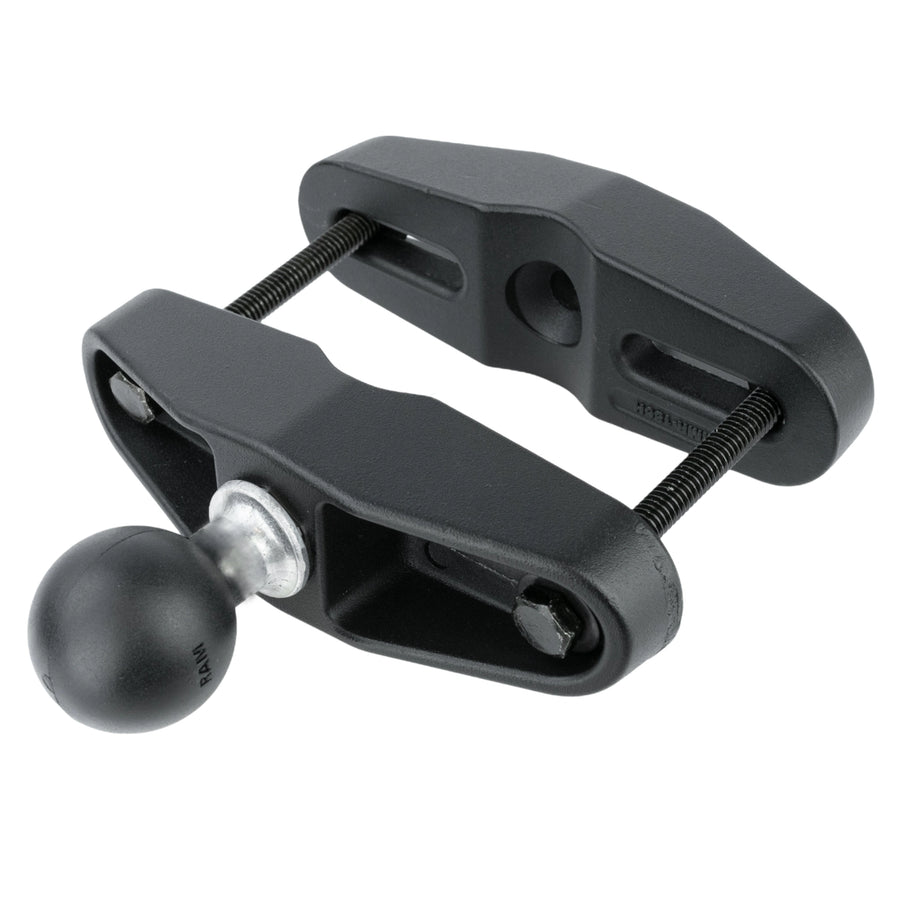

• 1 x RAM Square Post Clamp Base for Posts up to 4" Wide, C Size (RAM-247U-4)
• 1 x RAM Medium Double Socket Arm, C Size (RAM-201U)
• 1 x RAM Round Plate with 1.5" C Size Ball (RAM-202U)

The RAM-101U-247-4 provides an adjustable AMPS mounting point to a square post without drilling the post. The two clamp plates tighten around the post using the supplied nuts and bolts; the medium C size arm carries the round holder-side plate.

RAM’s rubber ball-and-socket system provides adjustment at both ends of the arm and helps dampen shock and vibration.

A compatible holder or dock is sold separately. The supplied holder-side round plate presents the 4-hole AMPS (30 x 38mm) pattern for a matching flat-backed holder or dock. A holder with its own compatible 1.5" C size ball can attach directly to the arm instead, without the upper plate.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Arm Length: Medium
• Socket-to-Socket Length: 4.66" (118.36mm)
• Overall Height: 7.85" (199.39mm)
• Clamp Range: Square post: 4" (101.6mm) maximum width
• Plate Size: 2.5" (63.5mm) diameter round output plate
• Hole Pattern: 4-hole AMPS: 1.181" x 1.496" (30 x 38mm); 3-hole 120-degree pattern: 1.812" (46.02mm) diameter
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium
• Weight: 2.16 lb (approximately 980g)
• Packaging: Poly bag
• Manufacturer Part Number: RAM-101U-247-4
• UPC: 793442924804
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • 2 x 5/16"-18 x 3" machine screws and 2 x 5/16"-18 Nyloc nuts

Help

Match the holder’s connection and ball size before choosing the setup.

The 4" limit is the square post’s maximum width, not a round-rail diameter. Check both post dimensions, bolt reach and surrounding clearance.

Include the holder, device and attached accessories when checking the load. Choose the heavy-duty rating for more demanding conditions and follow the manufacturer’s installation instructions.

RAM component drawing / fitting guide

Official RAM product information

Holder, device and vehicle shown in application images are not included.
