RAM-111U

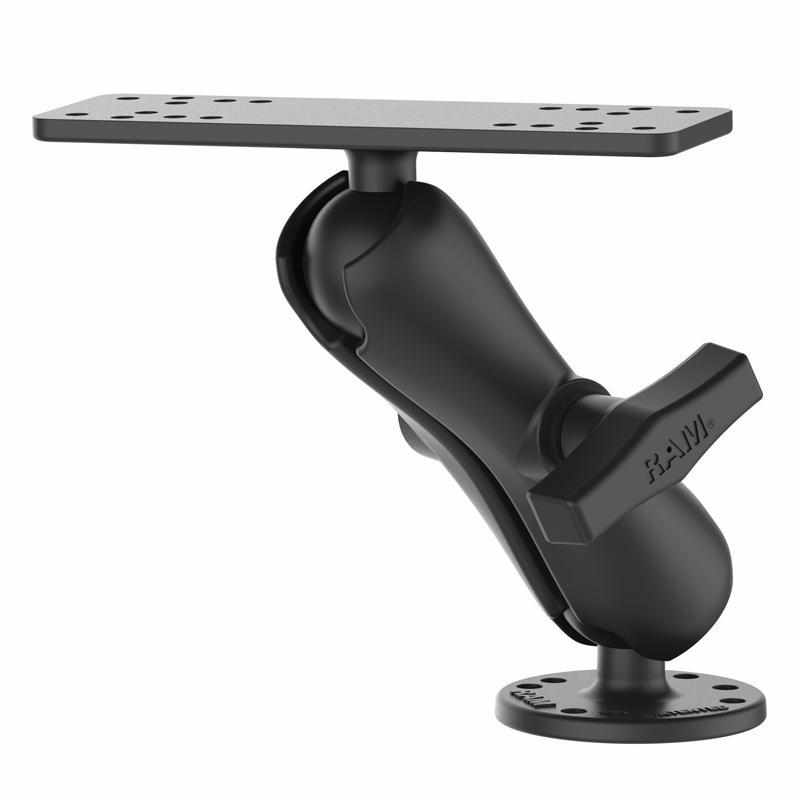

RAM 1.5" Marine Mount w 6.25" X 2" Rectangle Base (RAM-111U)

Size Guide
include usage is not allowed in this context

or make 4 interest-free payments of $20.90 AUD fortnightly with Afterpay More info

Included:

  • 1 x RAM 6.25" x 2" Universal Electronics Base with 1.5" Ball (RAM-111BU)
  • 1 x RAM Standard Double Socket Clamp Arm C Size (RAM-201U)
  • 1 x RAM Round Base with 1.5" C Size Ball (RAM-202U)

    The RAM-111U features a double socket arm, a 2.5" diameter round base, and a 6.25" x 2" rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

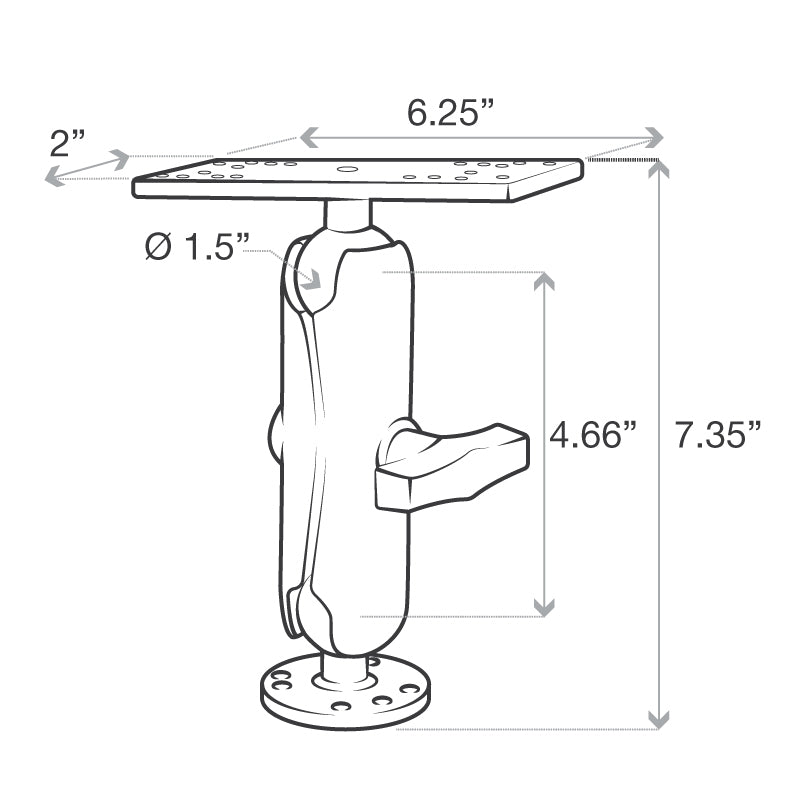

    Specifications
    • Overall Height: 7.35"
    • Weight Capacity: 10 lbs.
    • Material: Powder Coated Marine Grade Aluminium
    • Ball Size: 1.5" Rubber Ball "C" Size

    Note:  The "U" in the part number reflects product packaged in poly bag.

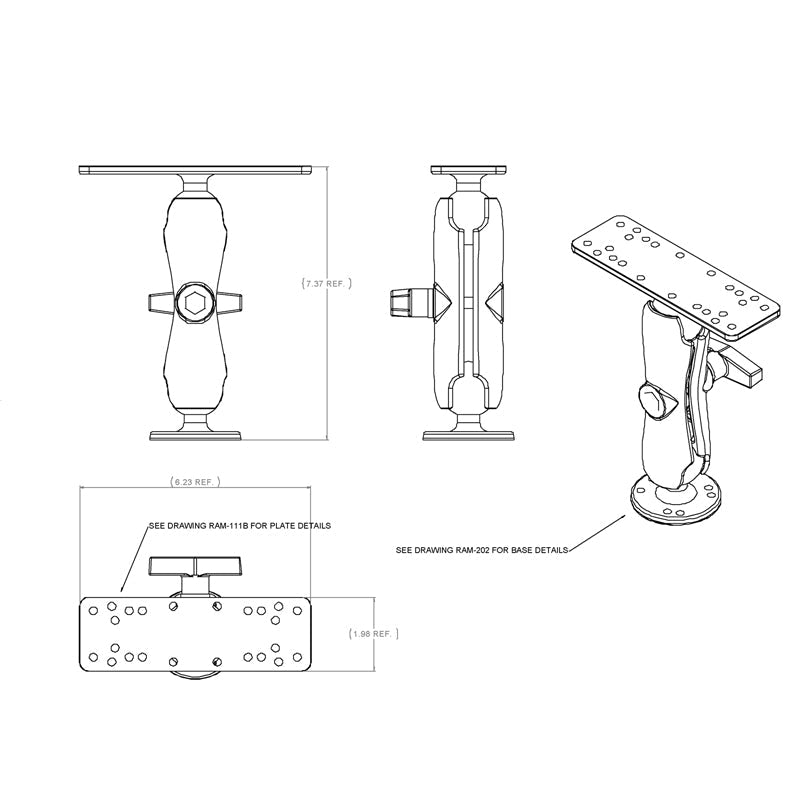

    Plate Hole Patterns (PDF)

    Compatibility
    • Garmin ECHOMAP Plus 72cv
    • Garmin ECHOMAP Plus 73cv
    • Garmin ECHOMAP Plus 74cv
    • Garmin ECHOMAP Plus 75cv
    • Garmin ECHOMAP Plus 77cv
    • Garmin GPSMAP 722
    • Garmin GPSMAP 722xs
    • Garmin GPSMAP 742
    • Garmin GPSMAP 742xs
    • Garmin Striker Plus 5cv
    • Garmin Striker Plus 7cv
    • Garmin Striker Plus 7sv
    • Lowrance HDS Carbon 7
    • Lowrance HDS LIVE 7
    • Lowrance HOOK2-7
    • Lowrance Hook 7 Reveal
    • Lowrance Hook 9 Reveal
    • Garmin Fishfinders and GPS Chartplotters
    • Humminbird Fishfinders and GPS Chartplotters
    • Lowrance Fishfinders and GPS Chartplotters
    • Raymarine Fishfinders and GPS Chartplotters
    • Simrad Cruise 7
