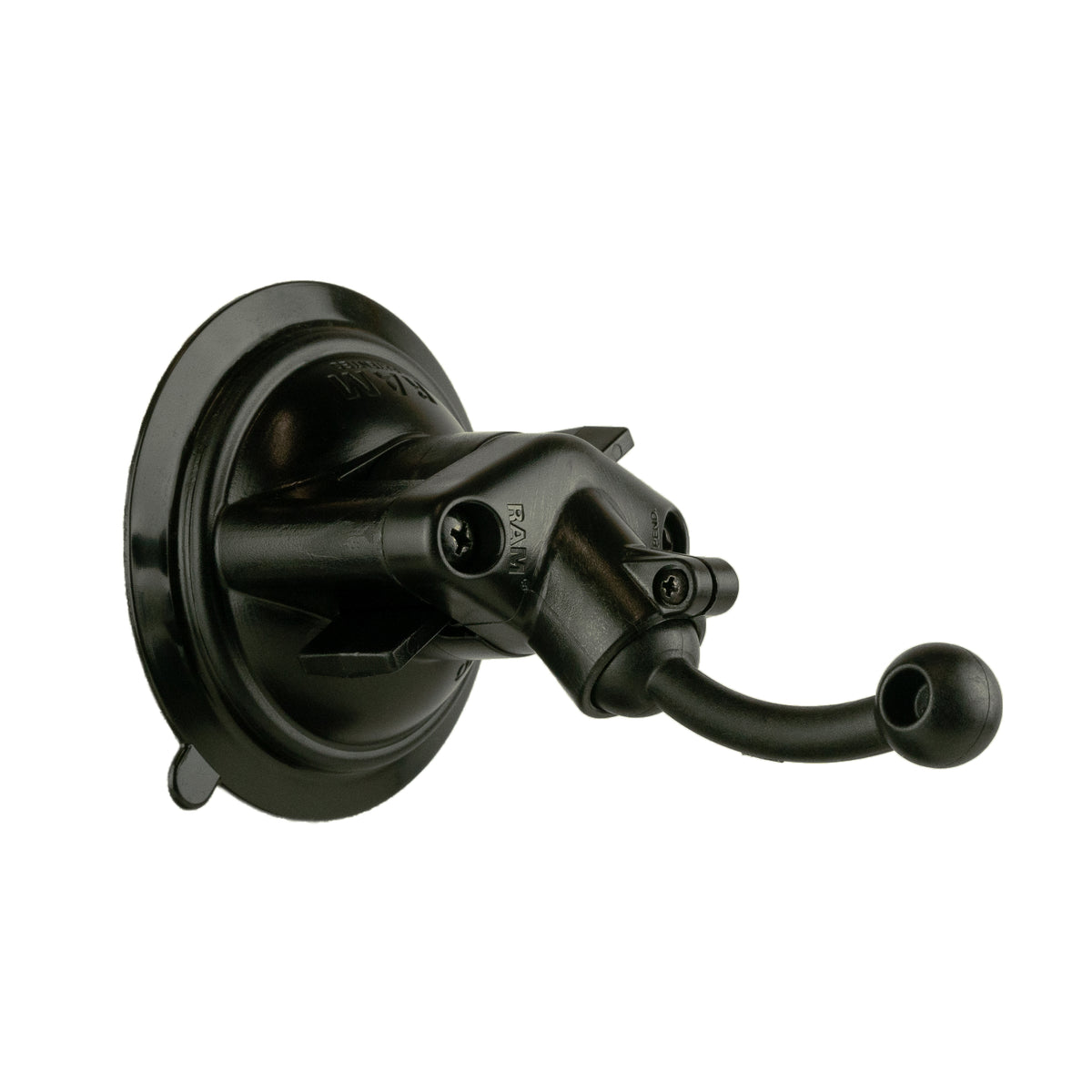

RAM Twist-Lock Suction Mount with 17mm Garmin Ball (RAP-SB-224-1-RGLU)

Included:

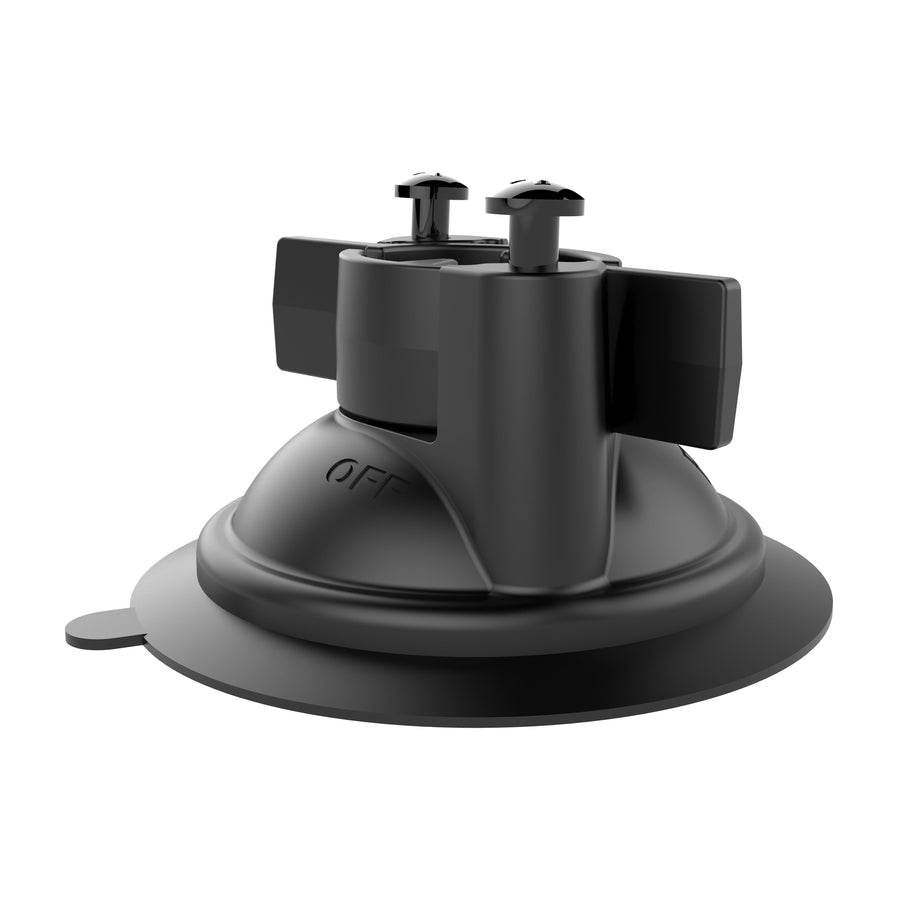

• 1 x 3.3" RAM Twist-Lock suction base (RAP-224-1U)
• 1 x Angled Snap-Link socket with diamond plate (RAP-SB-275-45U)
• 1 x 3" long Snap-Link adapter with 17mm Garmin ball (RAP-SBA-RGLU)
• Assembly hardware, including 2 x #10 x 3/4" suction-base screws

The RAP-SB-224-1-RGLU is a complete RAM suction mounting assembly for a compatible Garmin factory bracket with a 17mm socket. Keep your original Garmin bracket: the GPS, Garmin bracket and power cable are not included.

Maximum payload: 0.5 lb (approximately 227g) for the GPS, bracket and supported accessories combined. Check the exact model and original bracket before ordering.

Specifications

• Garmin Interface: 17mm ball
• RAM Joint: Snap-Link 3/4" (approximately 19mm), not a 1" B-size joint
• Maximum Payload: 0.5 lb (approximately 227g), including the supported GPS, bracket and accessories
• Suction Diameter: 3.3" (83.8mm)
• Overall Height: 5" (127mm)
• Material: High-strength composite
• Product Weight: 0.25 lb (approximately 113g)
• Manufacturer Part Number: RAP-SB-224-1-RGLU
• UPC: 793442015526

Compatibility

Check the exact GPS model, original bracket and total supported weight. A compatible Drive 52 factory bracket is one application identified by RAM, subject to the 0.5 lb limit. A 17mm socket alone does not establish load suitability; do not assume all Drive, DriveSmart or nüvi models fit.

Help

Use on a smooth, nonporous surface such as suitable windshield glass. Follow the RAM suction-cup assembly guide and check the attachment before use. Suction rubber is a wear item excluded from RAM's lifetime warranty.

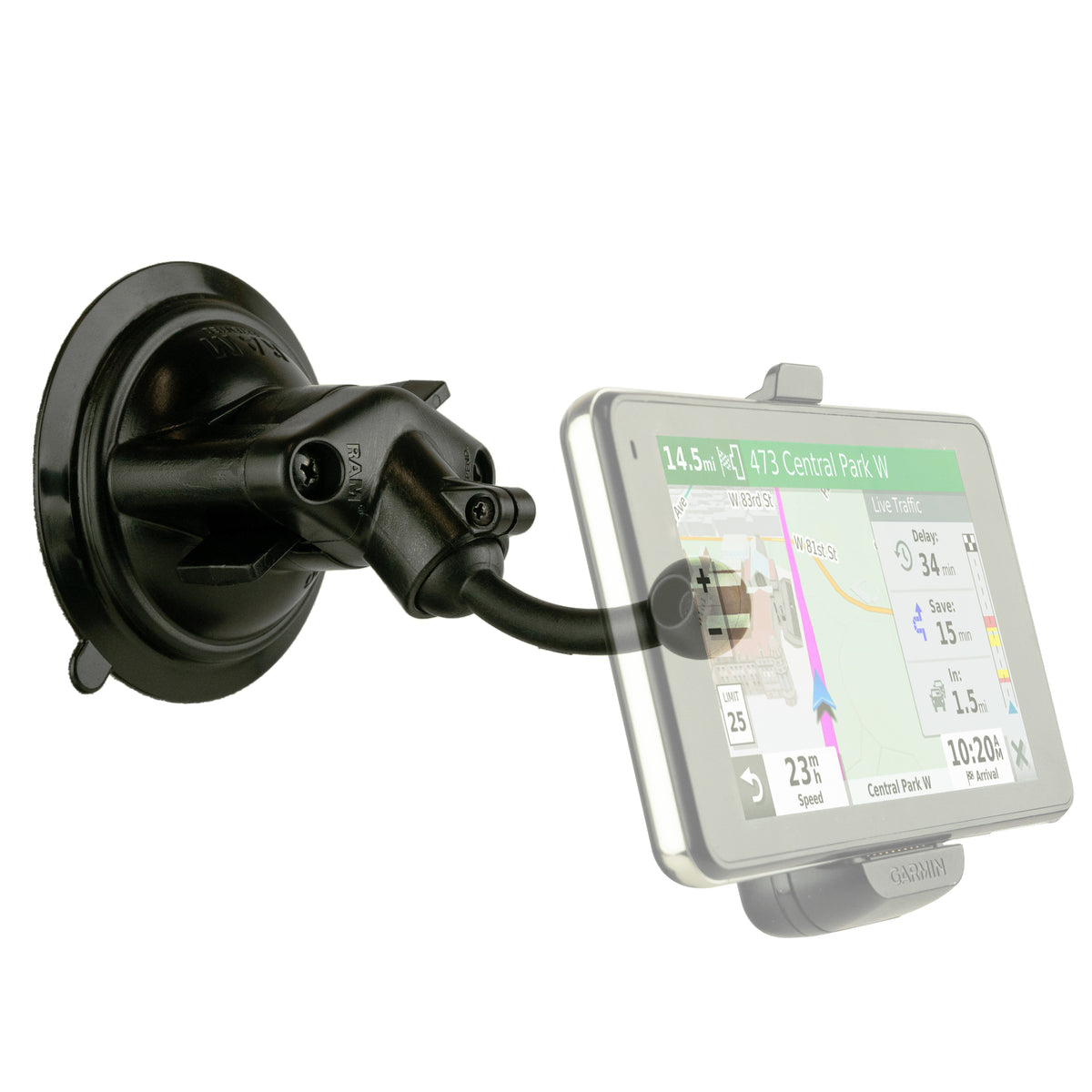

The application image shows an example GPS and factory bracket, both sold separately.
