RAM Form-Fit Cradle for Garmin GPS 60, GPSMAP 60 Series & Astro 220 (RAM-HOL-GA12U)

Included:

• 1 x RAM Form-Fit Cradle for Garmin GPS 60, GPSMAP 60 Series and Astro 220 (RAM-HOL-GA12U)
• Attachment hardware: two each of #8-32 x 1/2-inch, 5/8-inch and 3/4-inch machine screws, plus two #8-32 Nyloc nuts

Important: this cradle requires the standard Garmin belt-clip button on the back of your GPS. RAM specifies the button originally supplied with the Garmin unit. The button is not included with this cradle. Check that yours is present and secure before ordering.

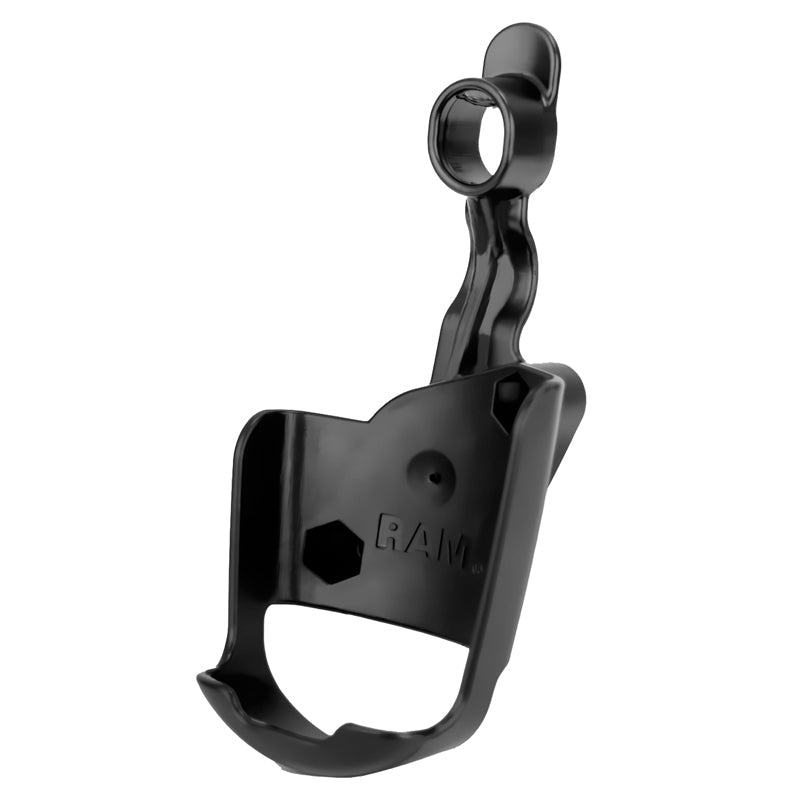

The RAM-HOL-GA12U is a moulded, high-strength composite holder for the Garmin GPS 60 and GPSMAP 60 family, plus Astro 220. It provides a device-specific holder for an existing RAM mounting system or a new setup assembled from compatible parts.

Attach a separately sold RAM-B-238U diamond ball base to the rear 2-hole AMPS pattern, then connect to a compatible B-size arm and mounting base. The cradle has no integrated ball.

Compatibility

• Garmin Astro 220
• Garmin GPS 60
• Garmin GPSMAP 60, 60C, 60CS, 60Cx and 60CSx

Use with the standard device body. Fit with an added protective case or skin has not been verified. This holder is not a verified substitute for holders made for other Garmin families, including GPSMAP 62/64/66/67 or Astro 320.

Specifications

• Material: high-strength composite
• Rear hole pattern: 2-hole AMPS, 1.912 inches (48.56 mm) between hole centres
• Product weight: 0.15 lb (approximately 68 g)
• Packaging: poly bag
• RAM limited lifetime warranty, subject to manufacturer terms; mounted devices are not covered

This is a passive, unpowered cradle. GPS, Garmin belt-clip button, batteries, power cable, diamond ball base, socket arm and mounting base are sold separately or retained from your existing equipment.

Help

Use the appropriate supplied screw length for your holder-to-plate connection. Check the button, cradle, fasteners and complete mount before use. Choose the mounting base for your actual surface and verify that the GPS, attached accessories and operating conditions suit the mounting system.

For vehicle use, keep the driver's view, controls and airbag deployment areas clear. See the official RAM product information and illustrations and the Garmin GPSMAP 60CSx owner's manual for device guidance. The Garmin manual is device documentation, not a dedicated RAM cradle assembly guide.
