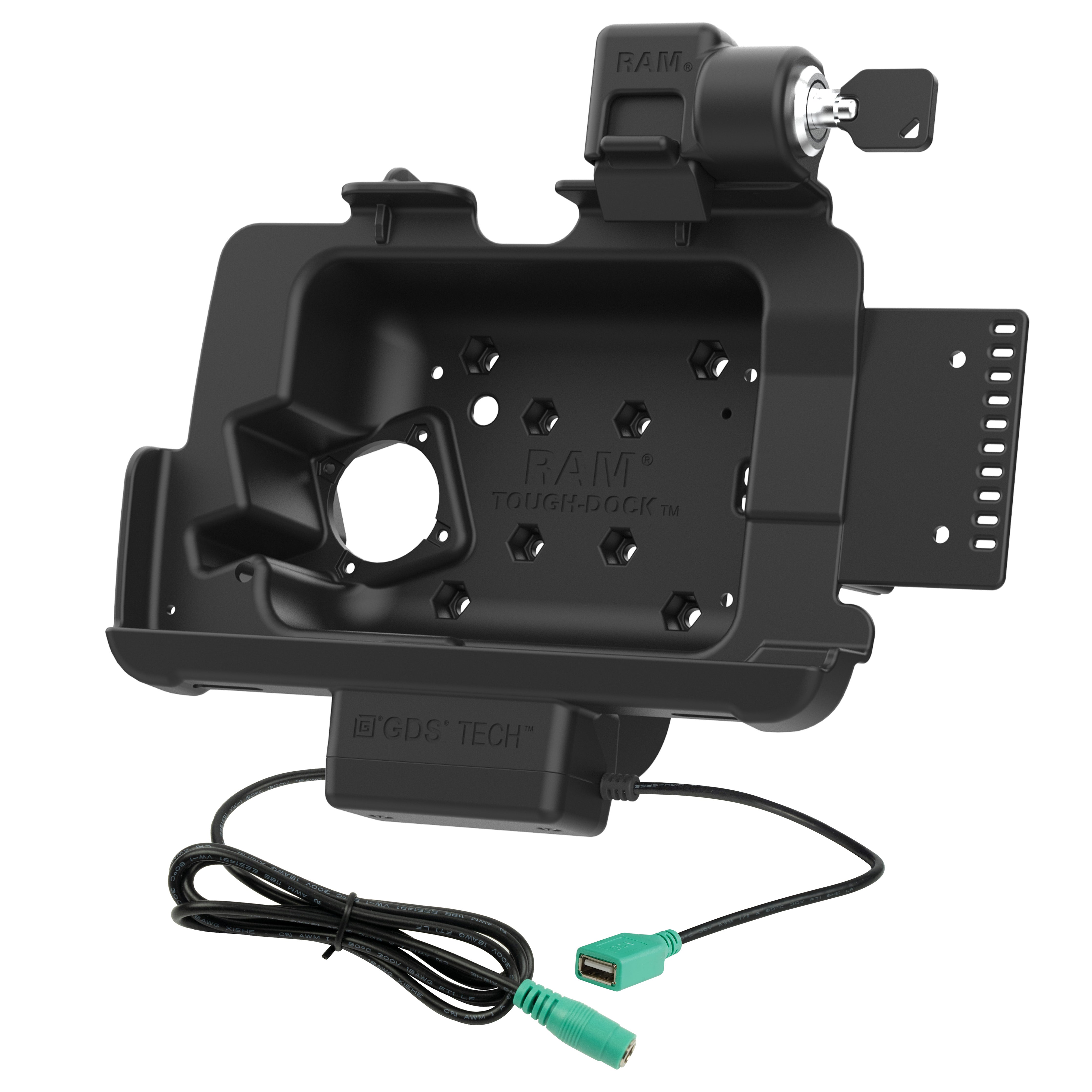

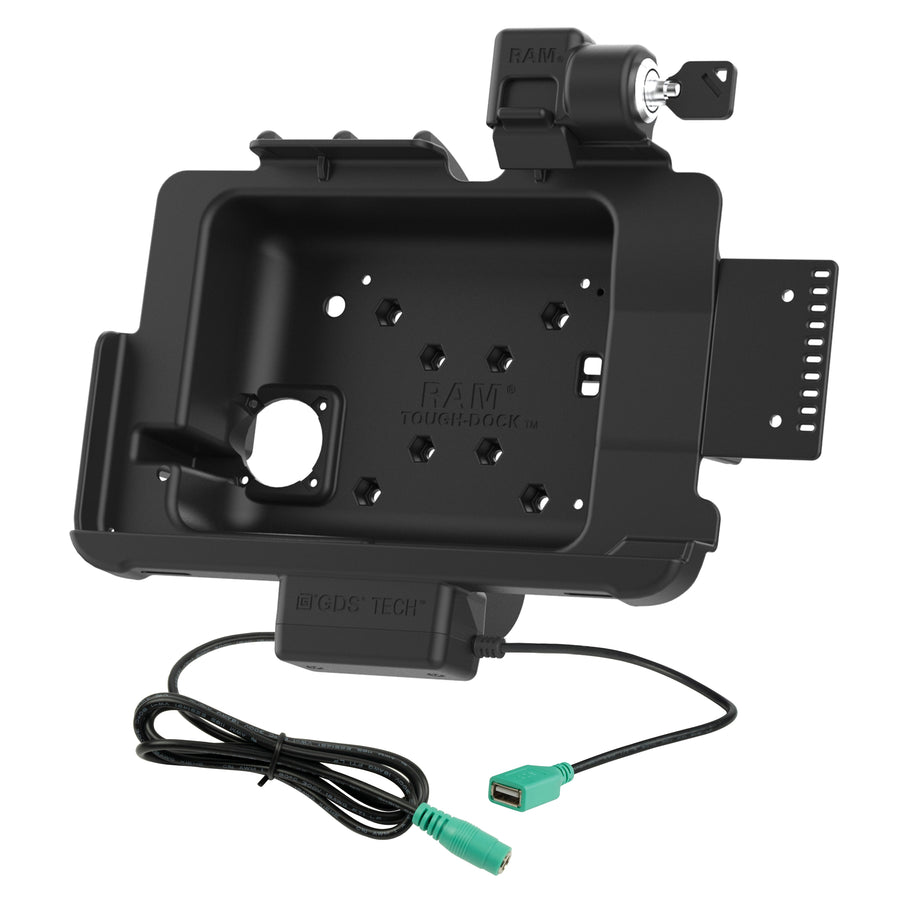

RAM Locking Tough-Dock Power + Data for Zebra ET40/ET45 8 Inch (RAM-HOL-ZE20PDKLU)

Included:

• 1 x RAM Locking Tough-Dock Power + Data for Zebra ET40/ET45 8-inch (RAM-HOL-ZE20PDKLU)
• 2 x keys, 1 x accessory side bracket and 2 x small cable ties
• Mounting hardware: 4 x #8-32 x 5/8-inch and 2 x #8-32 x 1/2-inch machine screws; 6 x #8-32 Nyloc nuts; 4 x #10-24 x 5/8-inch machine screws and 4 x #10-24 Nyloc nuts
• Attached 1 m DC power-input lead and 242 mm USB-A peripheral lead

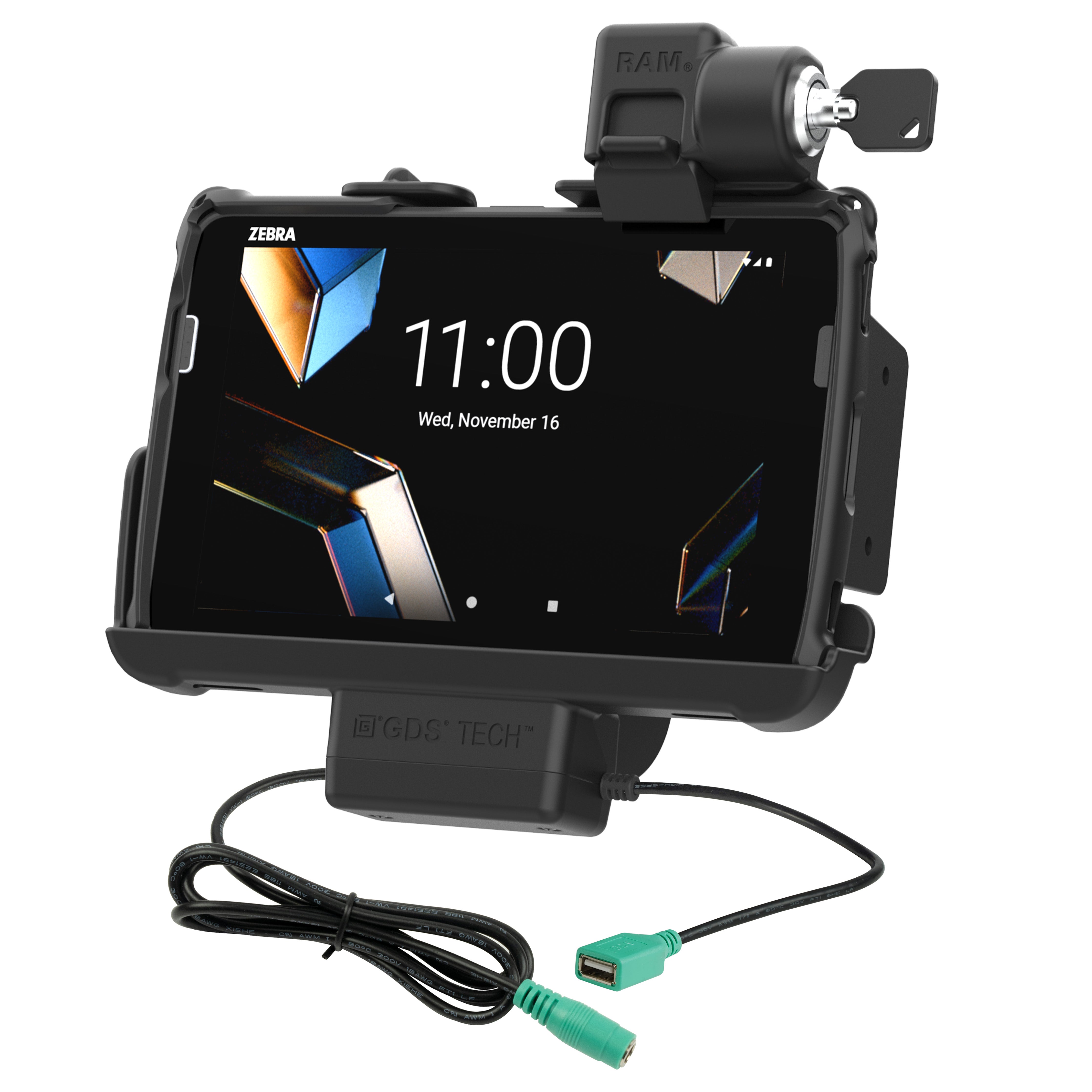

Retain a standard Zebra ET40 or ET45 8-inch tablet with Zebra Rugged Boot SG-ET4X-8EXOSKL1-01 while supplying power through the docking contacts and connecting one USB-A peripheral. The key lock helps deter removal. The side scanner stays accessible, and the dock accommodates the Zebra Expansion Back and PowerPack Battery.

Compatibility

The exact 8-inch Rugged Boot is required and must be supplied separately. This listing covers standard 8-inch ET40/ET45 tablets. The 10-inch models, healthcare variants and IntelliSkin configurations are outside this verified fit. A bare tablet needs a separate compatible RAM insert, which is not included.

Power and data

A separately supplied compatible regulated 12 V DC source connects to the dock's 5.5 mm female DC jack. RAM specifies RAM-GDS-CHARGE-V10-1U for a verified 10–30 V vehicle supply, or RAM-GDS-CHARGE-V9U for a verified 20–60 V supply. Select the converter by the vehicle's full operating voltage range; these are alternatives, not two required purchases. Do not connect the dock directly to an unregulated vehicle supply or substitute a 19 V converter.

The attached USB 2.0 Type-A female lead supports one peripheral, with published limits of 500 mA and 12 Mbps. Power + Data does not mean USB-C Power Delivery.

Specifications

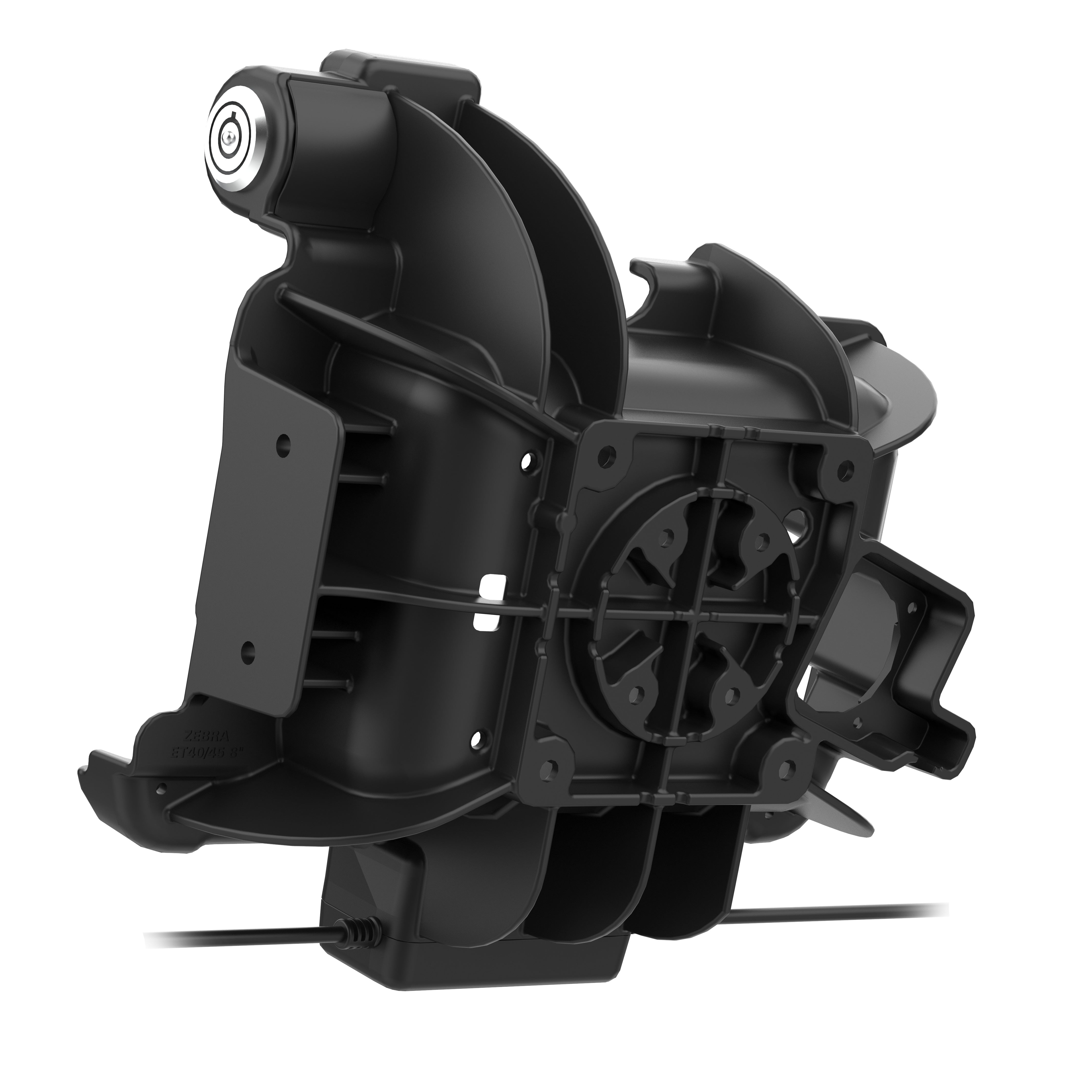

• Mounting: 75 x 75 mm VESA or 4-hole AMPS, 1.181 x 1.496 inches, with suitable C/D-size mounting components
• High-strength composite
• Product weight: 1.59 lb (approximately 721 g)
• 3-year manufacturer warranty

Tablet, Rugged Boot, power supply, mounting ball plate, arm, base and peripheral are not included. Confirm the exact retained accessories, mounting arrangement, vehicle clearances and operating conditions before installation.
