RAM EZ-Roll'r Powered Dock for XCover7 Pro & XCover6 Pro with OEM Case or RAM Skin (RAM-HOL-SAM84CP-1U)

Included:

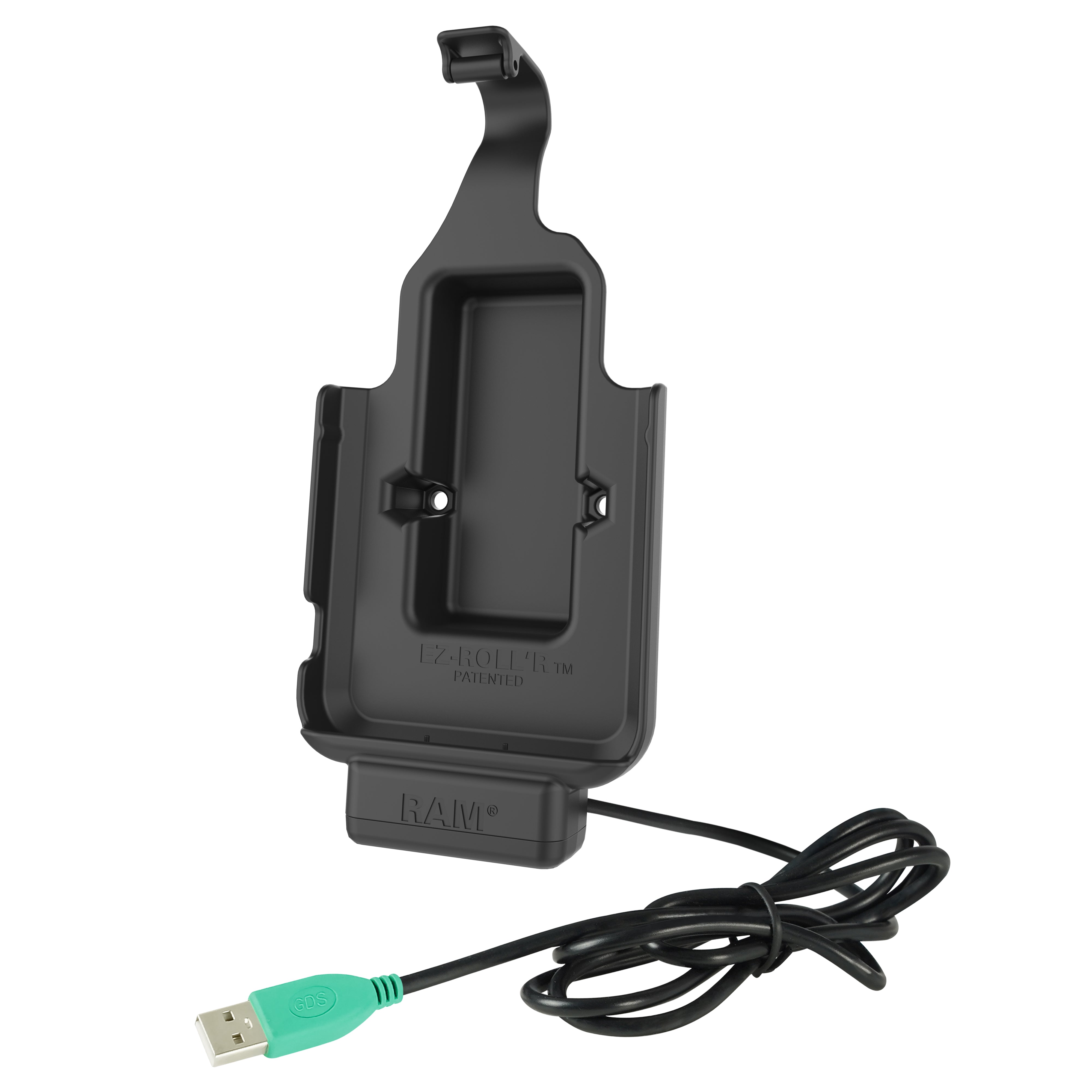

• 1 x RAM EZ-Roll'r powered dock (RAM-HOL-SAM84CP-1U) with 1.25 m USB-A male power lead
• 2 x #8-32 x 5/8-inch machine screws and 2 x #8-32 Nyloc nuts

3-year manufacturer warranty.

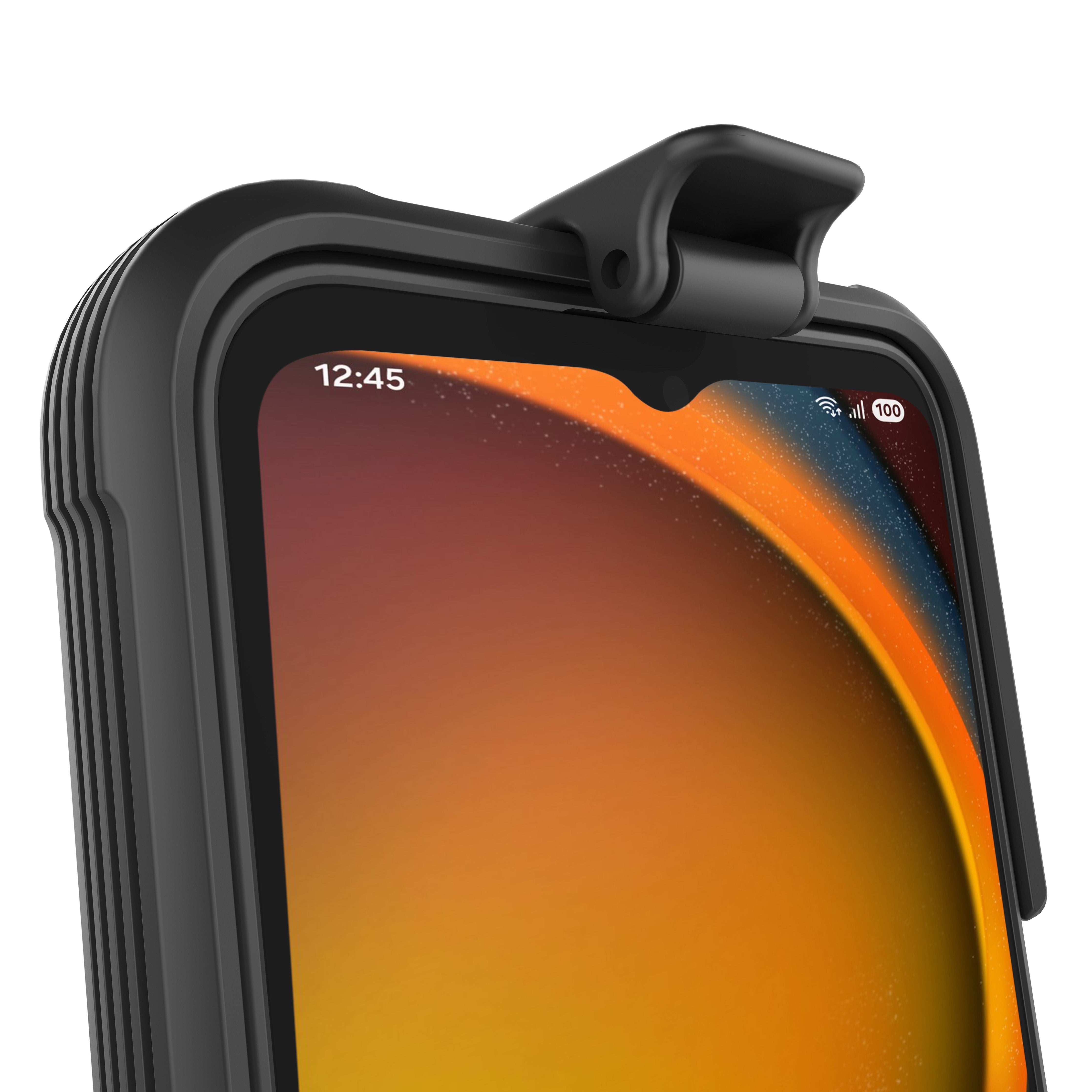

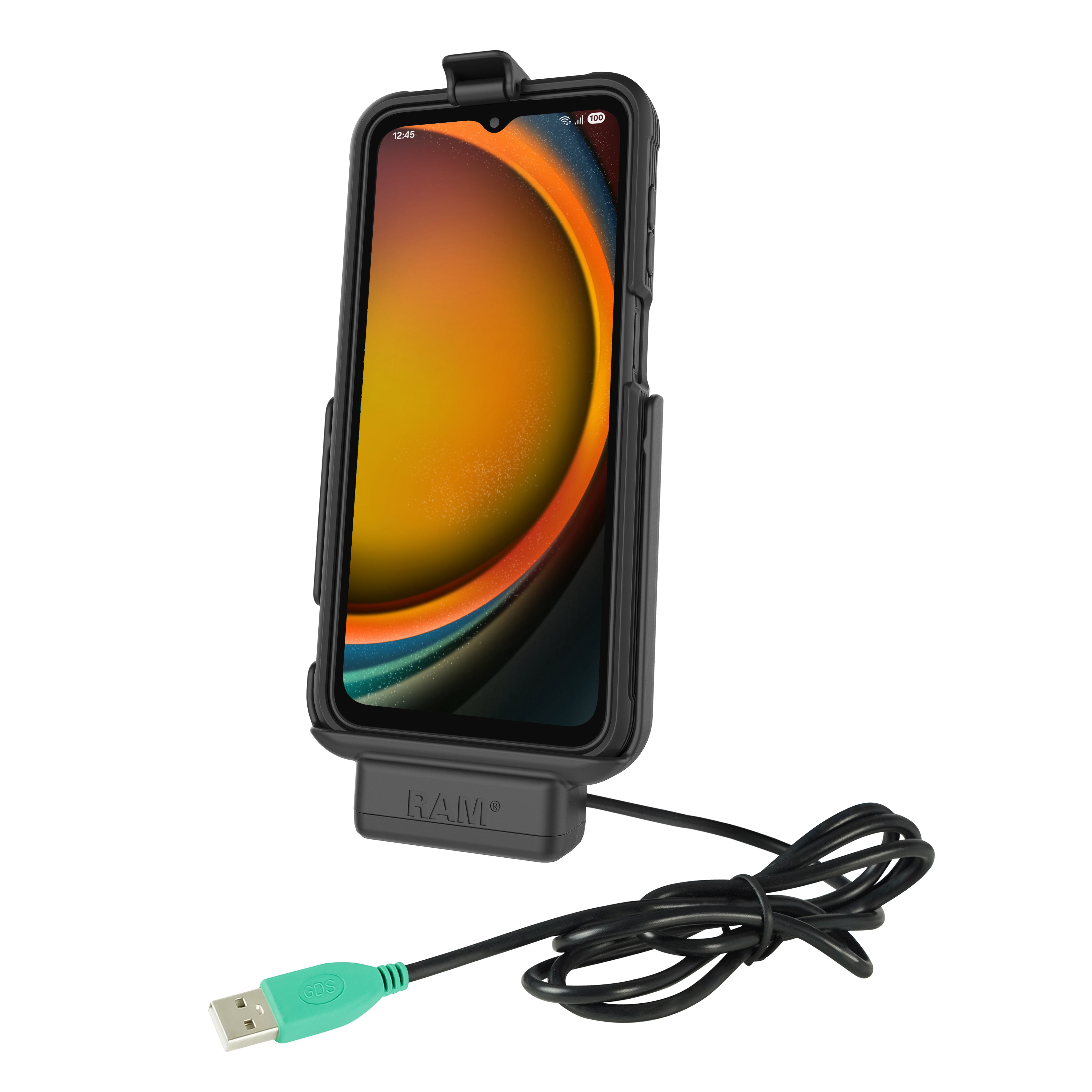

This powered dock holds a Samsung Galaxy XCover7 Pro or XCover6 Pro fitted with RAM-SKIN-SAM84 or a compatible Samsung OEM Smartcase. Two pogo contacts provide charging while the buttons and cameras remain accessible. The case is required and sold separately. This is not the bare-phone cradle. Do not assume support for other third-party cases or GDS IntelliSkin.

Power and mounting

Connect the included USB-A male lead to a suitable, separately supplied USB-A power source. RAM's XCover6 Pro guide lists a 5 V / 2 A (10 W) charging output for this single-device dock. It is not a USB-C PD input dock. Actual charging depends on the phone and power source.

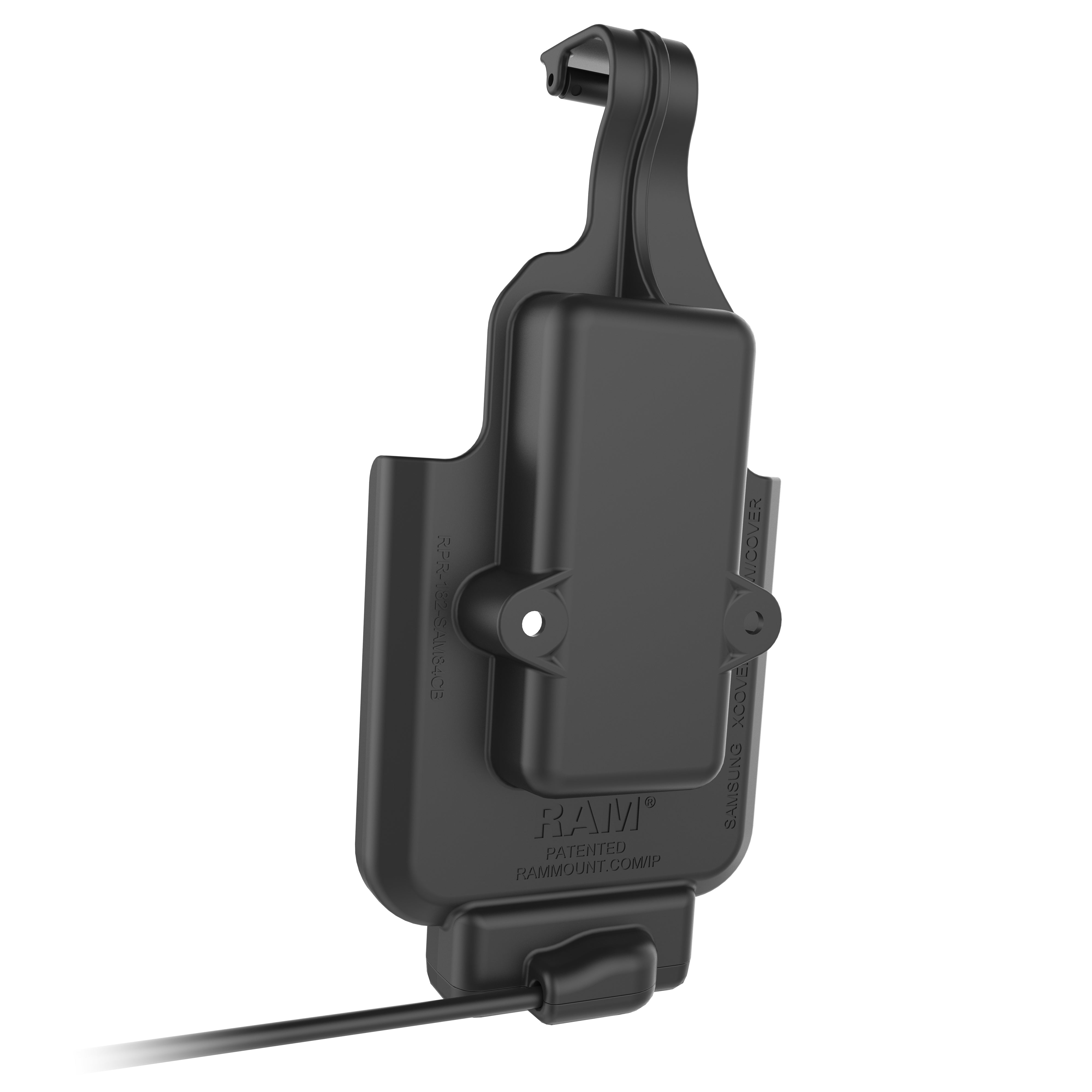

The rear 2-hole AMPS pattern accepts a B- or C-size RAM diamond ball base. For a B-size setup, add a separately sold RAM-B-238U diamond ball base. Phone, case, charger, ball base, arm and vehicle mounting base are not included.

Specifications

• Mounting pattern: 2-hole AMPS, 1.912 inches (48.56 mm) centre to centre
• Overall dimensions: 7.88 x 3.63 x 1.63 inches, approximately 200.2 x 92.2 x 41.4 mm
• High-strength composite
• Product weight: 0.35 lb (approximately 159 g)
• Poly-bag packaging

Installation

Confirm the exact case, vehicle supply and complete mounting arrangement before installation. Keep the mount and cable clear of airbags, controls and seat movement. A USB-A plug does not make the dock suitable for direct connection to vehicle battery voltage.
