RAM Large Tough-Claw Locking Clamp C Size (RAP-401LU)

Included:

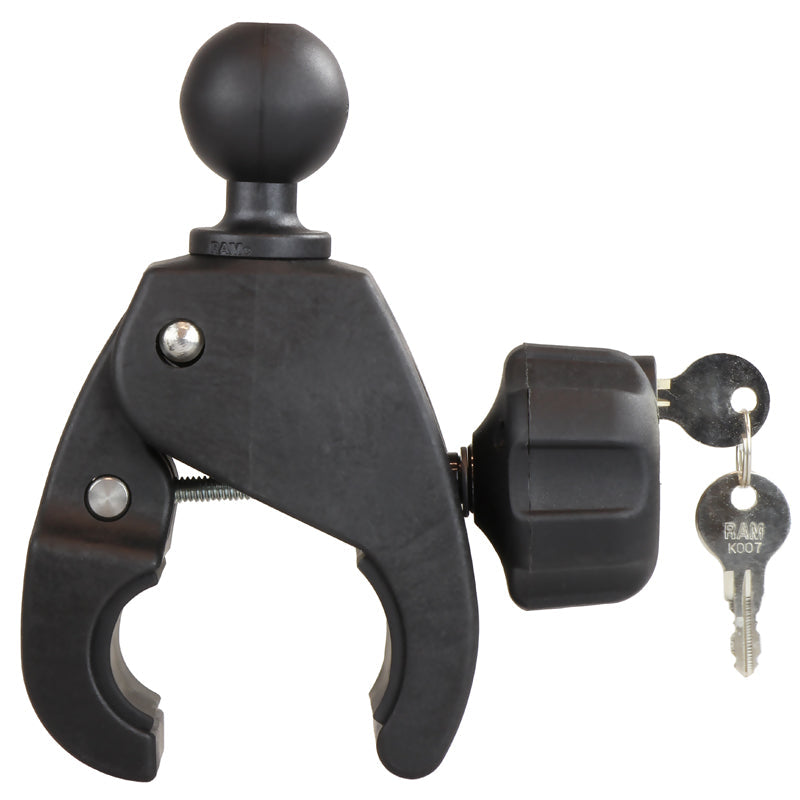

• 1 x RAM Large Tough-Claw Locking Clamp with 1.5" C Size Ball (RAP-401LU)
• 2 x Keys

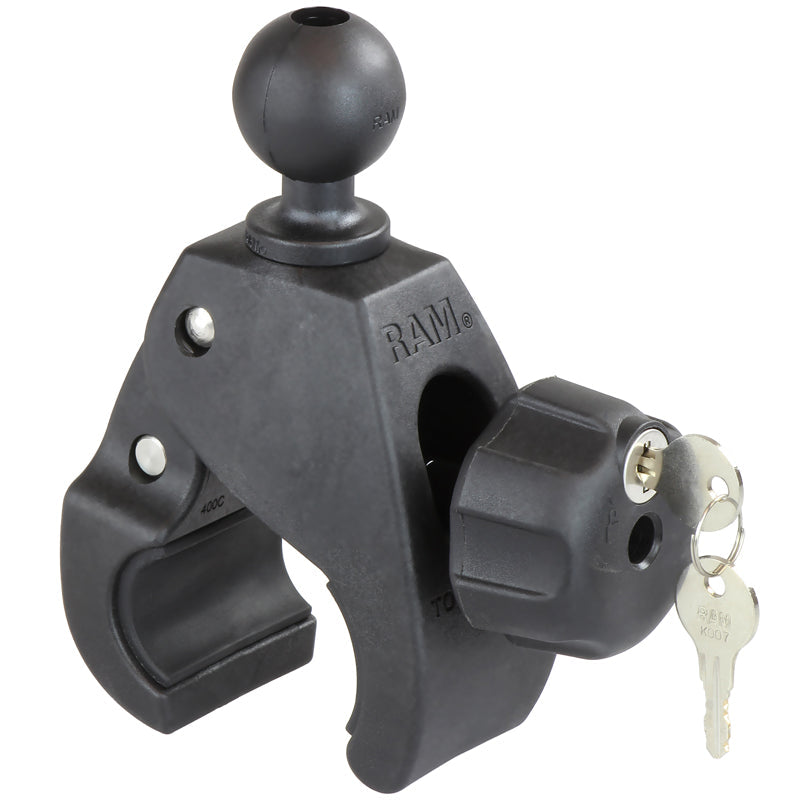

The RAP-401LU is a removable large Tough-Claw base with a keyed locking knob and 1.5" C size ball. It clamps to round rails from 1" to 2.2" (25.4–55.88mm) outside diameter and connects to a separately selected C size socket arm.

After positioning the clamp, the key disengages the knob's screw adjustment for tamper resistance. The lock secures the clamp's adjustment only; a socket arm, holder and device need their own security provisions. The base is not theft-proof.

Socket arm, upper plate, holder and device are sold separately. Choose those parts to suit your device and mounting conditions.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Round-rail Clamp Range: 1"–2.2" (25.4–55.88mm) outside diameter
• Overall Height: 6.56" (166.6mm)
• Overall Width: 2.25" (57.2mm)
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Material: High-strength composite
• Product Weight: 1.32 lb (approximately 599g)
• Packaging: Poly bag
• Manufacturer Part Number: RAP-401LU
• UPC: 793442949999

Help

Measure your rail's outside diameter and check jaw clearance and surface suitability before ordering. For a flat or irregular mounting surface, confirm the fit separately; the stated range above is for round rails.

Use a compatible C size arm. A mixed-size setup is limited by its weakest interface. Check the device, case and accessories, holder compatibility, reach, vibration and mounting surface, and use the heavy-duty rating for more demanding conditions.

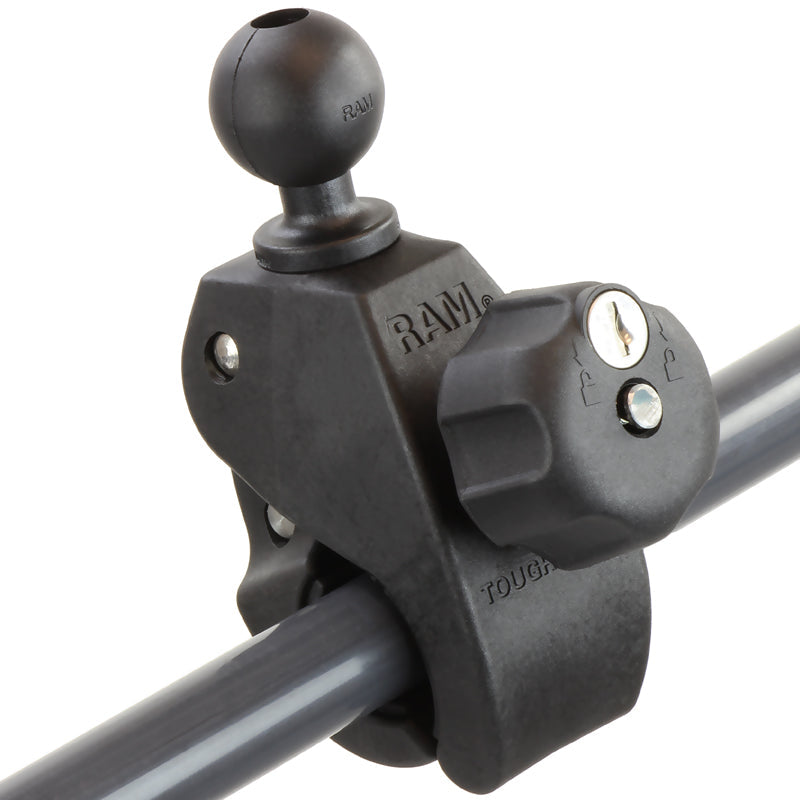

The rail shown in the application image is not included.
