RAM-202-153-202U

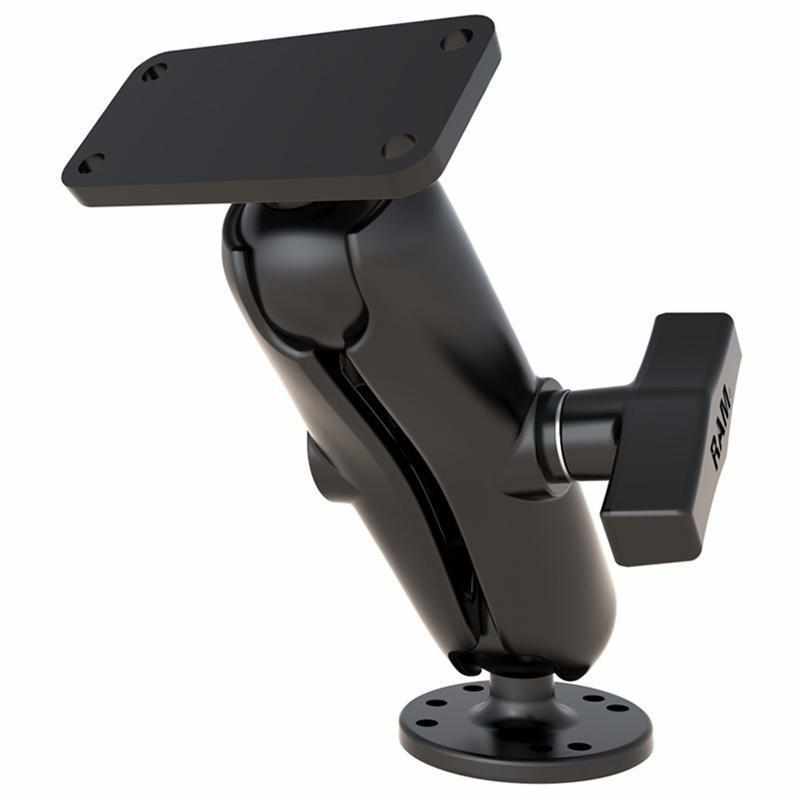

RAM Humminbird Helix 5 Mount 1.5" (RAM-202-153-202U)
$91.25$130.00
Size Guide
Included:
- 1 x RAM Standard Double Socket Clamp Arm C Size (RAM-201U)
- 1 x RAM Round Base with 1.5" C Size Ball (RAM-202U)
- 1 x RAM 1.5" Ball with 1.5 x 3" Base (RAM-202U-153)
The RAM-202-153-202U will allow you to mount your Humminbird Helix 5 fishfinder to your boat, kayak, and more.
The included rectangular base has four holes with a centre to centre pattern of 1" x 2.5" (2.54cm x 6.35cm).
Specifications
- Center to Center Hole Pattern: 1" x 2.5" (2.54cm x 6.35cm)
- Weight Capacity: Approx 4.5kg
- Overall Height: 7.35" (18.67cm)
- Material: Powder Coated Marine Grade Aluminium
- Ball Size: 1.5" Rubber Ball Size
Note: The "U" in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.
Compatibility
- Humminbird HELIX 5 DI
- Humminbird HELIX 5 DI GPS
- Humminbird HELIX 5 SI GPS
- Humminbird HELIX 5 SI GPS KVD
- Humminbird HELIX 5 SONAR GPS
- Humminbird HELIX 5 SONAR
- Humminbird HELIX 5 XD GPS
Collections: Best Selling RAM® Mounts, C Size Components 1.5", Fishfinder Mounts For Boats, Marine Mounts, Newest RAM® Mounts, Shop All RAM® Mounts
Type: Mount Components
Category: Arm, Base, C Size, Cradle, Humminbird, Marine, Misc
