RAM C-Size Garmin Striker 4 Fishfinder Mount (RAM-101-G4)

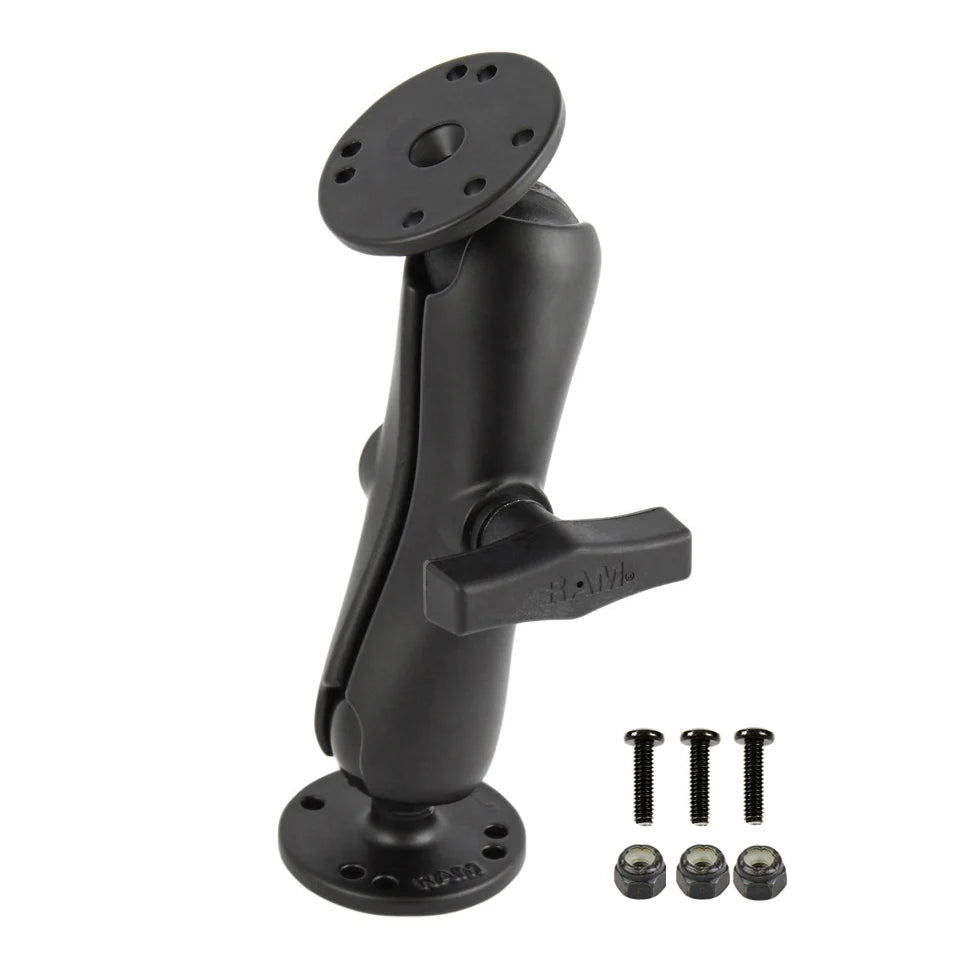

Included:

• 1 x Garmin-compatible round ball plate assembly (RAM-202-G4U)
• 1 x standard C-size double socket arm (RAM-201U)
• 1 x round C-size mounting base (RAM-202U)
• 3 x #8-32 x 5/8 inch machine screws and 3 x #8-32 Nyloc nuts for the compatible Garmin connection

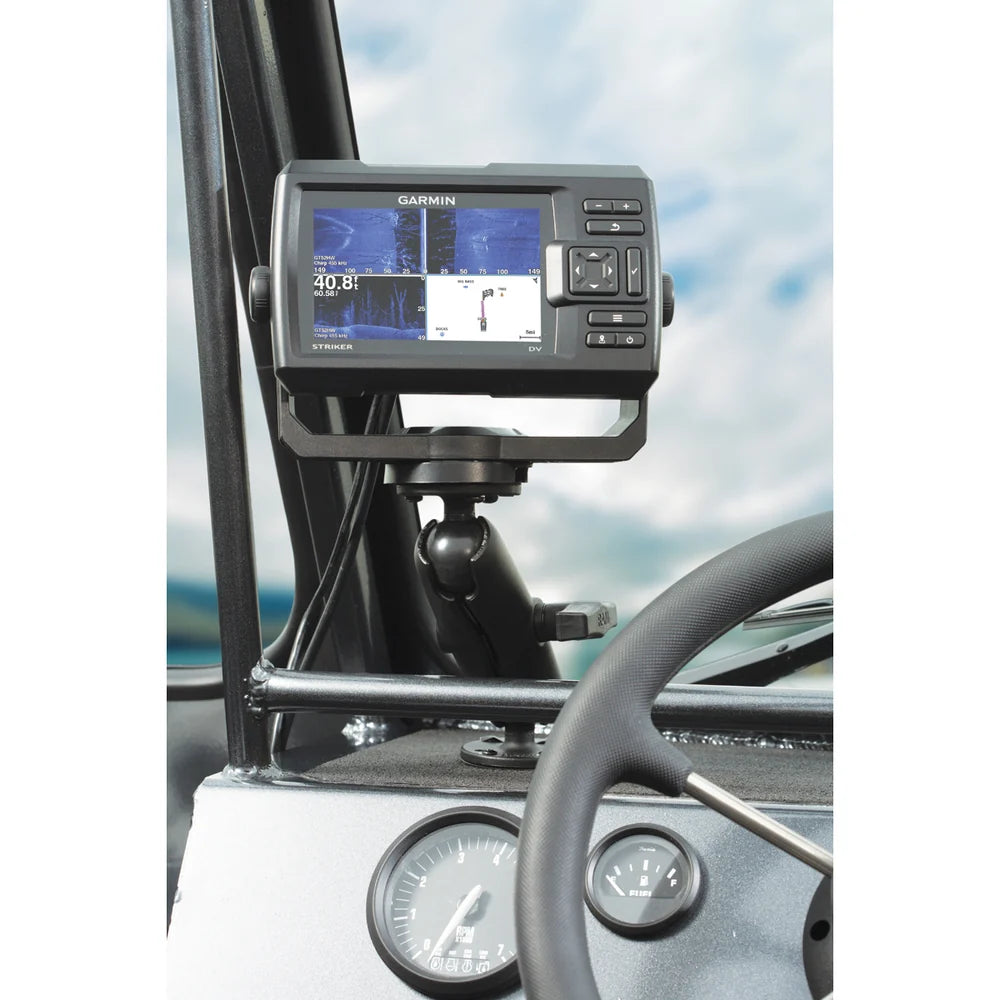

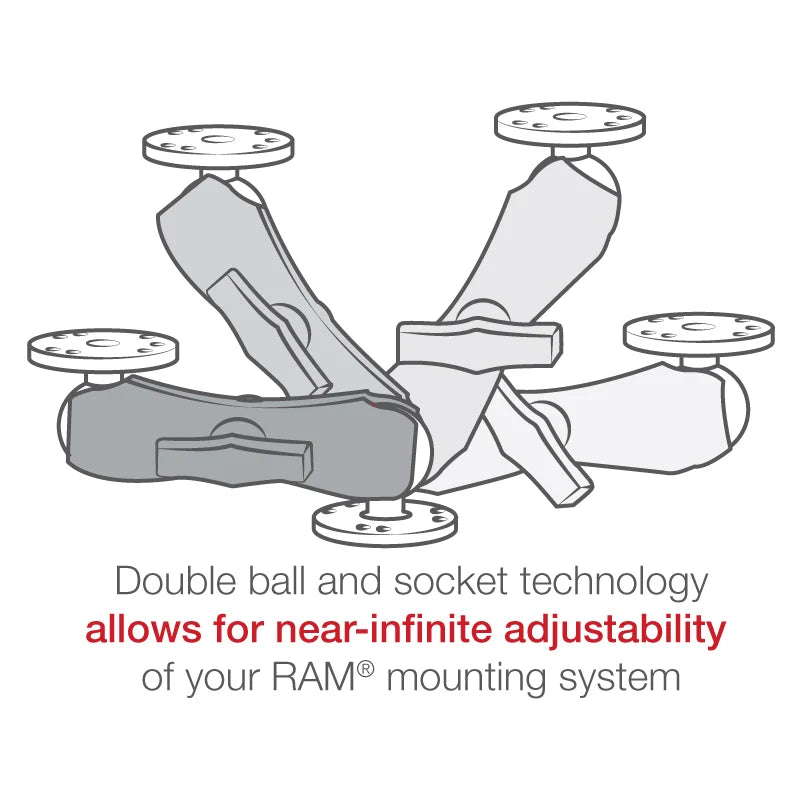

Mount a compatible Garmin fishfinder to a flat surface with this complete RAM C-size assembly. The two ball-and-socket joints let you position the display and adjust the viewing angle. The kit includes the Garmin mounting hardware supplied with RAM-101-G4.

RAM currently lists Garmin Striker 4, ECHOMAP Plus 4-inch and ECHOMAP UHD2 6-inch devices for this kit. Confirm your exact model and its mounting base before ordering. The included screws and nuts are for the compatible Garmin connection; installation-specific deck or surface fasteners may be required separately.

Fishfinder, transducer and installation surface are not included.

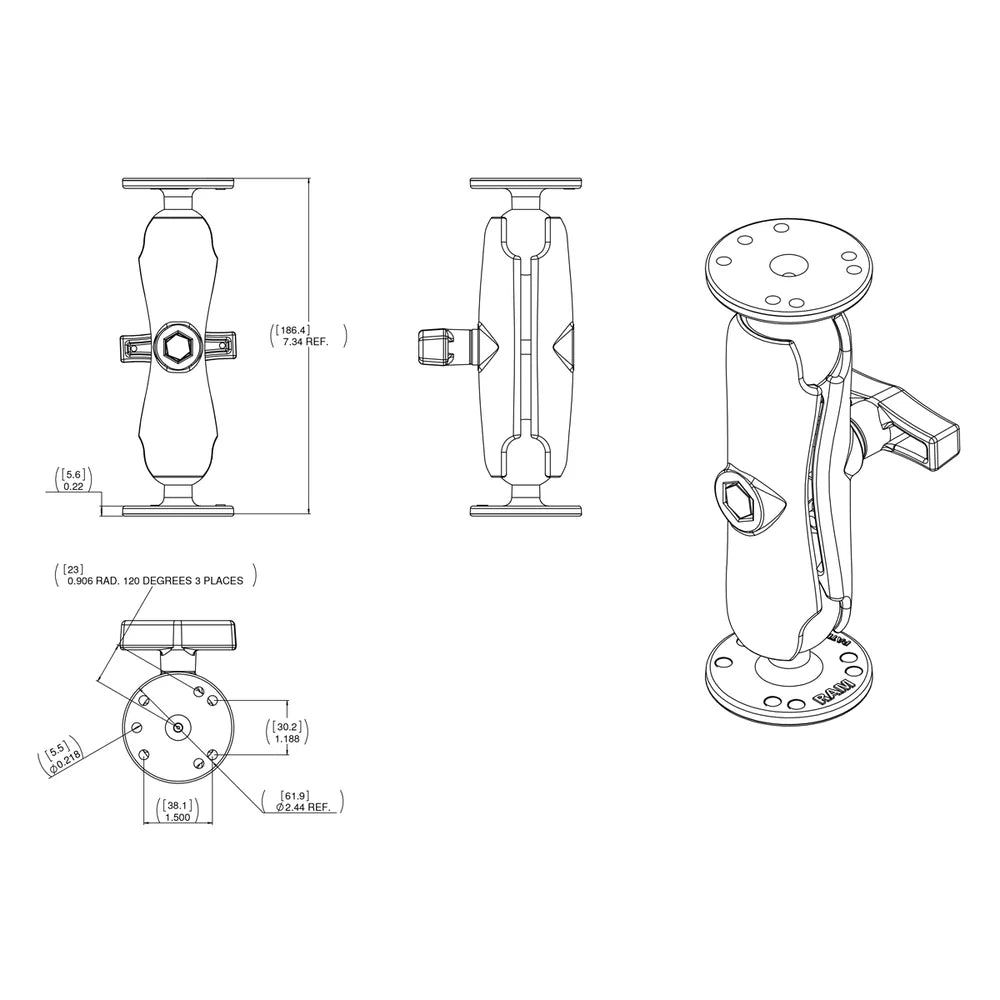

Specifications

• Ball Size: C Size, 1.5 inches (38.1mm)
• Arm: Standard length; 4.66 inches (118.4mm) socket to socket
• Overall Height: 7.35 inches (186.7mm)
• Plate Diameter: 2.5 inches (63.5mm)
• Hole Patterns: 4-hole AMPS, 1.181 x 1.496 inches; 3-hole 120-degree pattern, 1.812-inch diameter
• Materials: Marine-grade aluminium
• Weight Capacity: 4 lb (1.81kg) standard use; 3 lb (1.36kg) heavy-duty use. Include the display, bracket and accessories in the supported load.
• Packaging: Retail bag

Help

Check the mounting pattern, device weight, clearance and supporting surface before installation. Marine vibration and leverage affect suitability. Follow the fishfinder manufacturer's installation instructions and check that all fasteners and the arm are secure before use.
