RAM C Size Double Suction Mount w X-Grip for 12"-13" Tablets (MM-C-DOUBLE-SUCTION-MEDIUM-UN11)

Included:

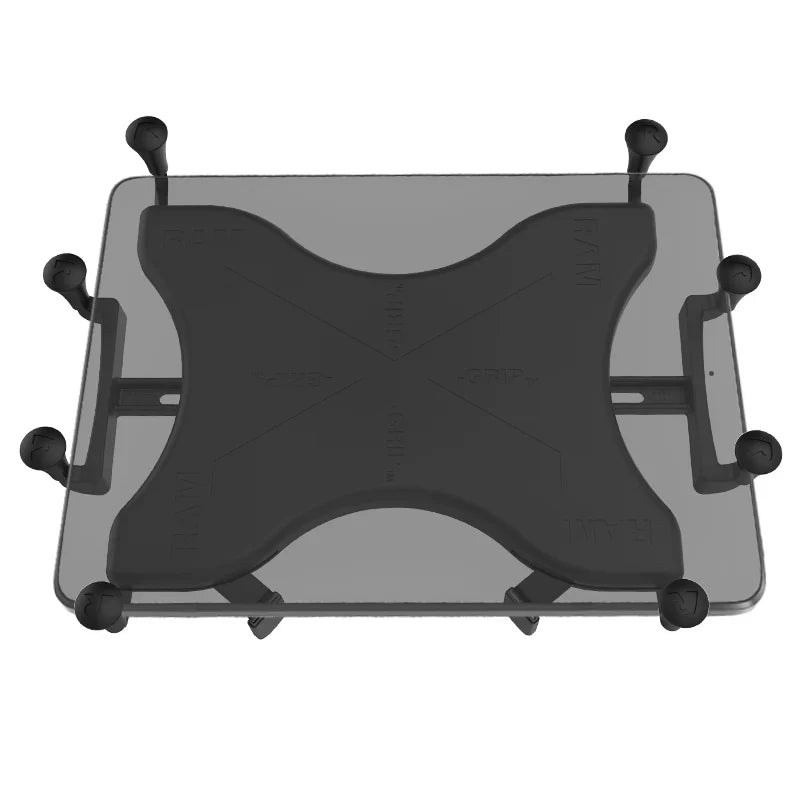

• 1 x RAM X-Grip 12"-13" Tablet Cradle (RAM-HOL-UN11U)

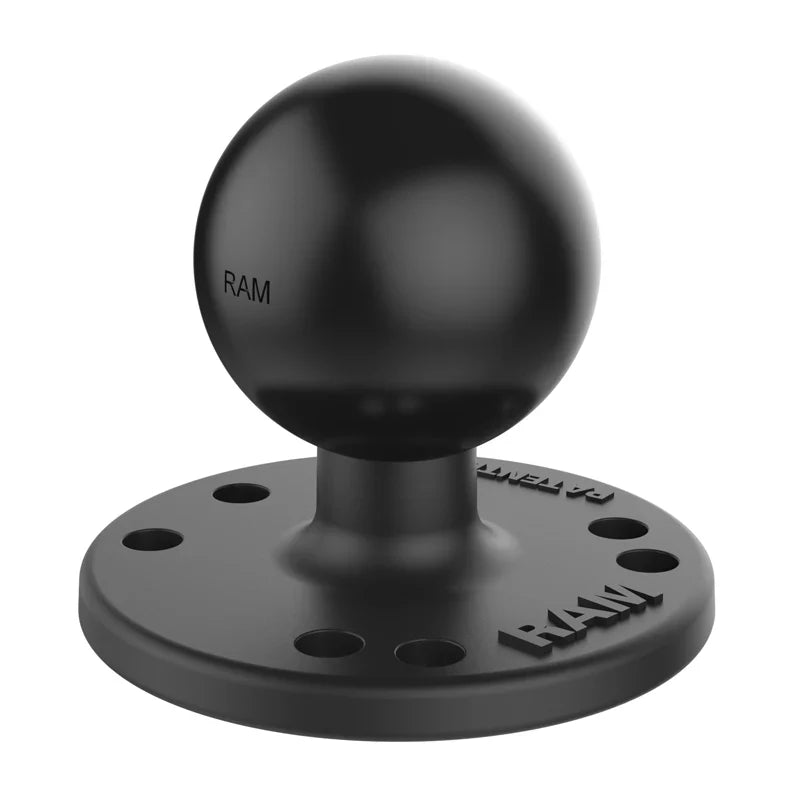

• 2 x RAM Round Base with 1.5" C Ball (RAM-202U)

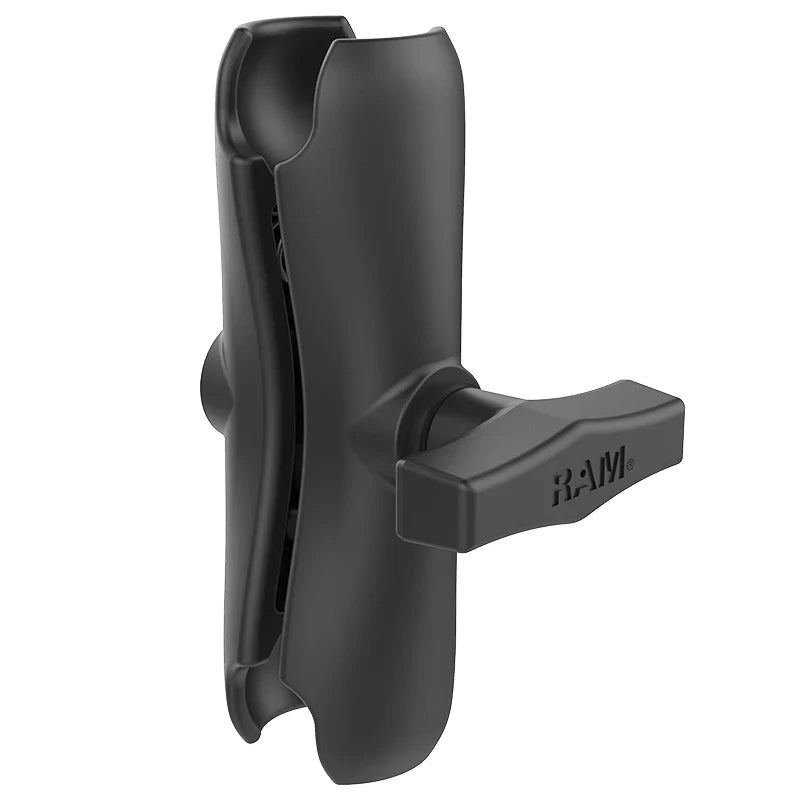

• 1 x RAM Standard Clamp Arm C Size 1.5" (RAM-201U)

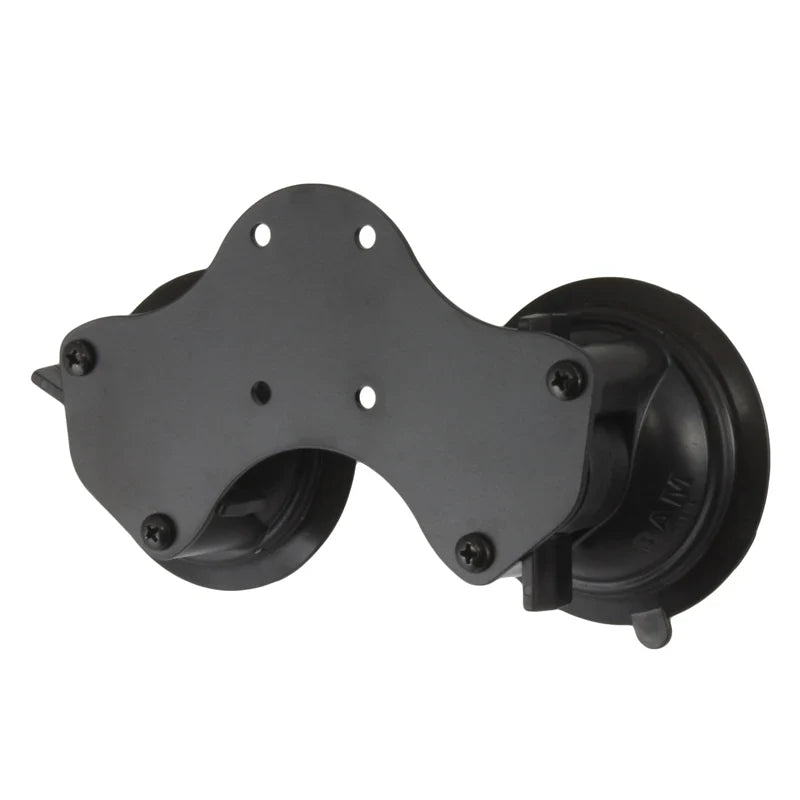

• 1 x RAM Double Suction Cup Base (RAM-B-189BU)

Gallery images show the individual RAM components included in this kit, rather than an assembled mount. Tablet and case shown for illustration are not included.

A complete RAM X-Grip UN11 tablet mount with a flat double Twist-Lock suction base and standard-length C size arm. Two RAM-202U round plates provide 1.5" C size ball connections at both ends of the arm.

The UN11 holder has no built-in ball. The included holder-side RAM-202U plate supplies the C size interface. Tablet and case are not included.

Use clean, smooth, nonporous glass with enough space for every suction cup to seal fully. Check windshield curvature, dashboard clearance and visibility before fitting. Inspect the suction hold regularly. This is the flat AMPS dual base, not the pivoting B size dual-suction assembly. The ball-free base has RAM-B in its part number; every ball/socket interface in this kit is C size.

Cradle Dimensions

• Width Range: 7.25"–8.75" (184.2–222.3mm)
• Maximum Depth: 0.875" (22.2mm)
• Maximum Height with Optional Supports: 10.25" (260.4mm)

Measure the tablet with its case fitted and check grip, button and port clearance. Screen size alone does not establish fit. Check the device/case dimensions and support configuration before ordering.

Specifications

• Holder Hardware Included: Assembly hardware, 4 x #8-32 x 1/2" and 2 x #8-32 x 5/8" sheet-metal screws, supplied with the UN11 holder
• Ball/Socket Size: C Size, 1.5" (38.1mm), throughout
• Arm Socket-to-Socket Length: 4.66" (118.4mm)
• Round Plate Diameter: 2.5" (63.5mm)
• Holder Connection: Included RAM-202U plate bolts to the holder’s 4-hole AMPS pattern, 1.181" x 1.496" (30 x 38mm)
• Suction Cups: 2 x 3.3" (83.8mm); manufacturer-listed total base width 7.95" (201.9mm)
• Suction-Base Hardware Included: 4 x #8-32 x 1/2" machine screws and 4 x #8-32 thin Nyloc nuts
• Load Guidance: RAM C size component guidance: 4 lb (1.81kg) standard use; 3 lb (1.36kg) heavy-duty use. Check the weight of the actual tablet, case, accessories, holder and adapters, plus the holder configuration, arm reach and mounting surface. These figures are not a blanket off-road rating for every tablet that fits.

Packaging may vary; all listed components are genuine RAM. RAM components are covered by the manufacturer’s limited lifetime warranty terms; suction-cup rubber is a wear item excluded from lifetime coverage.

Help

RAM recommends the optional support arms for larger tablets and rough conditions; fitted supports limit tablet height to 10.25" (260.4mm). Taller tablets can fit with at least one support omitted, provided width and depth remain within range. For portrait use beyond very light-duty or static conditions, RAM advises retaining a support beneath the tablet to prevent downward movement. Confirm the actual configuration for your device; a larger C size ball does not remove these holder-retention limits.

See RAM’s tablet fit guidance and the holder specifications. Check holder retention, arm knob and mounting base before use. Keep controls, airbags and visibility clear.
