RAM-109V-1U
RAM 12" Vertical Swing Arm for Fishfinders (RAM-109V-1U)
$257.00$277.00
Size Guide
Included:
- 1 x RAM 12" Vertical Swing Arm for Fishfinders (RAM-109V-1U)

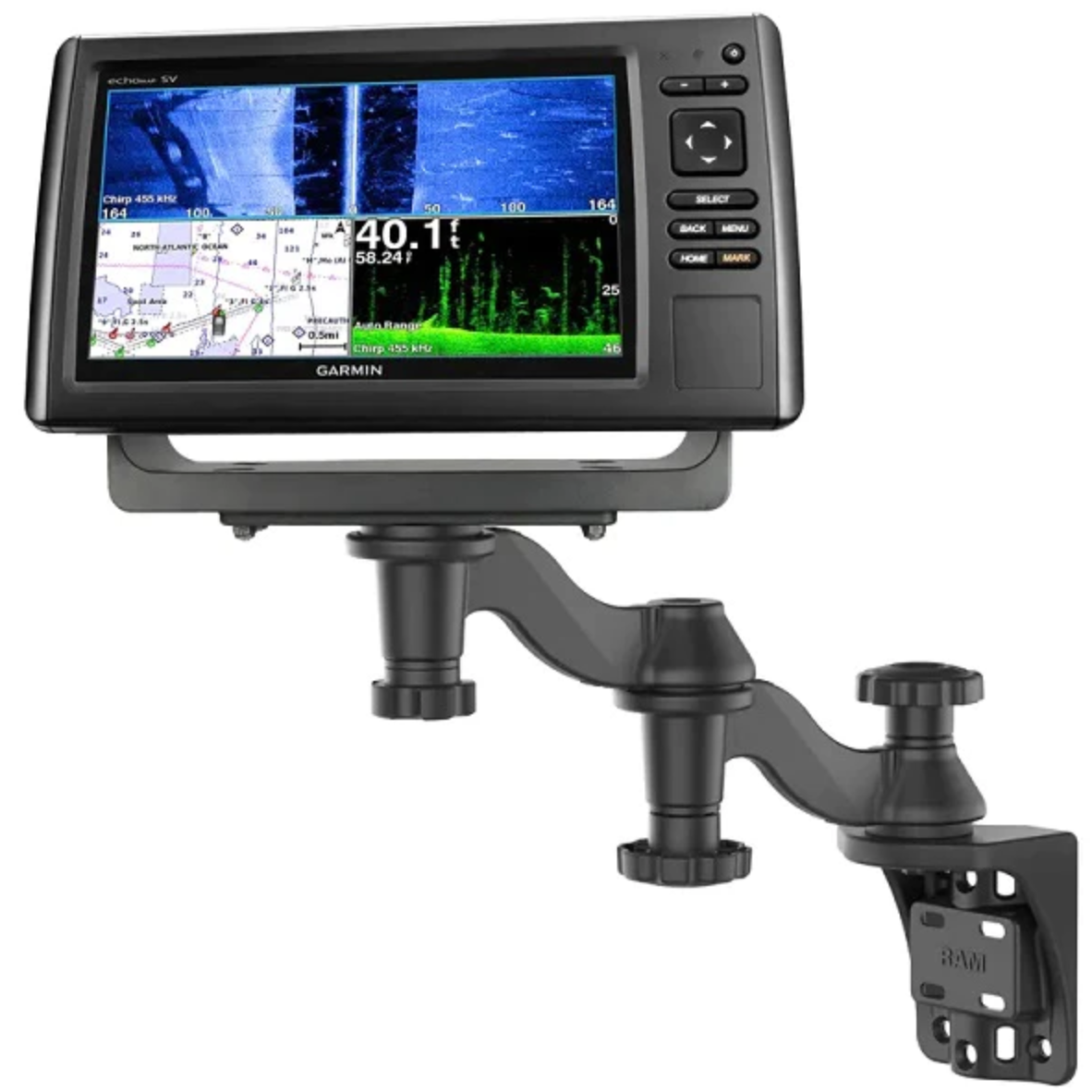

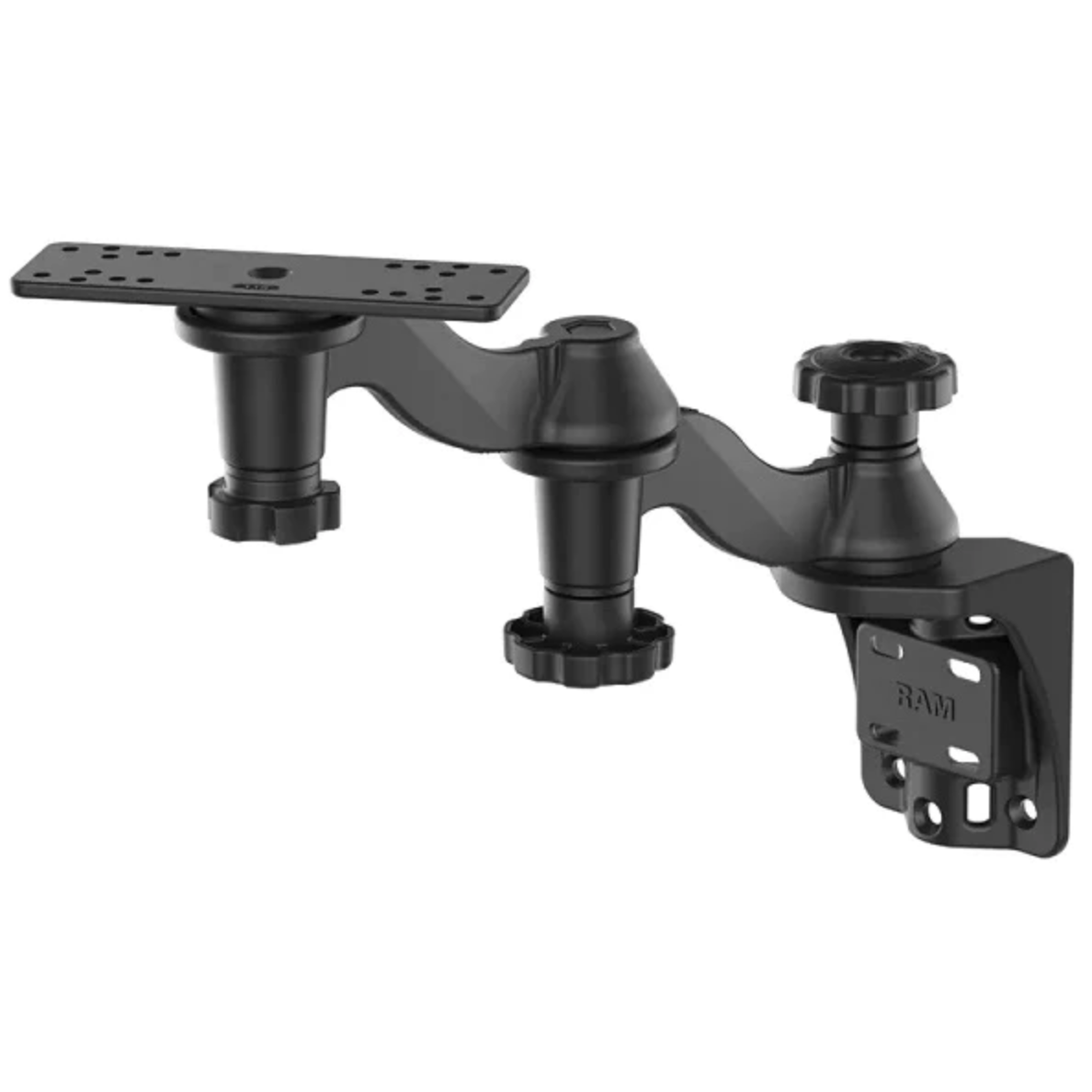

The RAM-109V-1U mount features two 6" long BENT swing arms mounted on a vertical surface mounting base. Overall length of 12". At the end of the device mount is a rectangular 6.25 x 2" rectangular top base. The pivoting points of the mount allow a complete 360 degree rotation.
Specs
-
Dimensions:
Overall Height: 11.58"
Total Swing Arm Length: 12"
-
Plate Size
Top Plate: 6.25" x 2"
Bottom Plate: 3.97" x 4.85"
- Material: Powder Coated Marine Grade Aluminum
- Weight Capacity: Up to 8 lbs (3.7kg)
- Weight: 3.71 lbs.
Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. For some applications, additional holes may need to be drilled for a better fit with your electronic device.
Plate Hole Patterns

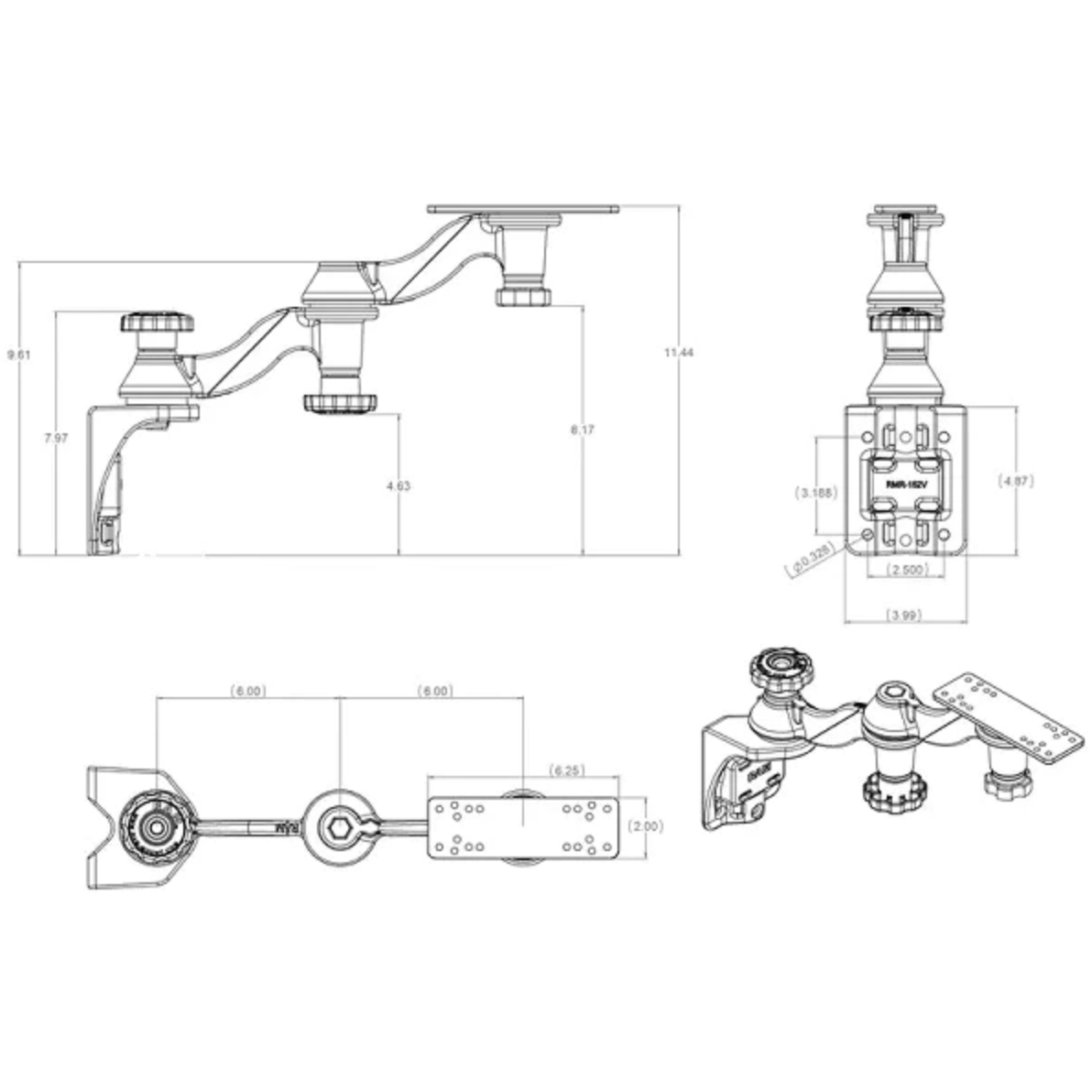

VERTICAL BASE DRAWING FILE
See Drawing
