RAM-HOL-SAM60CP-V7CU

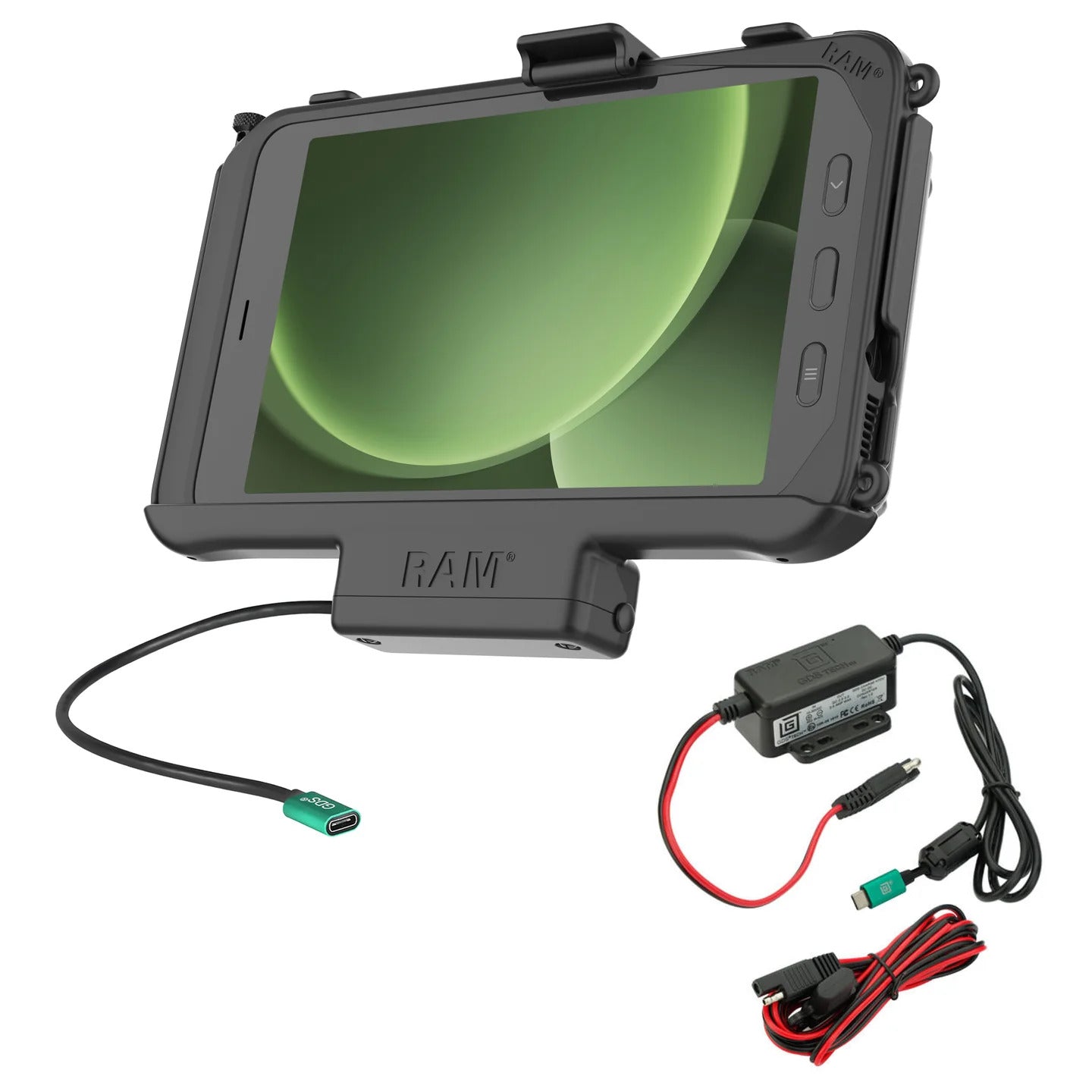

RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU)
$178.00$251.00
Size Guide
Included:
- 1 x RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU)
FEATURES
- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Vehicle hardwire charger included
- Back by a 3-year warranty
The RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU) meets the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.
Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories.
Access to the stylus remains while the device is docked. The dock delivers power via the USB Type-C female pigtail and Modular 10-30V Hardwire Charger.

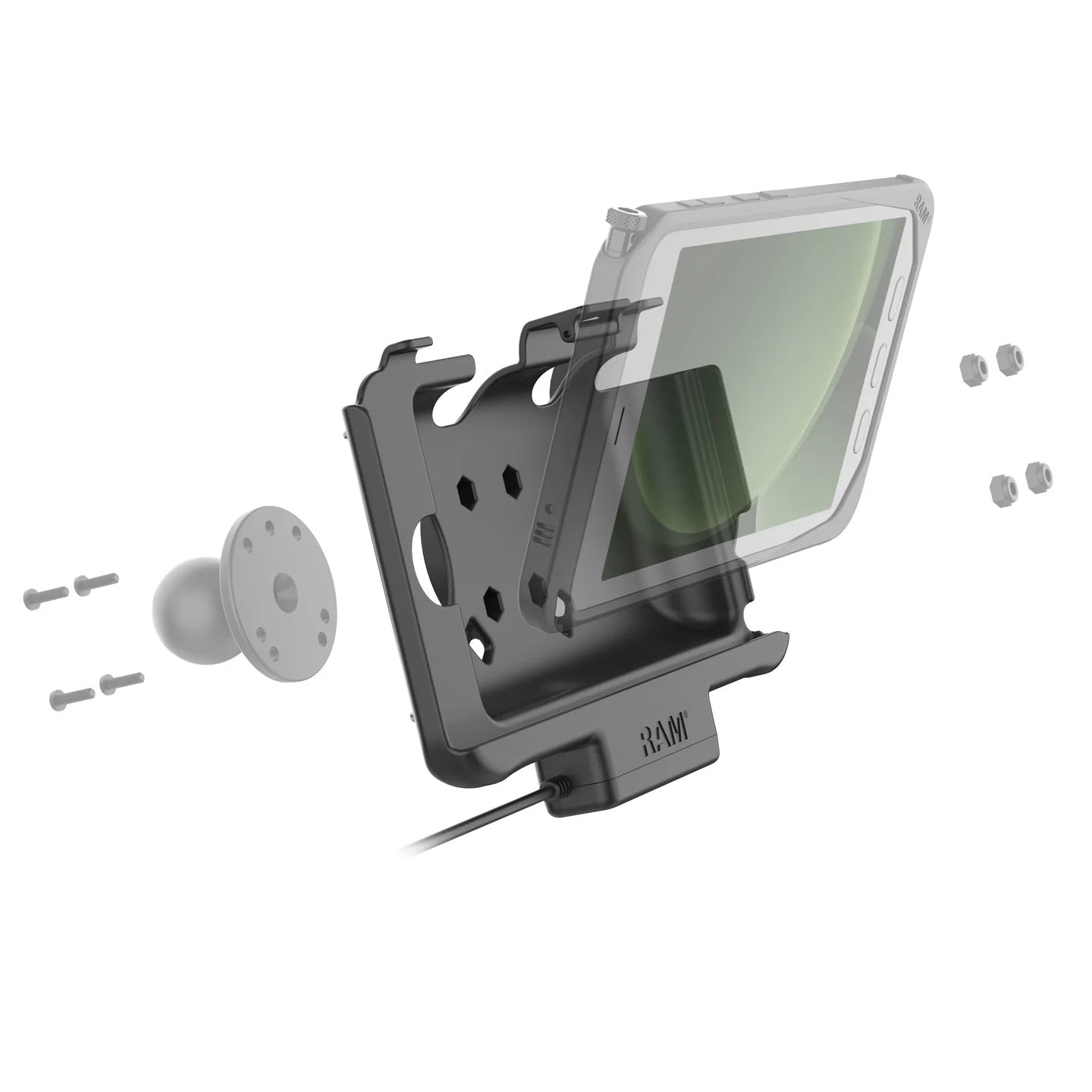

Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern and USB-C cable clamp with zip ties for cable management and retention.
This new SKU with USB-C replaces the existing SKU RAM-HOL-SAM60P-V7B1U which utilised microUSB for power
(RAM-HOL-SAM60CP-V7CU)
Specs

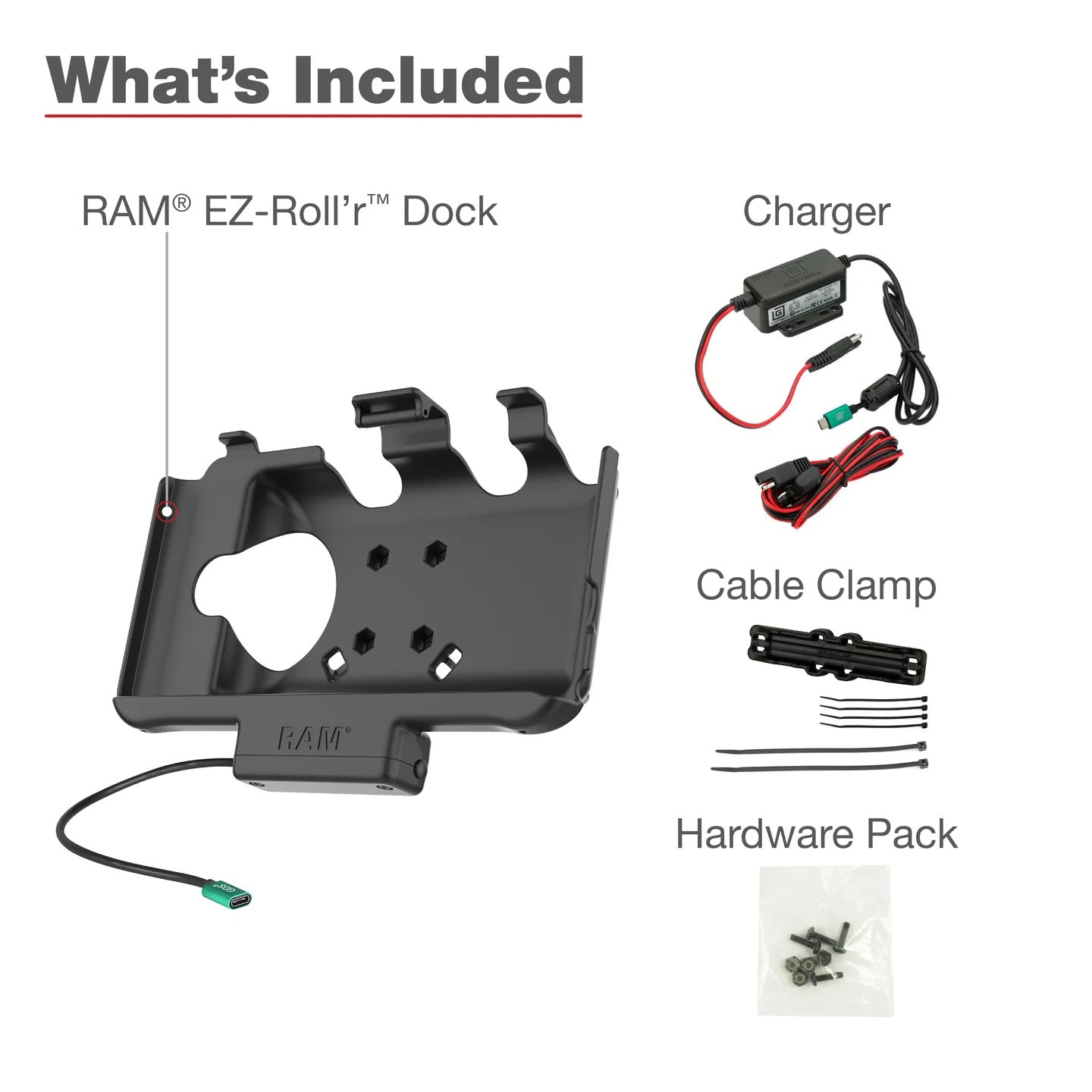

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(1) Hardwire Charger
PRODUCT DIMENSIONS
Width: 9.24"
Height: 6.34"
Depth: 2.57"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
5.3-5.4VDC
OUTPUT VOLTAGE
5VDC
POWER OUTPUT
500mA
INPUT CONNECTOR
USB Type-C Female
INPUT CABLE LENGTH
215mm
WARRANTY
3 year warranty
WEIGHT
1.13 lb
ADDITIONAL INFORMATION
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", ask us about the RAM Tough-Case options.
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", ask us about the RAM Tough-Case options.
Compatibility
- Samsung Tab Active5
- Samsung Tab Active3
- Samsung Tab Active2
Help
Something failing? By all means get in contact with us at info@modestmounts.com.au
However, we have found it is VERY rarely the cradles or cables in these instances (we sell thousands of these per year and have almost no electronics failures.)
The most common fail point is on the Pogo pads on the Samsung devices. Earlier Tab Active 2+3 had extremely soft pads that could wear down over time from vibration. They claim this has been fixed in the Tab Active 5, but we still have evidence of these pads wearing down in high vibration environments.
Often just cleaning the pogo pads with contact cleaner and cloth or even a pencil eraser, solves most issues, provided the pins have not worn down.
