RAM-109VU

RAM 6" Vertical Swing Arm for Fishfinders (RAM-109VU)

Name: RAM 6" Vertical Swing Arm for Fishfinders (RAM-109VU)
Brand: Modest Mounts
SKU: RAM-109VU
Price: 114.0 AUD
Availability: InStock

Size Guide

$114.00 You Save 10% ( $13.33 ) You Save 10% ( $13.33 )

Included:

1 x RAM 6" Vertical Swing Arm for Fishfinders (RAM-109VU)

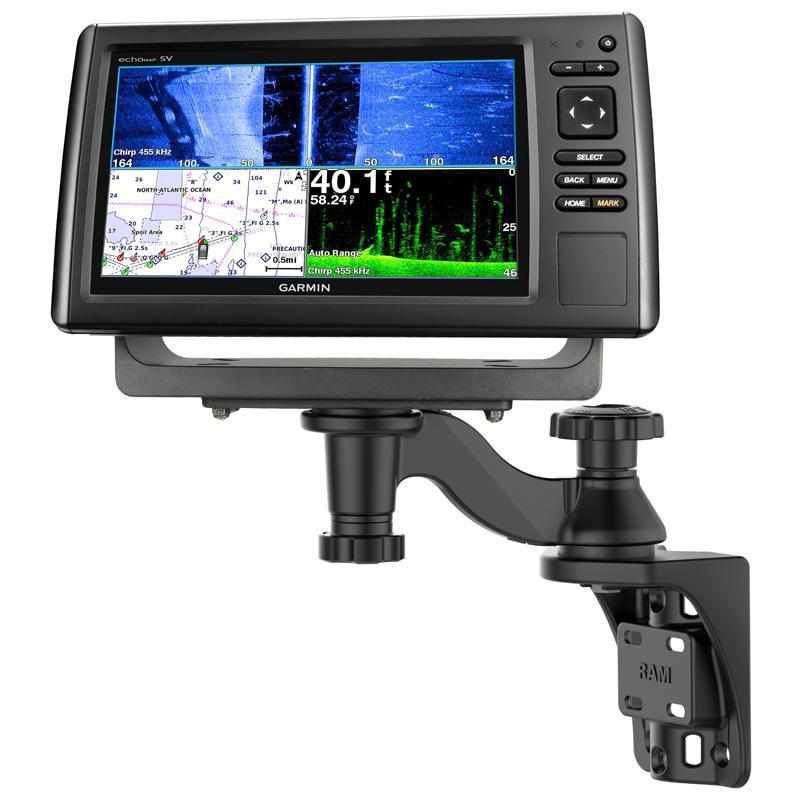

The RAM-109VU mount features a 6" long swing arm mounted on a vertical surface mounting base. Connected to the end is a rectangular 6.25" x 2" plate for mounting your device to.

Each pivoting point on the mount provides complete 360-degree rotation.

Specs

Dimensions:
Overall length of swing arm assembly: 290mm (11.4375")
Overall height: 215mm (8.45")
Centre of knob to centre of ball socket: 152mm (6")

Material: Powder Coated Marine Grade Aluminum
Weight Capacity: Up to 8 lbs (3.7kg)
Weight: 2.6 lbs.

Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. For some applications, additional holes may need to be drilled for a better fit with your electronic device.

Plate Hole Patterns

Compatibility

Garmin echoMAP Chirp 72-95 Series
Garmin GPSMAP 722
Garmin GPSMAP 722xs
Garmin GPSMAP 742
Garmin GPSMAP 742xs
Garmin GPSMAP 922
Garmin GPSMAP 922xs
Garmin GPSMAP 942
Garmin GPSMAP 942xs
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Garmin Striker Plus 9sv
Humminbird Helix 8
Humminbird Helix 9
Humminbird Helix 10
Humminbird Helix 12
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Lowrance HDS LIVE 9
Lowrance HDS LIVE 12
Lowrance HOOK2-7
Lowrance Hook 7 Reveal
Lowrance Hook 9 Reveal
Lowrance HOOK2-9
Garmin Fishfinders and GPS Chartplotters
Humminbird Fishfinders and GPS Chartplotters
Lowrance Fishfinders and GPS Chartplotters
Raymarine Fishfinders and GPS Chartplotters

Collections: All, Best Selling Products, Marine Mounts, Newest Products, RAM Components
