RAM-B-166-C-202U

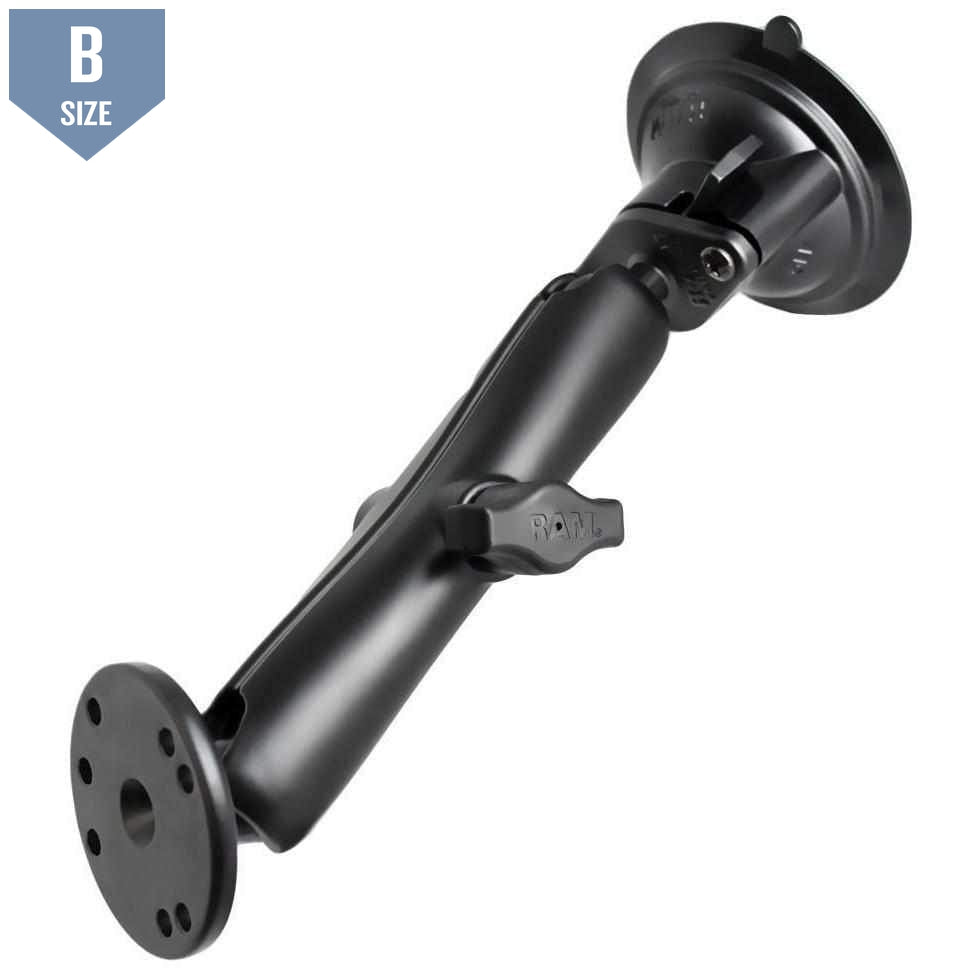

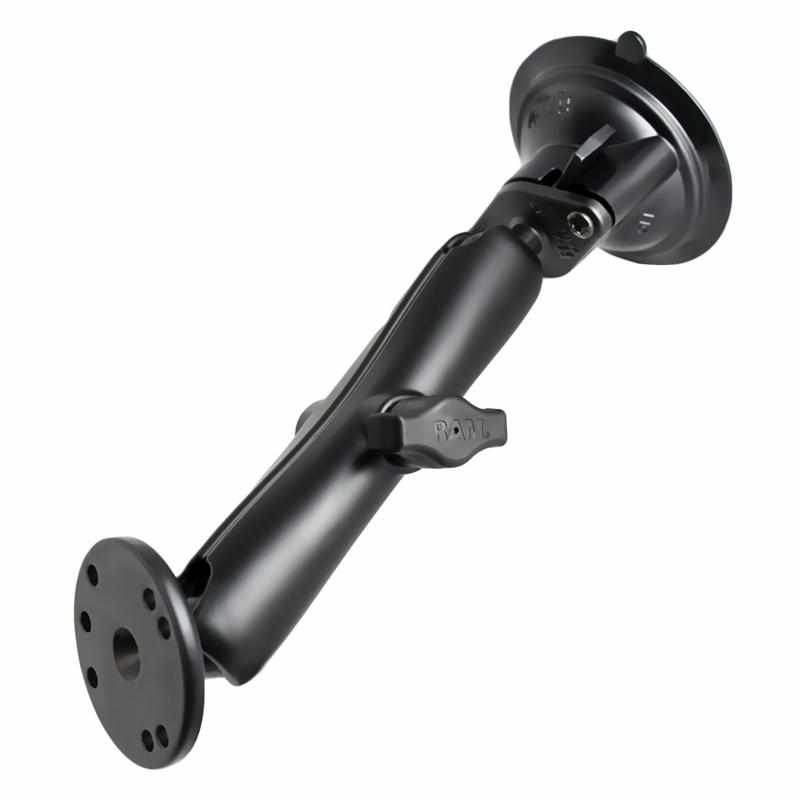

The RAM-B-166-C-202U consists of a 3.3" suction cup twist lock base, LONG double socket arm and round base that contains the universal AMPs hole pattern.
The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.
Note: The "U" in the part number reflects product packaged in poly bag. This mount does not require any drilling for installation.
Collections: All, B Size Components 1", Best Selling Products, Car Mounts, Newest Products, Phone Mounts, RAM Components
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
works very well
Great Product and fast delivery
The RAM mount was a quality replacement for a HEMA GPS windscreen mounted unit. It has performed perfectly as expected and has not moved a bit. It was great to find the all parts required for this job on Modest Mounts
Great product, fast delivery
I use the arm and adaptor with a diamond mount in my 4WD however when I need to move my gear to another vehicle this is where the suction cap comes into its own - stick it on the windscreen or other surface and my gear can go anywhere anytime and it is the best!
Here at Modest Mounts we strive to process all orders received before 12:00pm AEST on the same business day we receive them.
We currently offer the following domestic freight options*:
Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium, StarTrack Express & Sendle.
Note: Postage fee may be a little higher for some of the heavy or large items.
Read more on our Shipping & Delivery
Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition. To initiate a return, send us an email at info@modestmounts.com.au - DO NOT send items back to our office address.
Full information available here.
Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
