RAM-B-316-1-30-238U
The RAM-B-316-1-30-238U is a universal base from RAM that allows you to mount a light to medium weight item such as tablets, in a car safely and securely. No drilling required!

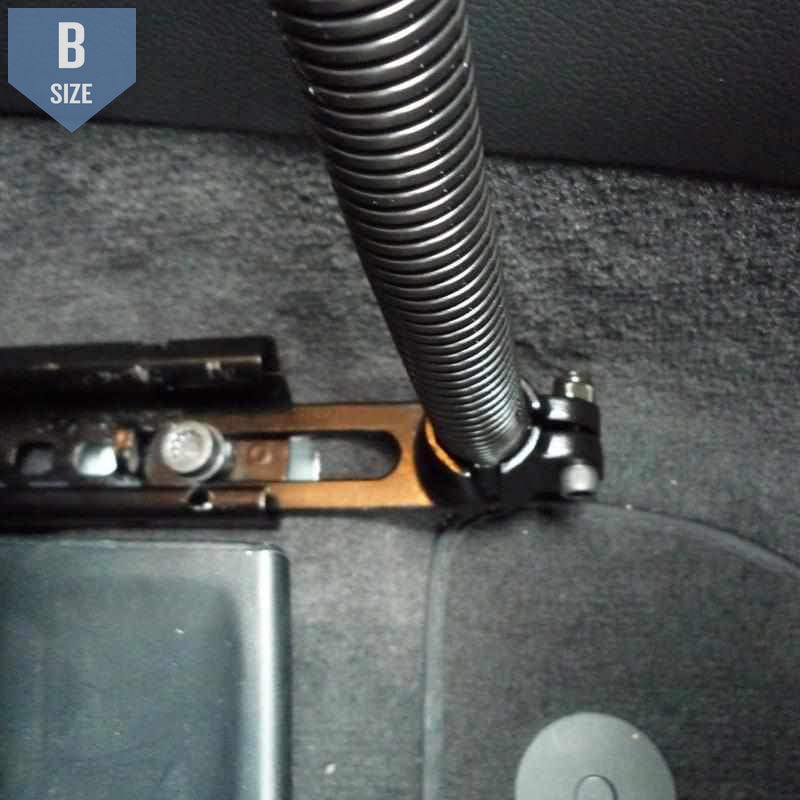

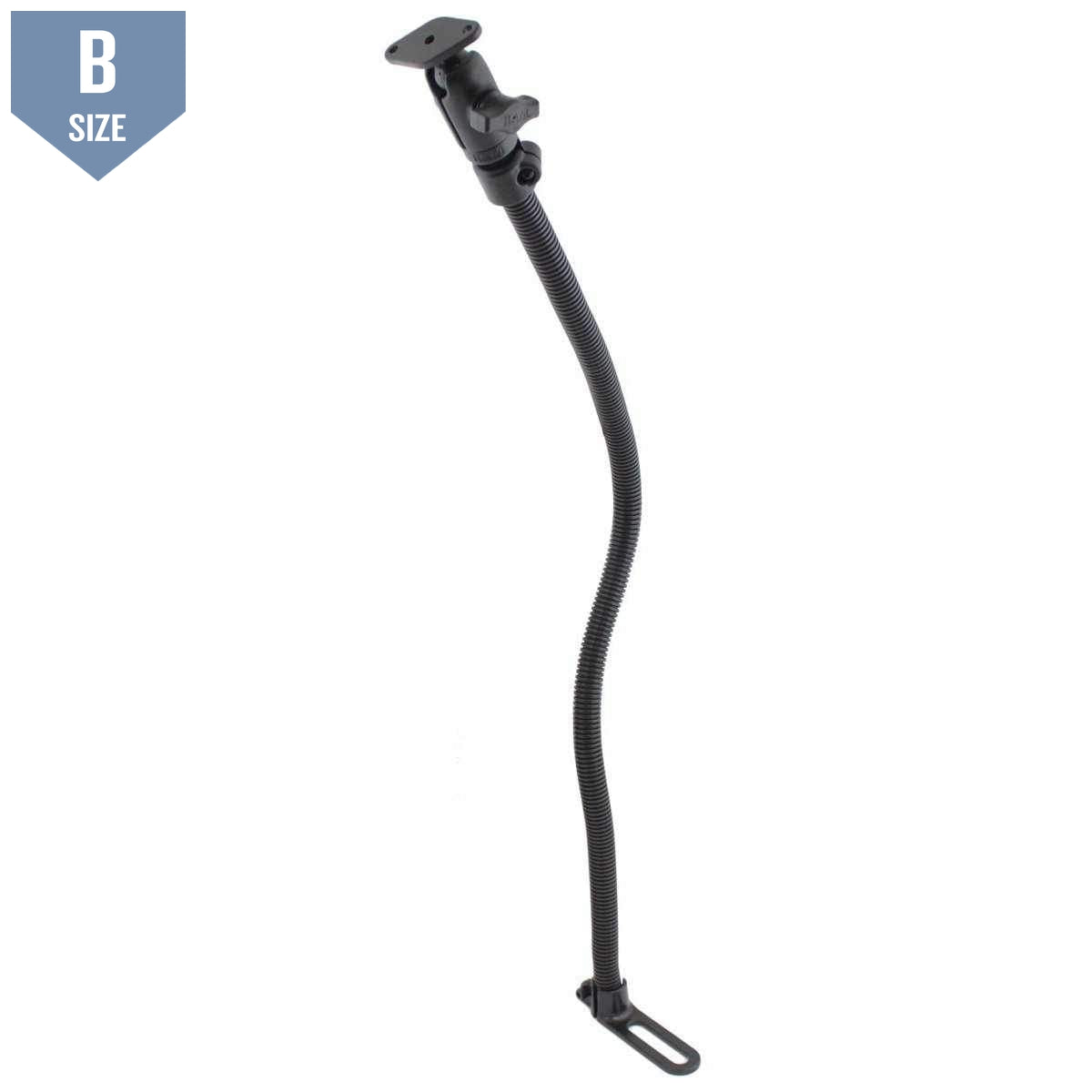

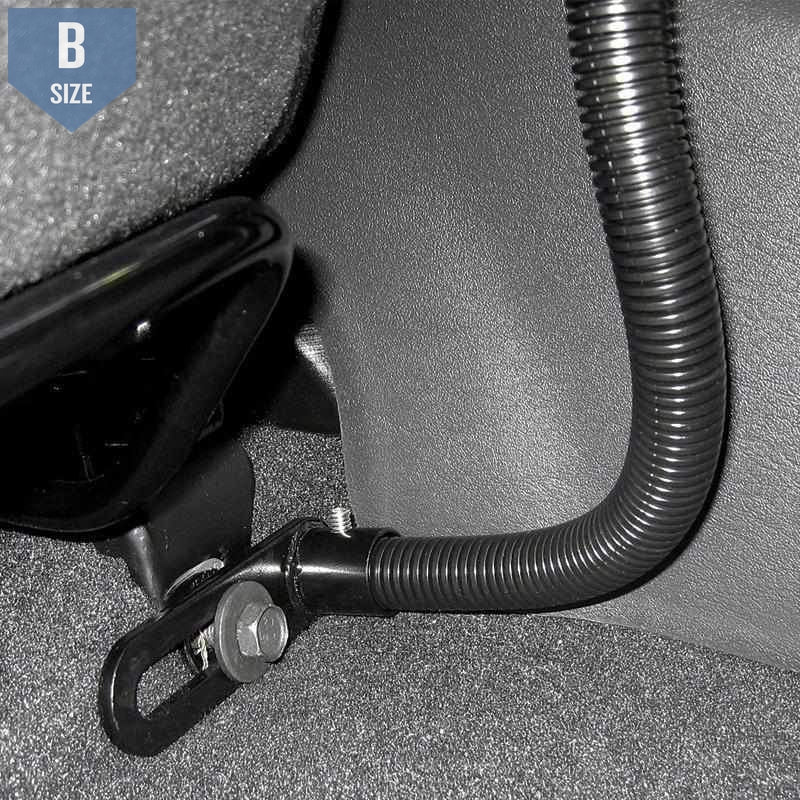

The RAM-B-316-1-30-238U consists of the RAM POD I universal No-Drill™ vehicle base, a 30” rigid aluminium rod, single 1" ball socket arm and diamond base adapter. The base connects to your seat rail without any need for drilling. The 30" rigid aluminium rod can be bent and articulated to position your device to its optimum viewing location.
The RAM POD 30" Vehicle Floor Mount (RAM-B-316-1-30-238U) will hold everything you need safely and securely. The diamond adapter base features a 1" diameter rubber ball connected at right angles to a 2.43" x 1.31" diamond base. The base has two holes 1.912" from centre to centre (matching the industry standard AMPS hole pattern) and will connect to a large variety of RAM® Mount and third party cradles.
For heavier devices (eg. laptop), we recommend the POD HD series or the RAM-316-3-202U, consisting of 3 rods instead of 1.
The video below shows the 18" vehicle floor mount. This is the 24" model.
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
Long but sturdy. Can bend into position you want.
Well made and easy to install. Very easy to modify length. but best suited as permanent install not easy to pull out when not in use
Awsome product and works as advertised
All good, fitted base to seat mount then shaped the bar to mirror the front dash. Phone sits at a nice height, all adjustments work great and very secure.
Fitting an iPad holder to the interior of a Lexus LX570 with all its leather can have its issues, who wants to drill holes in leather… So this mount meant we could have the iPad mounted and no damage to the cars interior, about 5 minutes and it was all installed and ready to use. Perfect.
Here at Modest Mounts we strive to process all orders received before 12:00pm AEST on the same business day we receive them.
We currently offer the following domestic freight options*:
Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium, StarTrack Express & Sendle.
Note: Postage fee may be a little higher for some of the heavy or large items.
Read more on our Shipping & Delivery
Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition. To initiate a return, send us an email at info@modestmounts.com.au - DO NOT send items back to our office address.
Full information available here.
Yes. All RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
