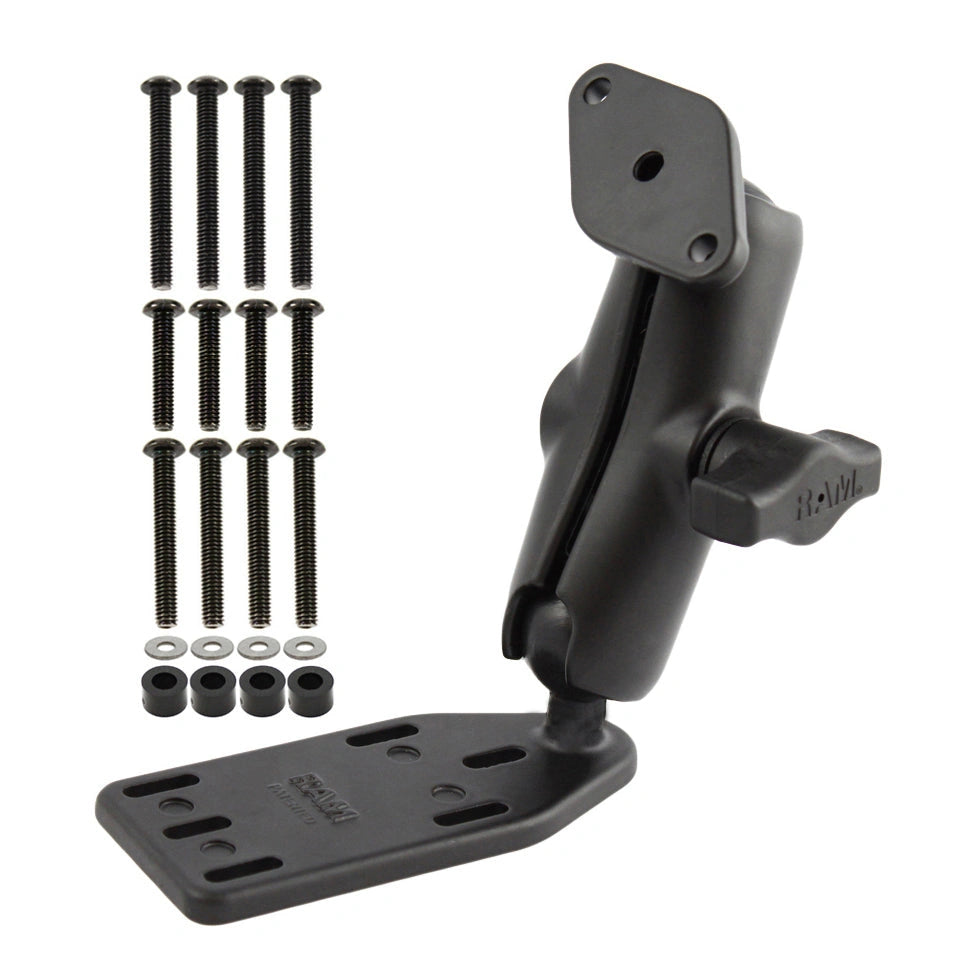

RAM Offset Reservoir Cover Double Ball Mount (RAM-B-183U)

Included:

• 1 x RAM Motorcycle Brake/Clutch Reservoir Base w edge 1" Ball (RAM-B-346U)

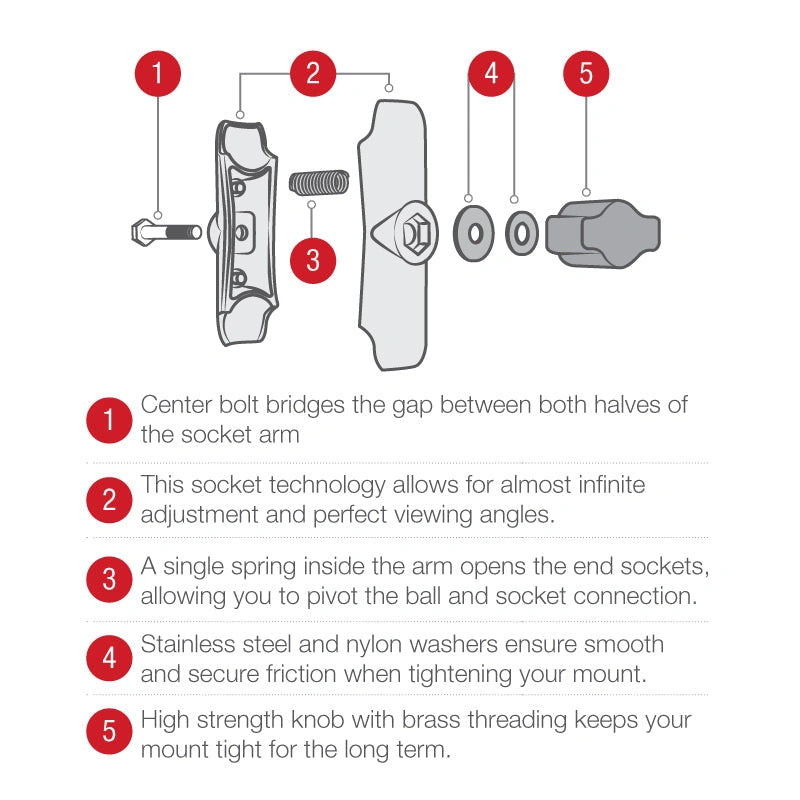

• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

The RAM-B-183U combines an offset reservoir-cover ball base, medium double socket arm and diamond AMPS plate. The ball sits toward one end of the base, which mounts above the existing brake/clutch reservoir cover using suitable cover screw holes.

Device holder and device are sold separately. The supplied diamond plate fits a holder with a matching two-hole AMPS pattern. A holder with its own 1" B-size ball can connect directly to the arm in place of this plate.

Specifications

• Base Plate Footprint: 4.06" x 1.82" (103.1 x 46.2 mm), from the RAM drawing
• Ball Position: Offset
• Reservoir Cover: Original cover remains installed
• Excluded Vehicle: 2016 BMW R1200RT
• Plate Connection: Diamond plate with two-hole AMPS pattern, 1.912" (48.6 mm) centre-to-centre
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Powder-coated marine-grade aluminium
• Hardware Included:
  • 4 x M4 x 20 mm, 4 x M4 x 30 mm and 4 x M4 x 35 mm machine screws
  • 4 x M4 flat washers and 4 x 0.188" (4.8 mm) nylon spacers

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Match the reservoir's screw pattern and cover shape to RAM's drawing. Choose the supplied screw length that maintains correct thread engagement and clearance without bottoming out, and follow vehicle service requirements. Confirm that the cover and seal remain correctly seated and controls remain clear.

RAM component limited lifetime warranty.

Help

• RAM offset reservoir installation guide
• RAM offset reservoir drawing

Reference price shown is the combined RRP of the included components.
