RAM-B-186U-A

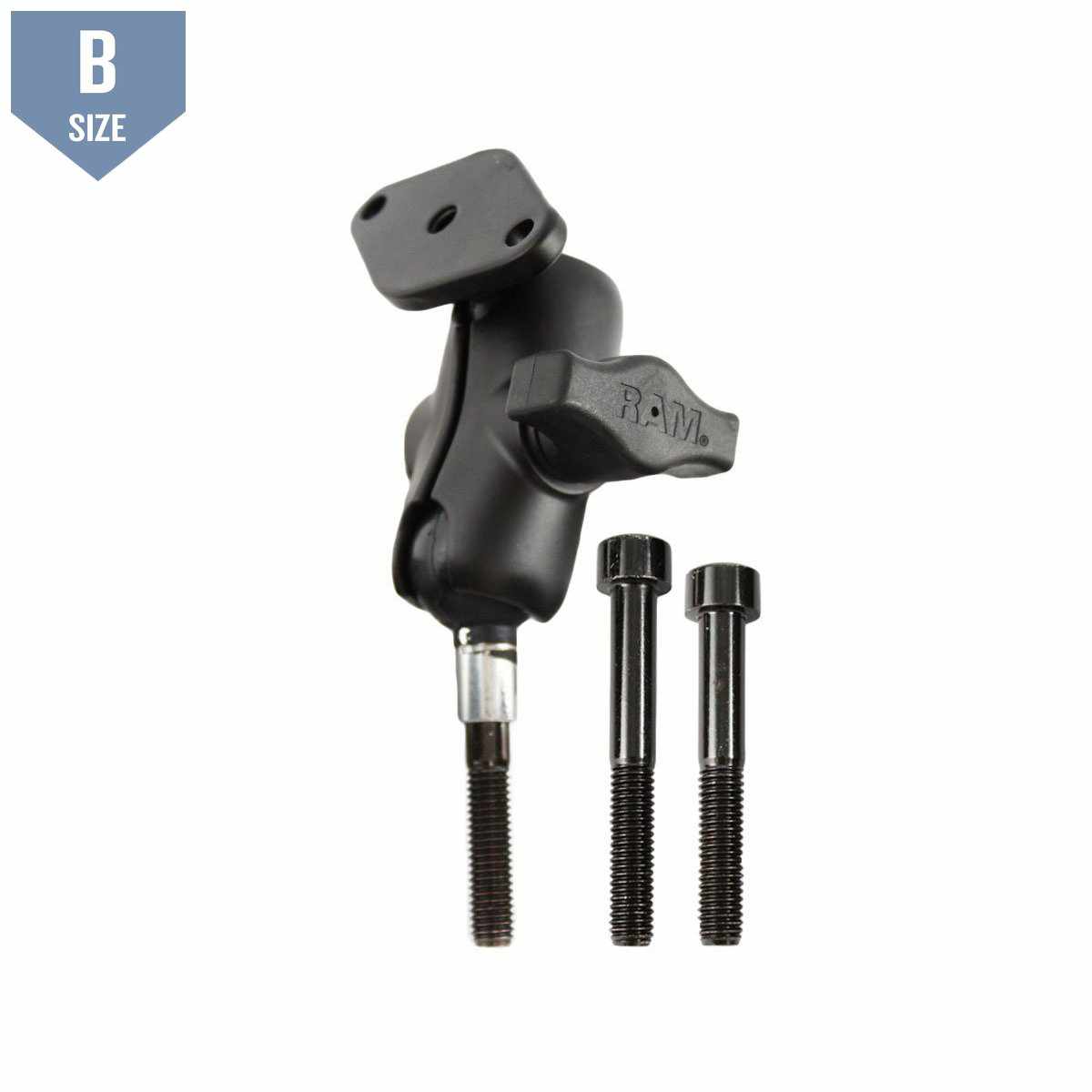

RAM Motorcycle Handlebar Clamp Mount w M8 Bolts (RAM-B-186U-A)

Size Guide
Liquid error (product-form line 111): include usage is not allowed in this context

or make 4 interest-free payments of $11.60 AUD fortnightly with Afterpay More info

Included:

  • 1 x RAM Motorcycle Handlebar Clamp Base w M8 Bolts (RAM-B-367U)
  • 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
  • 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

Do you have an M8 by 25, 30, or 35mm handlebar bolt? If so, the  RAM-B-367U base can replace that bolt with a standard RAM ball-mount to put just about anything there!

Included with these bolts is a Short B-Size Double-Socket Arm and a Diamond Base Adapter with AMPS hole pattern.

With RAM products, it's all grip and no slip plus protection for your valuable electronics. Simply place our easy to install ball base onto the motorcycle handlebar top clamp and you're done. After that, a world of mounting possibilities just opened up.

The RAM-B-186U-A is compatible with any motorcycle which employs an 8mm bolt or smaller on its structure. A smaller bolt can be used, though the load capacity decreases with the bolt size.

Specifications

    HARDWARE INCLUDED
    (1) M8 x 55mm Socket Head Cap Screw
    (1) M8 x 60mm Socket Head Cap Screw
    (1) M8 x 65mm Socket Head Cap Screw

    SOCKET-TO-SOCKET LENGTH
    1.75"

    HOLE PATTERN
    2-Hole AMPS: 1.912"

    BALL/SOCKET SIZE
    B Size (1")

    WEIGHT CAPACITY
    2 lbs

    MATERIALS
    Marine-grade aluminum

    PACKAGING TYPE
    Poly Bag

    WEIGHT
    0.45 lbs.

    ADDITIONAL INFORMATION
    To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.
