RAM M10 x 1.25 Ball and Medium Socket Arm Bundle (MM-B-MIRROR-M10125-MEDIUM-SOCKET)

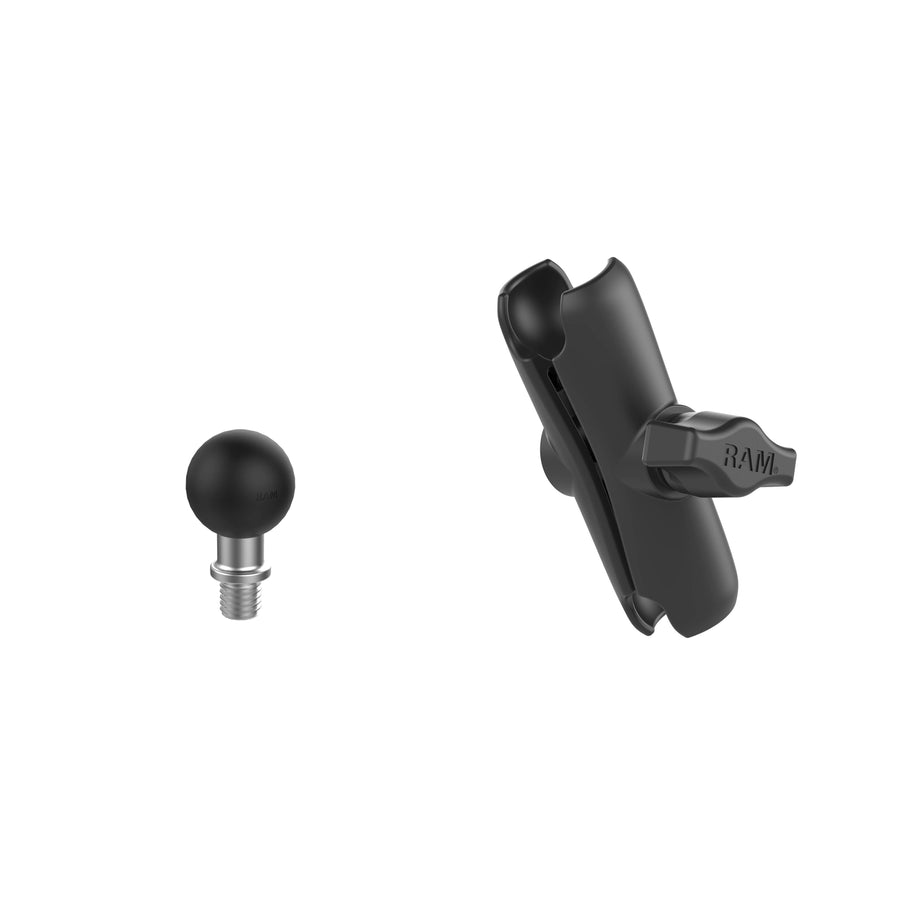

Included:

• 1 x RAM M10 x 1.25 Pitch Male Thread with 1" Ball (RAM-B-349U)
• 1 x RAM Standard Double Socket Arm B Size (RAM-B-201U)

This kit uses the RAM-B-349U M10 x 1.25 male-thread ball base and a medium B Size arm. Select it only for a compatible female M10 x 1.25 mounting point with adequate seating and thread engagement.

Holder sold separately. The open upper socket accepts a holder with its own B Size ball. A flat-backed cradle needs a suitable B Size ball plate or adapter, selected to match its hole pattern, purchased separately.

Specifications

• Mounting Thread: M10 x 1.25 male, standard right-hand thread
• Base Flange Diameter: 14.5 mm, as listed in RAM's overview
• Holder Connection: Open B Size socket for a holder with a 1" (25.4 mm) B Size ball
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Powder-coated marine-grade aluminium

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Check the exact thread pitch, direction, usable depth and flange clearance before installation. M10 x 1.25 and M10 x 1.5 are different connections. A reverse-thread adapter is not included. Verify that any original mirror and controls remain securely mounted and clear.

RAM component limited lifetime warranty.

No device holder or upper mounting plate is included.
