RAP-B-366U

RAM Action Camera Ball Adapter w 1/4"-20 Thread (RAP-B-366U)

Name: RAM Action Camera Ball Adapter w 1/4"-20 Thread (RAP-B-366U)
Brand: Modest Mounts
SKU: RAP-B-366U
Price: 17.0 AUD
Availability: InStock

Size Guide

$17.00 You Save 19% ( $4.00 ) You Save 19% ( $4.00 )

Included:

1 x RAM Action Camera Ball Adapter w 1/4"-20 Thread (RAP-B-366U)

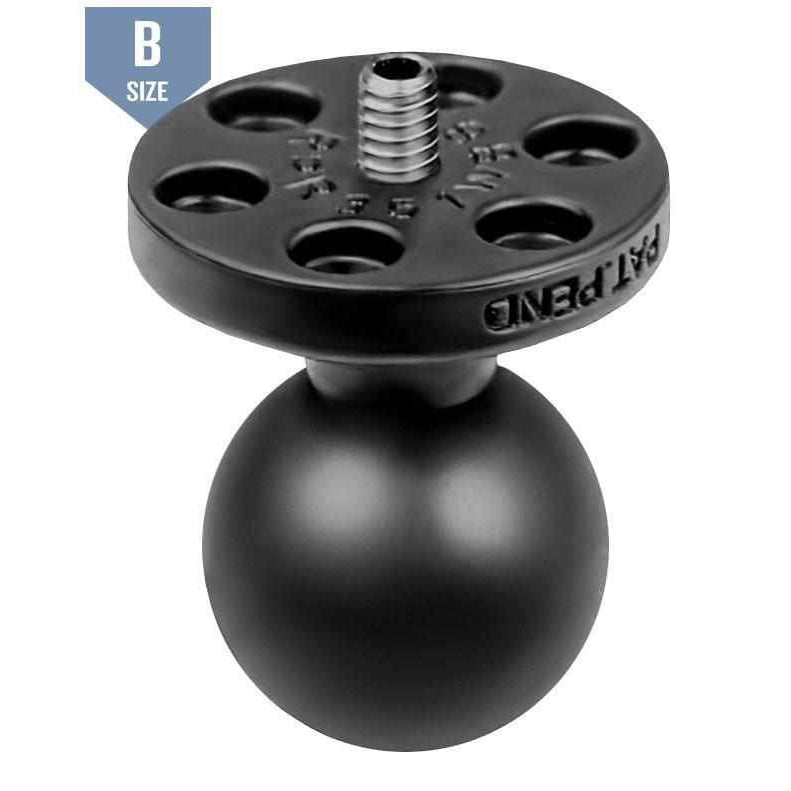

The RAP-B-366U universal camera and camcorder base features a 1" (B-Size) rubber ball, fixed to a round plate with a 1/4"-20 camera thread. The plate offers additional support and stability for the camera it's connected to.

The male 1/4"-20 threaded steel stud will connect to any standard female thread found on digital cameras, camcorders, action cameras, and other devices. This adapter has also been recommended by ECOXGEAR Australia to connect to their speakers.

Specifications

Material: Powder Coated Marine Grade Aluminium
Ball Size: 1" Rubber Ball "B" Size
Lifetime Warranty
THREAD PITCH:1/4"-20 x .25"
PLATE SIZE:1.23" Diameter

Compatibility

Any camera that contains a 1/4"-20 Female Threaded Hole
Popular for use with Camcorders, Action Cameras and more.
Recommended by ECOXGEAR Australia for use with their speaker products. Just ensure that the weight of the speaker does not exceed 1kg.

Note: The "U" in the part number reflects product packaged in poly bag.

Collections: All, B Size Components 1", Best Selling Products, Camera Mounts, Newest Products, RAM Components

Customer Reviews

5.0 Based on 2 Reviews

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

28/09/2021

Brendon B.

Australia

RAM Action Camera Ball Adapter w 1/4"-20 Thread (RAP-B-366U)

Perfect fir for Moment Multi Threaded Mount with MagSafe!

RAM Action Camera Ball Adapter w 1/4"-20 Thread (RAP-B-366U)

04/06/2020

Robert D.

Australia

An unfortunate mistake

I have quite a few RAM fittings, all with the 1" Ball. I ordered the wrong one - something that was not apparent until I took delivery, (Who even knew there was a 1.5" series....????) Modest Mounts were very good at taking the item back & quickly sending me a full refund.

RAM Action Camera Ball Adapter w 1/4"-20 Thread (RAP-B-366U)

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
