RAM-GDS-DOCK-V12-U1CP-CU

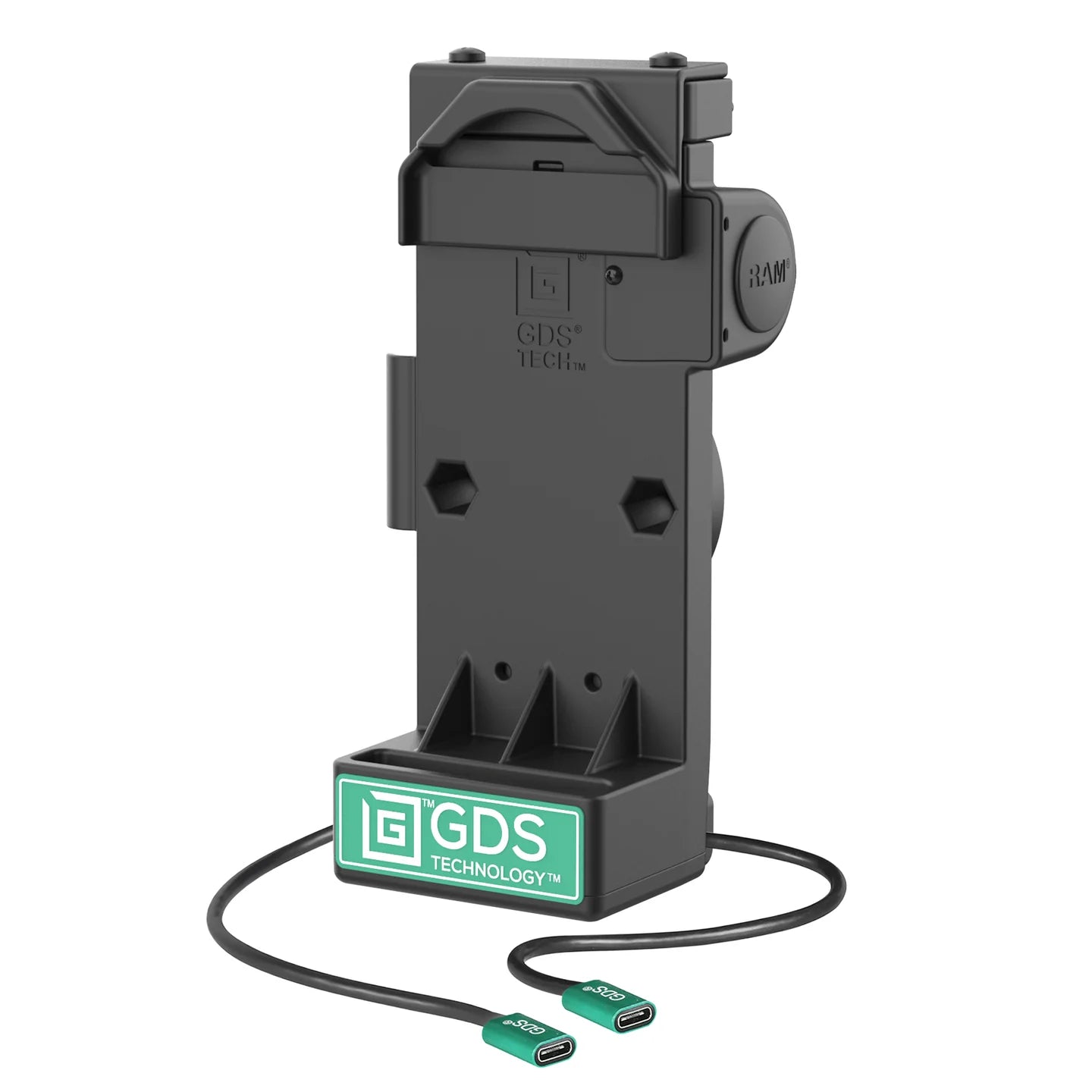

RAM GDS Uni-Conn Spring Loaded Power + Single USB-C Dock (RAM-GDS-DOCK-V12-U1CP-CU)
$369.00$420.00
Size Guide
Included:
- 1 x RAM GDS Uni-Conn Spring Loaded Power + Single USB-C Dock (RAM-GDS-DOCK-V12-U1CP-CU)
Features

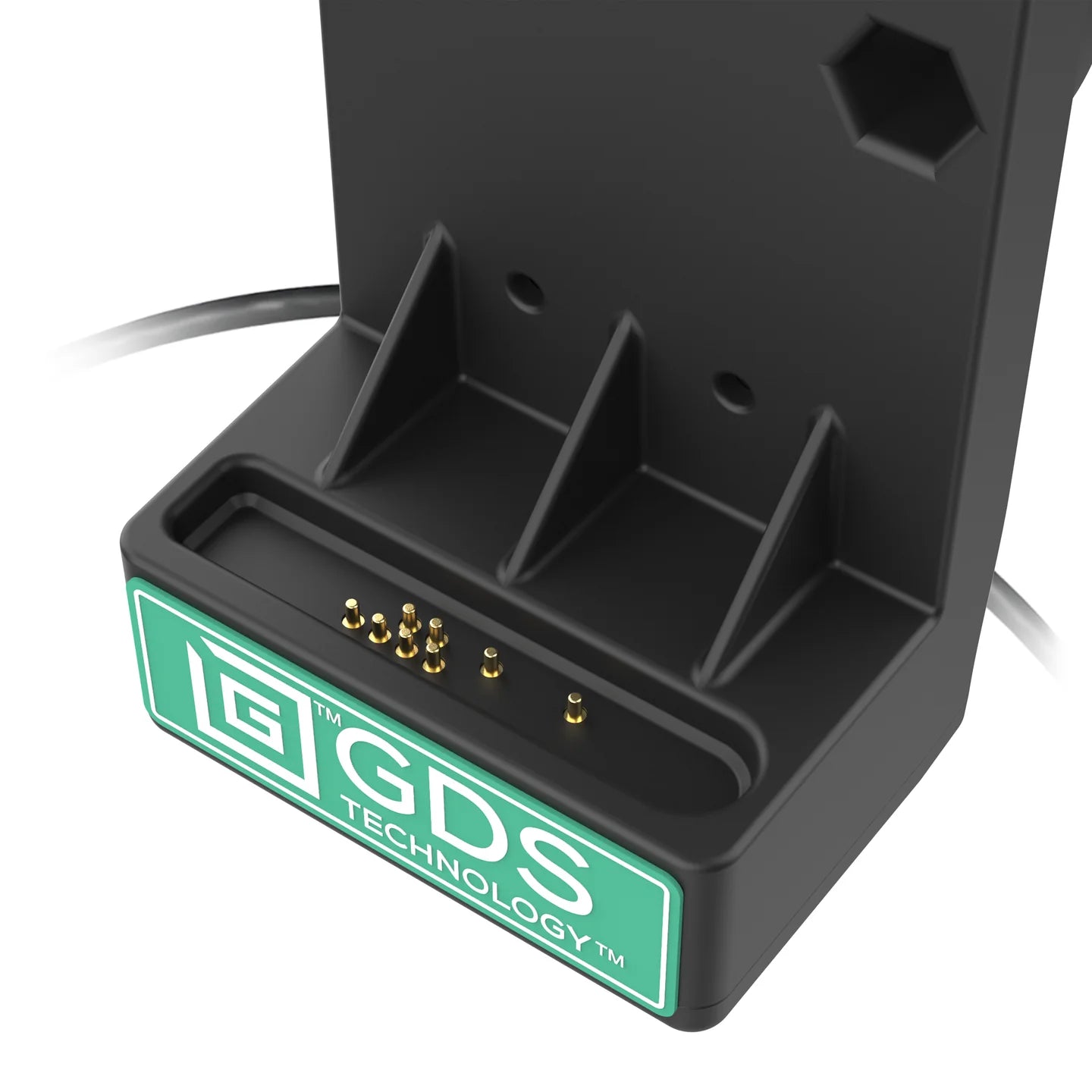

- Spring-loaded dock uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
- Designed for devices wrapped in an IntelliSkin protective sleeve with GDS Uni-Conn Adapter installed
- USB Type-C female connector provides high-speed charging and USB Type-C connects one peripheral device
- RAM Mounts Compatible
- Backed by a 3-year warranty
Overview

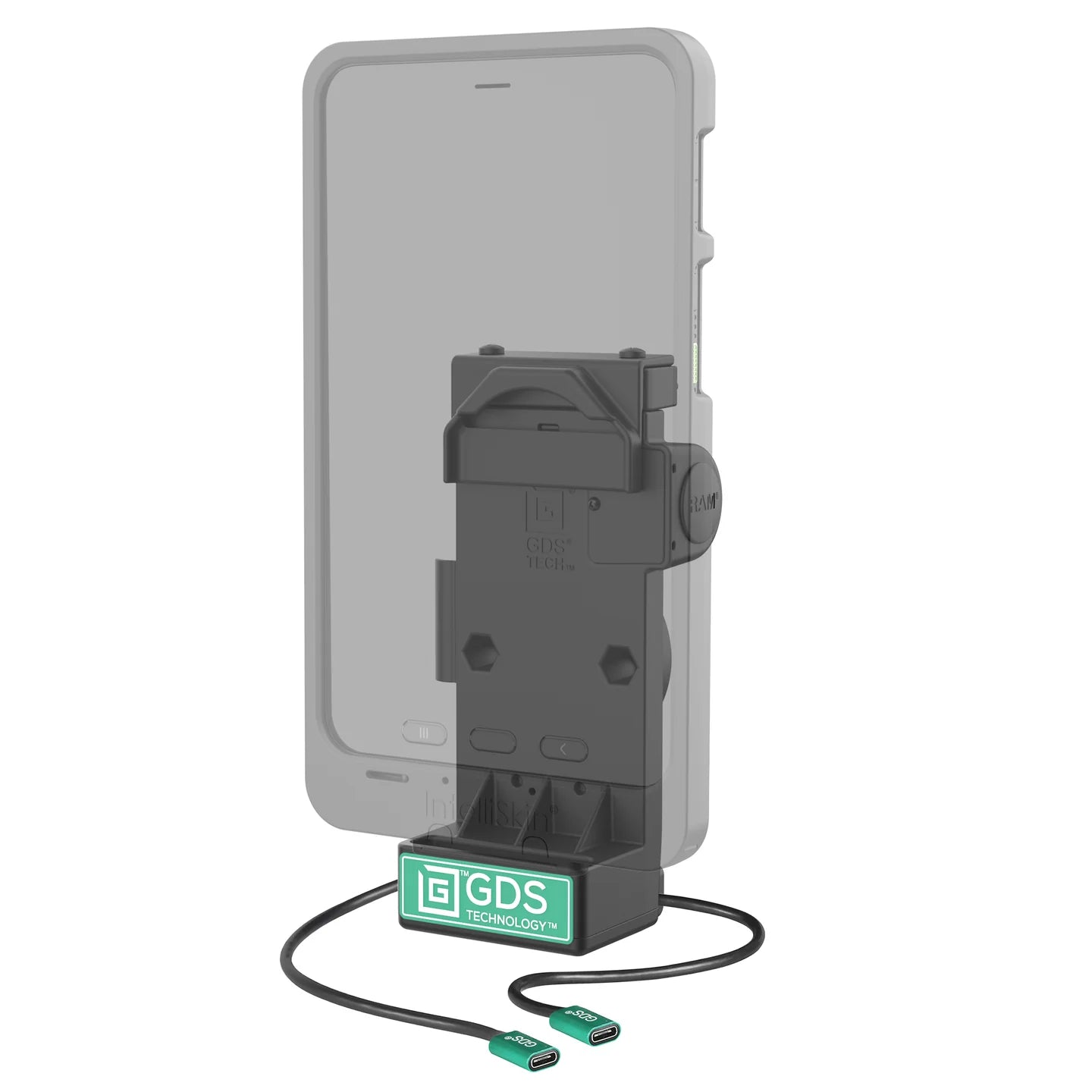

The GDS Uni-Conn Spring Loaded Power + Single USB-C Dock (RAM-GDS-DOCK-V12-U1CP-CU) is a universal docking platform designed to securely hold your device in place.
When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. This dock can also integrate up to one peripheral device using the USB-C female connector.

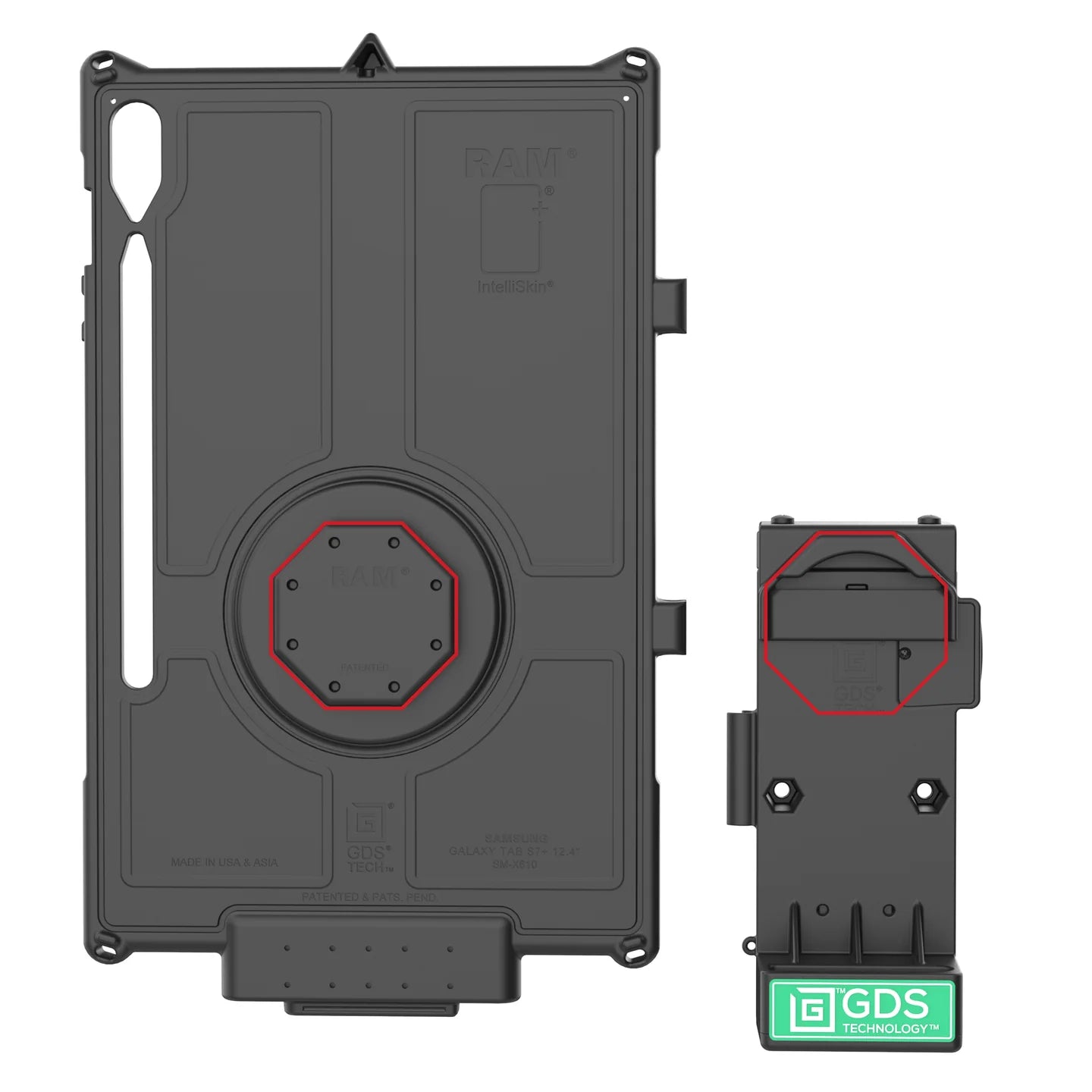

Docking and undocking is designed to be simple. Place the GDS Uni-Conn adapter on the back of your device into the octagon-shaped connection point on the top cup, push the device upwards, then place the bottom of the device on the D-shaped bottom cup connection point.
Specs
Hardware Included:
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

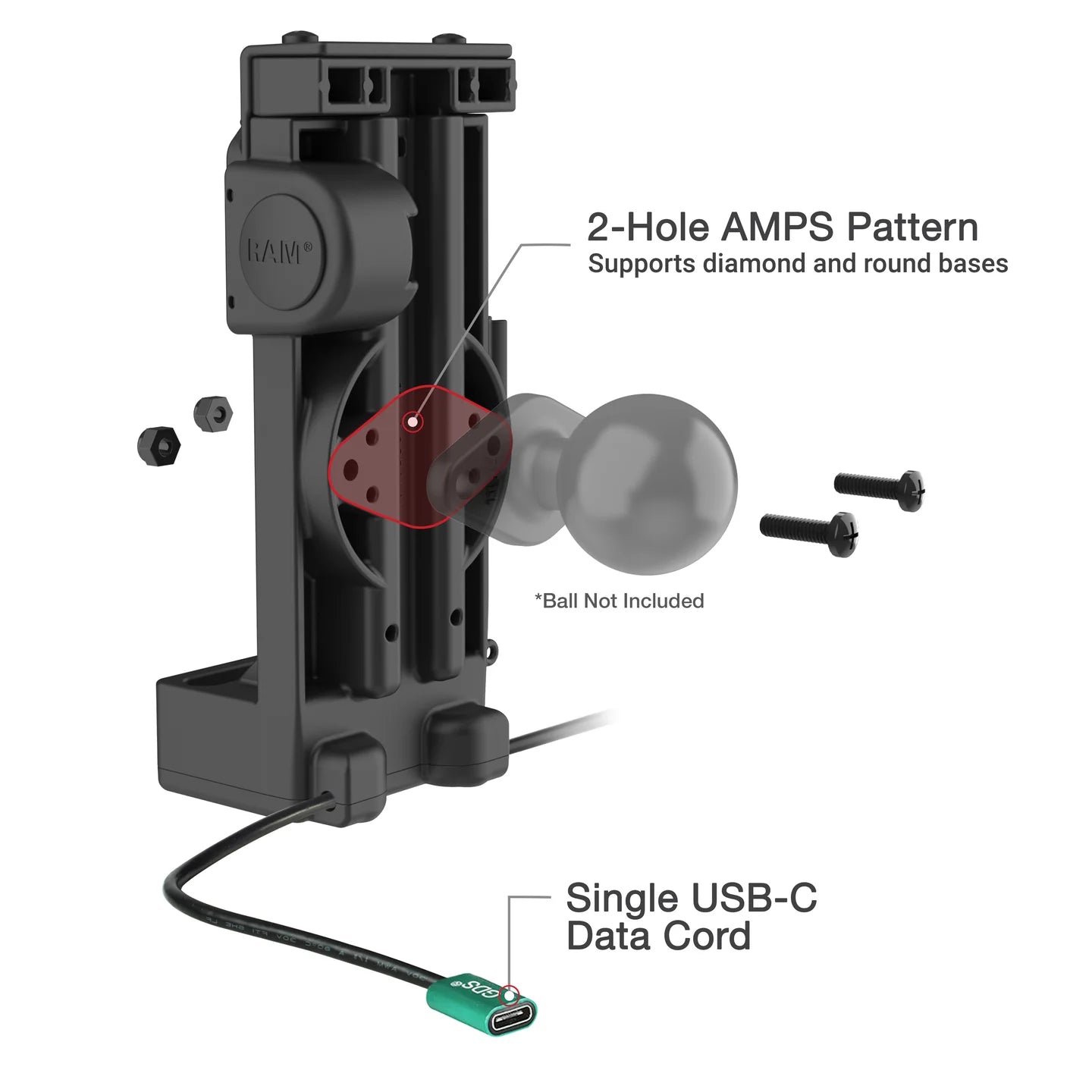

Hole Pattern:
2-Hole AMPS: 1.912"
Materials:
High strength composite
Packaging Type:
Poly Bag
Input Connector:
USB Type-C
USB Type-C for 1 Peripheral
Input Cable Length:
1 Meter
Peripheral Output:
500mA
Warranty:
3 year warranty
Weight:
0.62 lb
Compatibility
- Requires GDS Uni-Conn Adapter (RAM-GDS-U1U) or an IntelliSkin case with Rear Pogo Pads
- Designed for devices wrapped in IntelliSkin Next Gen or IntelliSkin Thin Case sleeves, with the GDS Uni-Conn Adapter (RAM-GDS-U1U) or an IntelliSkin case with Rear Pogo Pads
Help
Compatibility Guide: GDS® Uni-Conn™ Spring Loaded Docks
Need Assistance? By all means get in contact with us at info@modestmounts.com.au
