RAM-GDS-DOCK-V12-U1CPU

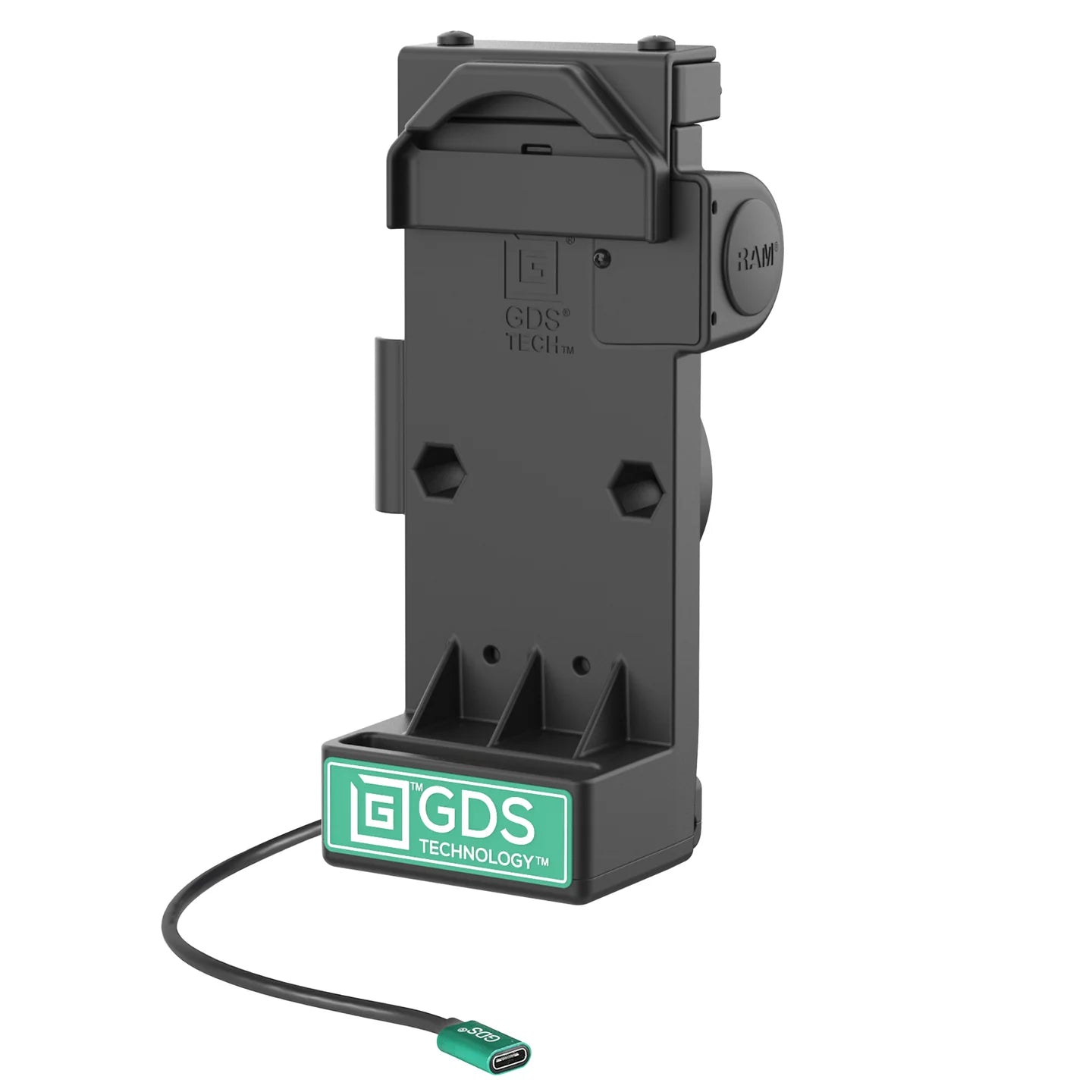

RAM GDS Uni-Conn Non-Locking Spring Loaded Powered Dock (RAM-GDS-DOCK-V12-U1CPU)
$239.00$272.00
Size Guide
Included:
- 1 x RAM GDS Uni-Conn Non-Locking Spring Loaded Powered Dock (RAM-GDS-DOCK-V12-U1CPU)
Features

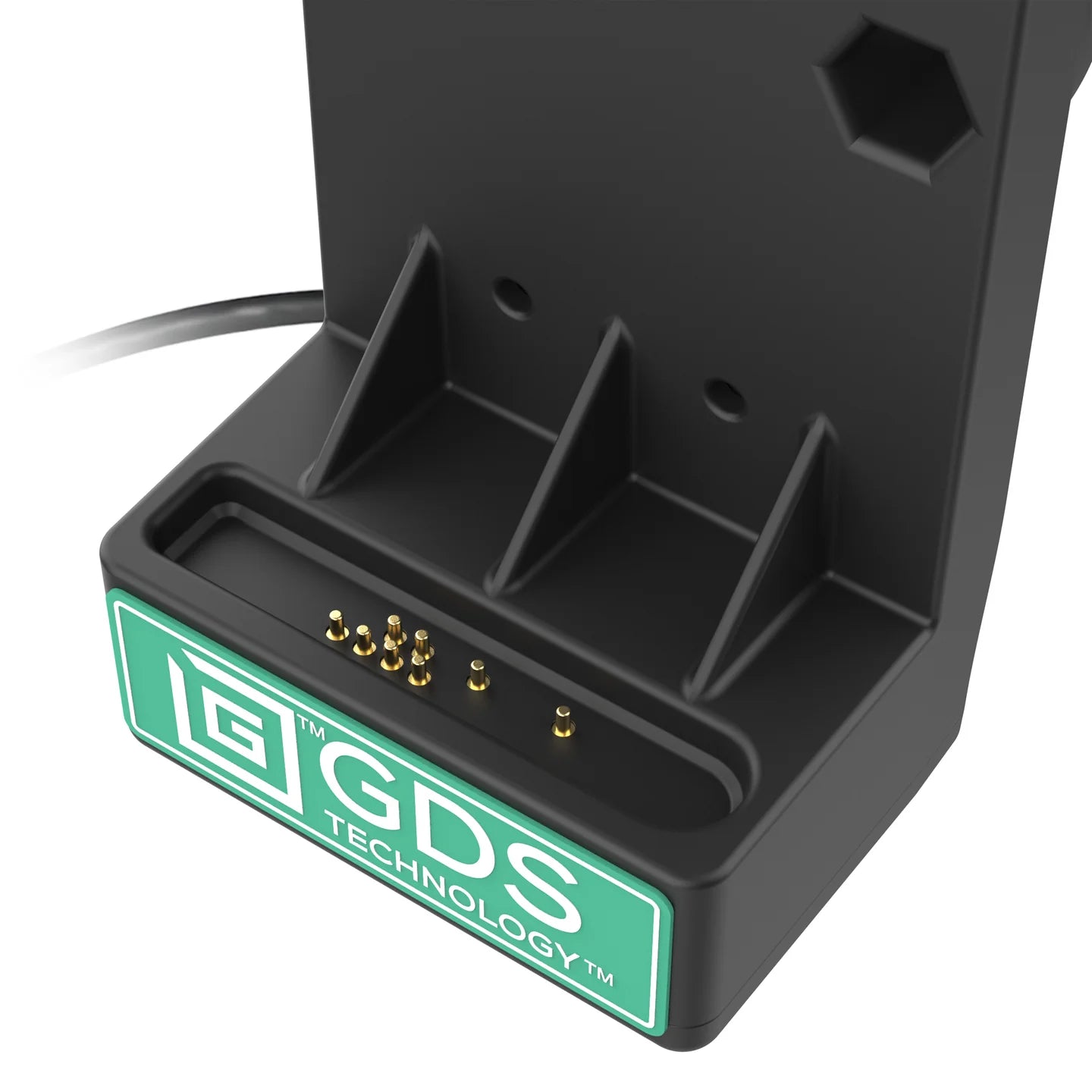

- Spring-loaded dock uses an integrated pogo pin connector to provide high-speed charging
- Designed for devices wrapped in an IntelliSkin protective sleeve with GDS Uni-Conn Adapter installed
- USB Type-C female connector provides high-speed charging to the dock
- RAM Mounts Compatible
- Backed by a 3-year warranty
Overview
The GDS Uni-Conn Non-Locking Spring Loaded Powered Dock (RAM-GDS-DOCK-V12-U1CPU) is a universal docking platform designed to securely hold your device in place.
When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector.

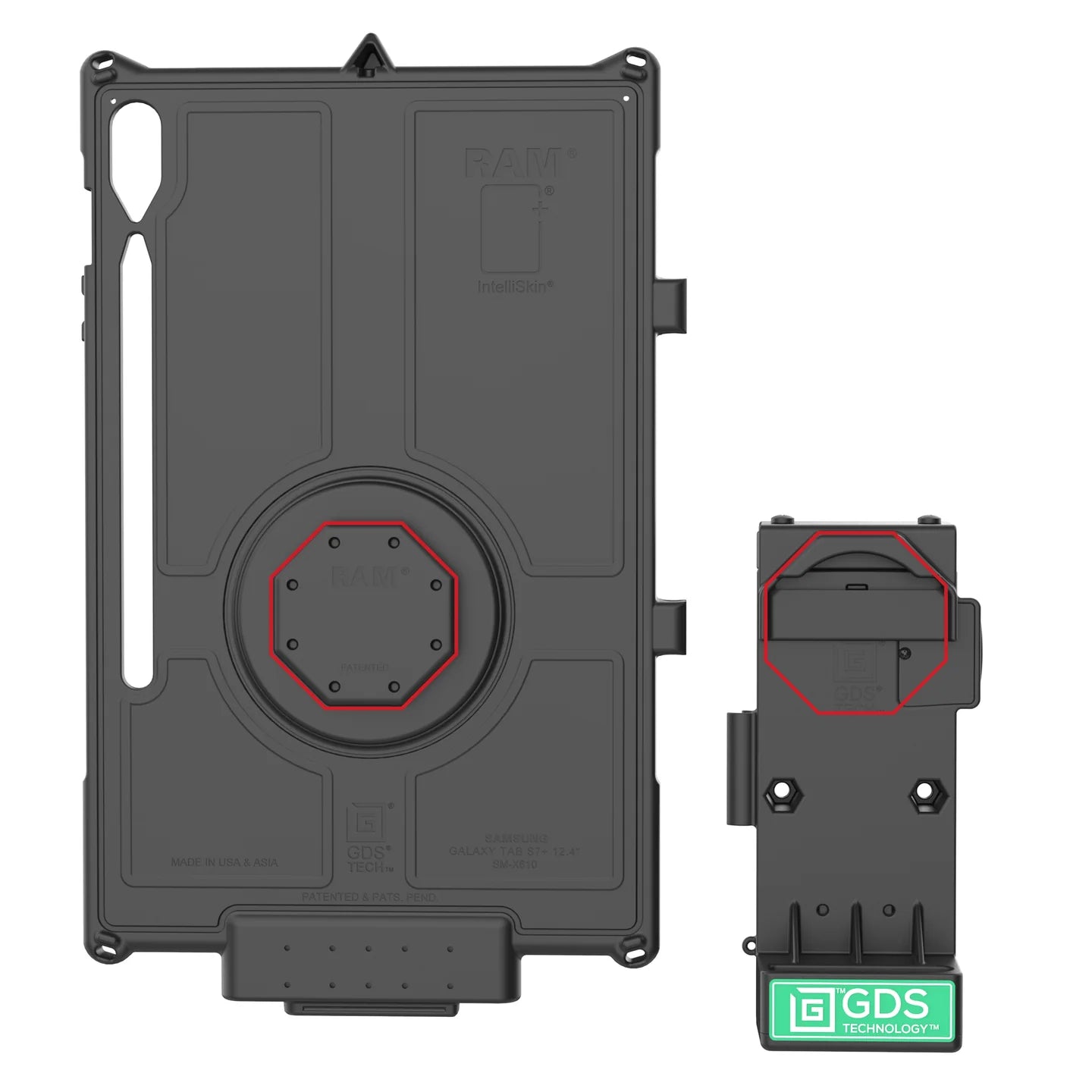

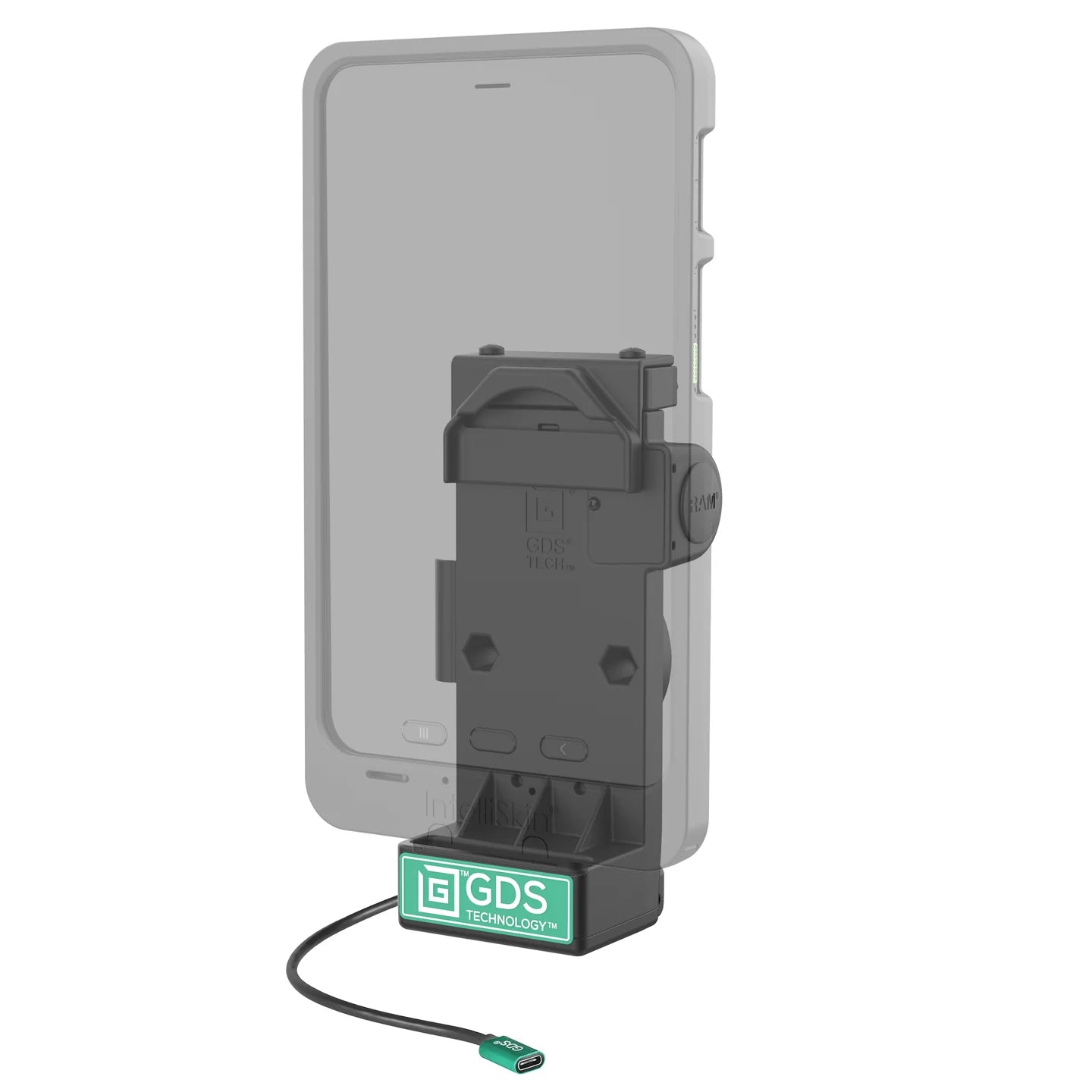

Docking and undocking is designed to be simple. Place the GDS Uni-Conn adapter on the back of your device into the octagon-shaped connection point on the top cup, push the device upwards, then place the bottom of the device on the D-shaped bottom cup connection point.
Specs
Hardware Included:
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

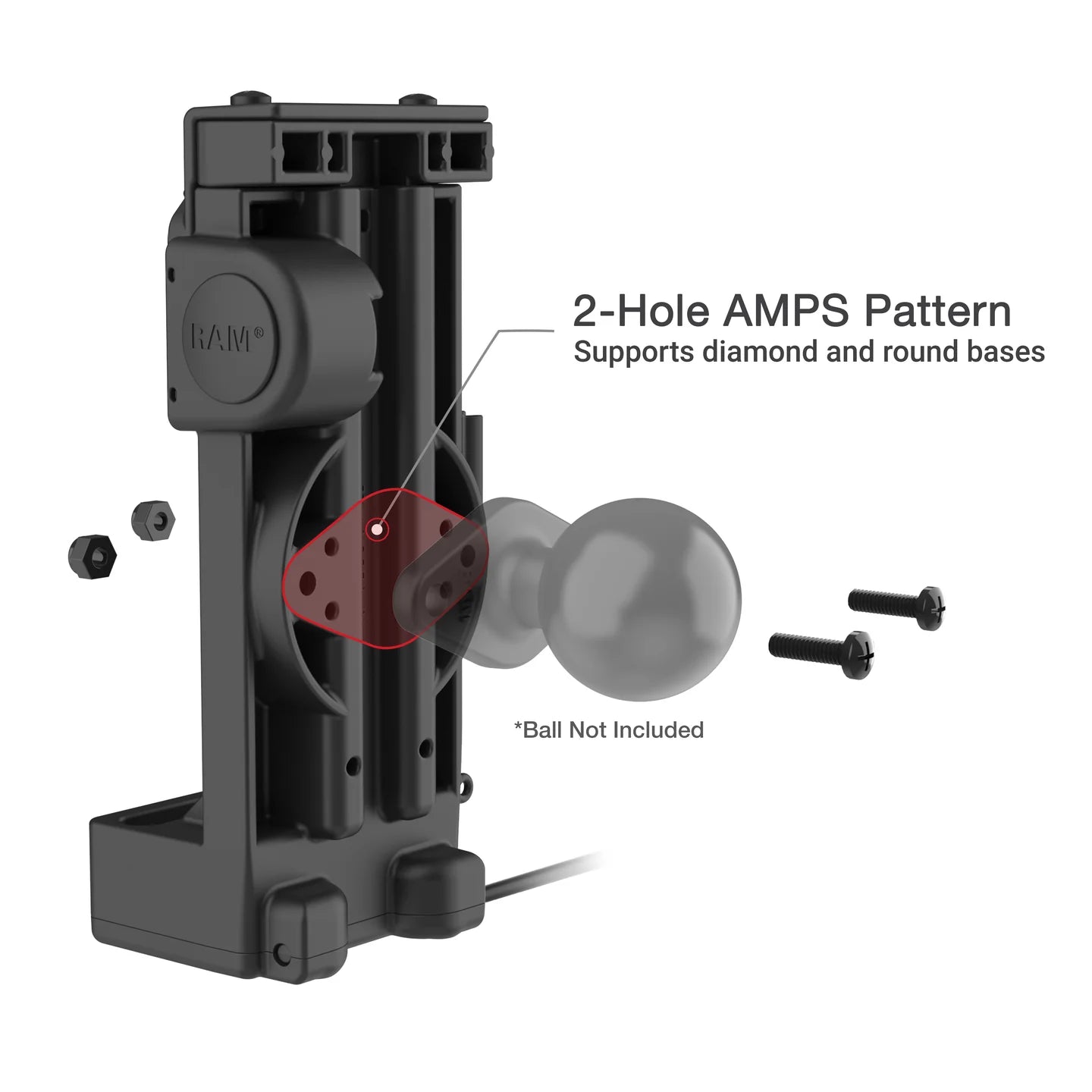

Hole Pattern:
2-Hole AMPS: 1.912"
Materials:
High strength composite
Packaging Type:
Poly Bag
Input Connector:
USB Type-C
Input Cable Length:
1 Meter
Warranty:
3 year warranty
Weight:
0.69 lb
Compatibility
- Requires GDS Uni-Conn Adapter (RAM-GDS-U1U) or an IntelliSkin case with Rear Pogo Pads
- Designed for devices wrapped in IntelliSkin Next Gen or IntelliSkin Thin Case sleeves, with the GDS Uni-Conn Adapter (RAM-GDS-U1U) or an IntelliSkin case with Rear Pogo Pads
- Compatibility Guide: GDS® Uni-Conn™ Spring Loaded Docks
