RAM-GDS-CHARGE-V3C-3U
RAM GDS Modular 10-30V 45W USB-C Power Delivery Hardwire Charger (RAM-GDS-CHARGE-V3C-3U)
$206.00
Included:
- 1 x RAM GDS Modular 10-30V 45W USB-C Power Delivery Hardwire Charger (RAM-GDS-CHARGE-V3C-3U)
Features
- 10-30VDC input for a hardwired vehicle or equipment power connection.
- USB-C Power Delivery output rated up to 45W, with a published 5-15VDC output range and 3A maximum current.

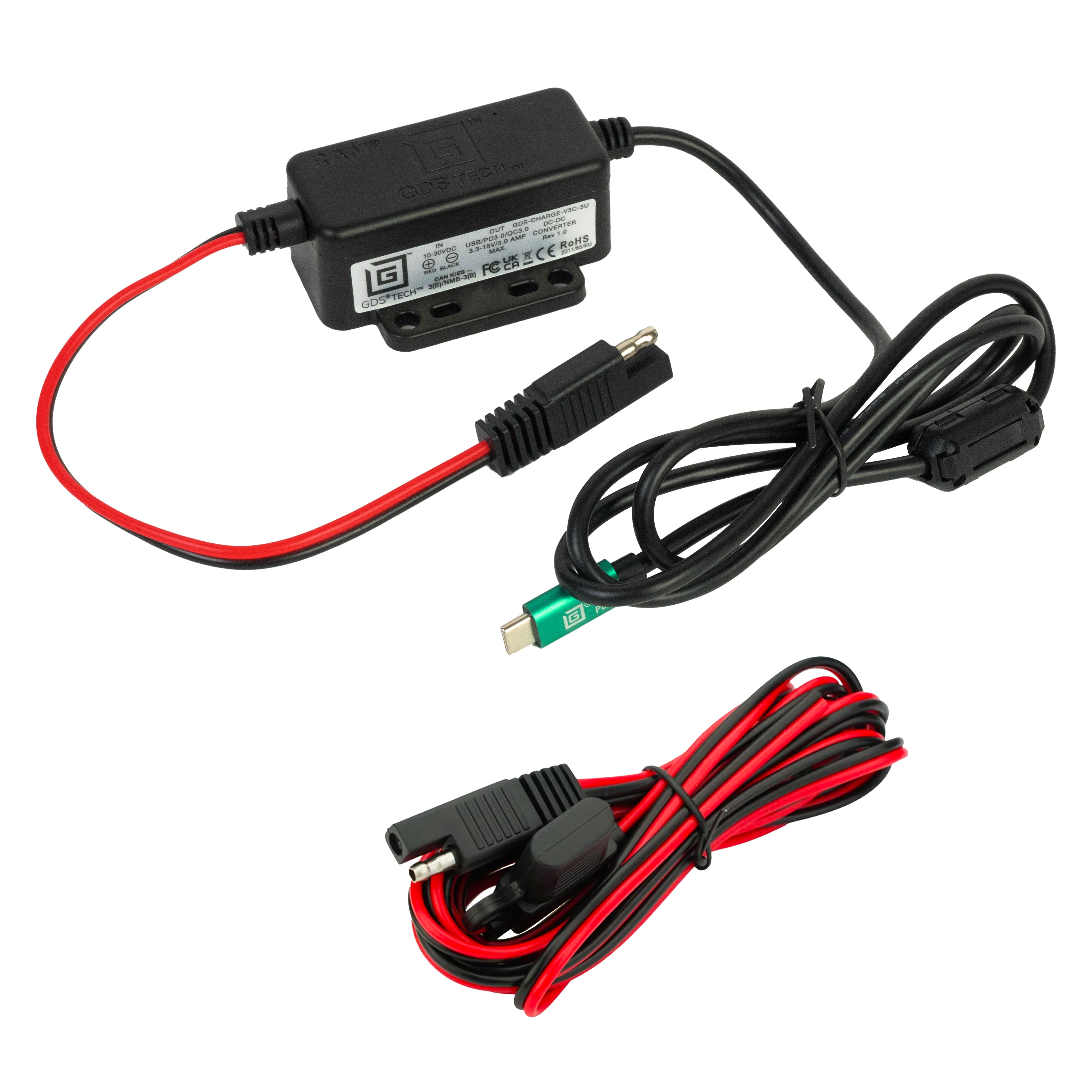

- Includes a 2.5m bare-wire input lead and 1m USB-C male output lead.
- Disconnectable input connection allows compatible charger components to be changed without replacing the installed supply lead.

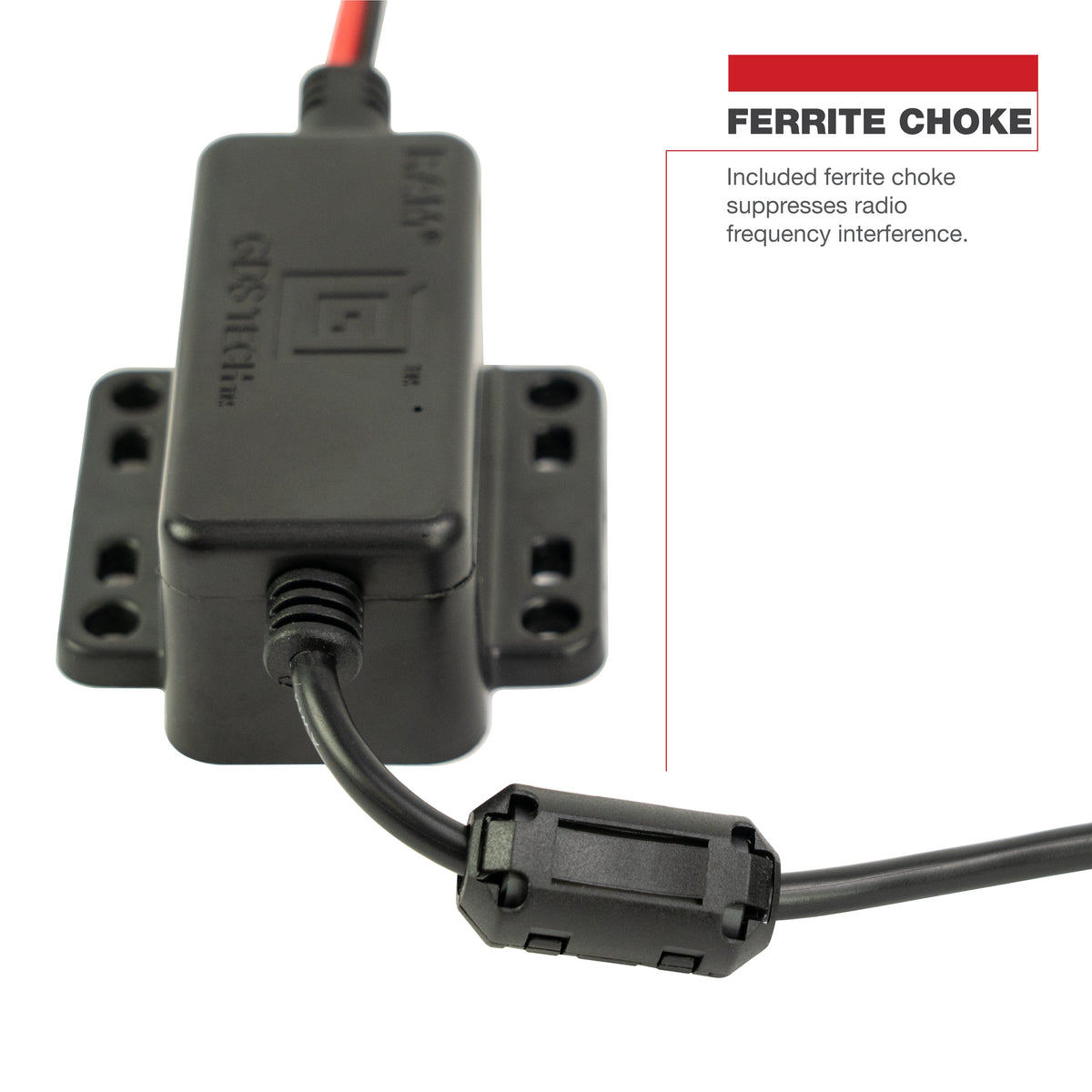

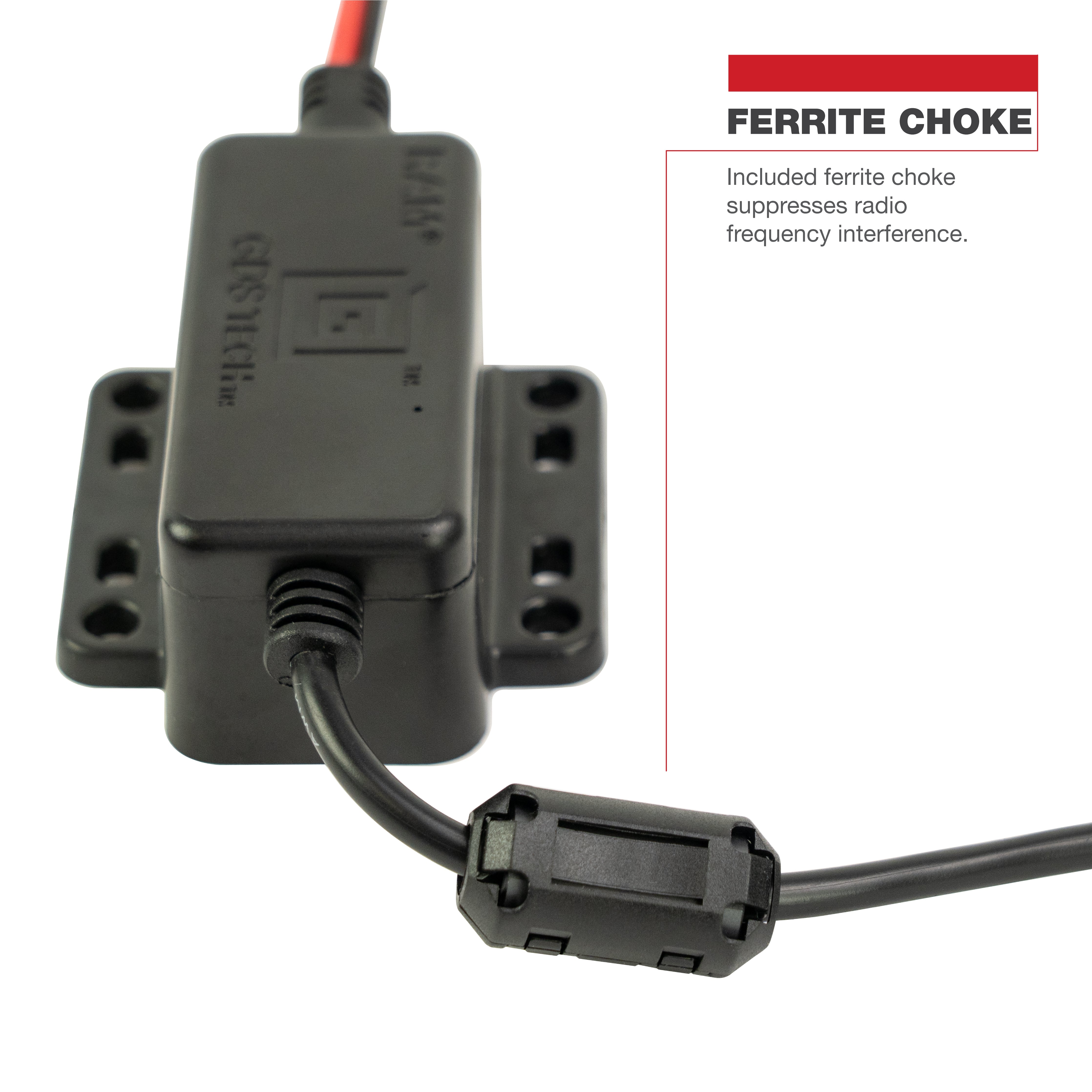

- Ferrite choke on the output cable helps reduce radio-frequency interference.
- 3-year RAM warranty.
Overview
The RAM-GDS-CHARGE-V3C-3U supplies USB-C power to compatible GDS vehicle docks from a 10-30VDC electrical supply. Its male USB-C lead plugs into the dock’s female power-input connector, while the bare-wire lead is installed into the vehicle or equipment electrical system.
The charger and its input/output leads are supplied. The dock, IntelliSkin case, tablet and mounting system are sold separately.
This updated model succeeds the earlier RAM-GDS-CHARGE-V3C-2U and uses enhanced buck/boost charging.
Specs
Input voltage:
10-30VDC
Maximum power output:
45W
Output voltage:
5-15VDC
Maximum output current:
3A
Charging protocol:
USB Power Delivery
Input connector:
Bare wire with disconnectable modular connection
Input cable length:
2.5m
Output connector:
USB Type-C male
Output cable length:
1m
Operating temperature:
-20°C to +70°C
Storage temperature:
-40°C to +85°C
Protection:
Over-voltage, short-circuit and reverse-polarity protection; SAE J-1113-5 load-dump protection
Environmental information:
Moisture resistant; no IP rating stated
Compliance and certifications:
RoHS and WEEE compliance; CE, RCM, FCC and UL 62368-1 certifications
Packaging:
Poly bag
Warranty:
3 years
Weight:
207 g
UPC:
793442027543
Compatibility
- Check the input supply: this model requires 10-30VDC. For a 30-64VDC installation, see RAM-GDS-CHARGE-V3CH-2U.
- Power compatibility: use with a USB-C female power-input dock and a device that accepts the charger’s PD voltage and power range. Check device requirements; some need a different charging protocol.
- Dock examples: RAM-GDS-DOCK-U4CPU and RAM-GDS-DOCK-U5CPU have USB-C power inputs. U4 docks require the correct bottom-contact case/adapter combination; U5 docks require a compatible rear-contact case.
- Charging limits: up to 45W, with the actual rate negotiated by the device and dock. It cannot supply a dock’s full 60W rating and provides power only, without a peripheral or data connection.
- Installation: select the dock and mount for the equipment and environment. Uni-Conn snap-in docks are not recommended for open-cockpit forklifts, regardless of charger voltage.
Help
RAM modular hardwire charger installation instructions
RAM hardwire charger compatibility guide
The RAM instructions show battery-fed and ignition-switched wiring options. Choose the appropriate circuit and keep the installation clear of airbags, the driver’s view and vehicle controls.
Need assistance? Contact us at info@modestmounts.com.au with your dock SKU, device model and supply voltage.
