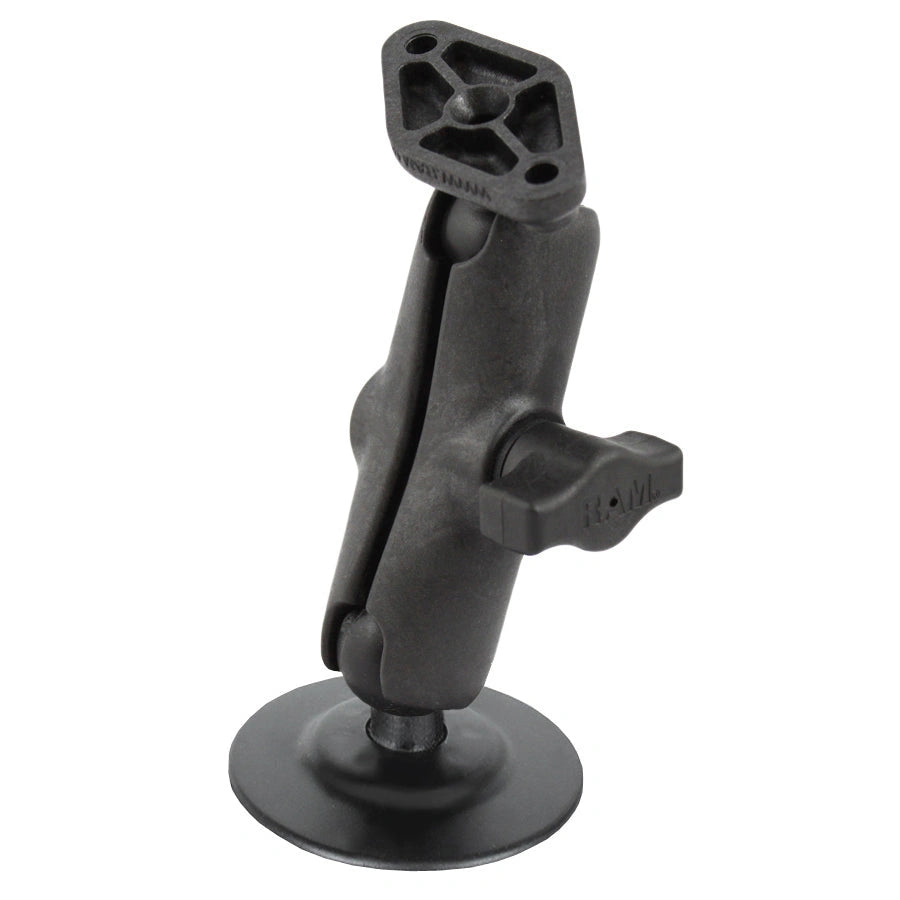

RAM Flex Adhesive Double Ball Mount with Diamond Plate (RAP-B-378-238U)

Included:

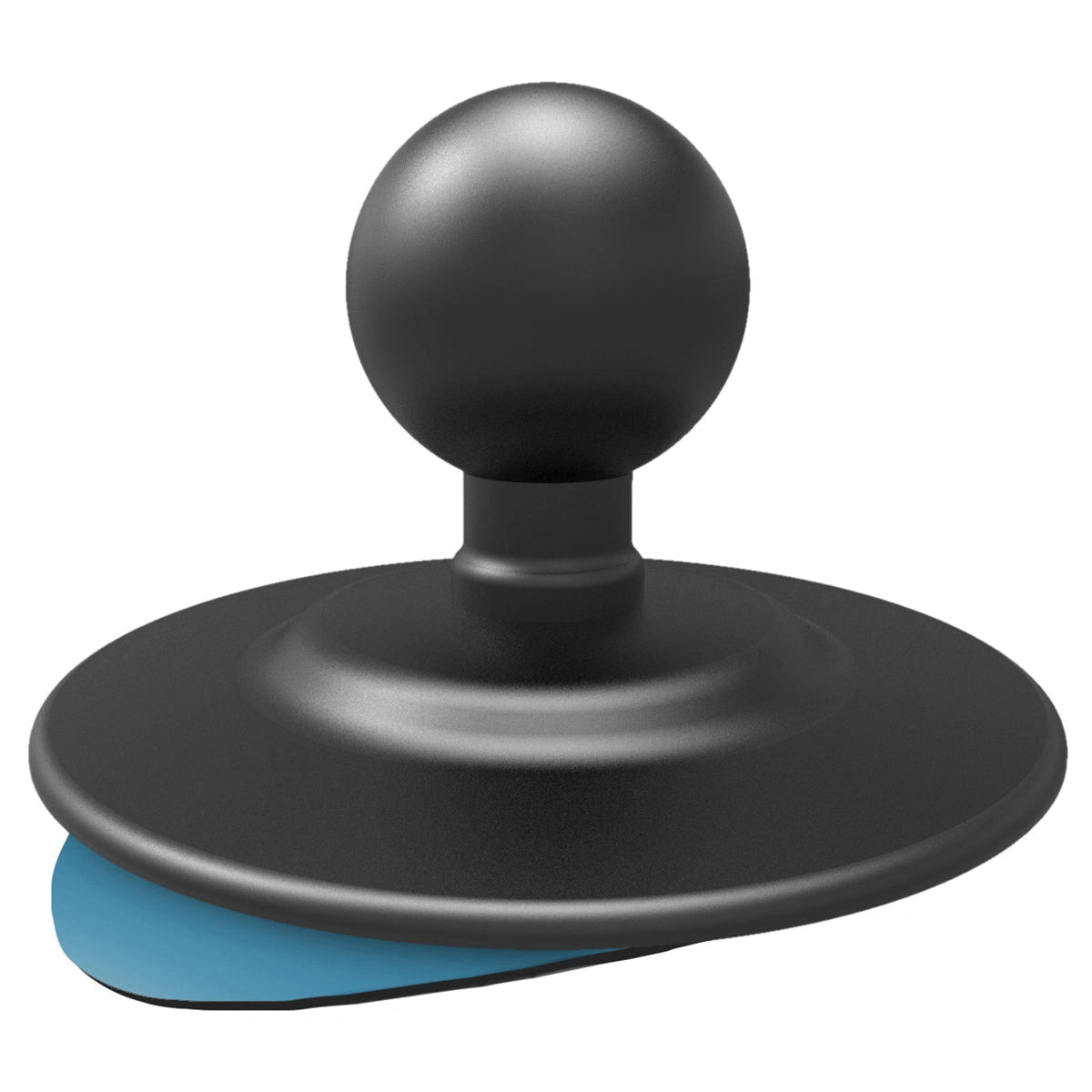

• 1 x RAM Flex Adhesive Base w 1" Ball (RAP-B-378U)
• 1 x RAM Standard Composite Clamp Arm B Size (RAP-B-201U)
• 1 x RAM Composite Diamond Base with 1" B Size Ball (RAP-B-238U)

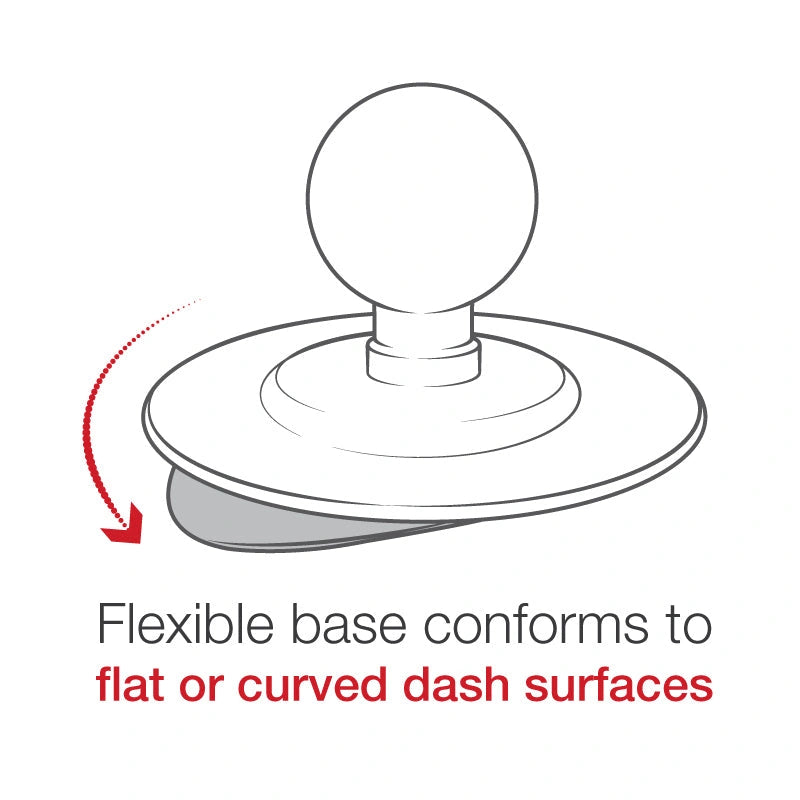

The RAP-B-378-238U combines a flex adhesive base, medium composite double socket arm and composite diamond AMPS plate. The compact base attaches to a suitable prepared surface and the ball-and-socket joints let you adjust the viewing position.

Device holder and device are sold separately. The supplied diamond plate fits a holder with a matching two-hole AMPS pattern. A holder with its own 1" B-size ball can connect directly to the arm in place of this plate.

Reference price shown is the combined RRP of the included components.

Specifications

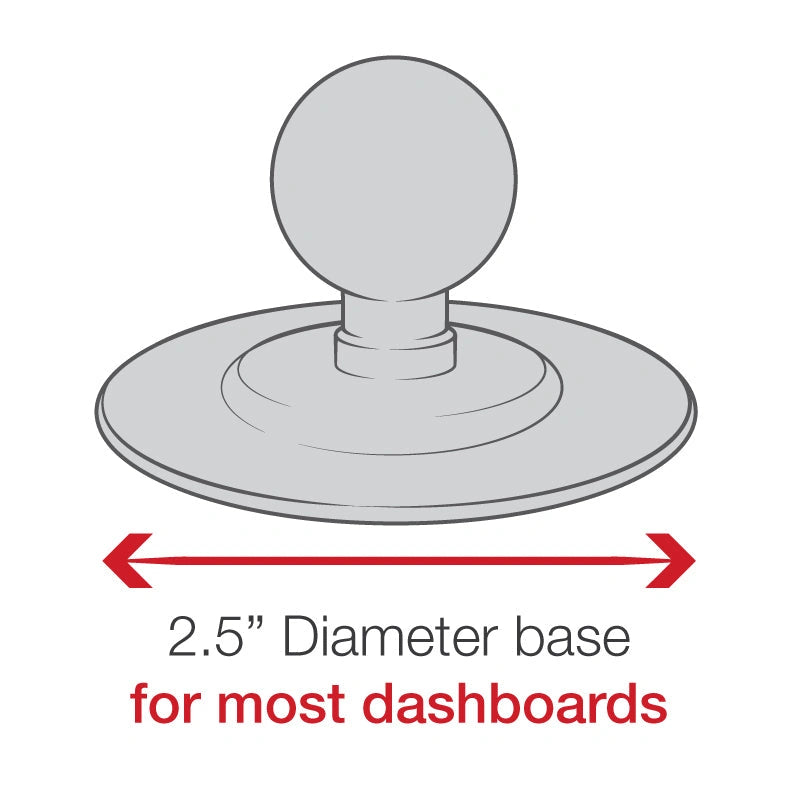

• Base Diameter: 2.5" (63.5mm)
• Plate Connection: Diamond plate with two-hole AMPS pattern, 1.912" (48.6 mm) centre-to-centre
• Arm Overall Length: 3.73" (94.7mm)
• Arm Socket-to-Socket Length: 3" (76.2mm)

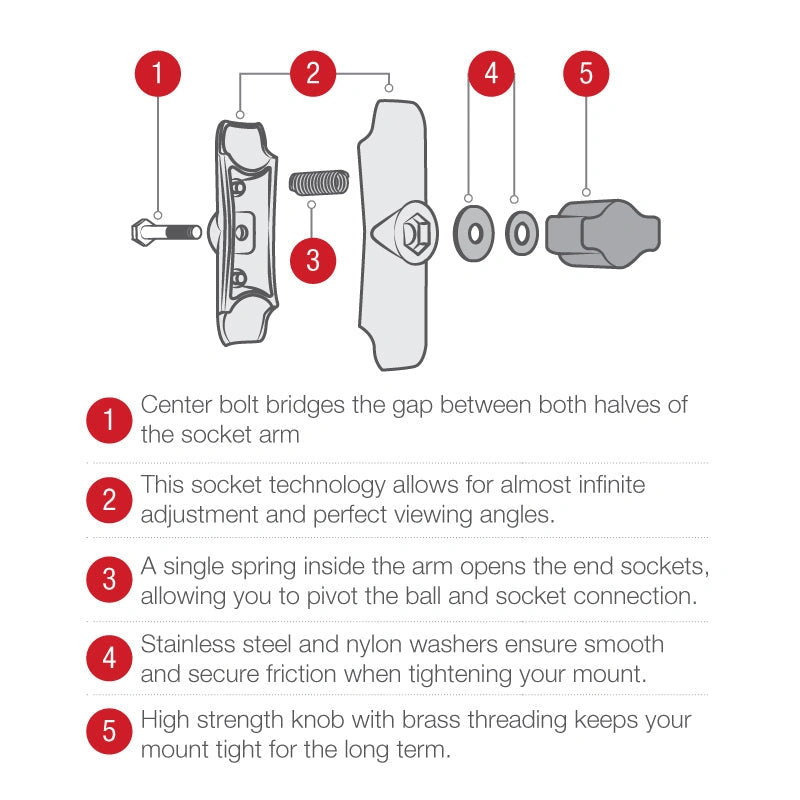

• Arm Material: High-strength composite, RAP-B-201U
• Base Material: High-strength composite
• Manufacturer Component Ratings: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use
• Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms.
• Hardware Included:
  • 1 x double-sided adhesive pad supplied with the base
  • 1 x alcohol preparation pad supplied with the base

Packaging may vary; all listed components are genuine RAM.

Help

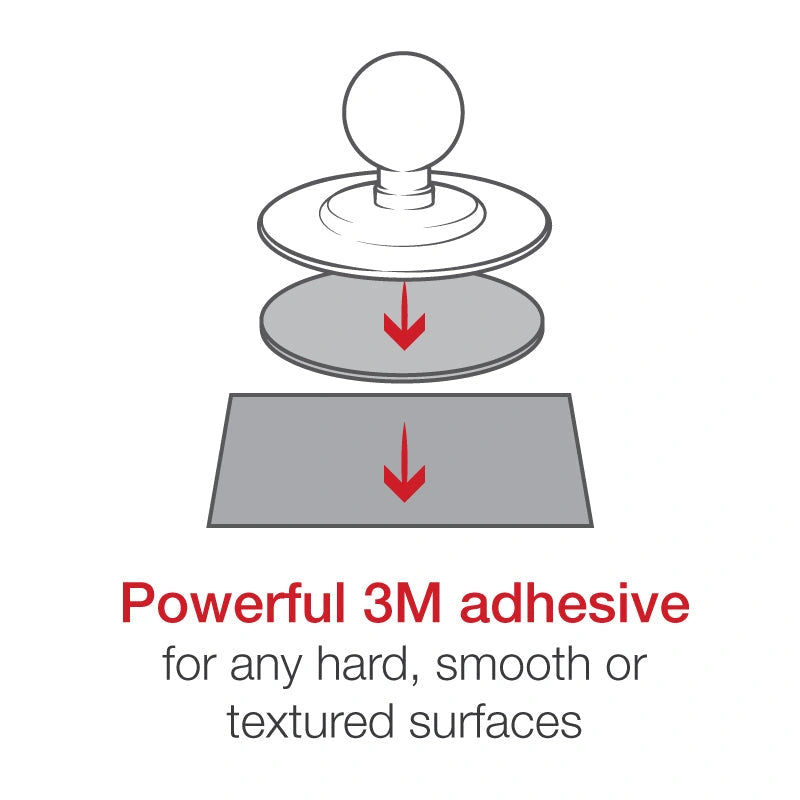

Check that the actual surface material, texture, shape and temperature suit the adhesive. Follow the surface-preparation and application instructions, allow at least 24 hours for the adhesive to fully bond before mounting your device, and verify retention with the chosen holder and device. Adhesive performance depends on the surface and installation. Removal may affect the surface; do not assume a reversible installation.

RAM flex-adhesive fitting guide
