RAM 12-18.75mm Fork Stem Base and Short Socket Arm Bundle (MM-B-FORKSTEM-SHORT-SOCKET)

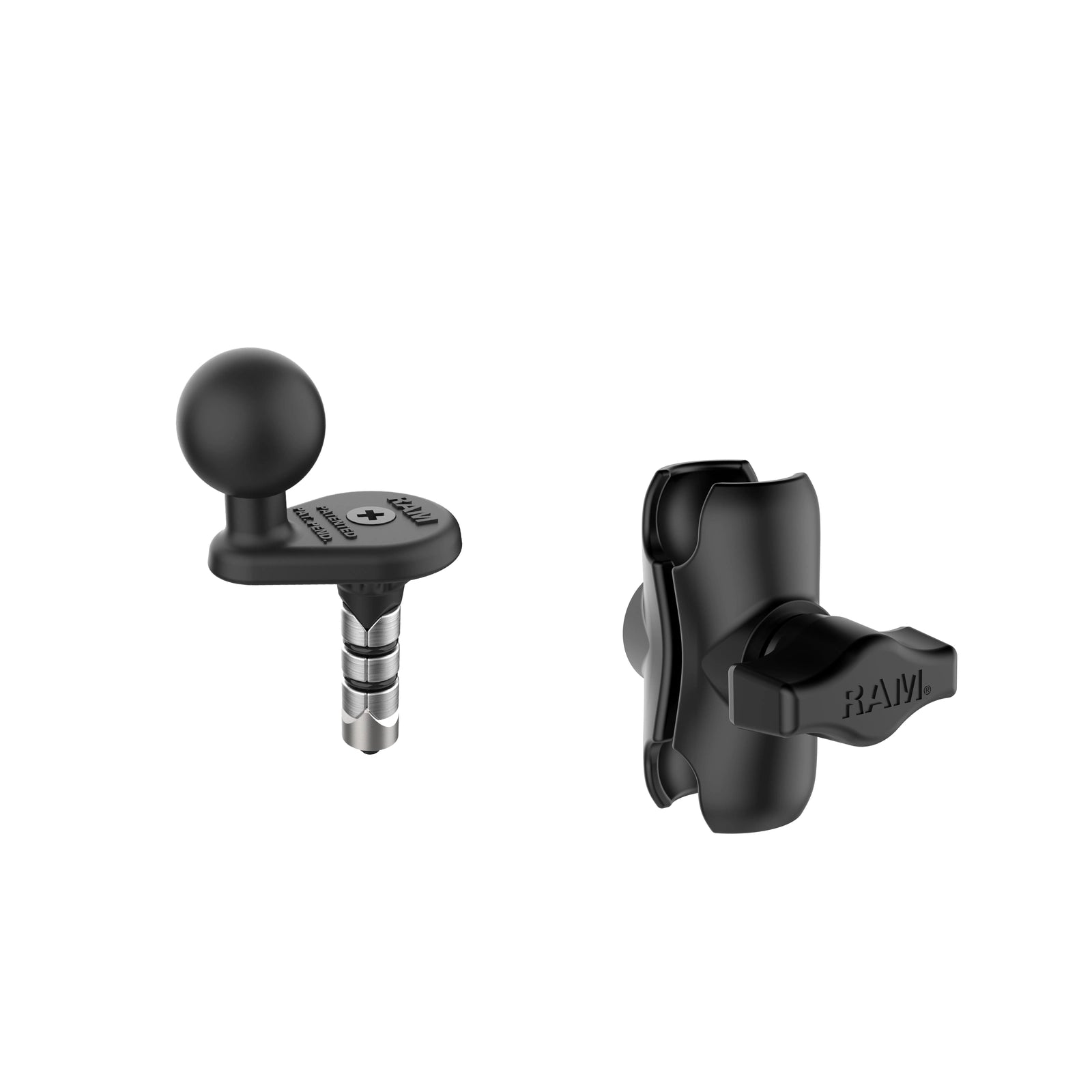

Included:

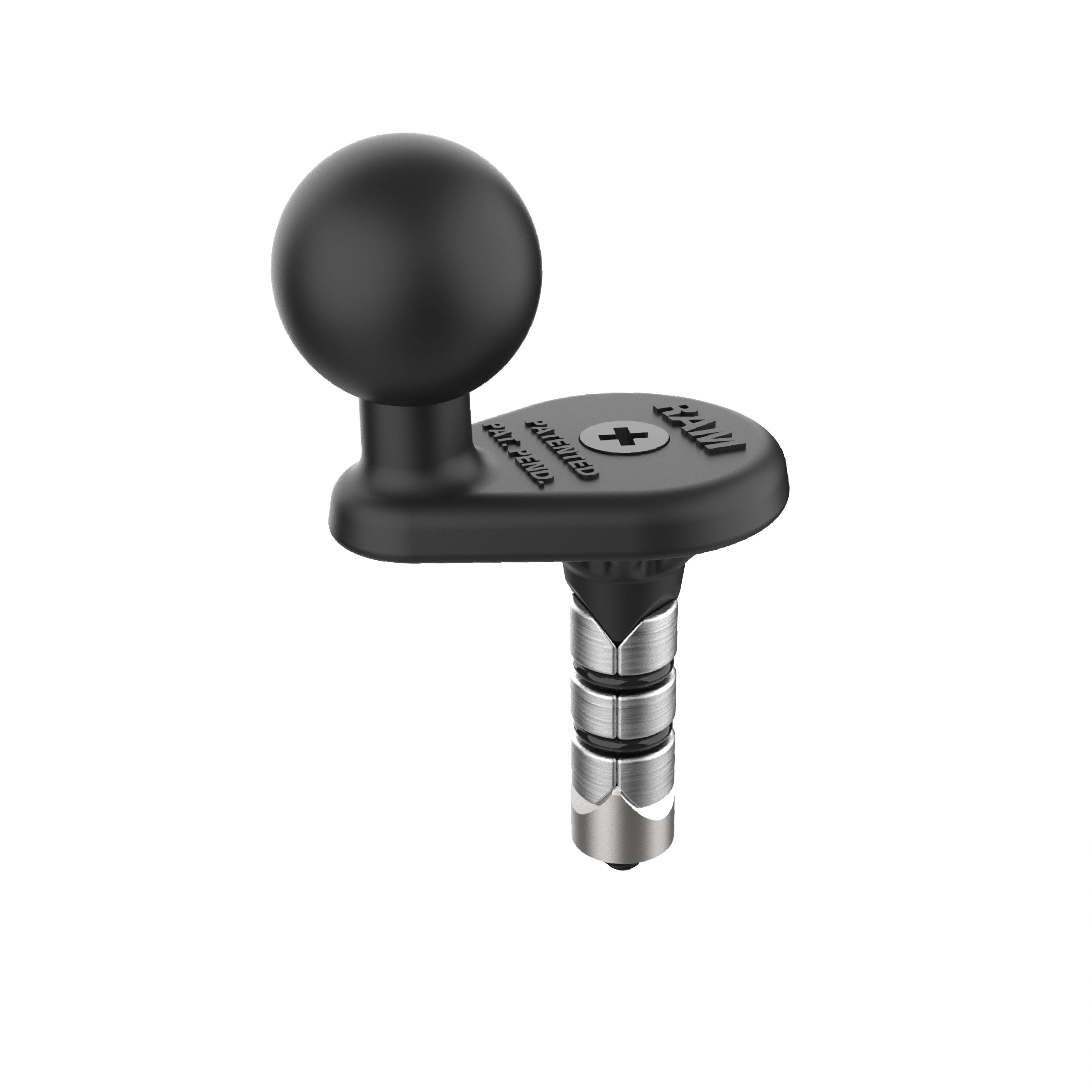

• 1 x RAM Small Motorcycle Fork Stem Wedge Ball Base (RAM-B-342W-1U)
• 1 x RAM Short Double Socket Arm B Size (RAM-B-201U-A)

The small wedge base expands against the cylindrical inner wall of a suitable hollow motorcycle fork stem. The included short B Size arm leaves an open socket for a matching ball-backed device holder.

Holder sold separately. The open upper socket accepts a holder with its own B Size ball. A flat-backed cradle needs a suitable B Size ball plate or adapter, selected to match its hole pattern, purchased separately.

Specifications

• Fork Stem Bore: 12–18.75 mm internal diameter, using the small wedge specified in RAM's installation guide
• Base Attachment: Expanding wedge, #10-24 screw and wedge nut
• Holder Connection: Open B Size socket for a holder with a 1" (25.4 mm) B Size ball
• Arm Length: 2.42" (61.5 mm) overall; 1.75" (44.5 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Powder-coated marine-grade aluminium

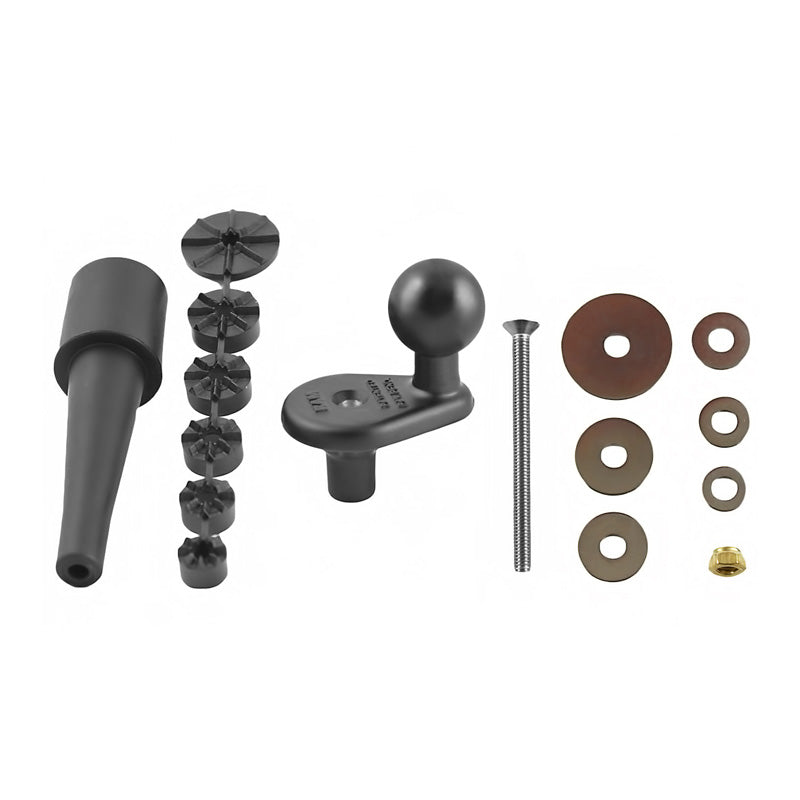

• Hardware Included:
  • 1 x small wedge assembly
  • 1 x #10-24 x 2" screw and 1 x #10-24 wedge nut

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Measure the inside bore, usable insertion depth and steering clearance before selecting this kit. Assemble and install the wedge as shown in RAM's guide. Recheck tightness after initial use and periodically because motorcycle vibration can loosen the base. This is not a universal motorcycle fit.

RAM component limited lifetime warranty.

No device holder or upper mounting plate is included.
