RAM Motorcycle Fork Stem Wedge Ball Base - 12-18mm Holes (RAM-B-342W-1U)

Included:

• 1 x RAM Motorcycle Fork Stem Wedge Ball Base - 12-18mm Holes (RAM-B-342W-1U)

The RAM Motorcycle Fork Stem Wedge Ball Base - 12-18mm Holes (RAM-B-342W-1U)

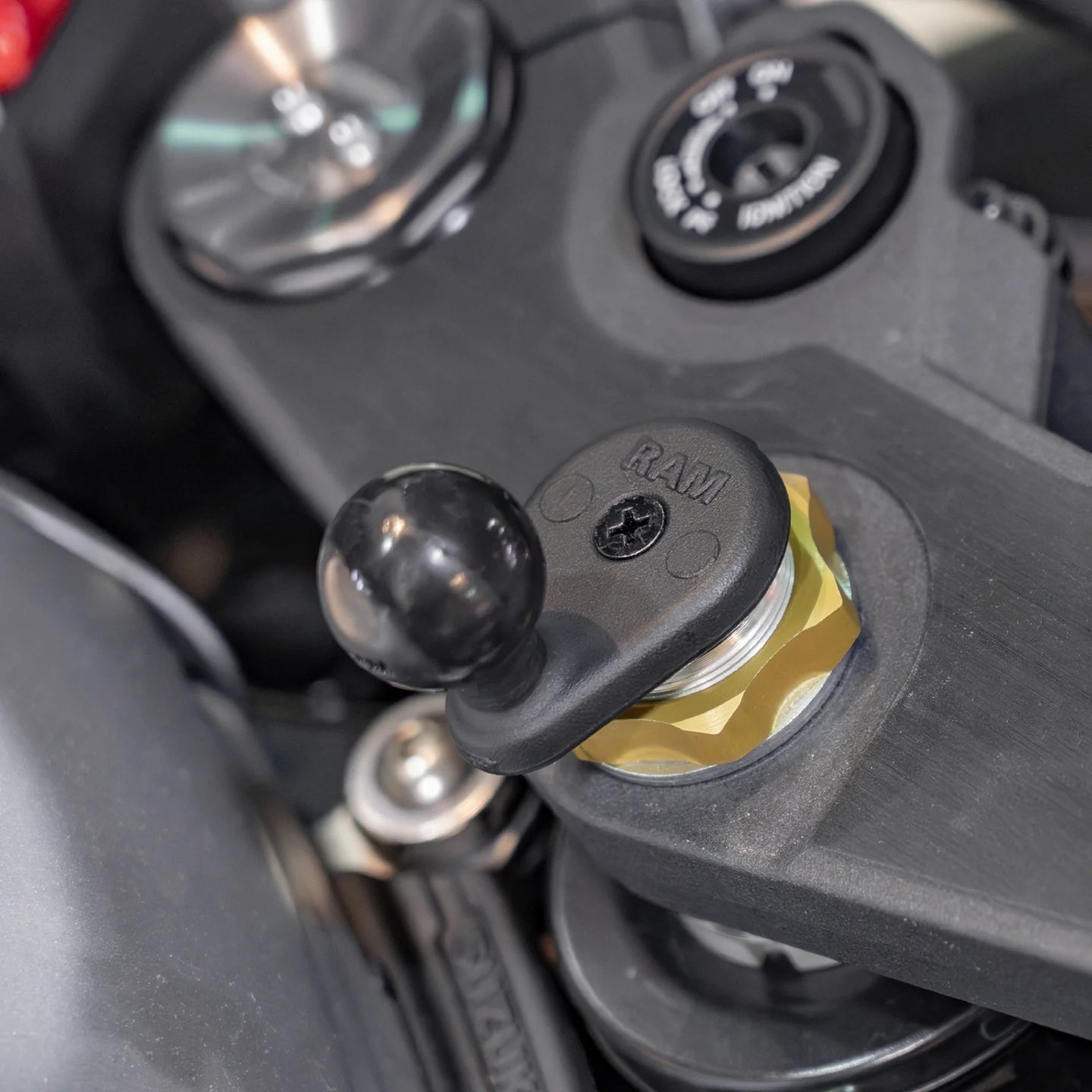

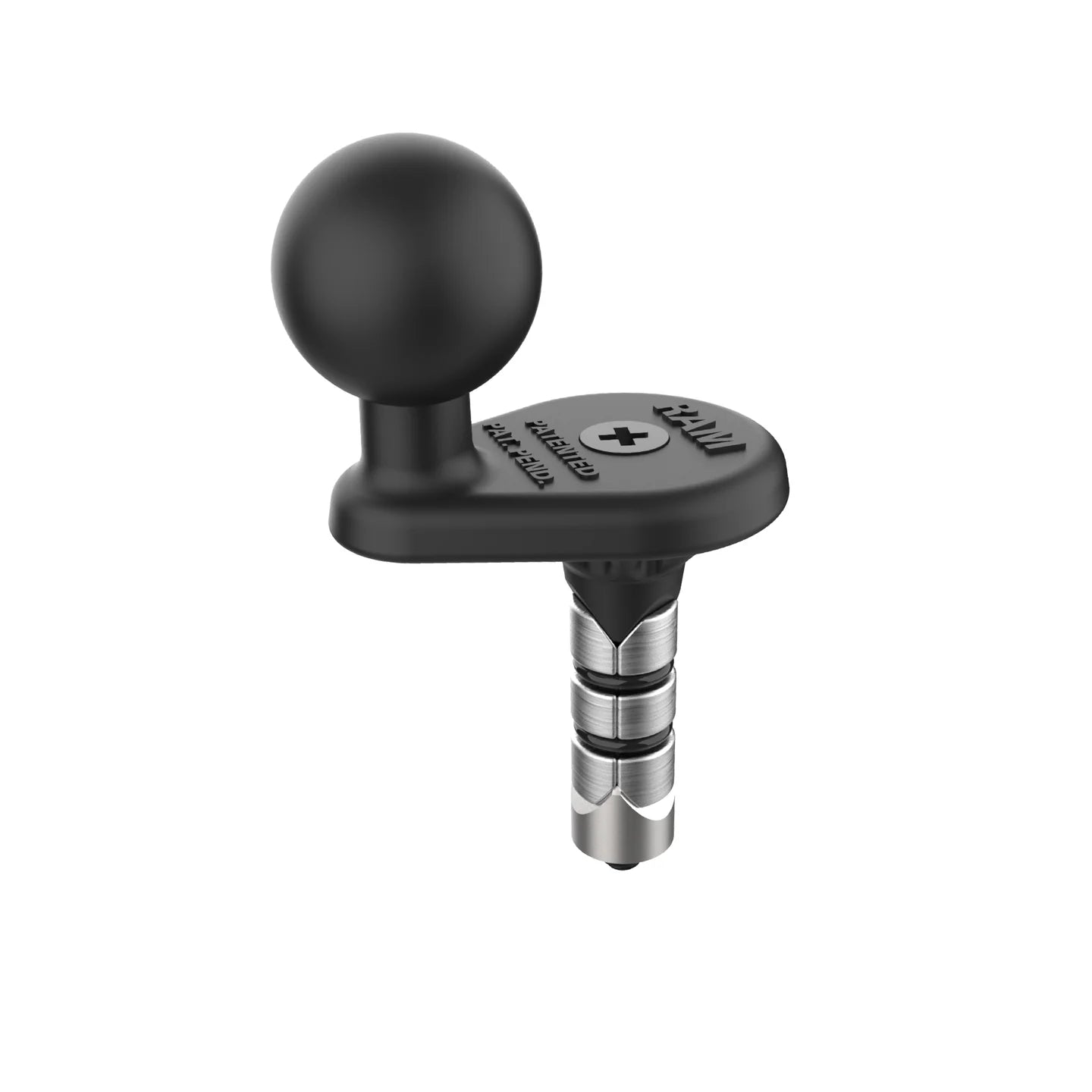

This low-profile motorcycle fork stem base is designed to attach directly to the cylindrical bore wall of motorcycle fork stems that measure from 12mm to 18.75mm in diameter.

Note: compatible with fork stem holes that measure from 12mm to 18.75mm in diameter.

The rubber ball design helps dampen vibration and shock, helping to protect your device while riding on rough terrain and at high speeds. The powder-coated marine-grade aluminium construction is built for durability and corrosion resistance in outdoor environments.

NOTE: Measure the inside diameter of your motorcycle fork stem hole before installation to confirm the correct wedge size. This product suits 12mm to 18.75mm fork stem holes.

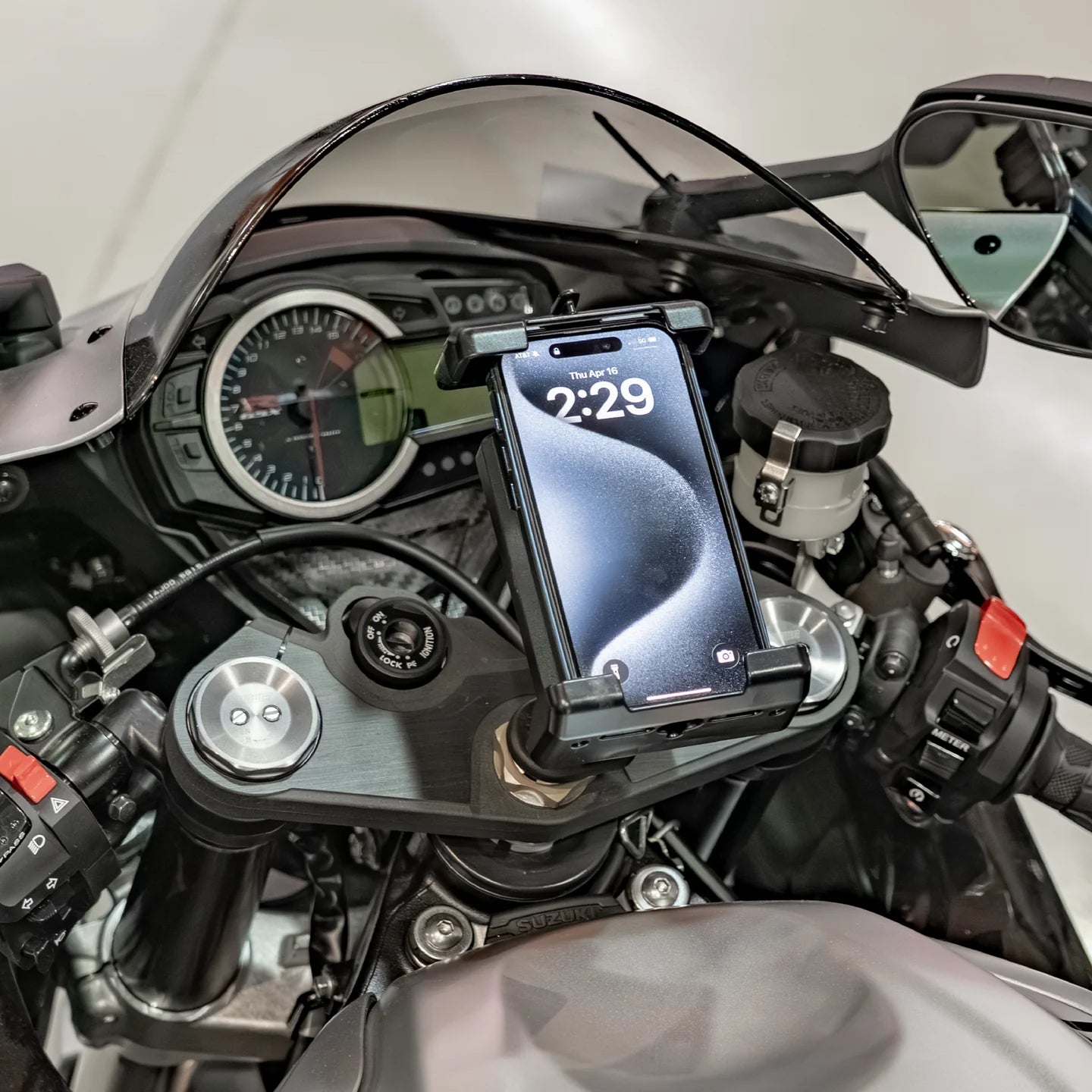

A B size 1" rubber ball is attached, allowing connection to any B-Size RAM double socket arm. From there, you can add a compatible RAM holder or cradle for phones, action cameras, GPS units and other light-duty devices.

RAM CRADLE/HOLDER and SOCKET ARM SOLD SEPARATELY

Features

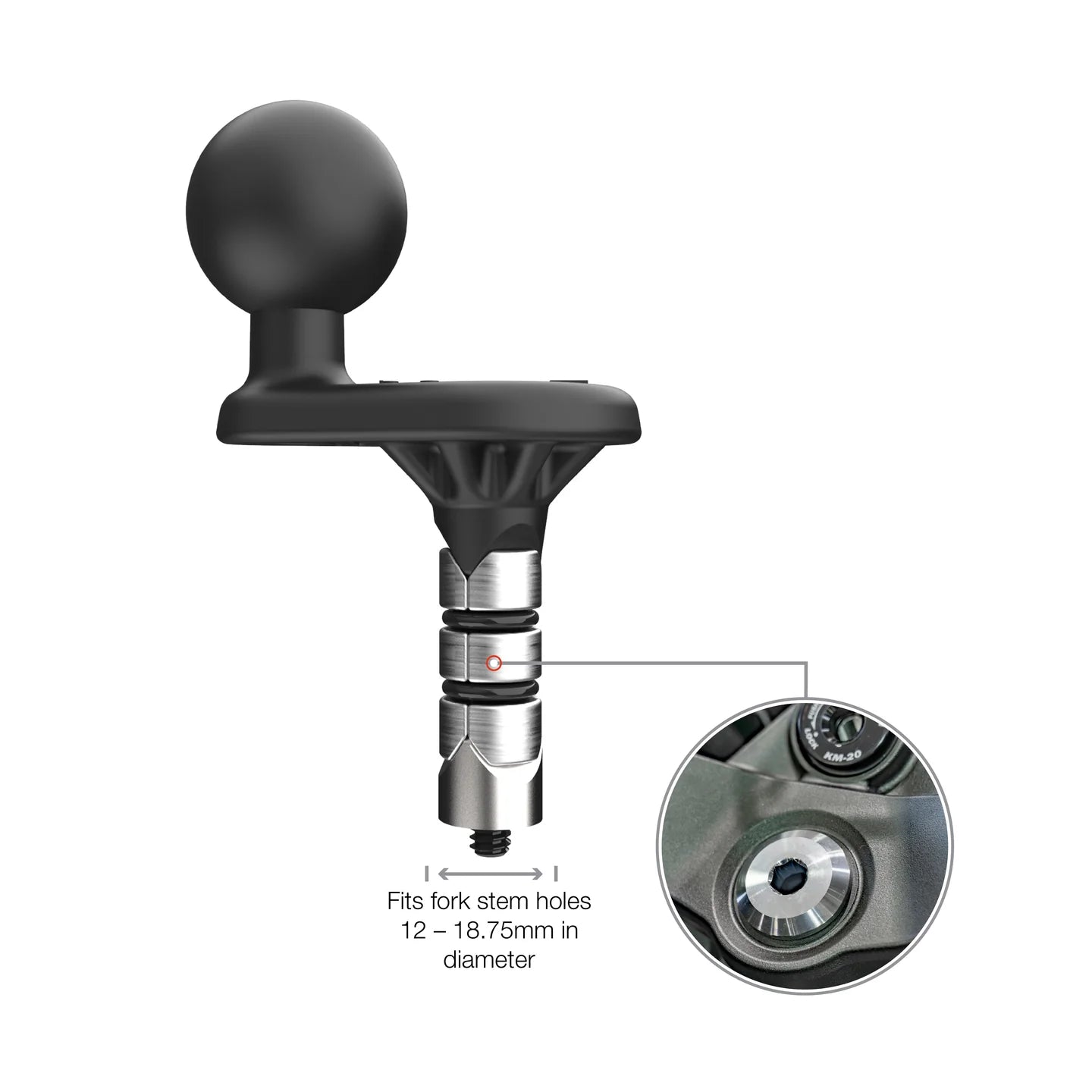

• Designed to fit into the cylindrical bore wall of fork stems 12-18.75mm in diameter
• Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm
• Ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium for durability and reliability in demanding environments
• Backed by a lifetime warranty

Specs

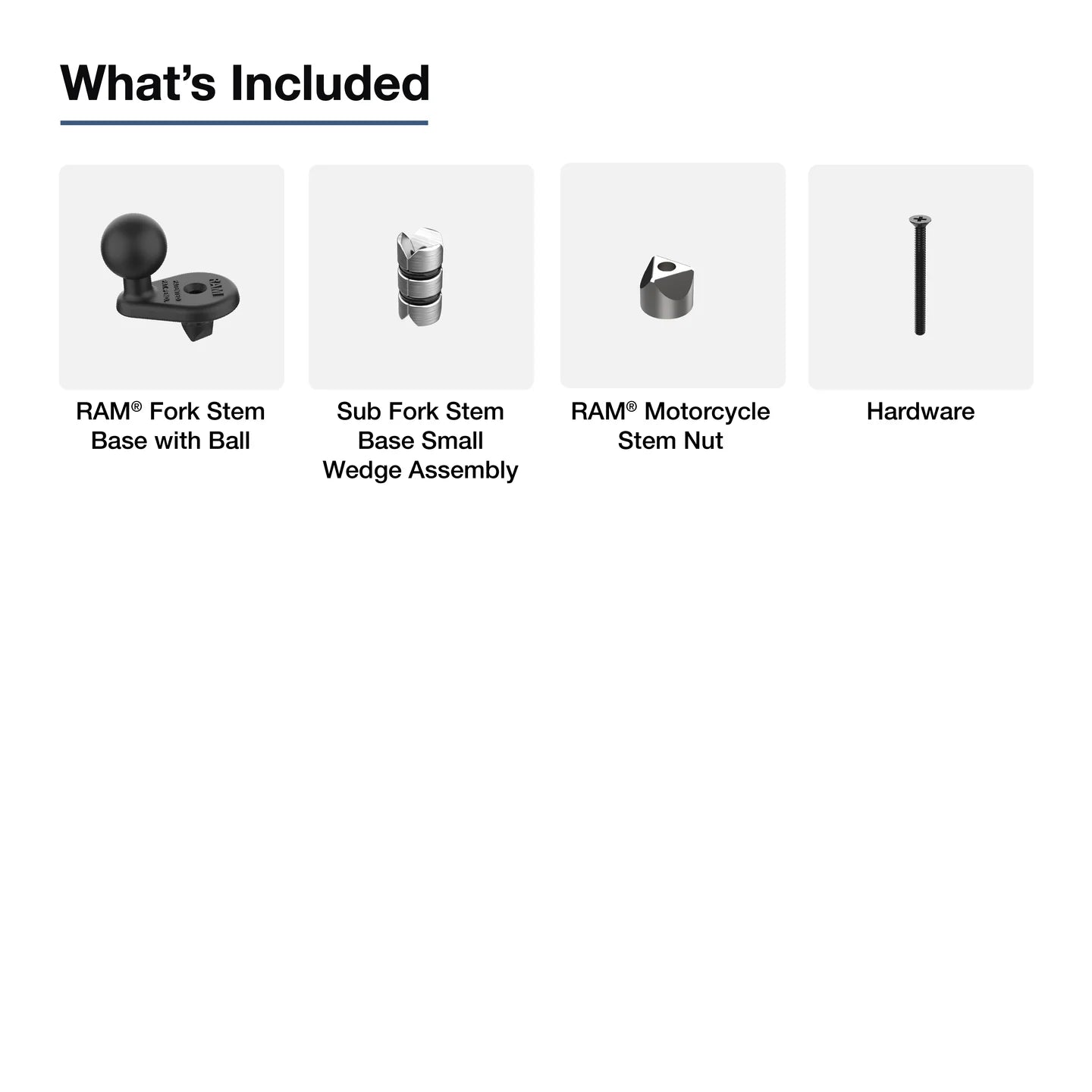

• Hardware Included:
  (1) Small Wedge Assembly, (1) #10-24 x 2" Screw, (1) #10-24 Wedge Nut
• Wedge Dimensions: 12-18mm
• Ball Size: B Size 1" Rubber Ball
• Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
• Material: Marine-grade aluminium
• Packaging Type: Poly Bag
• Weight: 0.28 lb
• UPC: 793442033421

Help

• RAM Motorcycle Fork Stem Wedge Ball Base Installation Instructions (PDF)

NOTE: Periodically check the fitment of the base connection after installation. Motorcycle vibration may cause loosening during initial use, and further tightening may be required.

Compatibility

Fork Stem Hole Size: 12mm to 18.75mm

If your motorcycle fork stem hole measures between 12mm and 18.75mm in diameter, this wedge base is designed to fit. If your stem hole is larger, choose a different size from the RAM fork stem wedge base range.

Compatible RAM Components:

• B size RAM double socket arms (ie. RAM-B-201U or RAM-B-201U-A)
• Compatible RAM holders and cradles for phones, action cameras, GPS units and other light-duty devices
