RAM-B-217U

RAM 1" Double Ball Adapter w Round Base (RAM-B-217U)

Name: RAM 1" Double Ball Adapter w Round Base (RAM-B-217U)
Brand: Modest Mounts
SKU: RAM-B-217U
Price: 72.0 AUD
Availability: InStock

Size Guide

$72.00 You Save 15% ( $13.00 ) You Save 15% ( $13.00 )

Included:

1 x RAM 1" Double Ball Adapter w Round Base (RAM-B-217U)

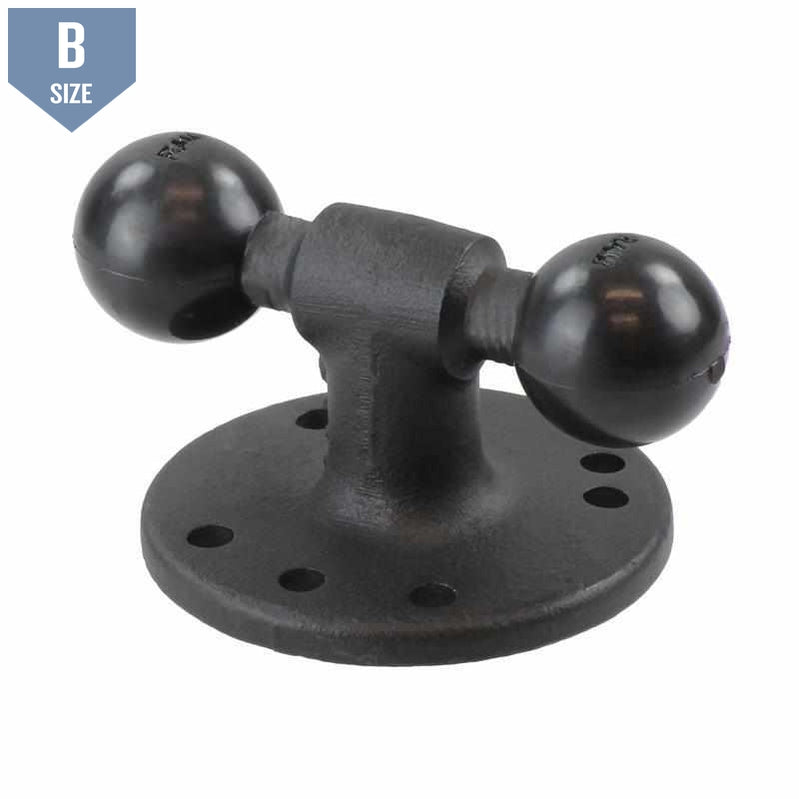

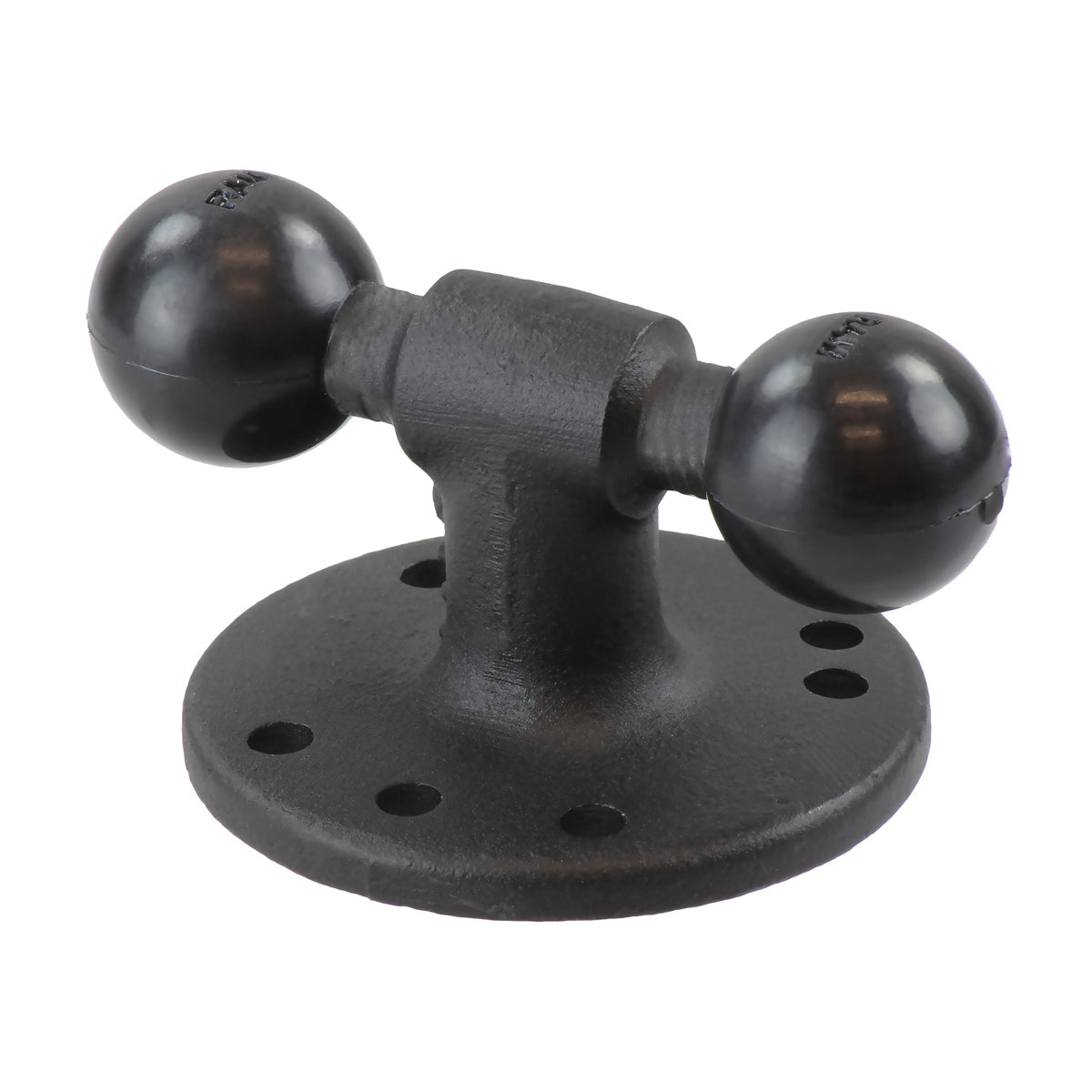

The RAM-B-217U consists of two 1" diameter rubber balls connected to a post and 2.5" diameter round base.

The round base has pre-drilled holes, including the universal AMPs hole pattern and 3-hole 120 degree pattern. The 1" balls measure centre to centre 2.5" apart.

FEATURES:

2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern

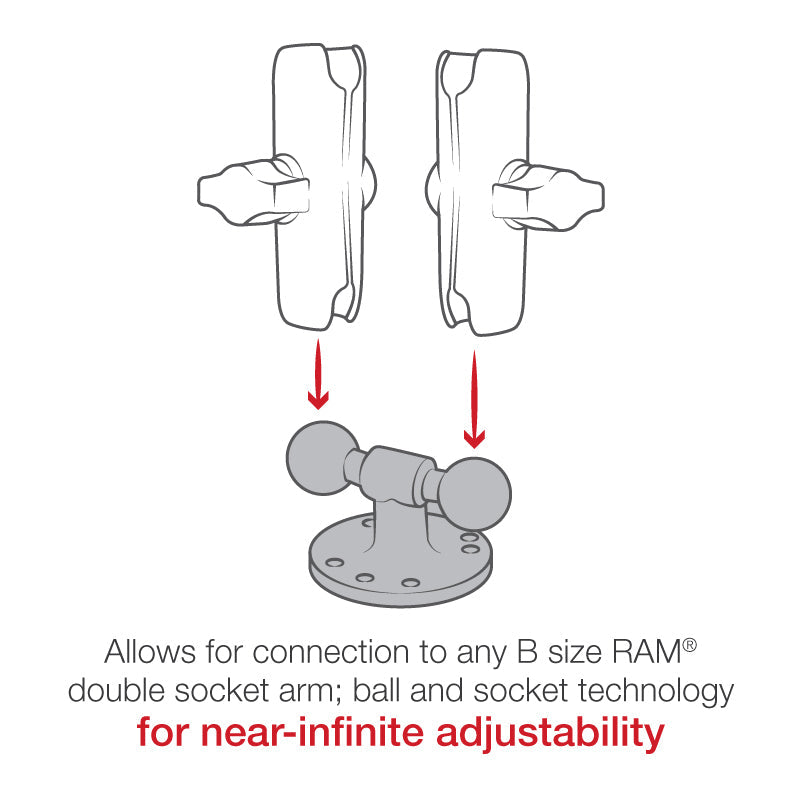

Two B size 1" RAM® rubber balls allow for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Specifications:

Material: Powder Coated Marine Grade Aluminium
Ball Size: 1" B Size Rubber Ball
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Lifetime Warranty

Note: The "U" in the part number reflects product packaged in poly bag.

Collections: All, B Size Components 1", Best Selling Products, Newest Products, RAM Components

Customer Reviews

5.0 Based on 1 Reviews

5 ★

100%

4 ★

3 ★

2 ★

1 ★

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

11/26/2022

Peter S.

Australia

1” Double Ball Adapter with Round Base.

Speaking as a “kayak fishing tragic” I find this adapter to be great option for mounting “take down” sounders, gps, communications and action cameras on my craft without adding the extra weight of a second base. Thank you RAM.

RAM 1" Double Ball Adapter w Round Base (RAM-B-217U)

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
