How To: Install a RAM® Powered Dashboard Mount with Hardwire Charger

This video gives a general overview of installing a RAM® powered dashboard mount with a hardwire charger, including wiring, dashboard mounting and powered dock setup.

What this video covers

This video explains the general installation process for a RAM® powered dashboard mount with a hardwire charger. It covers both the electrical side of the install and the physical mounting steps needed to secure a powered dock in a vehicle cab.

The guide shows how the hardwire charger connects to an ignition-switched fuse and chassis ground, then how the dash panels are removed, the mounting location is selected, and the ball base is secured using a backing plate and supplied hardware.

It also shows how the socket arm and powered tablet dock are attached, how the USB-C power connection is routed, and how an optional cable clamp can help keep the connection secure. This type of setup is suited to field workers and commercial vehicle use where a powered tablet mount is needed.

Use the related products and collections below to find compatible RAM® Mounts parts available from Modest Mounts in Australia.

Related products

RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)
RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)
 RAM GDS Modular 10-30V Charger Cable with Male USB Type-C (RAM-GDS-CHARGE-V7CU)
RAM GDS Modular 10-30V Charger Cable with Male USB Type-C (RAM-GDS-CHARGE-V7CU)
 RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 Pro & 4 Pro (RAM-101-225B2-SAM52CP-V7CU)
RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 Pro & 4 Pro (RAM-101-225B2-SAM52CP-V7CU)

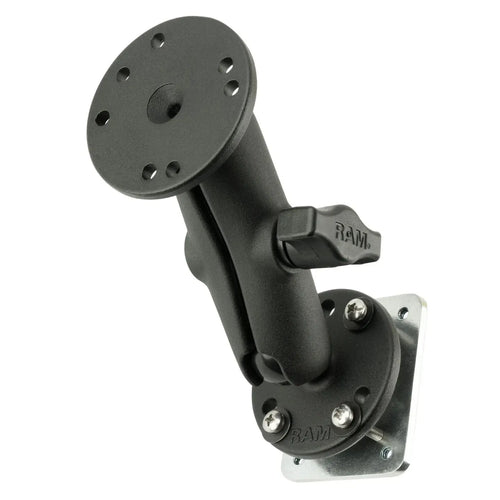

 RAM Double Ball Mount B Size with Backing Plate (RAM-B-101U-225B2)
